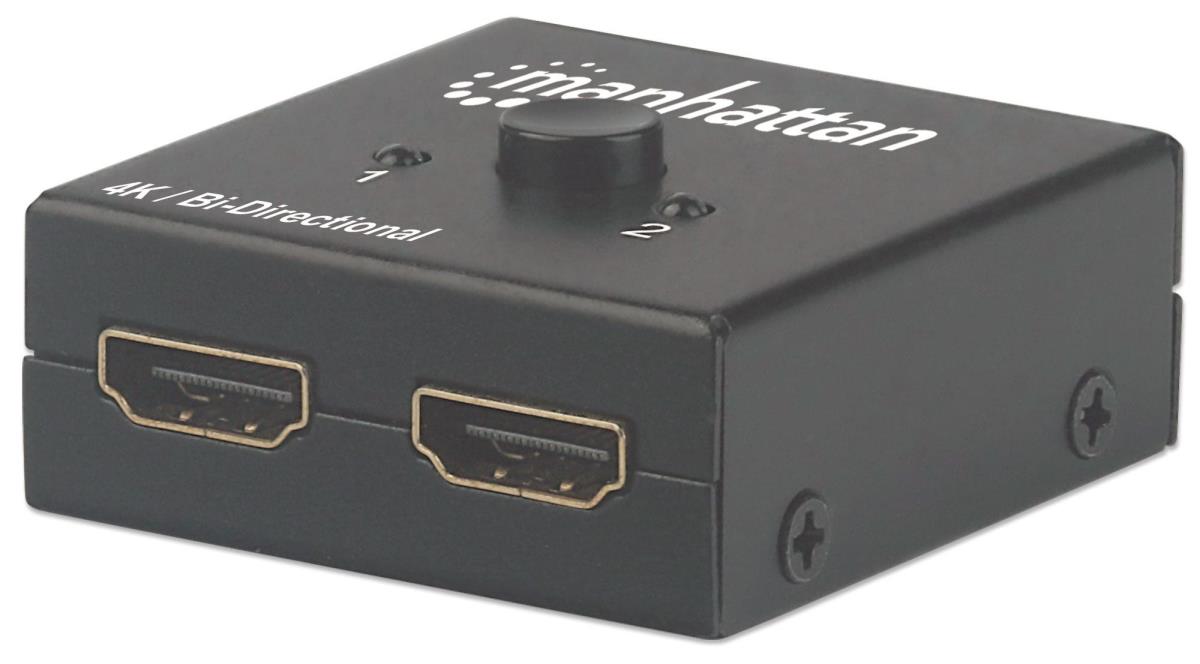

HDMI 4k Bi-directional 2 Port Splitter/switch
Introduction
Easily share a single Ultra-High-Definition (UHD) signal over two displays or switchbetween two sources on one display.
The Manhattan 4K Bi-Directional 2-Port HDMI Splitter Switch with built-in booster makes itpossible to share a 4K HDMI signal from a single UHD source on one of two UHD displaysor to connect two UHD sources and switch between them on one UHD display.
Features
- Splits an Ultra-High-Definition (UHD) digital audio/video signal to one of two UHD HDMI displays or allows switching between two sources at one display
- 4K@30Hz resolution, full 3D video and Deep Color
- Convenient push button to quickly select display(s) in splitter function or source in switch function
Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays - Supports 36-bit Deep Color (12-bits per channel) and sYCC Color Space
- Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
- HDCP compliant
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers; also works to capture gameplay on screen
- Plug and play
- Gold-plated contacts for corrosion-free connections
Specifications
- Connectors: one HDMI female (input/output), four HDMI female (output/input)
- Supports up to 10.2 Gbps and 4096x2160 at 24 Hz resolution (maximum single link)
- HDCP 1.4 compliant
- Color : Black
- Power and port connection LED indicators
- Dimensions: 49 x 52 x 20 mm (1.9 x 2.1 x 0.8 in.)
- Weight: 0.1 kg (0.7 lb.)
