Introduction
The ComNet CopperLine® Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units may be powered by a PoE switch or the included power supply. Four, eight, and sixteen channel units operate from local power. These units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.
Application
- Retrofit existing analog CCTV installations to Ethernetbased systems
- CCTV systems for casinos, airports, school campuses
Features
- Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
- Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
- Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
- Extended temperature operation from -40°C to +75°C
- Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast and Jumbo Frame
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
- User-selectable data rate for maximum bandwidth and transmission distance utilization
- Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of
- NEMA TS-1/TS-2 and the Caltrans Specification for Traffic
- Signal Control Equipment.
- Designed and manufactured in the USA
- LED status indicators confirm operating status
- Available in small-size, ComFit interchangeable stand
- alone or 1RU high rack mounted models
Specifications
- Ethernet
- Data Interface
- 10/100BaseT(X) Ethernet
- Data Rate
- DIP-switch selectable 10/100Mbps
- Full data rate / full duplex up to the maximum rated distance
- RFC
- 2544 TCP/IP Packet Transmission
- Standards
- IEEE 802.3af PoE, RFC: 768 UDP, 2068 HTTP, 793 TCP, 791 IP, 1783 TFTP, 894 IP over Ethernet.
- Connectors
- Ethernet RJ-45
- Extended Distance
- Coaxial (C): female BNC
- Ethernet (U): RJ-45
- Operating Power Powered by PoE or 2-pin screw terminal for local power
- Power
- Pass-Through Mode
- 1 CH: Operates on PoE power or optional 9 to 36 VDC or 24 VAC, 1.5 W
- 4 CH: 9 to 15 VDC, 5W
- 8 CH: 9 to 15 VDC, 10W
- 16 CH: 9 to 15 VDC, 20W
- Current Protection
- Automatic Resettable Solid-State Current Limiters
- Mechanical
- LED Indicators
- Operating Power
- Ethernet Link/Activity
- Extended Link/Activity
- Circuit Board
- Meets IPC Standard
- Size (L×W×H)
- 1 CH: 3.3 × 2.5 × 1.1 in (8.4 × 6.4 × 2.8 cm)
- 4 CH: 6.1 × 5.3 × 1.1 in (15.5 × 13.5 × 2.8 cm)
- 8+ CH: 6.1 × 19 × 1.75 in (15.5 × 48.26 × 4.45 cm)
- Number of Rack Slots
- 1 (4CH Version Only)
- Shipping Weight
- 1 CH: <1 lbs./0.5 kg
- 4 CH: <2 lbs./0.9 kg
- 8+ CH: <5 lbs./2.3 kg
- Environmental
- MTBF >100,000 hours
- Operating Temp
- – 40° C to +75° C
- UL Safety certifications conducted at maximum ambient temperatures (Tma) of 65ºC.
- Storage Temp – 40° C to +80° C
- Relative Humidity 0% to 95% (non-condensing)²
Characteristics

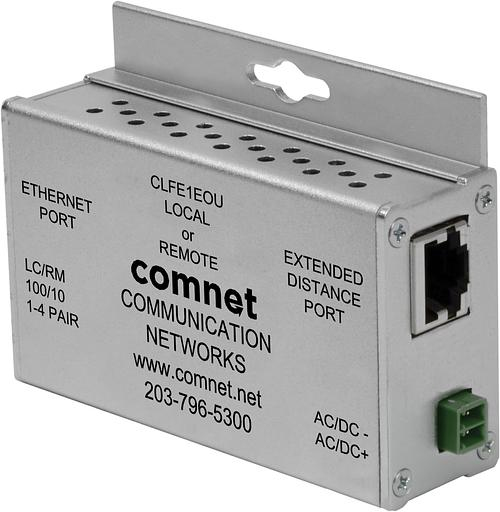

- Part Number CLFE1EOU
- Description 1 Port Ethernet-over-UTP Extender
- Position Local/Remote Configurable
- Channels 1
- Form Factor Small Size
- Cable UTP
