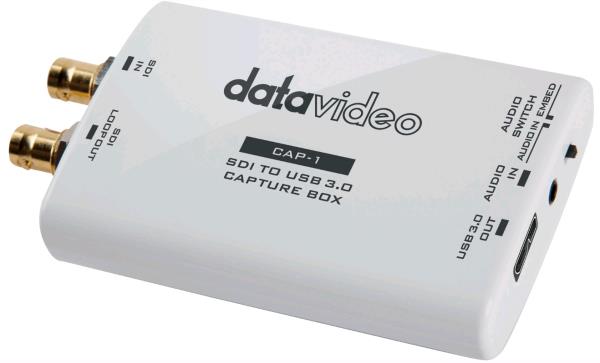

DataVideo CAP-1
Introduction
DataVideo CAP-1 1920 x 1080 pixels
Features
- CAP-1 SDI to USB 3.0 Capture Box : Datavideo believes in sharing our innovative value with our customers. We are also inspired by several decades of industrial experience, and we believe that technological and vocational education is essential to have sustainable development for the industry. Thus, Datavideo Academy was established. Datavideo Academy is a comprehensive learning platform, which includes education
- DI to USB 3.0 Capture Box :This new capture device takes 3G-SDI in with embedded or external audio and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing.
The USB compliant CAP-1 is ideal to use with any SDI equipped camera or switcher and it’s plug-n-play design requires no drivers to install. Stream from your SDI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting. - USB 3.0 Interface : No external power is needed. Power source from USB connection.
- Plug-and-Play : Support UVC. Operations with video format (resolution and frame rate) auto-detection capability. Scalable video resolution. Connect to video conference platform
- Compatible with Various Operating Systems : - Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
- Linux: VLC, OBS
- Mac OS X: OBS, Quicktime player, VLC, Facetime
- Stereo Line in External Audio
SDI Loop-out for monitoring or recording the video source.
Switched as SDI embedded audio or external Mini-Jack audio.
Specifications
| Features | |
|---|---|
| Plug and Play | Yes |
| Compatible products | Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us Linux: VLC, OBS Mac OS X: OBS, Quicktime player, VLC, Facetime |
| Product colour | White |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 Enterprise x64, Windows 8.1 |
| Mac operating systems supported | Yes |
| Video | |
| Bandwidth | 150 MHz |
| Maximum video resolution | 1920 x 1080 pixels |
| Supported video modes | 720p, 1080i, 1080p |
| Bandwidth | 350 Gbit/s |
| Video resolutions | 1280 x 720,1920 x 1080 pixels |
| Audio | |
| Audio output channels | 2.0 channels |
| Ports & interfaces | |
| 3.5 mm connector | Yes |
| Output interface | Micro-USB B |
| Host interface | SDI |
| Power | |
| Power consumption (typical) | 3 W |
| USB powered | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 121 mm |
| Depth | 68 mm |
| Height | 23 mm |
| Weight | 92 g |
