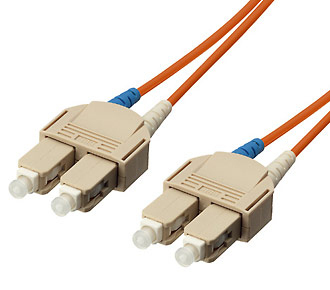

EU Product - Patchkabel SC->SC 3.00m Multimode Duplex OM1 orange Polybeutel
Introduction
The equip®Fiber Optic Patch Cord is made of superior materials to ensure an insertion loss, return loss, and endface geometry connection. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 3 m |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Connector(s) | SC/SC |
| Insertion loss | 0.5 dB |
| Compliance certificates | REACH, RoHS |
| Features | |
| Fibre optic type | OM1 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 3 m |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Insertion loss | 0.5 dB |
| Harmonized System (HS) code | 85447000 |
| Product colour | Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Cable length | 3 m |
| Package weight | 0 g |
| Packaging data | |
| Package weight | 0 g |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
| Other features | |
| Connector(s) | SC/SC |
| Core / cladding diameter | 62.5/125 µm |
