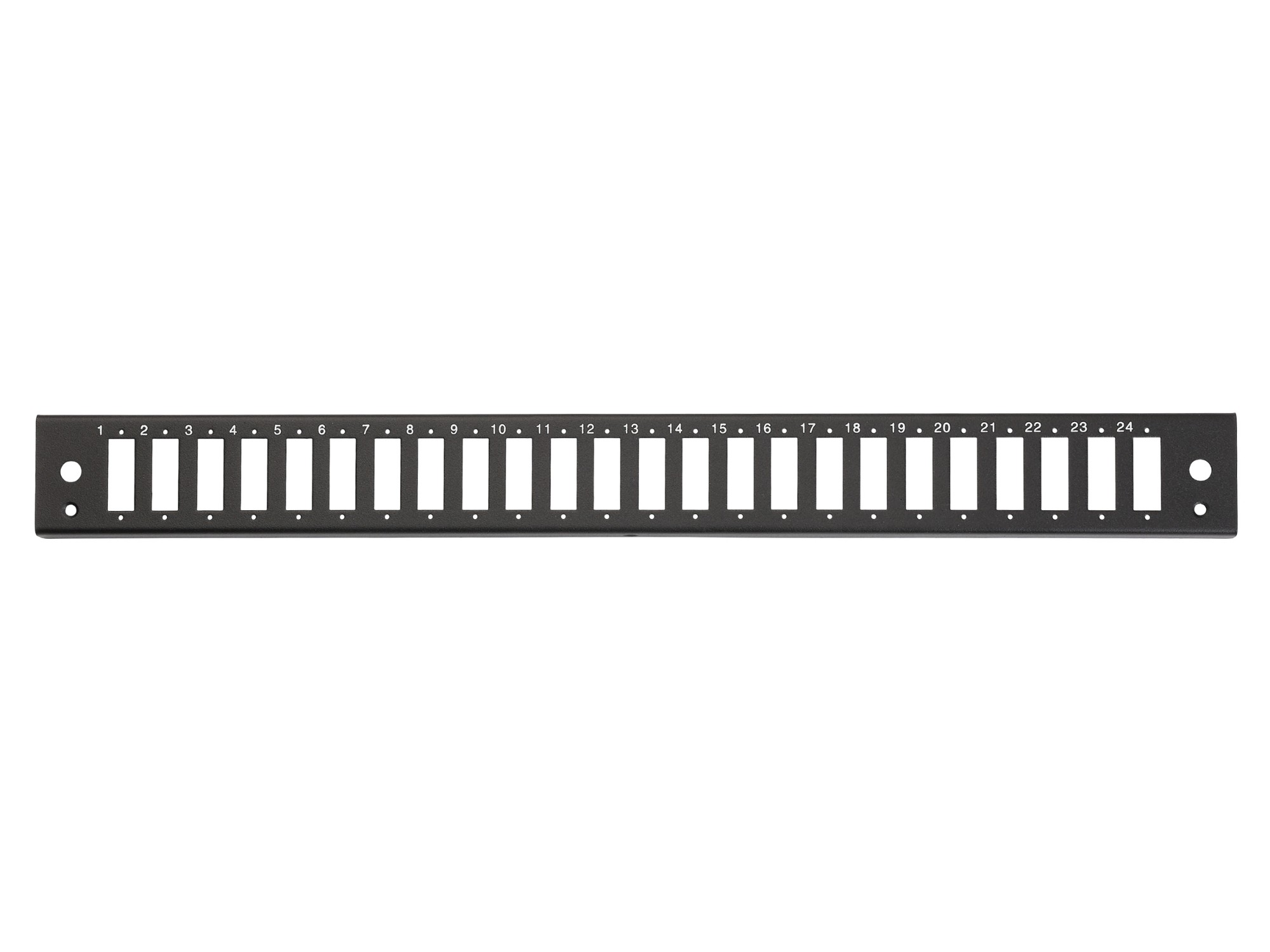

EU Product - 19" Patchpanel 24xSC-Duplex 1U Stahl sw
Introduction
The equip® 337102 is a 24-port 1U fiber optic front panel for flexible, high-density connectivity in fiber enclosures and patch panels. It supports SC-Duplex coupler configurations for single-mode and multimode applications.
The modular design drops into existing fiber enclosures or splice boxes, and clearly labeled ports keep cabling organized for faster installation, troubleshooting, and maintenance in data centers, telecom rooms, and enterprise networks.
Built from sturdy steel and finished in black (RAL 9005) for a clean, durable rack appearance.
Specifications
| Features | |
|---|---|
| Mounting | Rack mounting |
| Ports quantity | 24 |
| Material | Steel |
| Product colour | Black |
| Cable type | Fiber |
| Cable connection | 24 x SC |
| Rack capacity | 1U |
| Weight & dimensions | |
| Width | 433 mm |
| Depth | 11 mm |
| Height | 44 mm |
| Weight | 160 g |
| Packaging data | |
| Package width | 450 mm |
| Package depth | 25 mm |
| Package height | 50 mm |
| Package weight | 260 g |
| Technical details | |
| Mounting | Rack mounting |
| Ports quantity | 24 |
| Material | Steel |
| Product colour | Black |
| Cable type | Fiber |
| Cable connection | 24 x SC |
| Rack capacity | 1U |
| Compliance certificates | RoHS |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 495 mm |
| Master (outer) case gross weight | 14 kg |
| Master (outer) case length | 265 mm |
| Master (outer) case height | 250 mm |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 495 mm |
| Master (outer) case gross weight | 14 kg |
| Master (outer) case length | 265 mm |
| Master (outer) case height | 250 mm |
| Customs product code (TARIC) | 8517790000 |
