EU Product - 19" Patchpanel 24xSC-Duplex 1U Stahl gr
Introduction

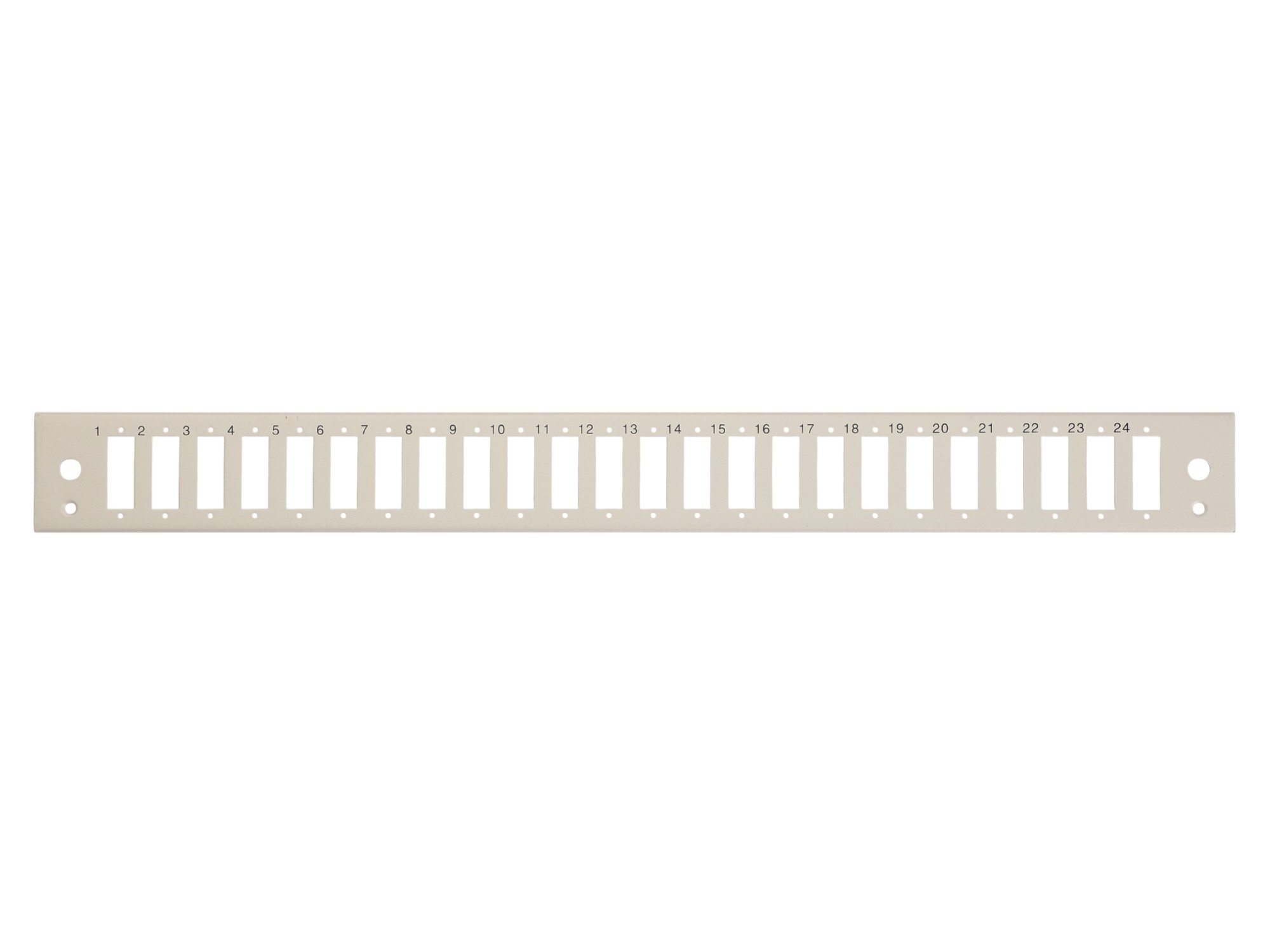

The equip® 337103 is a 24-port 1U fiber optic front panel for flexible, high-density connectivity in fiber enclosures and patch panels. It supports SC-Duplex coupler configurations for single-mode and multimode applications.
The modular design drops into existing fiber enclosures or splice boxes, and clearly labeled ports keep cabling organized for faster installation, troubleshooting, and maintenance in data centers, telecom rooms, and enterprise networks.
Built from sturdy steel and finished in grey (RAL 7035) for a clean, durable rack appearance.
Specifications
| Features | |
|---|---|
| Mounting | Rack mounting |
| Ports quantity | 24 |
| Material | Steel |
| Product colour | Grey |
| Cable type | Fiber |
| Cable connection | 24 x SC |
| Rack capacity | 1U |
| Weight & dimensions | |
| Width | 429 mm |
| Depth | 12 mm |
| Height | 43.5 mm |
| Weight | 172 g |
| Packaging data | |
| Package width | 490 mm |
| Package depth | 20 mm |
| Package height | 50 mm |
| Package weight | 233 g |
| Technical details | |
| Mounting | Rack mounting |
| Ports quantity | 24 |
| Material | Steel |
| Product colour | Grey |
| Cable type | Fiber |
| Cable connection | 24 x SC |
| Rack capacity | 1U |
| Compliance certificates | RoHS |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 510 mm |
| Master (outer) case gross weight | 12.3 kg |
| Master (outer) case length | 220 mm |
| Master (outer) case height | 280 mm |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 510 mm |
| Master (outer) case gross weight | 12.3 kg |
| Master (outer) case length | 220 mm |
| Master (outer) case height | 280 mm |
| Customs product code (TARIC) | 8517790000 |
