EU Product - LWL-Spleißkassette 2*12 Halter/Try/Deckel/2xKernhalter
Introduction

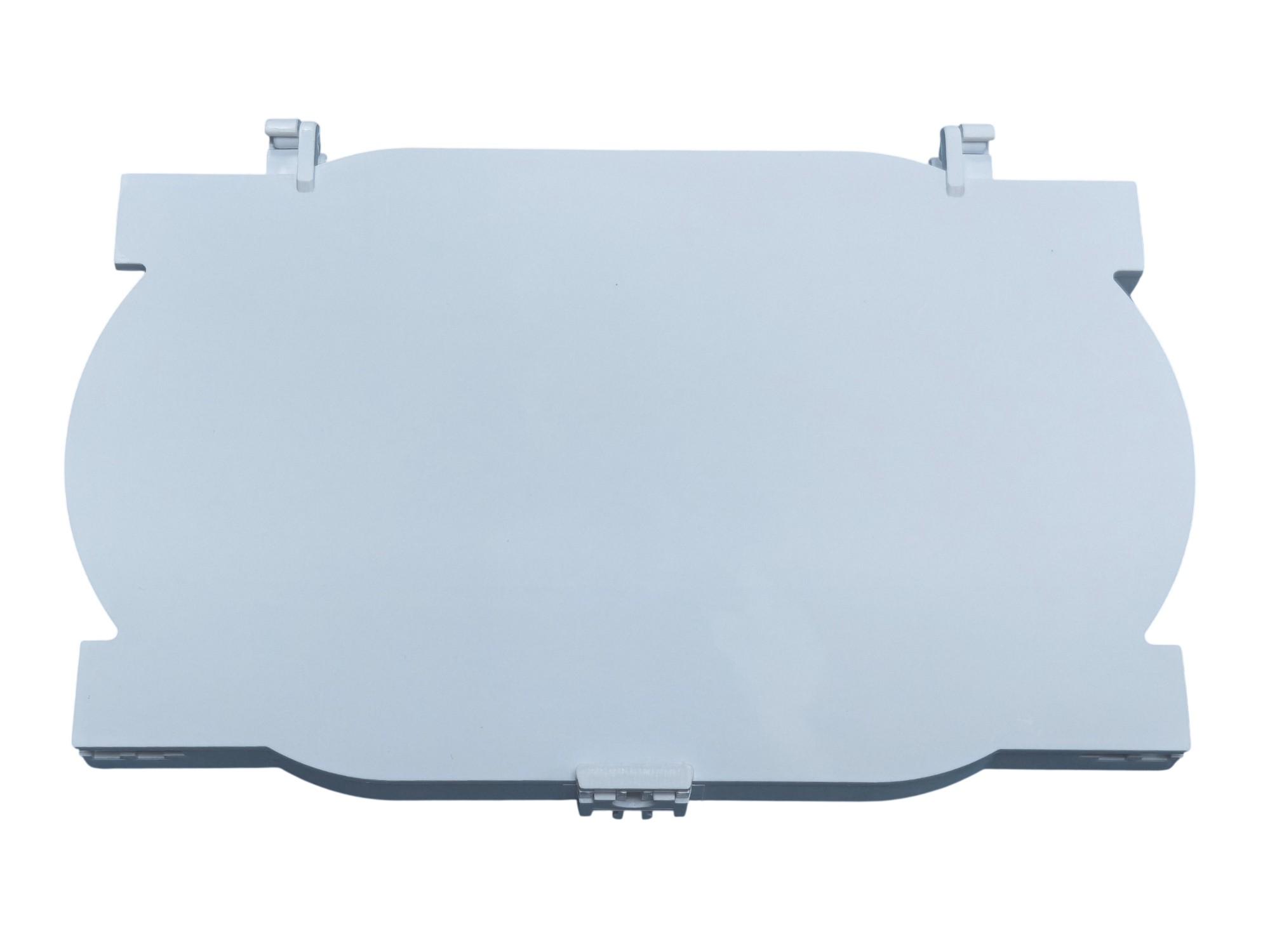

The equip® 337130 is a fiber optic splice cassette that organizes and protects up to 24 fiber splices within splice boxes and distribution systems. It suits single-mode and multimode use in data centers, telecom networks, and enterprise environments.
A protective cover shields spliced fibers from dust, bending, and damage, while the structured layout maintains proper bend radius and routing to preserve signal integrity.
It fits standard 19" patch panels and fiber distribution boxes and includes a tray, lid, and two 12-core holders; 150 × 95 × 11 mm; white.
Specifications
| Features | |
|---|---|
| Maximum splice capacity | 24 pc(s) |
| Housing colour | White |
| Housing material | Plastic |
| Suitable for indoor use | Yes |
| Quantity per pack | 1 pc(s) |
| Compatible products | Equip 337xxx, 337111/337112 |
| Technical details | |
| Compliance certificates | RoHS |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 110 mm |
| Package height | 20 mm |
| Package weight | 62 g |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 125 pc(s) |
| Master (outer) case width | 520 mm |
| Master (outer) case gross weight | 8.5 kg |
| Master (outer) case length | 295 mm |
| Master (outer) case height | 295 mm |
| Country of origin | China |
| Customs product code (TARIC) | 8517790000 |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 95 mm |
| Height | 11 mm |
| Weight | 60 g |
| Package width | 170 mm |
| Package depth | 110 mm |
| Package height | 20 mm |
| Package weight | 62 g |
