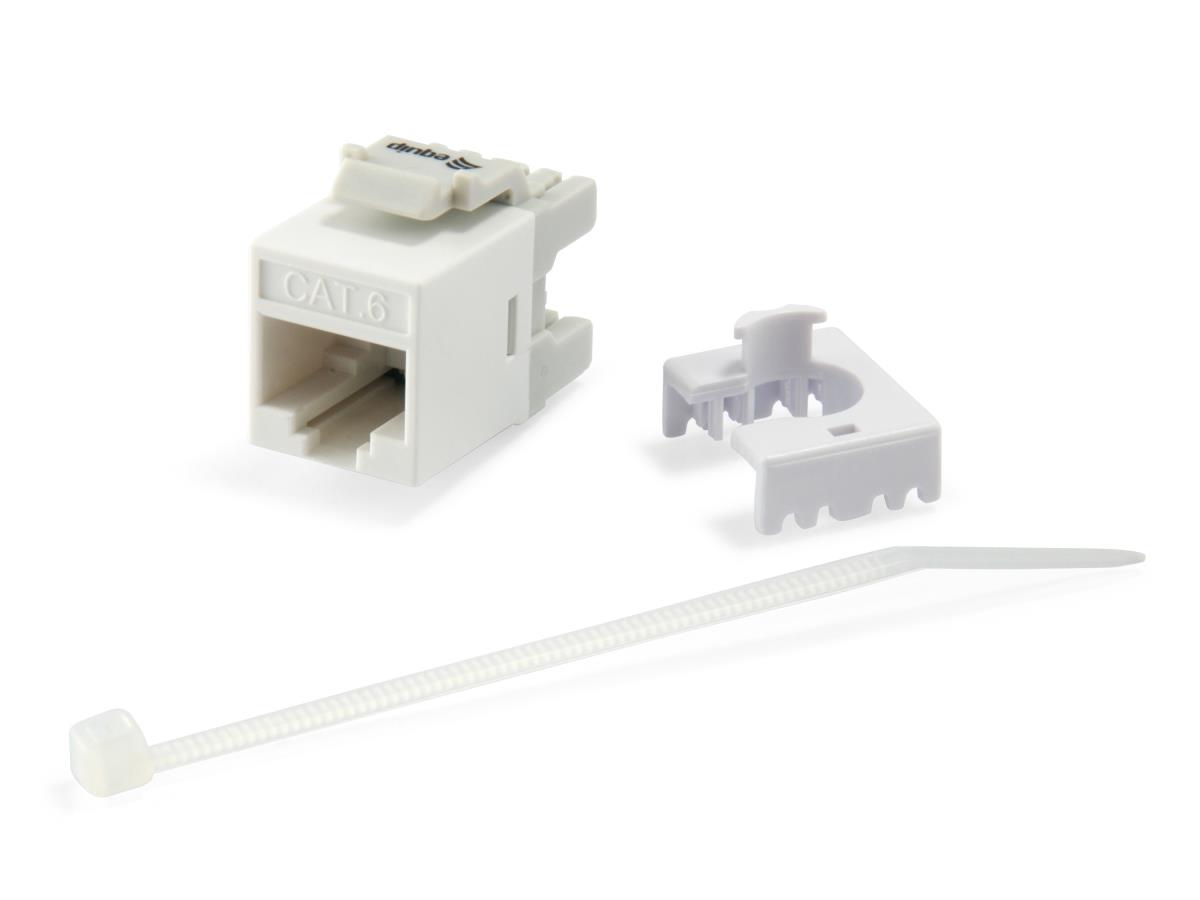

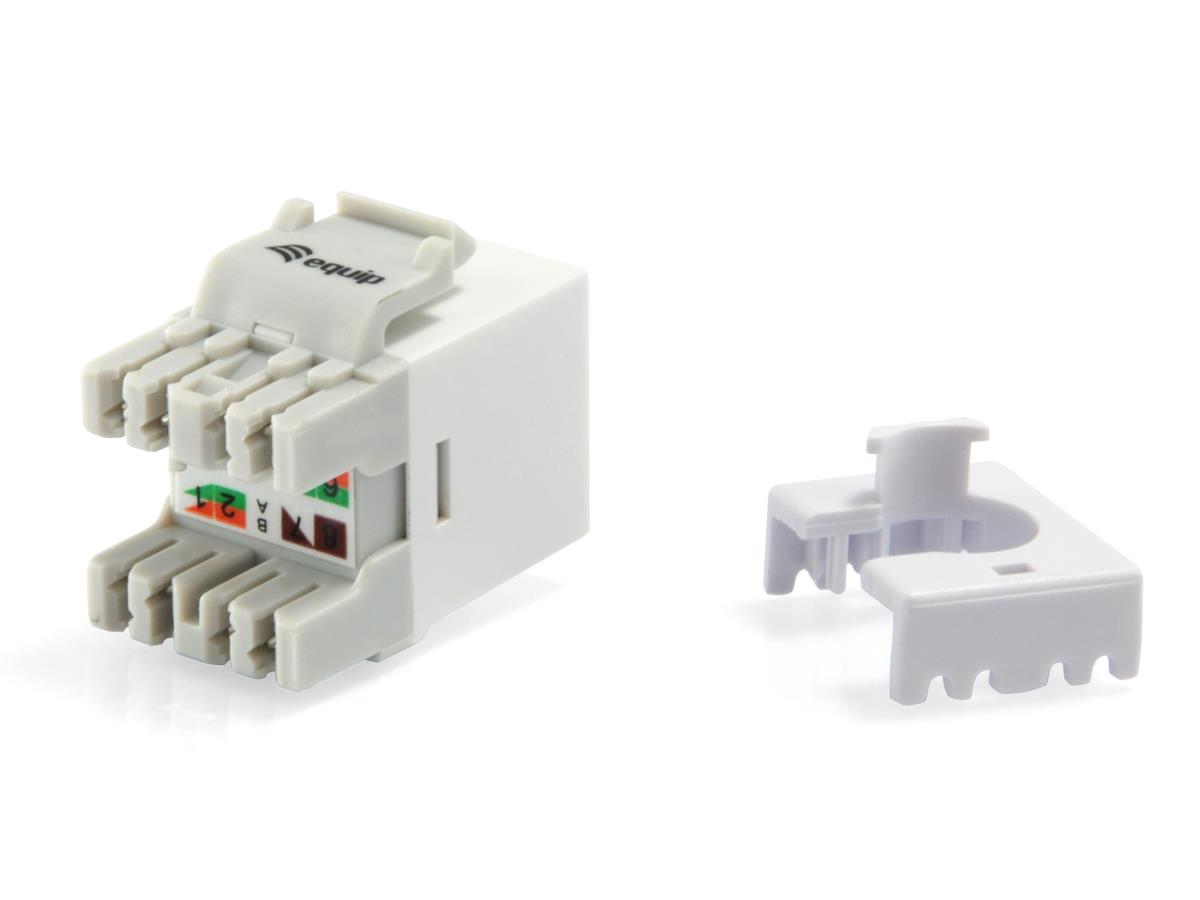

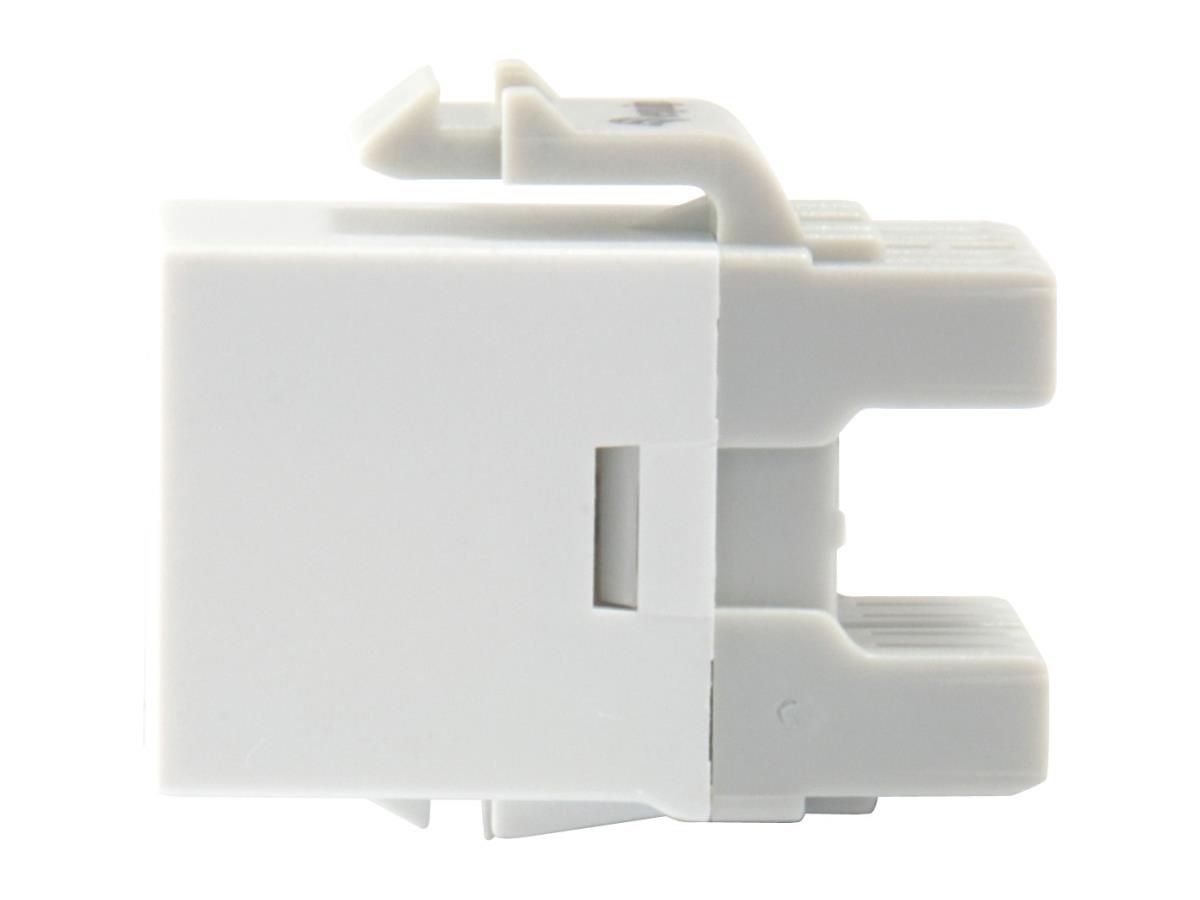

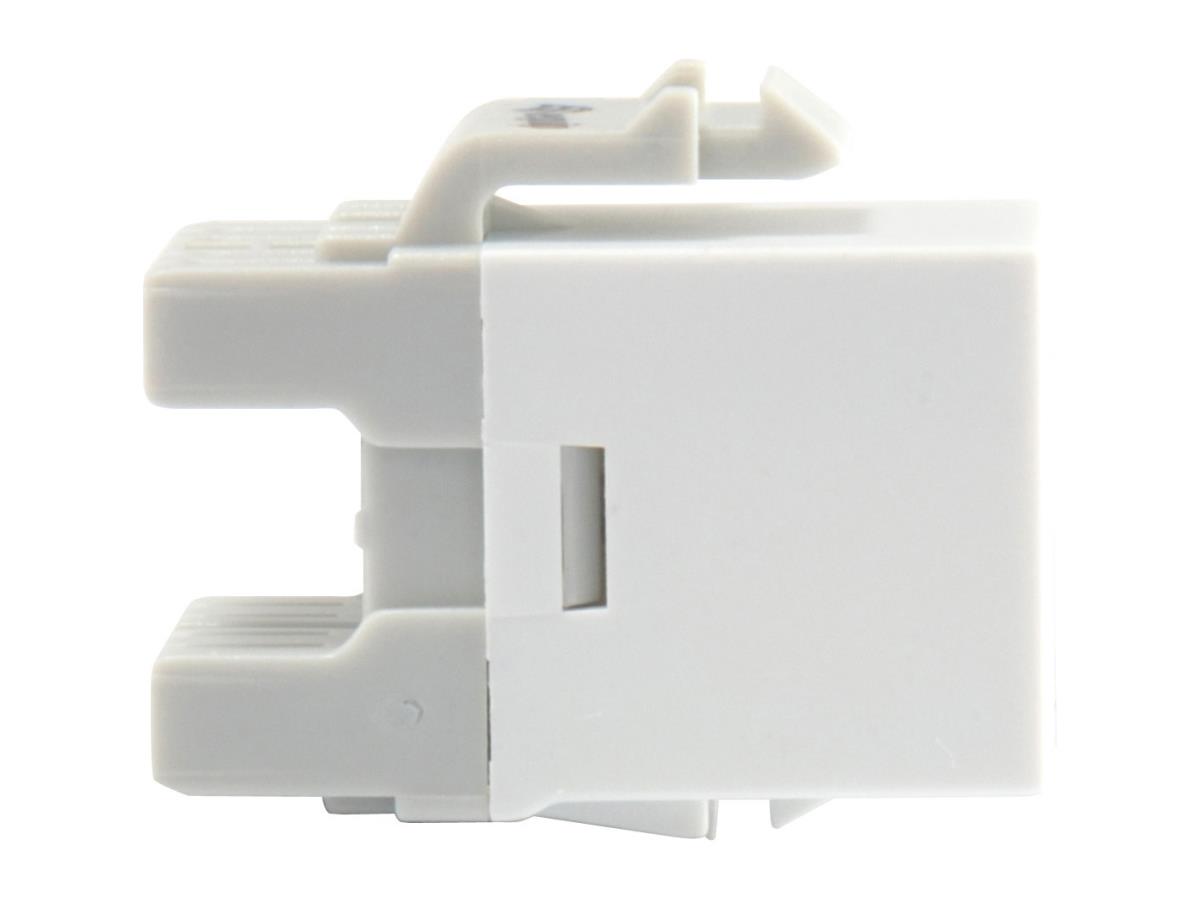

EU Product - Keystone Jack ungeschirmt Cat6 LSA schlank 8Stk ws
Introduction
- Slim type, specially designed for 1U 48-port Keystone Patch Panel (equip 769248)
- LSA connector
- Gold flash contact
- Compliant with CLASS E IS0/IES 11801 2nd Edition & EN 50173
- IDC color T568A/T568B coded
- Selling unit: 8pcs/pack
Specifications
| Features | |
|---|---|
| Construction type | Flat |
| Product colour | White |
| Connector 1 | RJ-45 |
| Connector 2 | IDC |
| Connector 1 gender | Female |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable types supported | Cat6 |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Compatible products | Equip 769248 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Technical details | |
| Harmonized System (HS) code | 85369010 |
| Weight & dimensions | |
| Width | 18 mm |
| Depth | 24.5 mm |
| Height | 41 mm |
| Weight | 112 g |
| Packaging data | |
| Package width | 203 mm |
| Package depth | 35 mm |
| Package height | 152 mm |
| Package weight | 120 g |
| Packaging content | |
| Quantity per pack | 8 pc(s) |
| Logistics data | |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 253 mm |
| Master (outer) case gross weight | 7 kg |
| Products per master (outer) case | 504 pc(s) |
| Harmonized System (HS) code | 85369010 |
