EU Product - 2-Port Cat6 10G RJ45-Unterputzdose STP weiß
Introduction
at6 Wall Plate - Flush-mount with 2 ports and faceplate for in-wall wiring projects

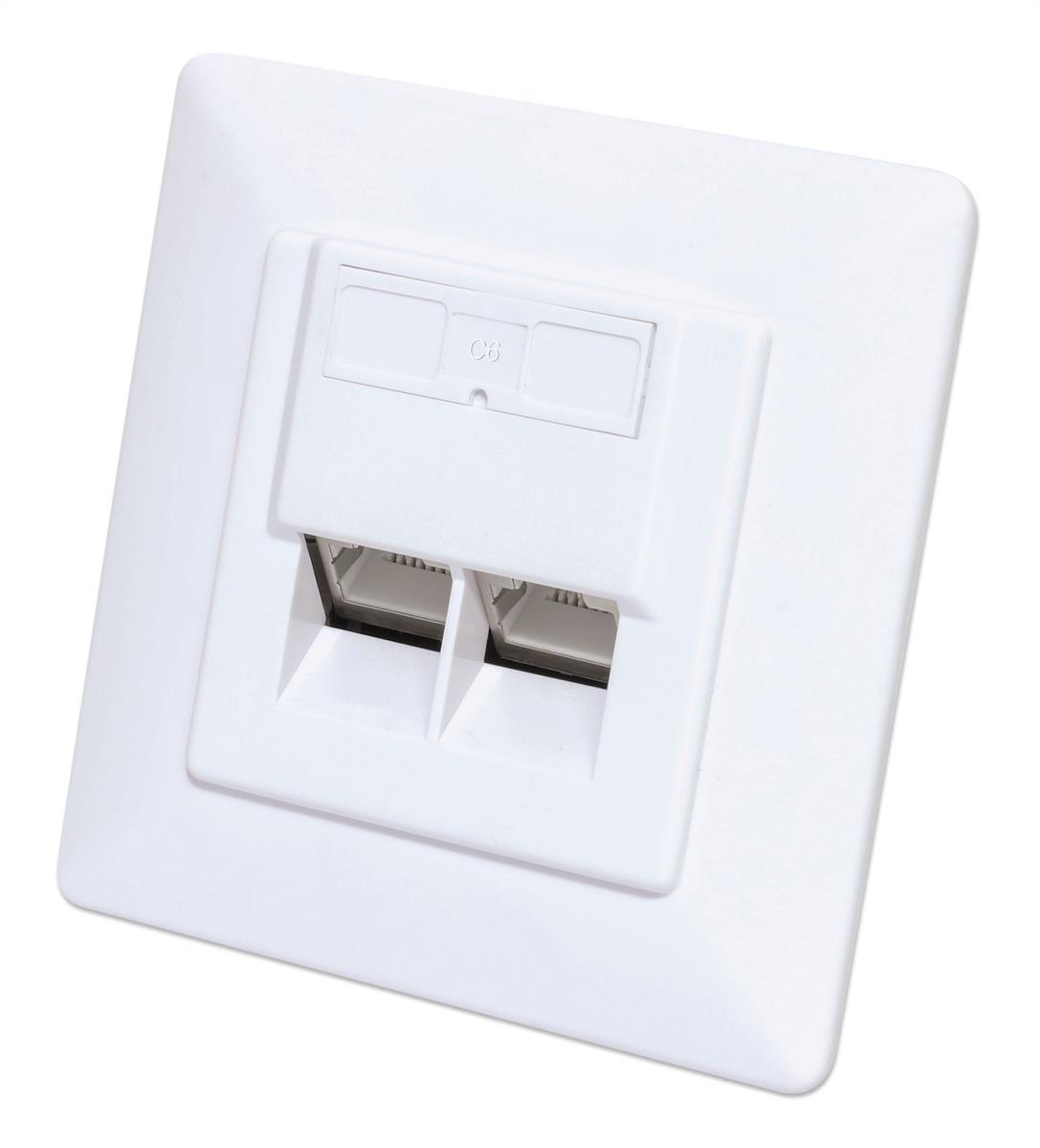

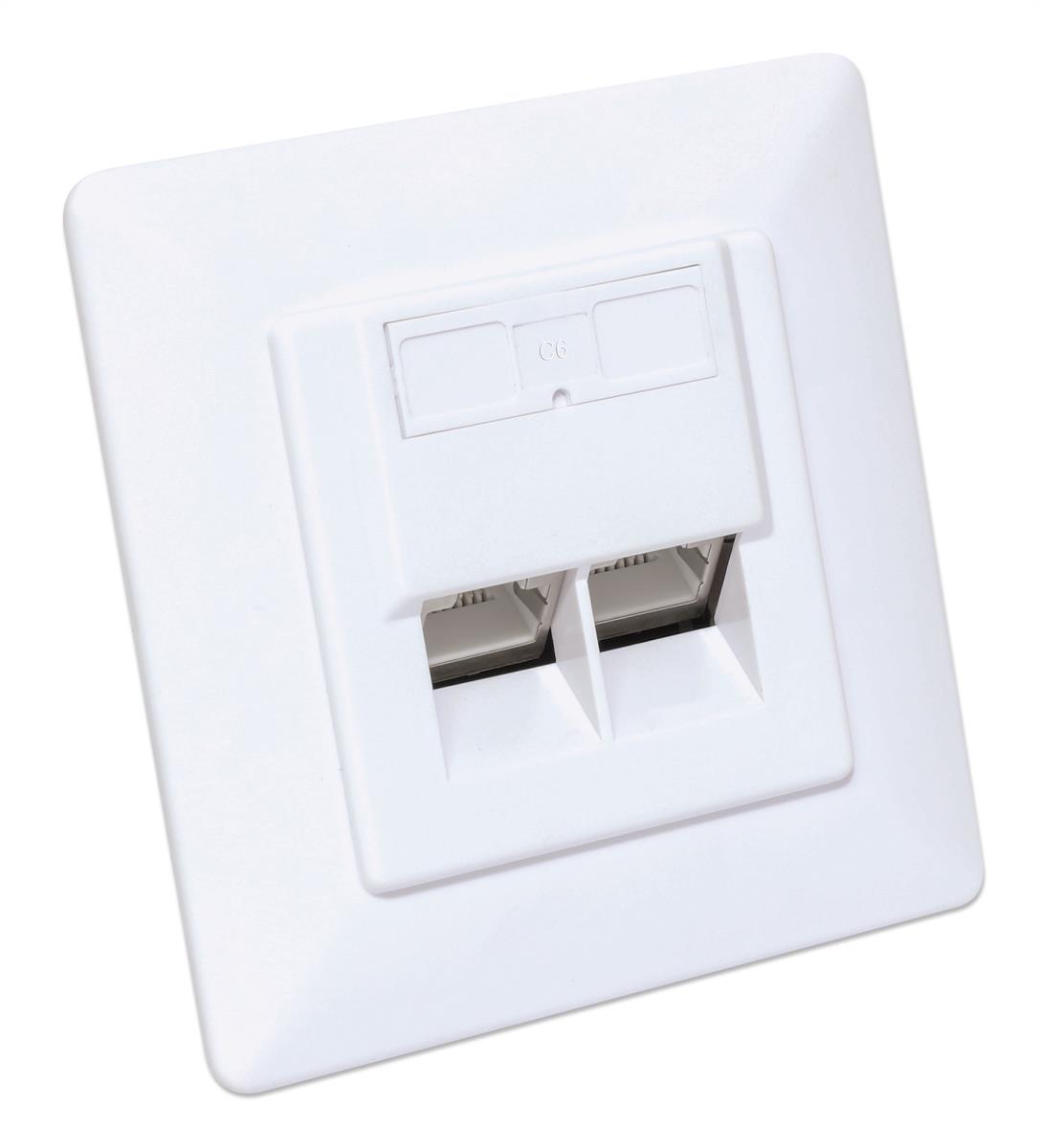

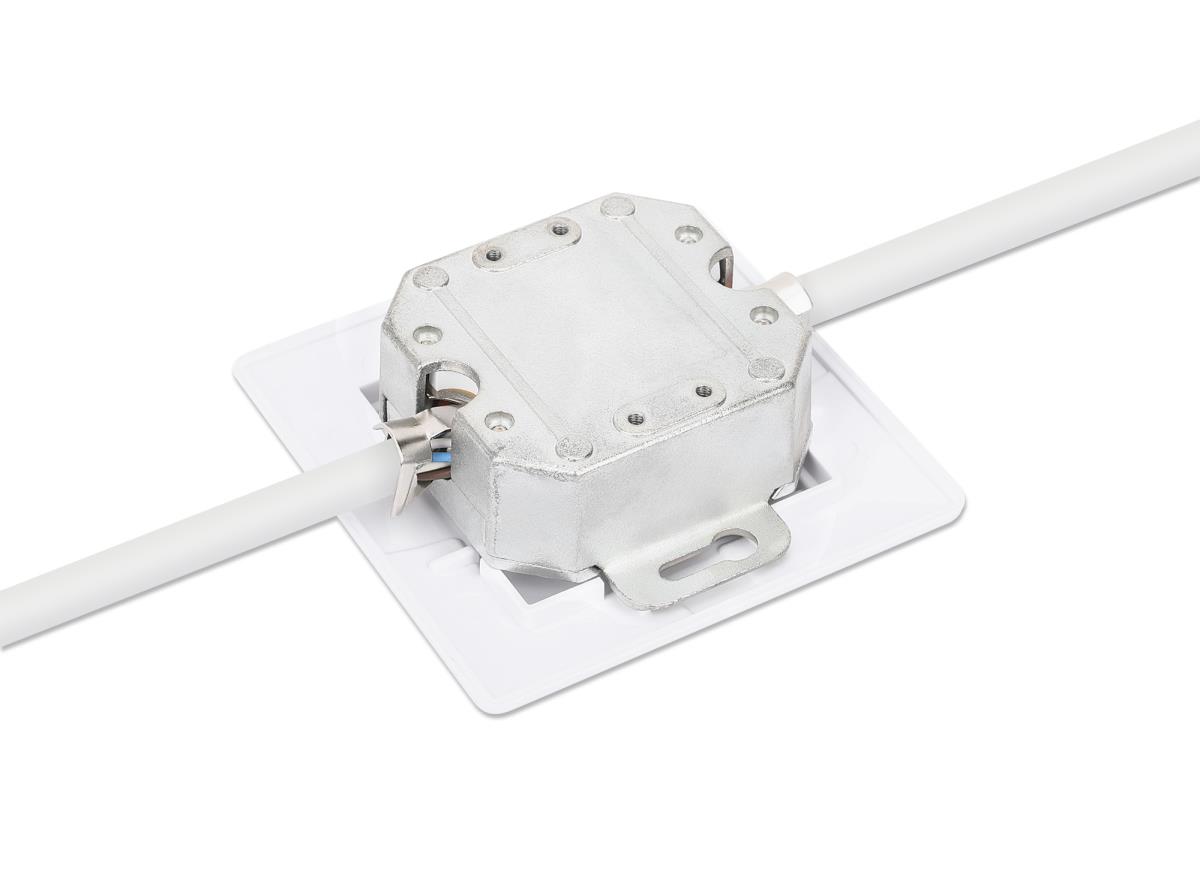

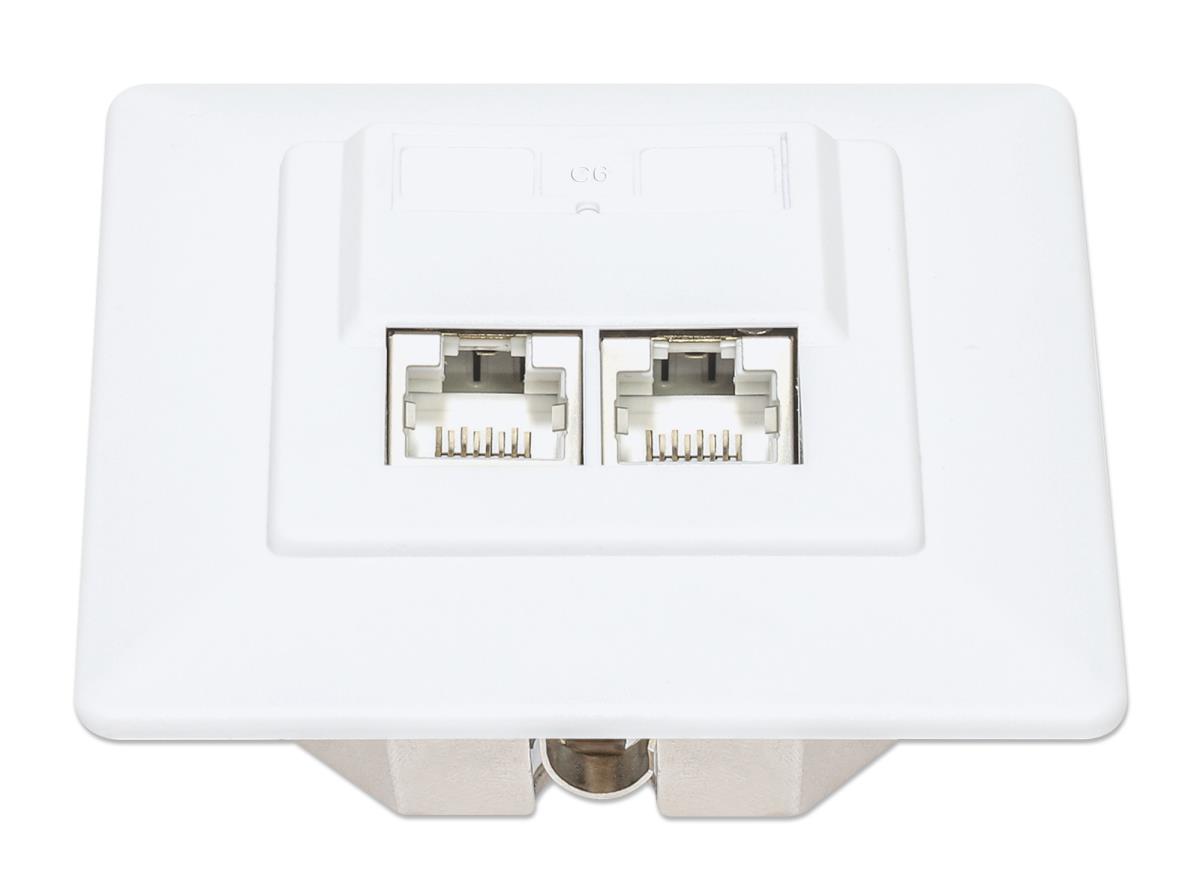

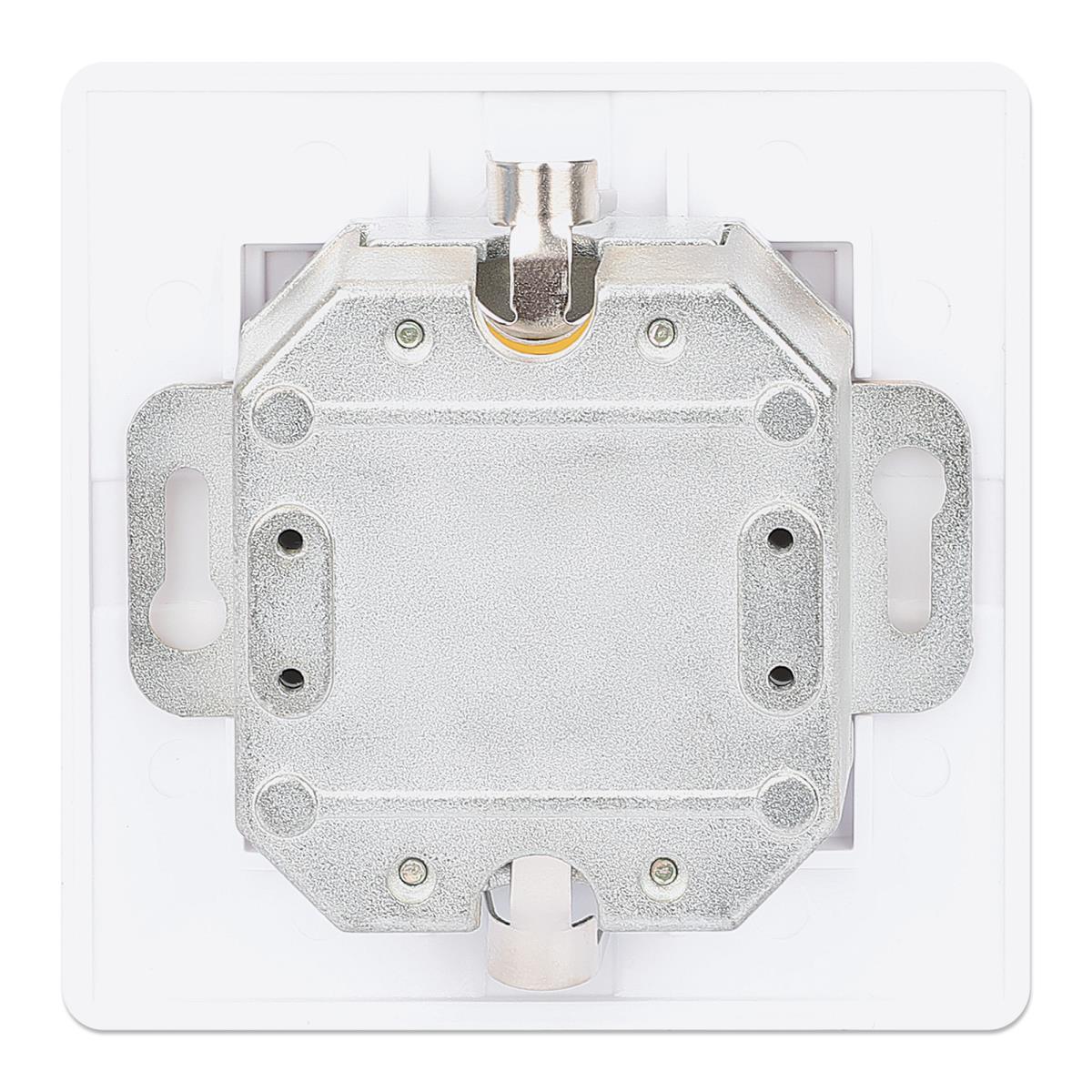

The 2-Port Cat6 10G Shielded RJ45 Wall Plate from Intellinet Network Solutions is the flush-mount outlet you need for your next network-wiring installation. Its clean faceplate provides cover for the 40°-angled outlet jacks that help keep cables close to the wall for a more professional look. This Wall Plate's Cat6 ports support 10G data transmissions with frequencies up to 250 MHz and all PoE applications up to PoE++. For an optional surface mount, use the pattress box #771894.
Specifications
| Performance | |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Insulation resistance | 250 MO |
| Sockets quantity | 2 |
| Socket type | 2 x RJ-45 |
| Certification | CE RoHS ISO/IEC 11801 DIN EN 50173-1 |
| Cable type | STP |
| Features | |
| Operating temperature (T-T) | -10 - 60 °C |
| Insulation resistance | 250 MO |
| Sockets quantity | 2 |
| Socket type | 2 x RJ-45 |
| Cable type | STP |
| Operating relative humidity (H-H) | 10 - 90% |
| Frequency | 250 MHz |
| Design | |
| Product colour | White |
| Certification | CE RoHS ISO/IEC 11801 DIN EN 50173-1 |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Technical details | |
| Harmonized System (HS) code | 85366990 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 150 g |
| Width | 80 mm |
| Depth | 80 mm |
| Height | 31 mm |
| Packaging data | |
| Package weight | 160 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85366990 |
