EU Product - Modularstecker RJ45 Cat6 UTP Werkzeuglos
Introduction

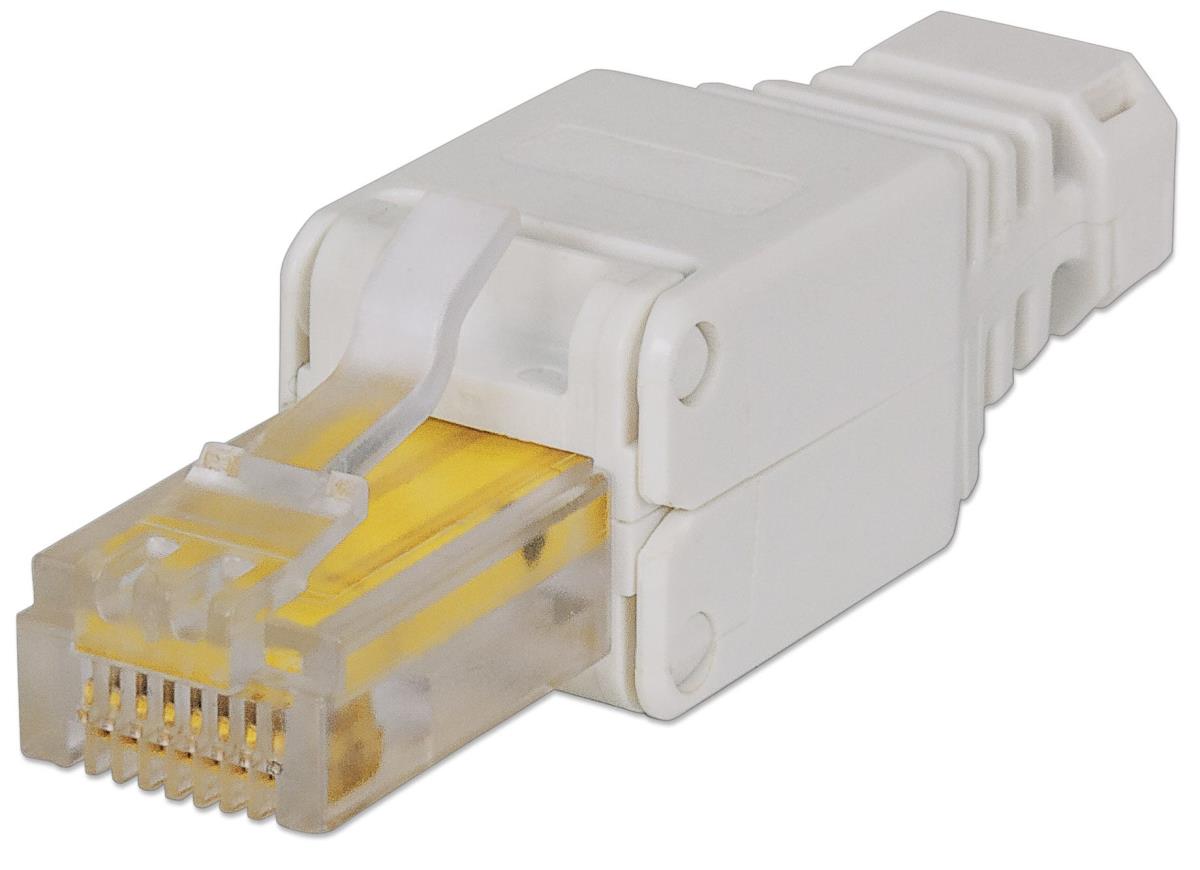

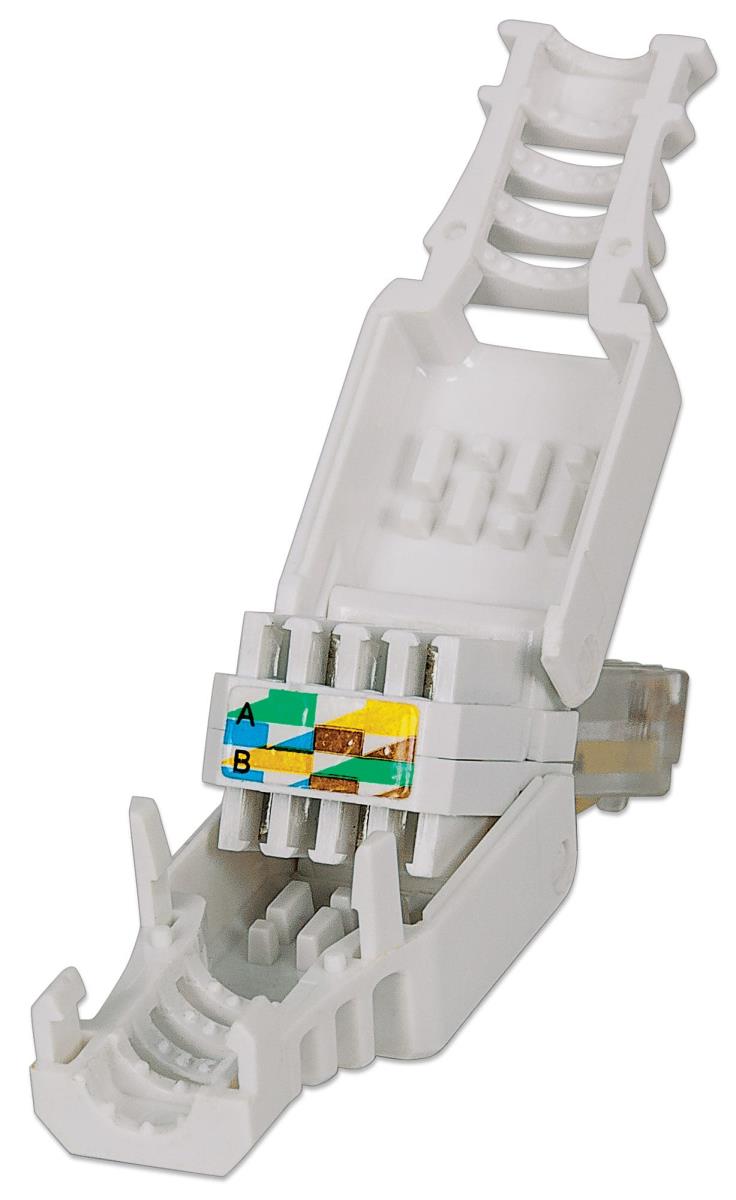

With this Toolless RJ45 Plug from Intellinet Network Solutions, there is no need for a crimping tool. Simply strip about 15 mm off the cable, select either T568A or B wiring style, place the wires in the corresponding colour-coded slot and close the boot onto the cable. When the boot is closed over the IDC connectors, it pushes the wires into place and makes the connection.
Specifications
| Features | |
|---|---|
| Cable standard | Cat5/5e/6 |
| Cable shielding | U/UTP (UTP) |
| Connector(s) | RJ45 |
| Product colour | White |
| Certification | TIA/EIA-568-B.2, ISO/IEC11801 & EN50173-1 |
| Connector gender | Male |
| Connector form factor | Straight |
| Weight & dimensions | |
| Width | 14.5 mm |
| Weight | 14 g |
| Height | 14.8 mm |
| Depth | 53.4 mm |
| Technical details | |
| Cable standard | Cat5/5e/6 |
| Cable shielding | U/UTP (UTP) |
| Connector(s) | RJ45 |
| Colour | |
| Product colour | White |
| Certificates | |
| Certification | TIA/EIA-568-B.2, ISO/IEC11801 & EN50173-1 |
