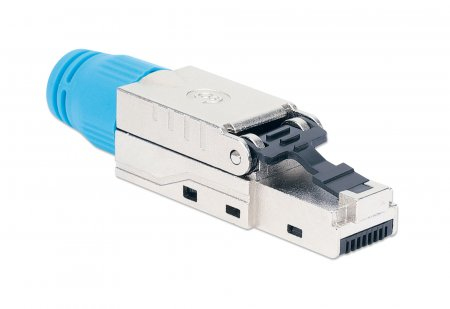

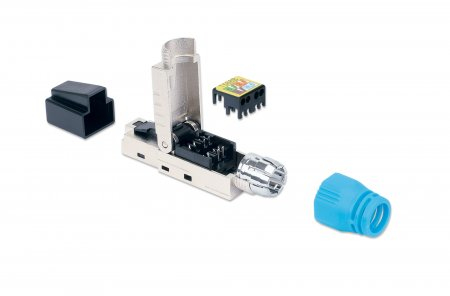

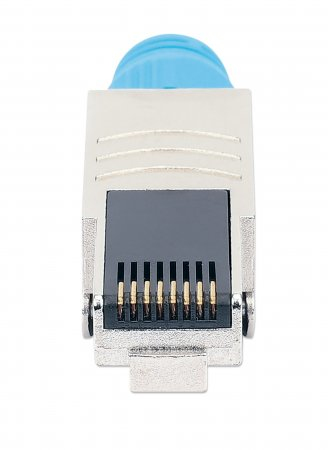

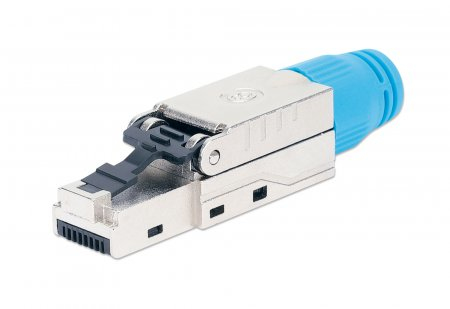

EU Product - CAT8.1 40G RJ45-Feldstecker STP und werkzeuglos
Introduction
Field-installable Cat8.1 STP RJ45 Modular Plug for easy, fast and tool-free high-quality cable assembly in data centers
The Cat8.1 40G Shielded Toolless RJ45 Modular Field Termination Plug from Intellinet Network Solutions is designed for time-saving, high-quality cable terminations even when out in the field, especially for ToR (Top of Rack) and MoR (Middle of Row) installations in data centers. Without any special tools, the cable can be assembled within few minutes.
Future-proof high-end connection
This plug is suitable for both stranded and solid conductor cables for ultra-high performance network applications up to 25GBase-T and 40GBase-T with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For maximum signal integrity, it is equipped with gold-plated contacts and 360° STP shielding.
Specifications
| Features | |
|---|---|
| Cable standard | Cat8.1 |
| Cable shielding | U/FTP (STP) |
| Connector(s) | RJ45 |
| Voltage | 1000 V DC/700 V AC |
| Current | 1.5 A |
| Connector contacts plating | Gold |
| Product colour | Blue |
| Certification | CE RoHS |
| Contact resistance | 20 mO |
| Connector gender | Male |
| Connector form factor | Straight |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Width | 12 mm |
| Weight | 30 g |
| Height | 14 mm |
| Depth | 58 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Cable standard | Cat8.1 |
| Cable shielding | U/FTP (STP) |
| Connector(s) | RJ45 |
| Voltage | 1000 V DC/700 V AC |
| Current | 1.5 A |
| Connector contacts plating | Gold |
| Colour | |
| Product colour | Blue |
| Certificates | |
| Certification | CE RoHS |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
