CAT8 STP KEYSTONE JACK 6-PACK
Introduction
Terminate 25G/40G Ethernet cable runs with toolless 180-degree Cat8 keystone jacks

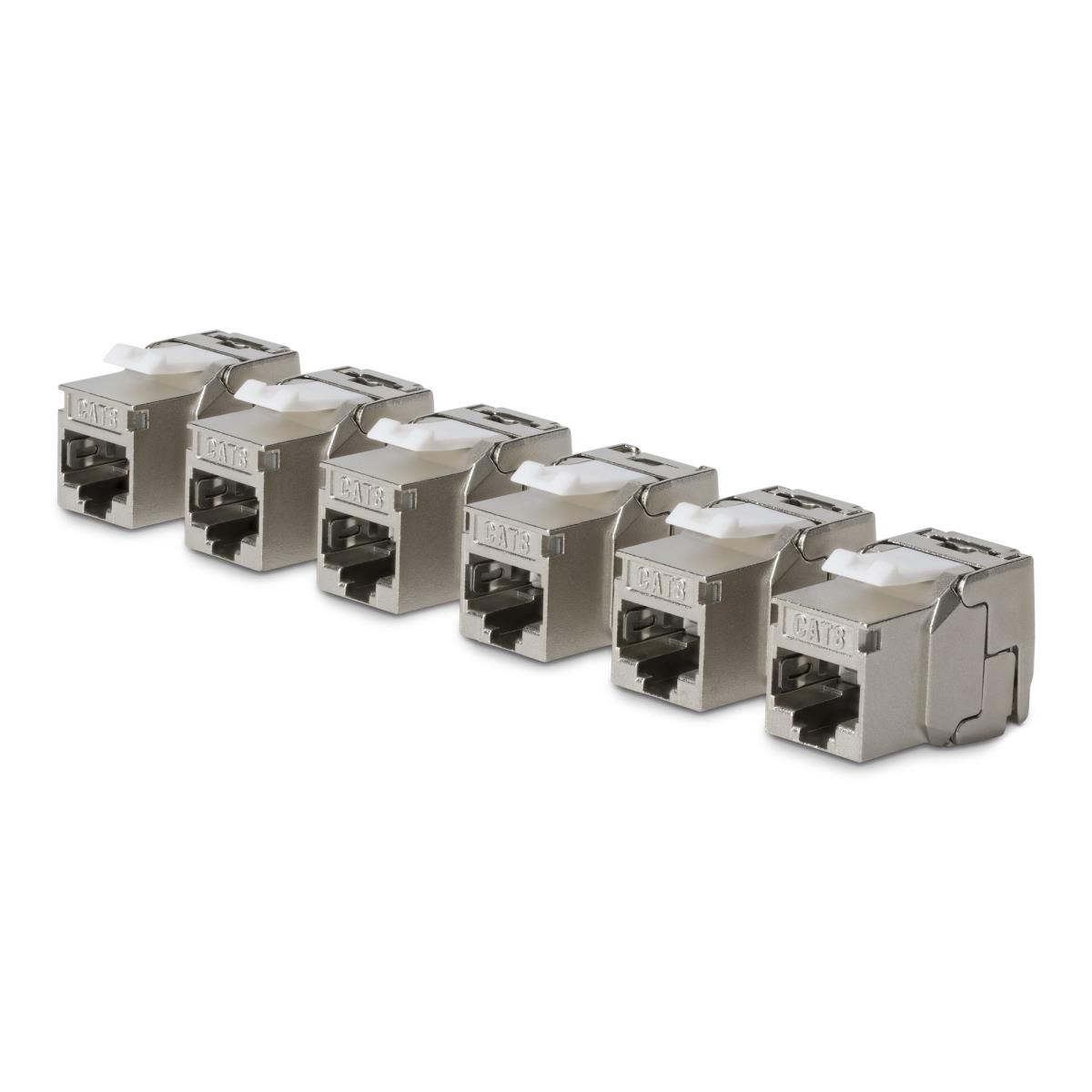

Use this 6-pack of Toolless Cat8 RJ45 Keystone Jacks to terminate Cat8 network links quickly and cleanly without punch down tools. Designed for enterprise 25G/40G networks and infrastructure, this Cat8 keystone jack set offers a reliable solution for terminating shielded cables to high-speed patch panels.
For Straight-Through Terminations

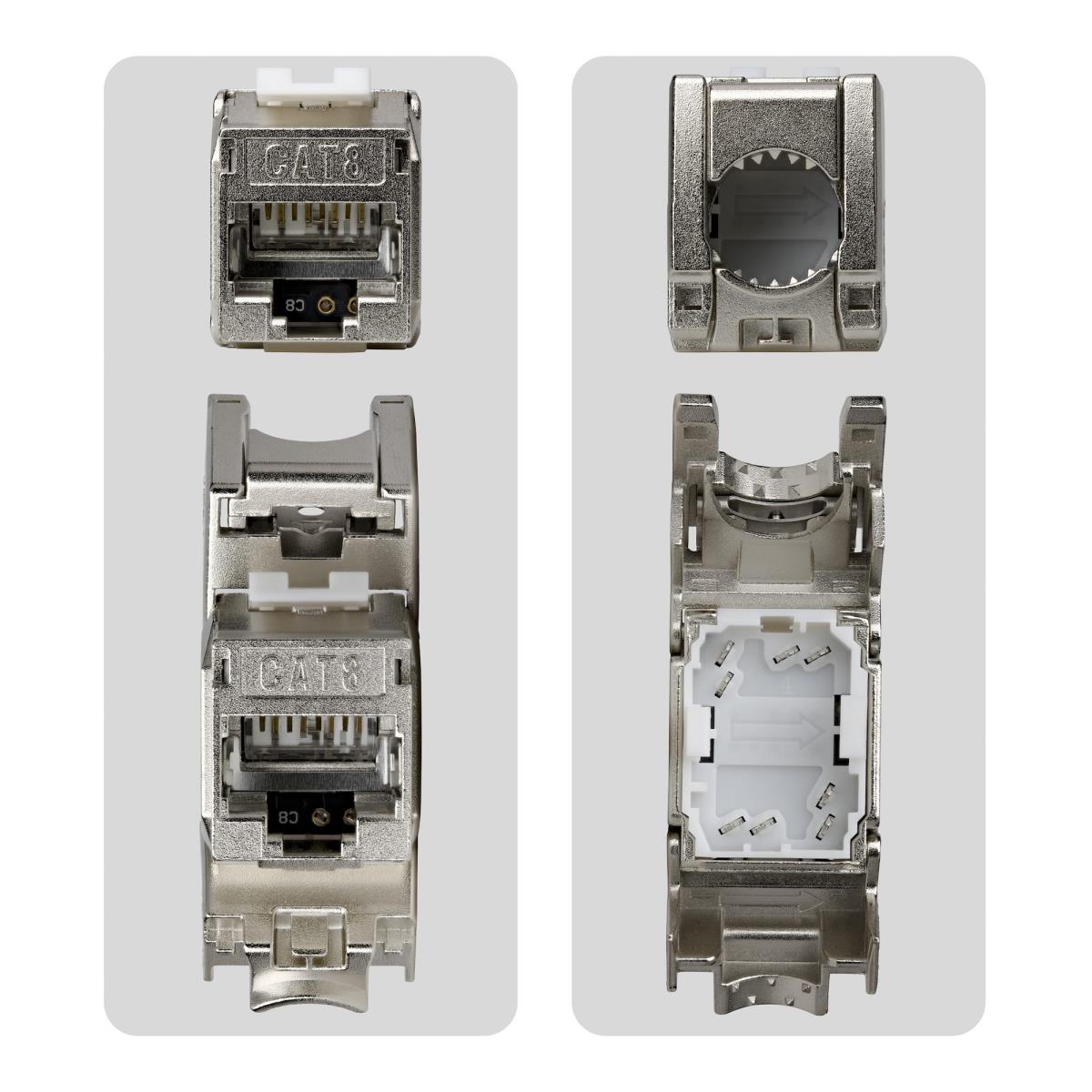

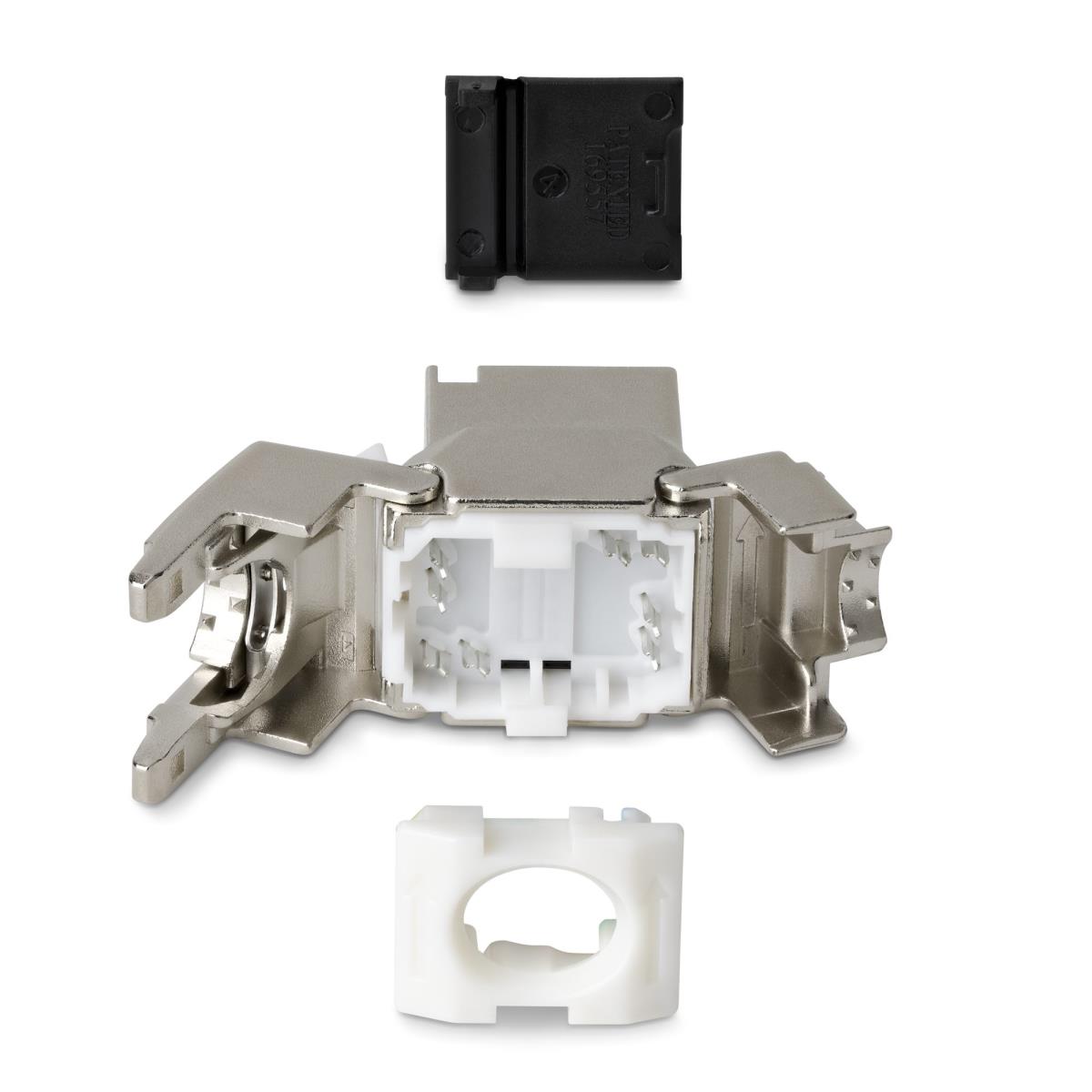

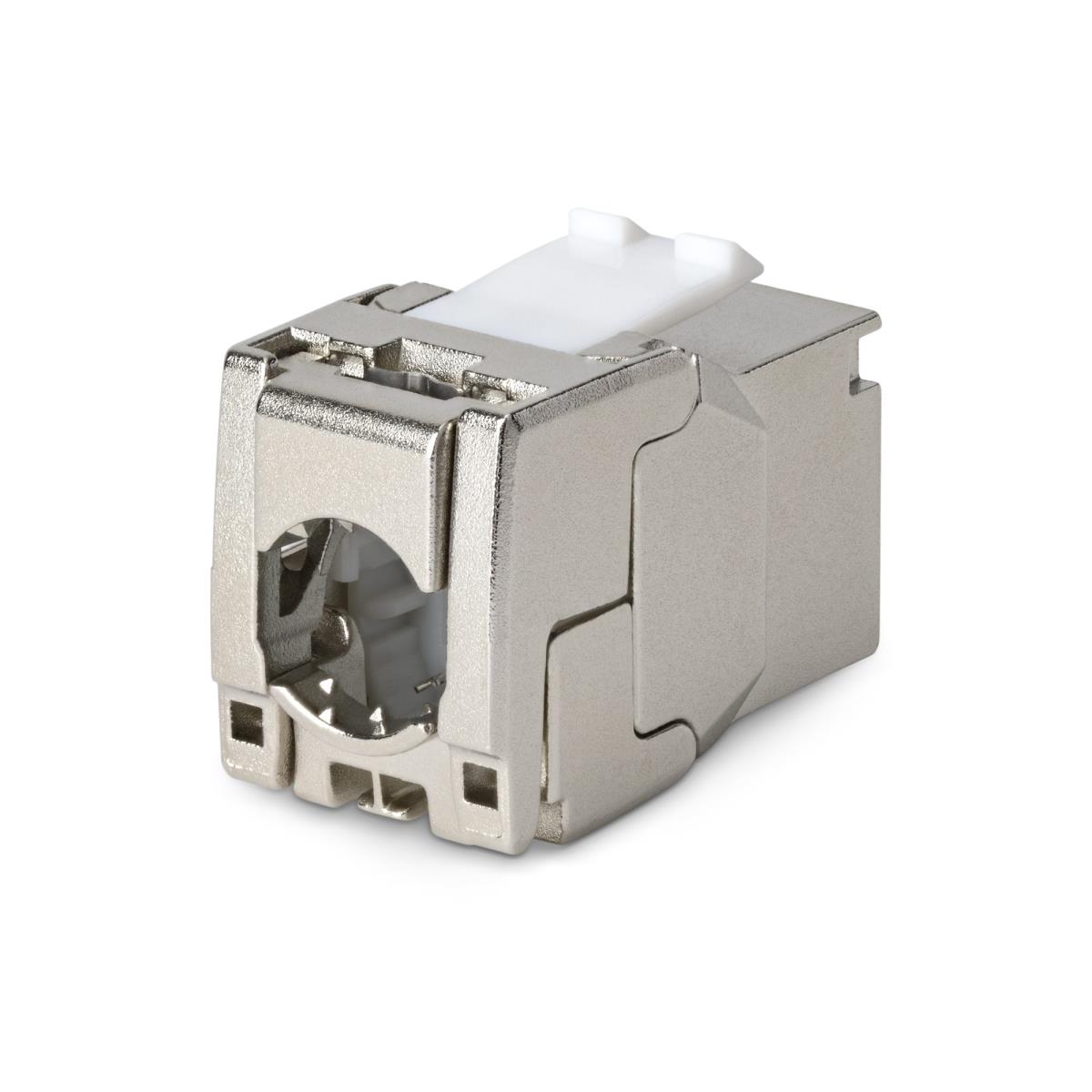

The Toolless Cat8 Keystone Jack features a 180-degree layout that supports straight cable entry from the rear, suitable for keystone patch panels and wall plates with open clearance. This layout enables clean, straight-through terminations without re-positioning the cable.
Enhanced EMI Protection

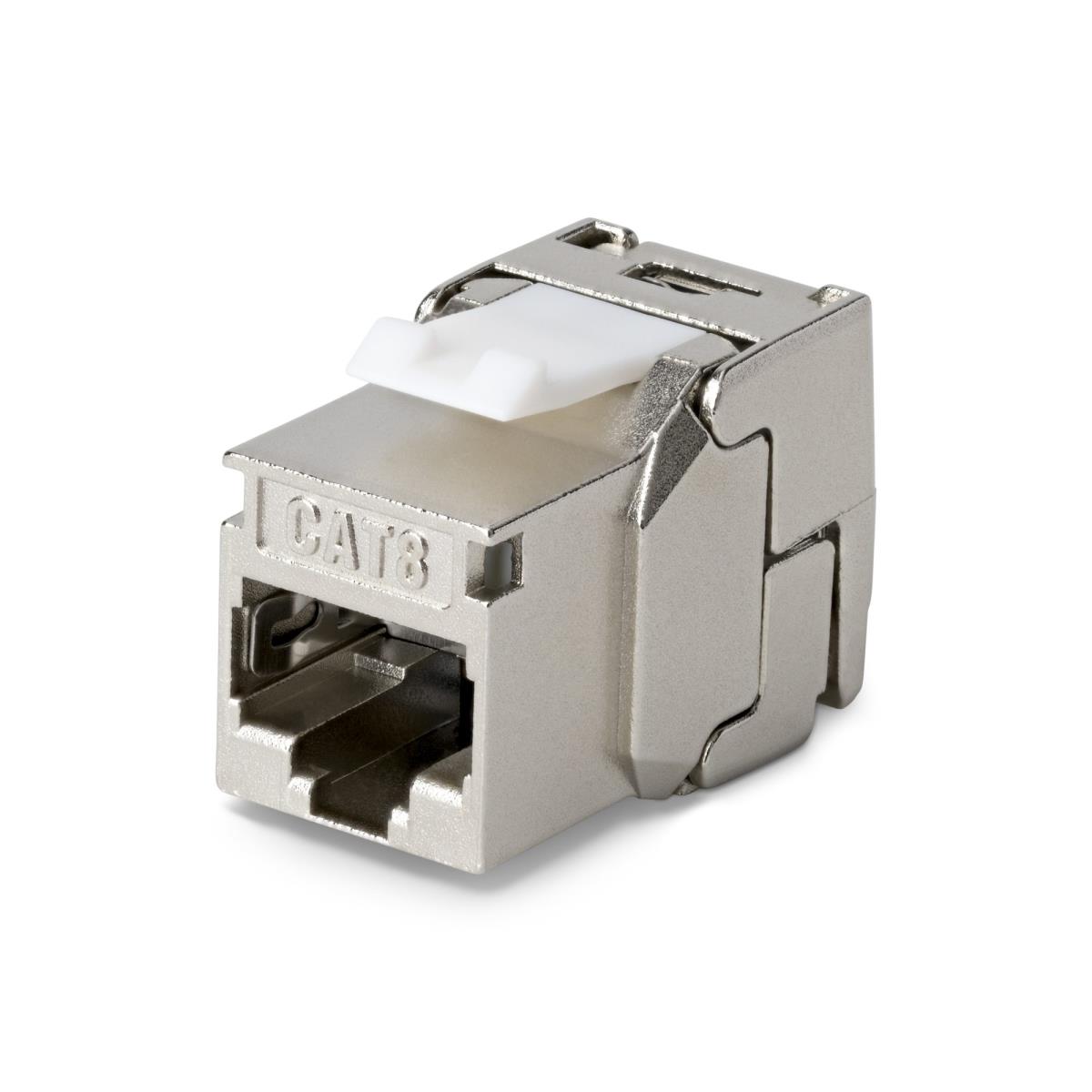

Maintain signal integrity in high-density installations with a zinc alloy housing and nickel-plated shielding designed to minimize EMI. Gold-plated phosphor bronze RJ45 contacts ensure stable connectivity, for long-term reliability in high-uptime networks and demanding environments.
Streamline Large Deployments

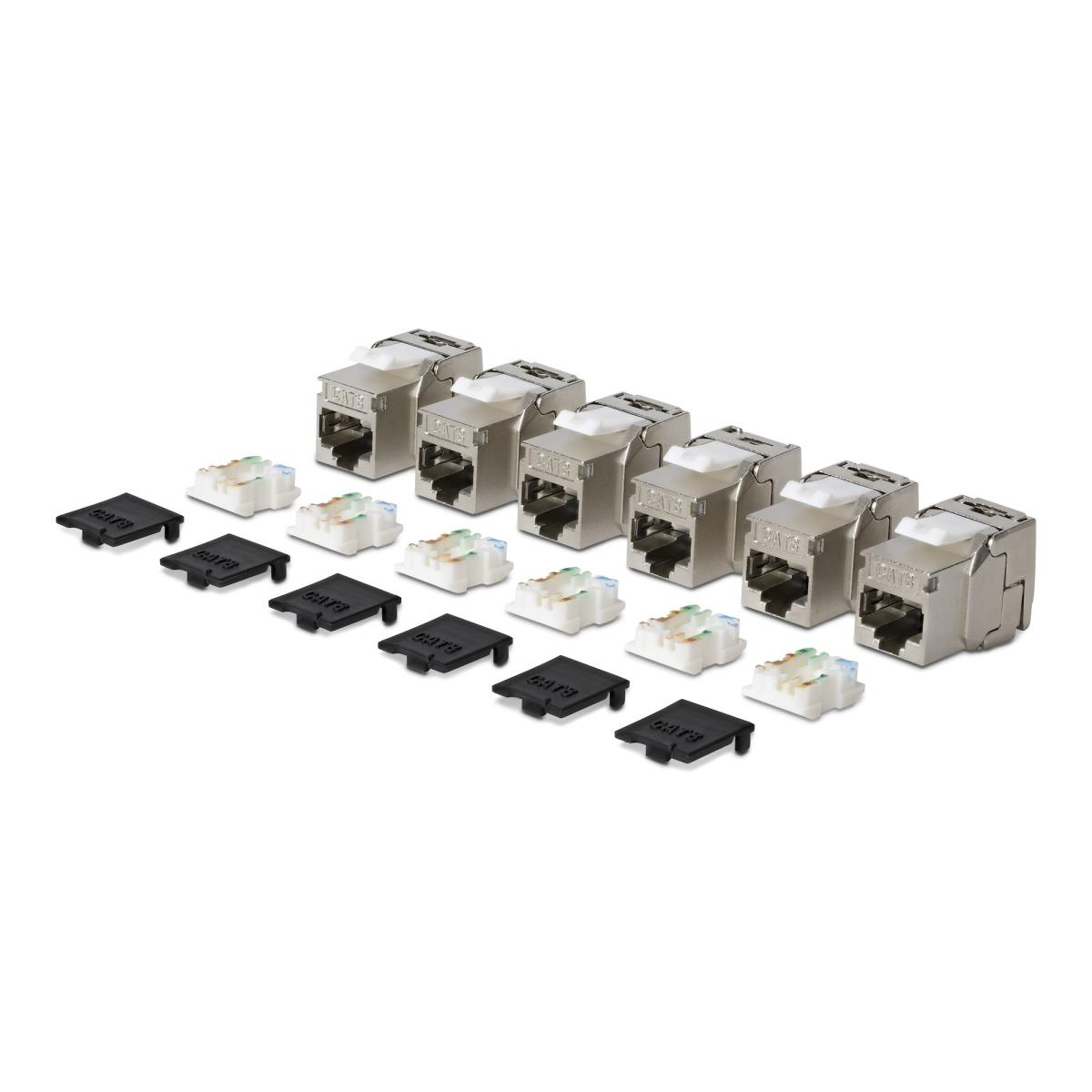

Plan and execute multi-room cabling projects with consistent hardware at every drop point. The 6-pack format enables standardized terminations, eliminating variability from mixed stock and ensuring consistency across larger LAN deployments.
Specifications
| Features | |
|---|---|
| Construction type | Flat |
| Product colour | Silver |
| Connector 1 | RJ-45 |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
| Cabling technology | 25/40GBase-T |
| Connector contacts plating | Gold |
| Cable types supported | Cat8 |
| Housing material | Polycarbonate (PC), Zinc |

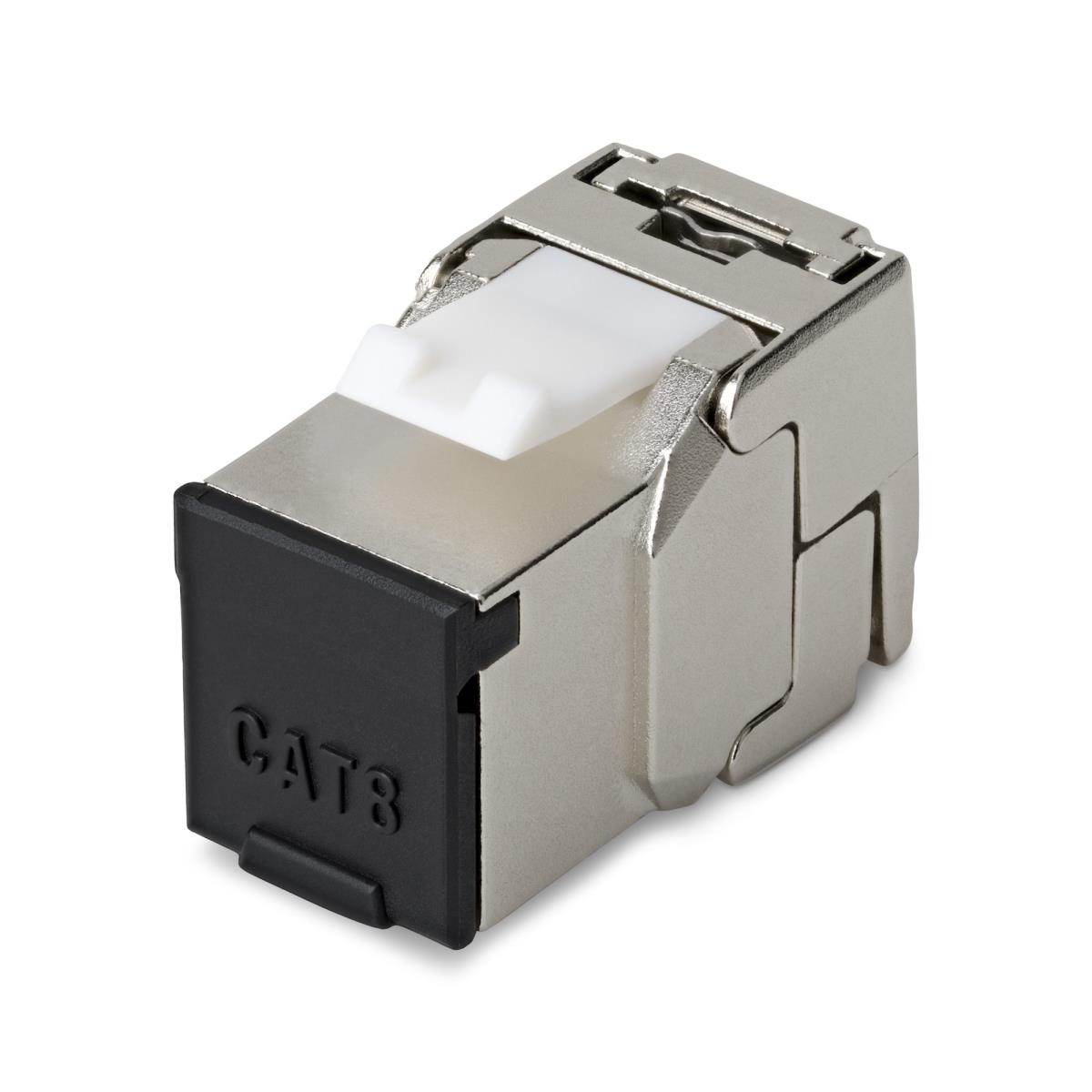

| Built-in dust cover | Yes |
| Pinout modular connector | T568A/B |
| Networking standards | IEEE 802.3, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bq, IEEE 802.3bt |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Technical details | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Weight & dimensions | |
| Width | 16.3 mm |
| Depth | 29.2 mm |
| Height | 19.2 mm |
| Weight | 7 g |
| Packaging data | |
| Package width | 106 mm |
| Package depth | 56 mm |
| Package height | 26 mm |
| Package weight | 137 g |
| Packaging content | |
| Quantity per pack | 6 pc(s) |
| Logistics data | |
| Master (outer) case width | 307 mm |
| Master (outer) case length | 240 mm |
| Master (outer) case height | 236 mm |
| Products per master (outer) case | 80 pc(s) |
