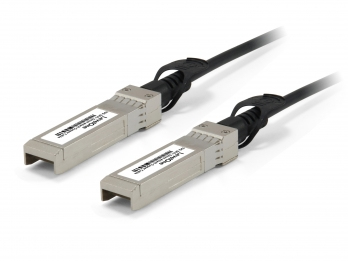

EU Product - LevelOne SFP+ Kupferkabel Direct Attach 10Gbps Twinax 5.00m
Introduction
The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability
Key Features
- Support for multi-gigabit data rates up to 10.5Gbps
- Data rates backward compatible to 1Gbps
- Hot-pluggable SFP 20PIN footprint
- I/O Connector designed for high speed differential signal applications
- Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
- Compatible to SFP+ MSA
- Temperature Range: 0~ 70 °C
- RoHS Compatible
Specifications
| Features | |
|---|---|
| Connector 1 | SFP+ |
| Connector 2 | SFP+ |
| Cable length | 5 m |
| Data transfer rate | 10.5 Gbit/s |
| Product colour | Black, Stainless steel |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| InfiniBand protocol | Yes |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 300 g |
| Cable length | 5 m |
| Package width | 310 mm |
| Package depth | 230 mm |
| Packaging data | |
| Package width | 310 mm |
| Package depth | 230 mm |
| Technical details | |
| Connector 1 | SFP+ |
| Connector 2 | SFP+ |
| Cable length | 5 m |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 10.5 Gbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
