EU Product - Modular Plug Cat 6 UTP werkzeugfrei - Cable - Network
Introduction

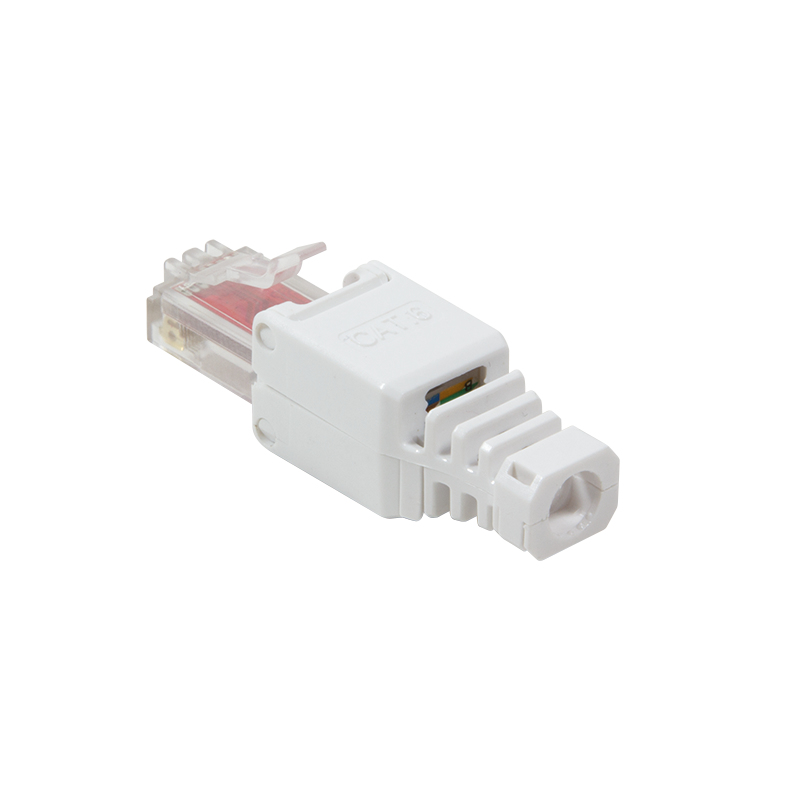

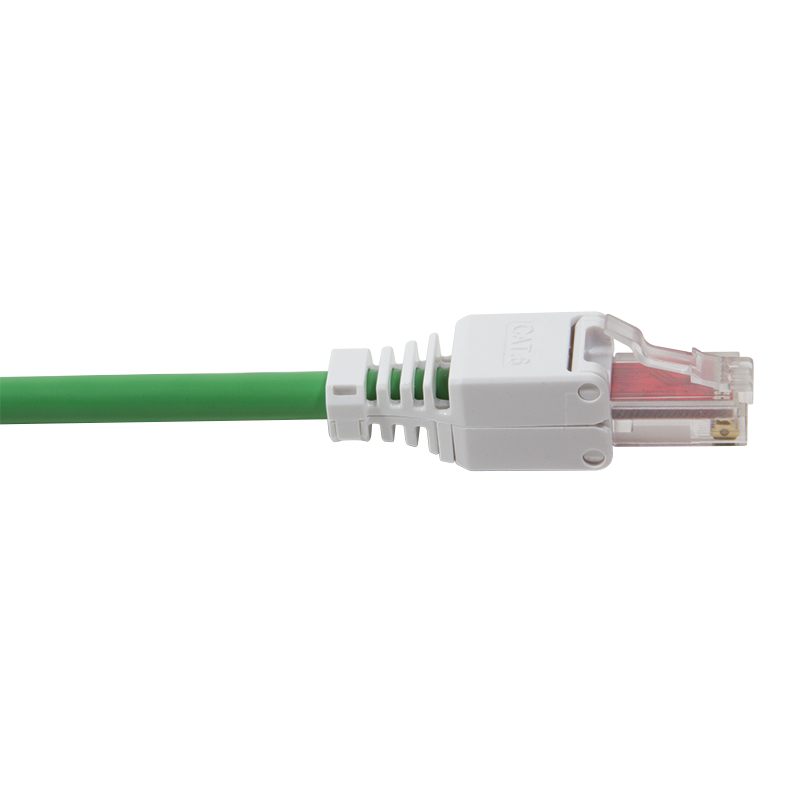

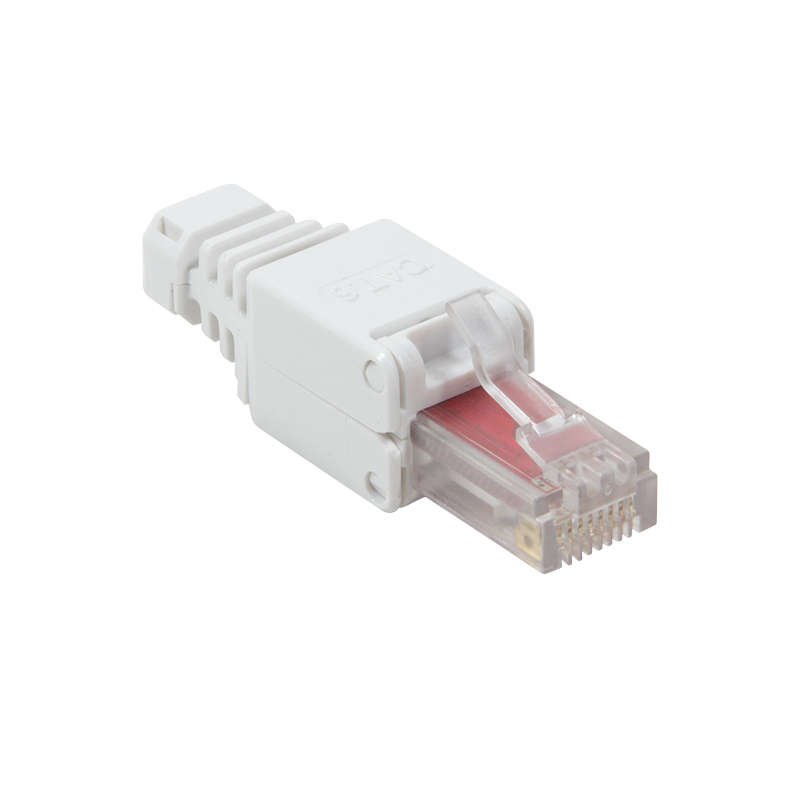

LogiLink 's RJ45 modular plug is ideal for the fast and tool-less termination of CAT 5 , Cat.6 and Cat.7 UTP patch cords. (AWG 22-26) , whether with solid or stranded wire. Thanks to the standard color coding of the plug, it supports quick and easy installation and terminates the patch cord without tools.
Specifications
| Features | |
|---|---|
| Cable standard | Cat6 |
| Connector(s) | RJ-45 |
| Connector contacts plating | Gold |
| Product colour | White |
| Certification | TIA/EIA 568B.2-10 |
| AWG wire size | 22/26 |
| Connector gender | Male |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | TIA/EIA 568B.2-10 |
| Weight & dimensions | |
| Width | 15 mm |
| Outer diameter | 6.5 mm |
| Height | 18 mm |
| Depth | 52.8 mm |
| Packaging data | |
| Package weight | 7 g |
| Package depth | 70 mm |
| Package width | 100 mm |
| Package height | 15 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Cable standard | Cat6 |
| Package width | 100 mm |
| Package height | 15 mm |
| Connector(s) | RJ-45 |
| Connector contacts plating | Gold |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | White |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
