SWITCHAIR ACTIVE FRONT INTAKE 2U

Introduction

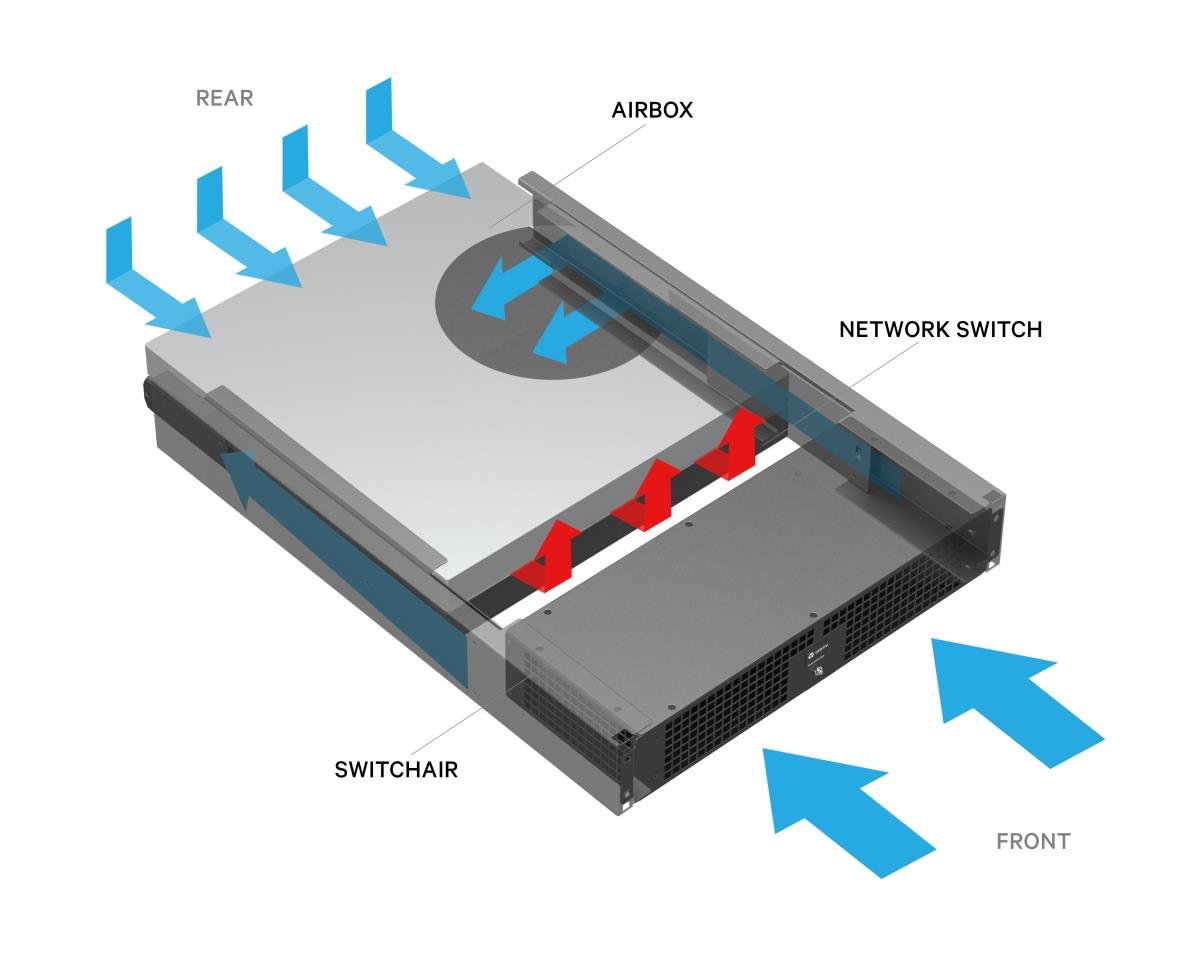

Network switches, load balancers, and routers typically sit at the top and back portion of the rack. This placement makes it difficult for cold air to travel from the front of the rack to the air intakes of the network switch equipment, increasing chances of failure over time. SwitchAir helps prevent failure by channeling cool air from the front of the rack to the air intakes regardless of where the equipment is mounted.

Specifications

Technical details
Frame type	Open frame
Rack mounting	Yes
Rack capacity	2U
Maximum airflow	94 cfm
Product colour	Black
Cooling type	Active
Compliance certificates	RoHS
Power
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Input current	0.5 A
Certificates
Certification	CE, FCC Part 15 Class A Conformance, UL & c-UL Listed 60950
Weight & dimensions
Width	432 mm
Weight	6.8 kg
Height	87 mm
Depth	178 mm
Packaging data
Manual	Yes
Cables included	AC
