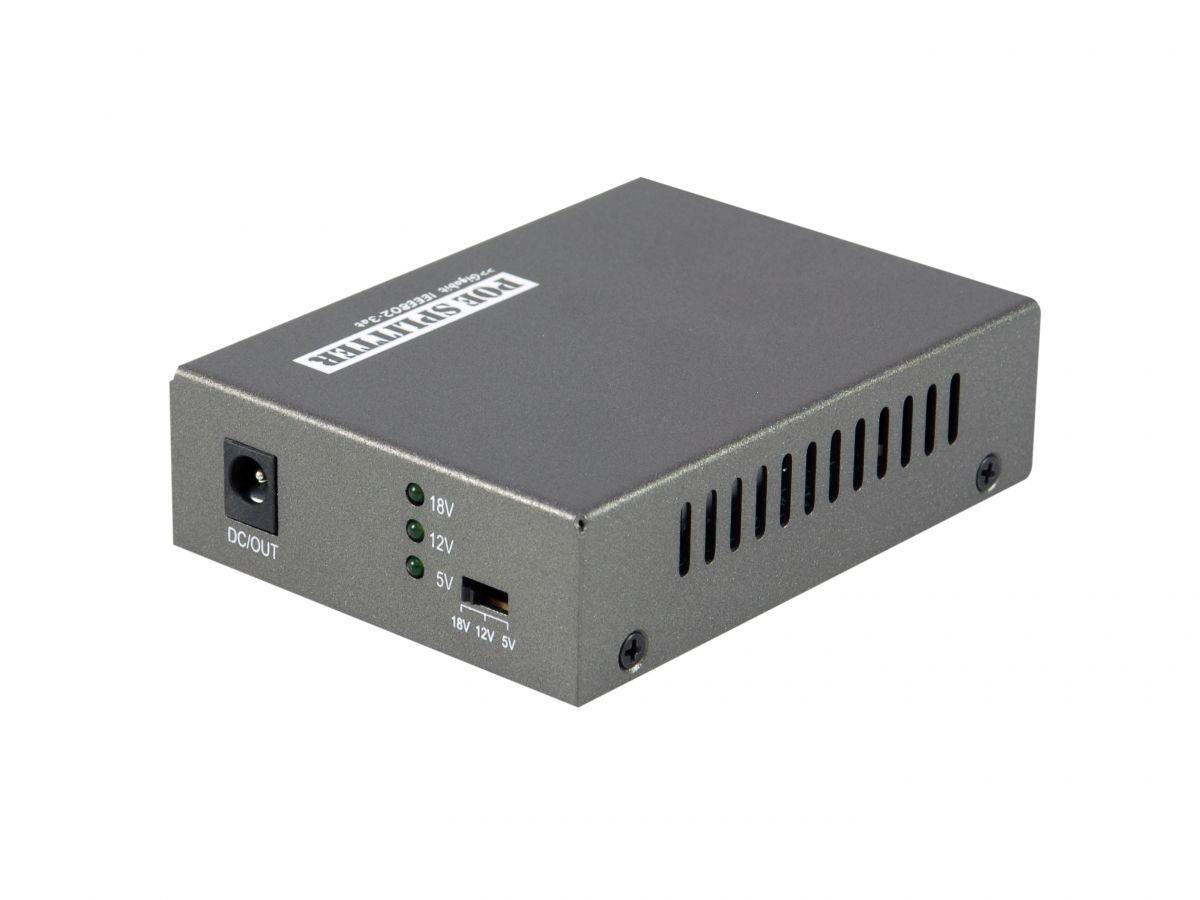

EU Product - LevelOne PoE Gigabit Splitter RJ45 1Gbps <5W schwarz
Introduction
The LevelOne POS-3000 Gigabit High Power PoE Splitter splits a networked PoE Signal intoseparated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (5V or 12V or 18V). Save installation and equipment cost when installing 802.11n access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.
Specifications
| Features | |
|---|---|
| LED indicators | Yes |
| Plug and Play | Yes |
| Product colour | Black |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Performance | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Design | |
| LED indicators | Yes |
| Plug and Play | Yes |
| Product colour | Black |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-out jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Adjustable output voltage | Yes |
| DC output voltage | 18V |
| Output current (5V) | 3.5 A |
| Output current (12V) | 2 A |
| Power auto-sensing | Yes |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 5, 12, 18 V |
| Output power | 25 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 92 mm |
| Weight | 85 g |
| Height | 27 mm |
| Depth | 60 mm |
| Packaging content | |
| Quick installation guide | Yes |
