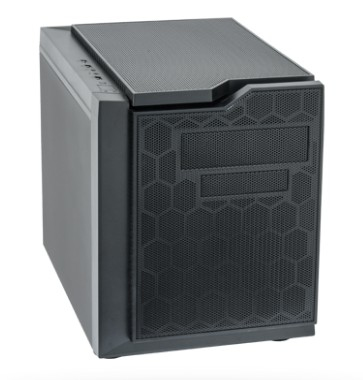

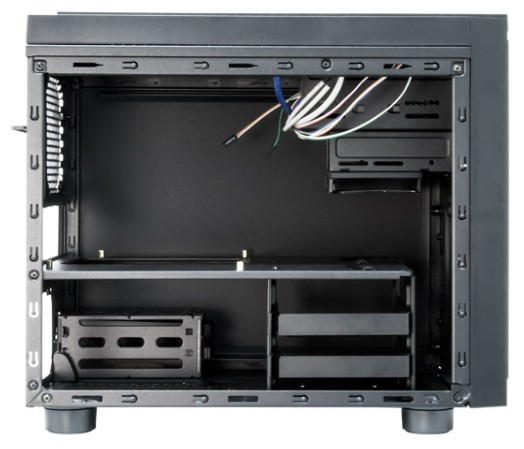

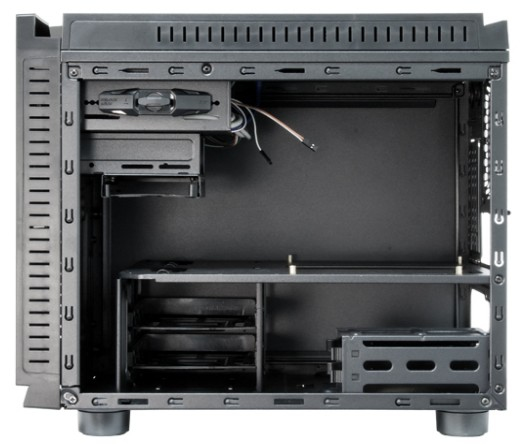

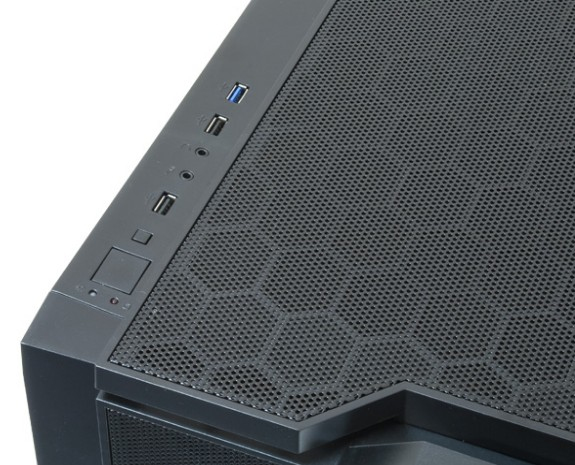

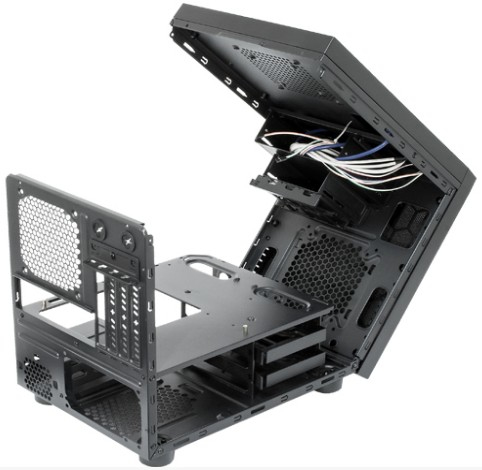

EU Product - Geh MIDI CUBE CI-01B-OP (B) 2xUSB3.0/1xUSB2.0
Introduction
With the CI-01B-OP, CHIEFTEC extends its high-value chassis portfolio by a unique and multi-functional GAMING CUBE. The brand new GAMING CUBE, based on a mATX form factor comprises of a 0,5mm thick metal case with a cute design and enormous capacities for “to-be-installed hardware” that leaves no wish open and serves the DIY Gaming market marvelously. Coming in an all-black finish, the CI-01B-OP presents itself with a honey-comb stamped mesh front panel, giving the chassis a descent but high-end look.
Specifications
| Design | |
|---|---|
| Material thickness | 0.5 mm |
| Number of external 5.25" bays | 1 |
| Material | SECC |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 2 |
| Supported motherboard form factors | micro ATX |
| Side window | No |
| Product colour | Black |
| Number of expansion slots | 4 |
| Maximum CPU cooler height | 15 cm |
| Maximum graphics card length | 32 cm |
| Type | PC |
| Form factor | Cube |
| Technical details | |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 2 |
| Supported motherboard form factors | micro ATX |
| Supported HDD sizes | 2.5,3.5" |
| Side window | No |
| Product colour | Black |
| Number of expansion slots | 4 |
| Maximum CPU cooler height | 15 cm |
| Maximum graphics card length | 32 cm |
| Type | PC |
| Form factor | Cube |
| Harmonized System (HS) code | 84733080 |
| Material | |
| Material | SECC |
| Material thickness | 0.5 mm |
| Power supply | |
| Supported power supply form factors | ATX |
| Power supply included | No |
| Power supply location | Top |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
| Width | 265 mm |
| Depth | 390 mm |
| Height | 325 mm |
| Weight | 5.1 kg |
| Material thickness | 0.5 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Harmonized System (HS) code | 84733080 |
