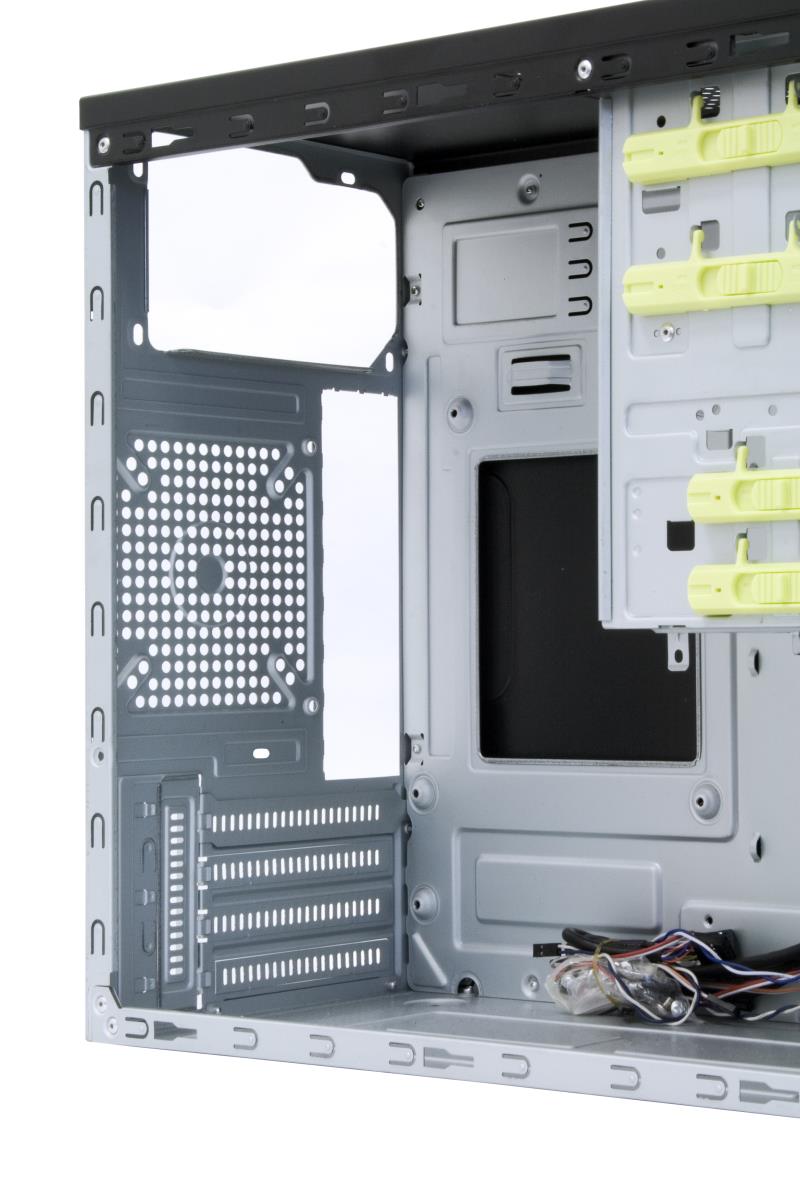

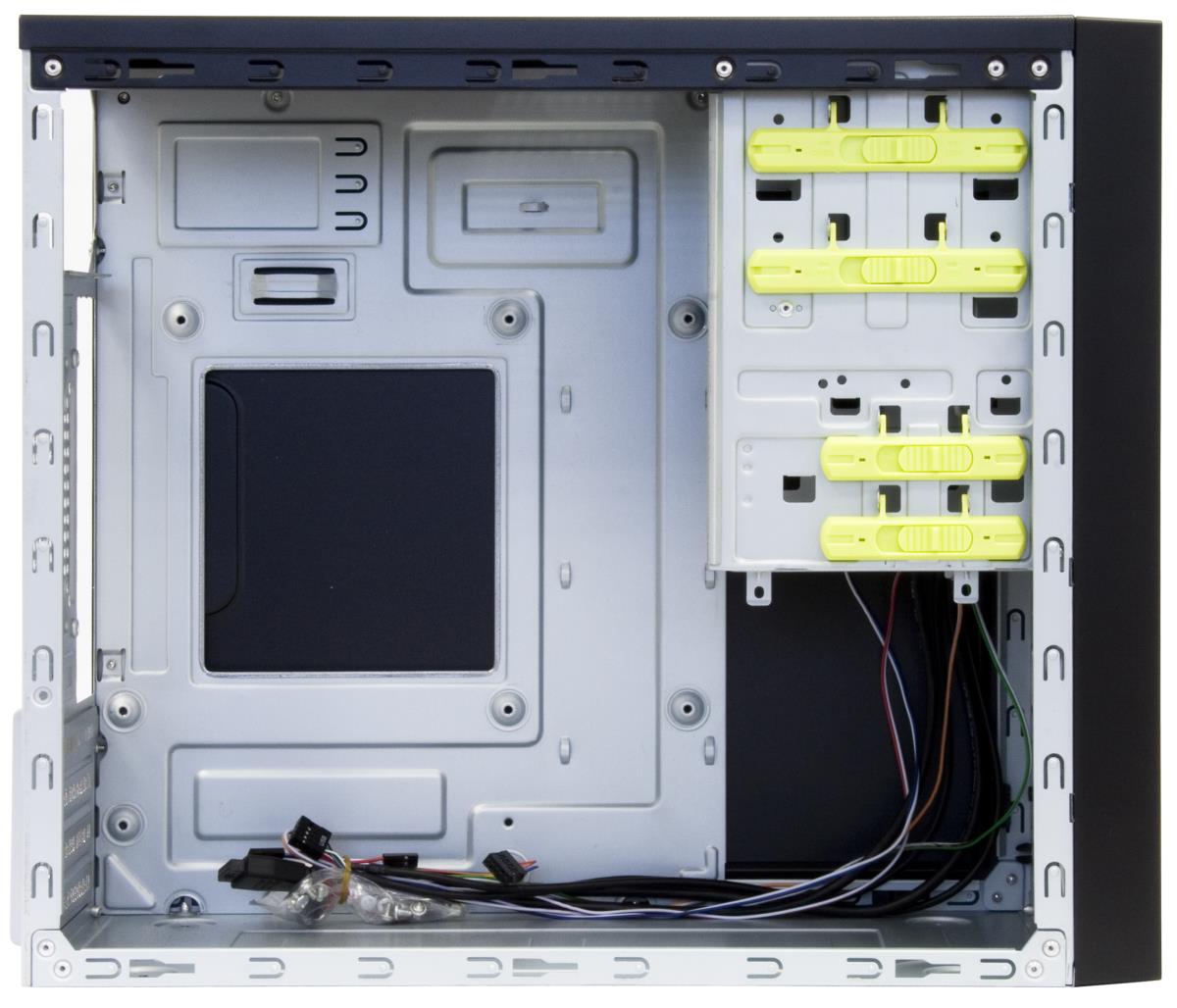

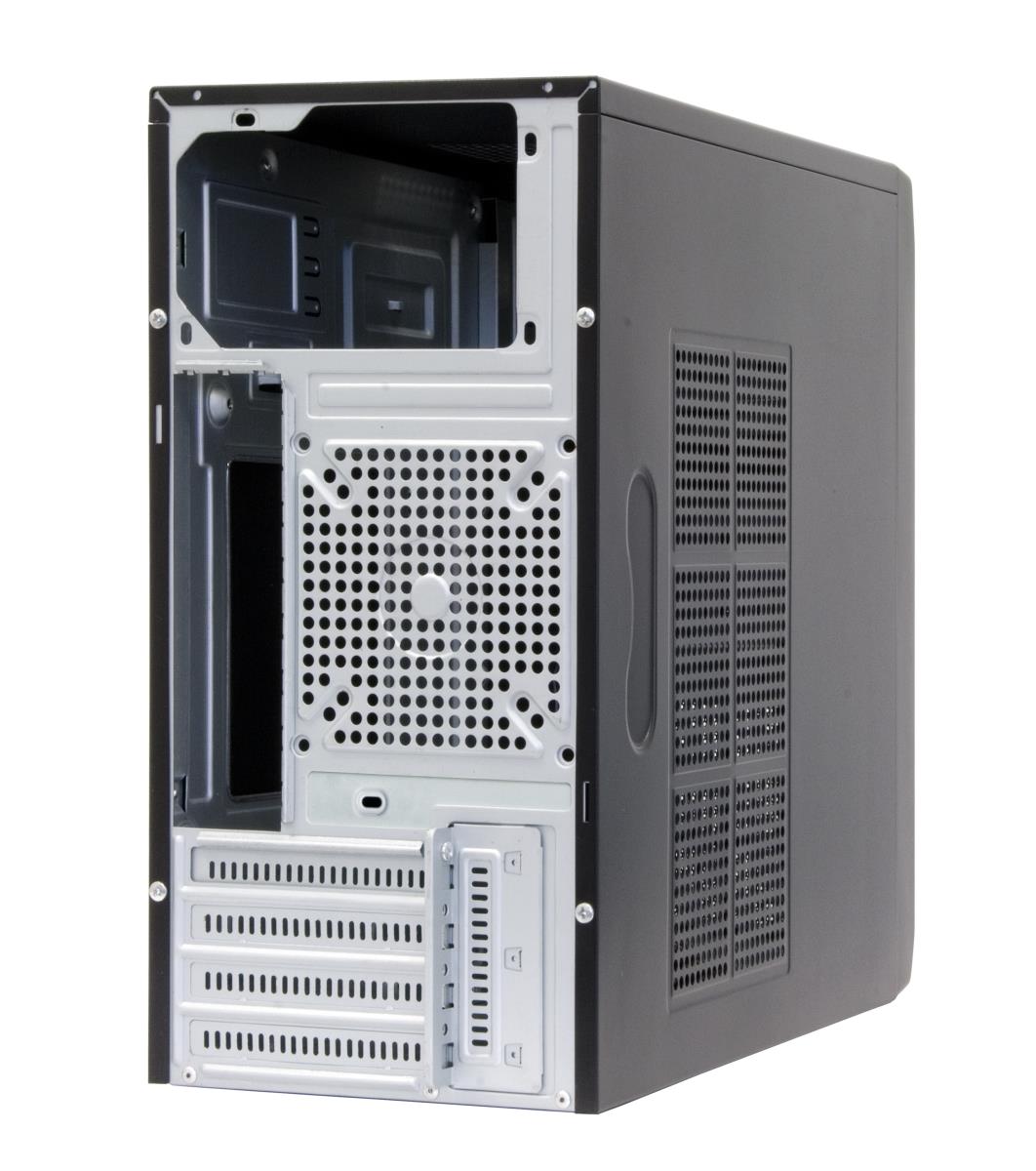

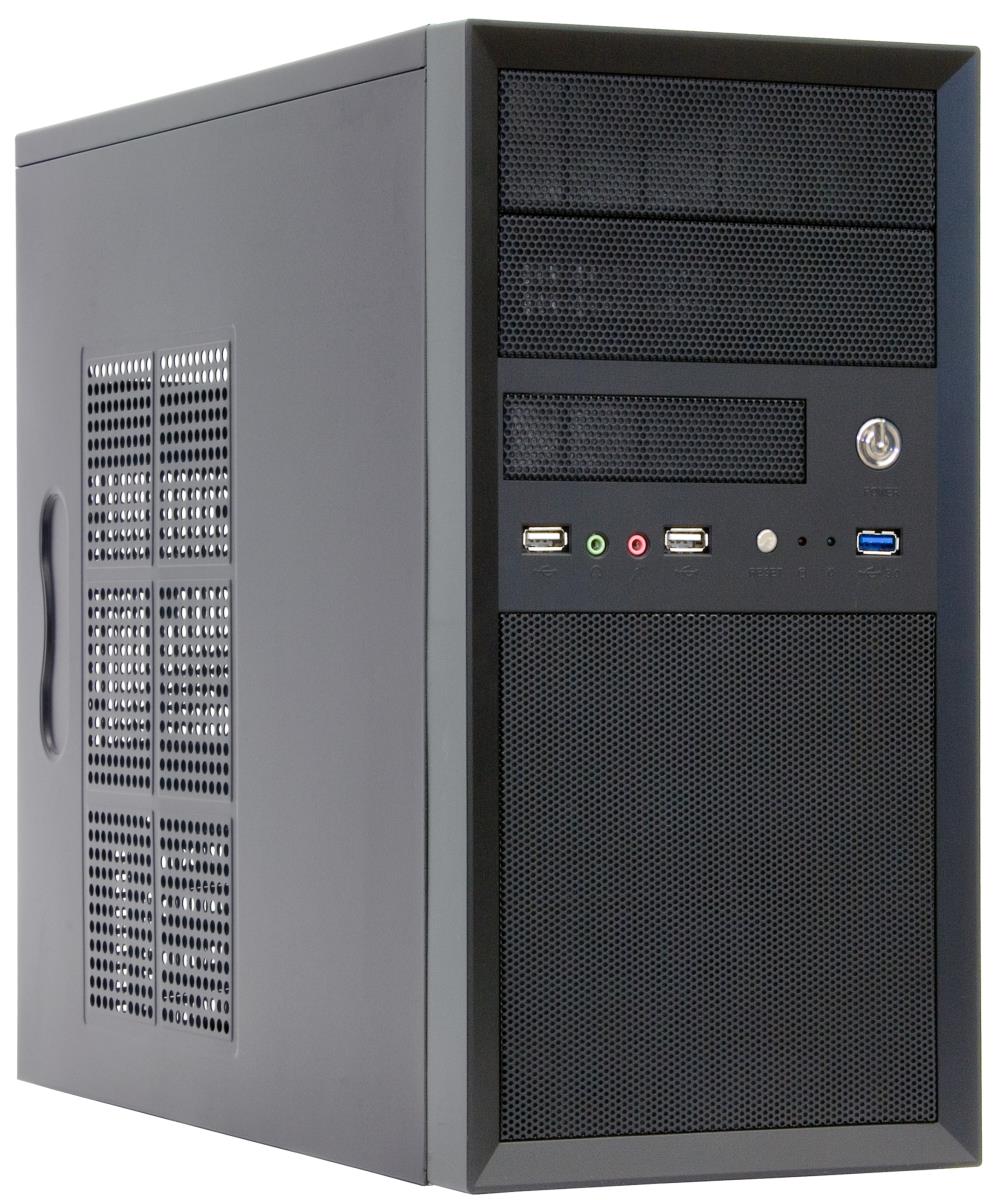

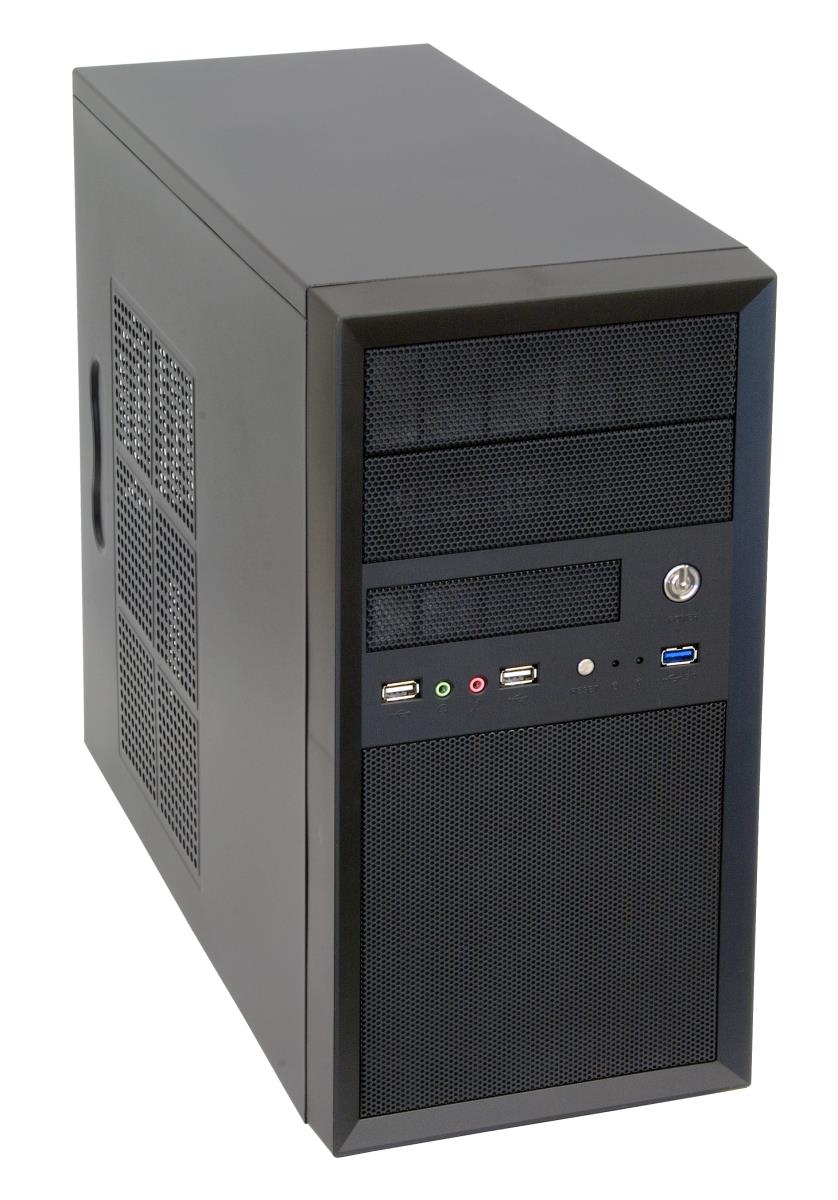

EU Product - Geh MINI MESH CT-01B-OP (B) USB3.0
Introduction
CT-01B – offers Chieftec's quality at an unexpectedly unbeatable price. Universal design, high quality finish and value added extras will satisfy most needs, like for example fans scalability from 80 to 120mm.
Specifications
| Design | |
|---|---|
| Material thickness | 0.6 mm |
| Material | SECC |
| Number of 5.25" bays | 2 |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 1 |
| Number of internal 3.5" bays | 2 |
| Supported motherboard form factors | micro ATX |
| Suitable for | Home/Office |
| Side window | No |
| Reset button | Yes |
| Backplanes support | No |
| Product colour | Black |
| Number of expansion slots | 4 |
| Type | PC |
| Form factor | Mini Tower |
| Technical details | |
| Number of 5.25" bays | 2 |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 1 |
| Number of internal 3.5" bays | 2 |
| Supported motherboard form factors | micro ATX |
| Supported HDD sizes | 2.5,3.5" |
| Suitable for | Home/Office |
| Side window | No |
| Reset button | Yes |
| Built-in HDD dock station | No |
| Backplanes support | No |
| Product colour | Black |
| Number of expansion slots | 4 |
| Type | PC |
| Form factor | Mini Tower |
| Harmonized System (HS) code | 84733080 |
| Material | |
| Material | SECC |
| Material thickness | 0.6 mm |
| Ergonomics | |
| Reset button | Yes |
| Power supply | |
| Power supply included | No |
| Power supply location | Top |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 2 |
| Cooling | |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 80,90,120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80,90,120 mm |
| Liquid cooling capability | No |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| Card reader integrated | No |
| Built-in HDD dock station | No |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 425 mm |
| Height | 352 mm |
| Weight | 4.5 kg |
| Material thickness | 0.6 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| On/off switch | Yes |
| Built-in HDD dock station | No |
| Backplanes support | No |
| Harmonized System (HS) code | 84733080 |
