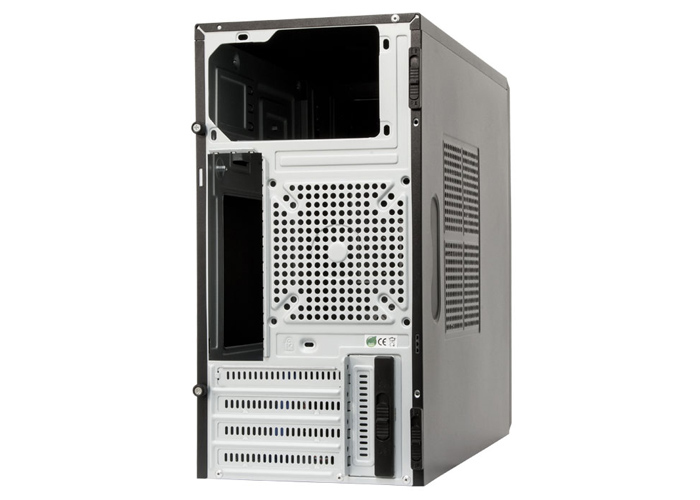

EU Product - CT-04B-350GPB - Tower - micro ATX 350 - Tower - ATX
Introduction
With our latest mATX tool-less chassis, the CT-04B-350GPB, CHIEFTEC stays true to its time-less design, thereby defining the chassis as both home and office friendly and complementing all relevant functions according to markets latest demanding factors. The eye-catching and outstanding mesh front panel gives the CT-04B-350GPB a special value-added appearance, offering 2x USB 3.0, 2x USB 2.0 and HD audio IN & OUT connectors being easily accessible, even if the chassis is below the desk.
Specifications
| Design | |
|---|---|
| Material thickness | 0.5 mm |
| Material | SECC |
| Number of 5.25" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Side window | No |
| Product colour | Black |
| Maximum CPU cooler height | 14 cm |
| Maximum graphics card length | 34 cm |
| Type | PC |
| Technical details | |
| Number of 5.25" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Supported HDD sizes | 2.5,3.5,5.25" |
| Side window | No |
| Product colour | Black |
| Maximum CPU cooler height | 14 cm |
| Maximum graphics card length | 34 cm |
| Type | PC |
| Harmonized System (HS) code | 84733080 |
| Material | |
| Material | SECC |
| Material thickness | 0.5 mm |
| Power supply | |
| Power supply included | Yes |
| Power supply | 350 W |
| Power supply location | Top |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 2 |
| Cooling | |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 80,90,120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80,90,120 mm |
| Storage | |
| Supported HDD sizes | 2.5,3.5,5.25" |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 425 mm |
| Height | 352 mm |
| Weight | 4.96 kg |
| Material thickness | 0.5 mm |
| Packaging data | |
| Package weight | 5.68 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Harmonized System (HS) code | 84733080 |
