EU Product - Geh Compact Serie IX-06B-OP
Introduction

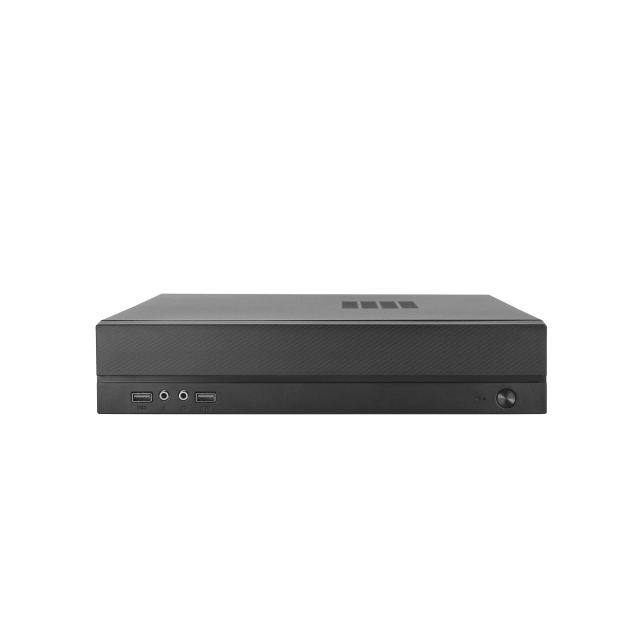

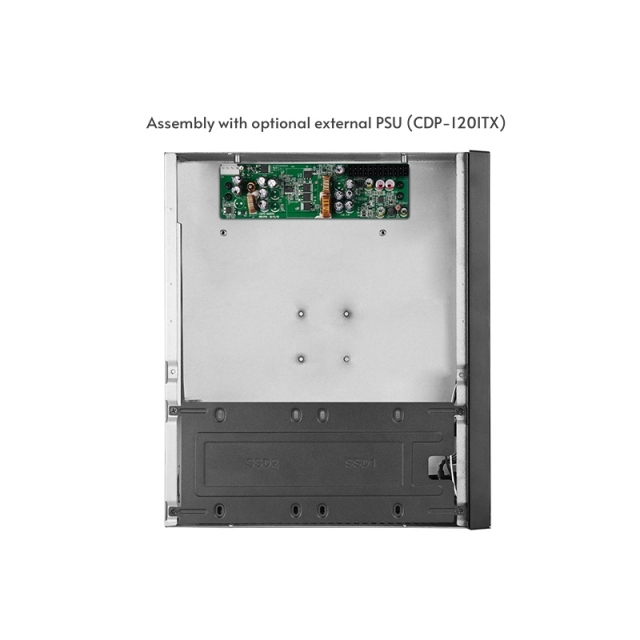

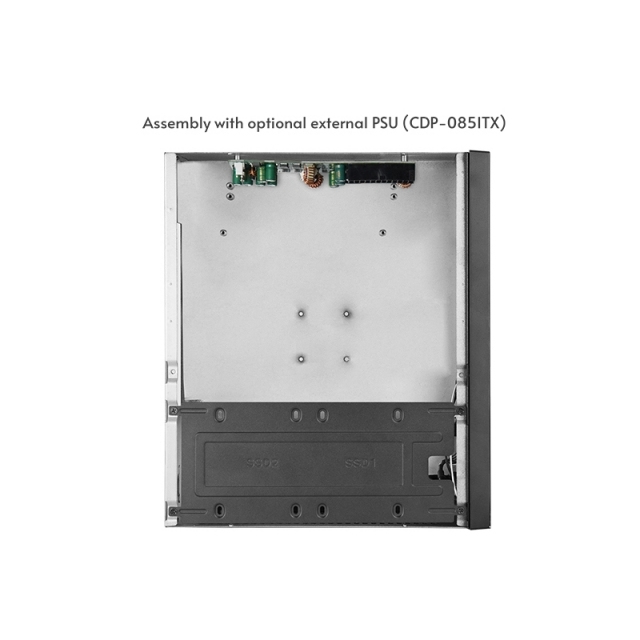

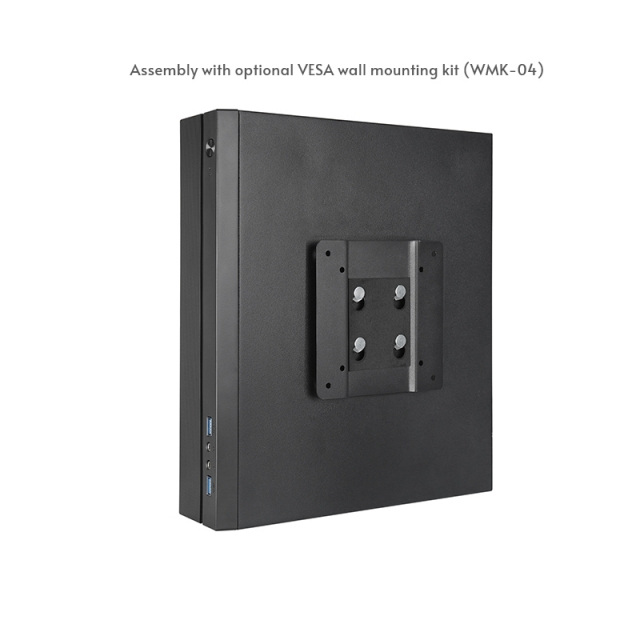

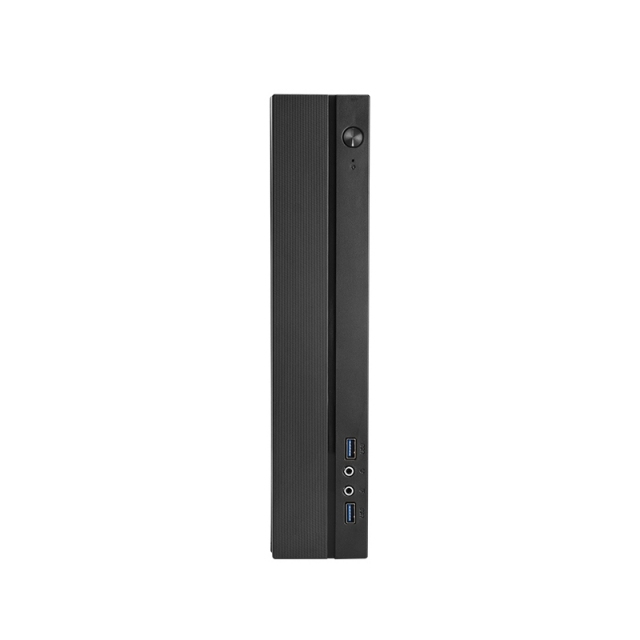

This tiny case oers the ideal combination of small footprint, while supporting mainstream oce systems with up to 2 SSD’s, ITX or m-ATX mainboard and front USB and Audio ports. Whether standing vertically, lying horizontally or mounted behind the screen (with optional VESA mounting kit), this case will t in perfectly in a variety of situations. Compatible with our 85W or 120W AC-DC adapters with DC-DC converter boards, these can deliver enough power for small-form-factor systems.
Specifications
| Technical details | |
|---|---|
| Number of 2.5" bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Supported HDD sizes | 2.5" |
| Product colour | Black |
| Maximum CPU cooler height | 3.5 cm |
| Type | PC |
| Form factor | Small Form Factor (SFF) |
| Harmonized System (HS) code | 84733080 |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Material | |
| Material | SPCC |
| Design | |
| Material | SPCC |
| Number of 2.5" bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Product colour | Black |
| Maximum CPU cooler height | 3.5 cm |
| Type | PC |
| Form factor | Small Form Factor (SFF) |
| Number of storage drives supported | 2 |
| Power supply | |
| Power supply included | No |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| Storage | |
| Supported HDD sizes | 2.5" |
| Packaging content | |
| VESA mounting | Yes |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 265 mm |
| Height | 300 mm |
| Weight | 1.7 kg |
| Packaging data | |
| Package weight | 2.1 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Harmonized System (HS) code | 84733080 |
