EU Product - Geh 19" Rackgehäuse 4HE 411E-B (B) (400W)
Introduction

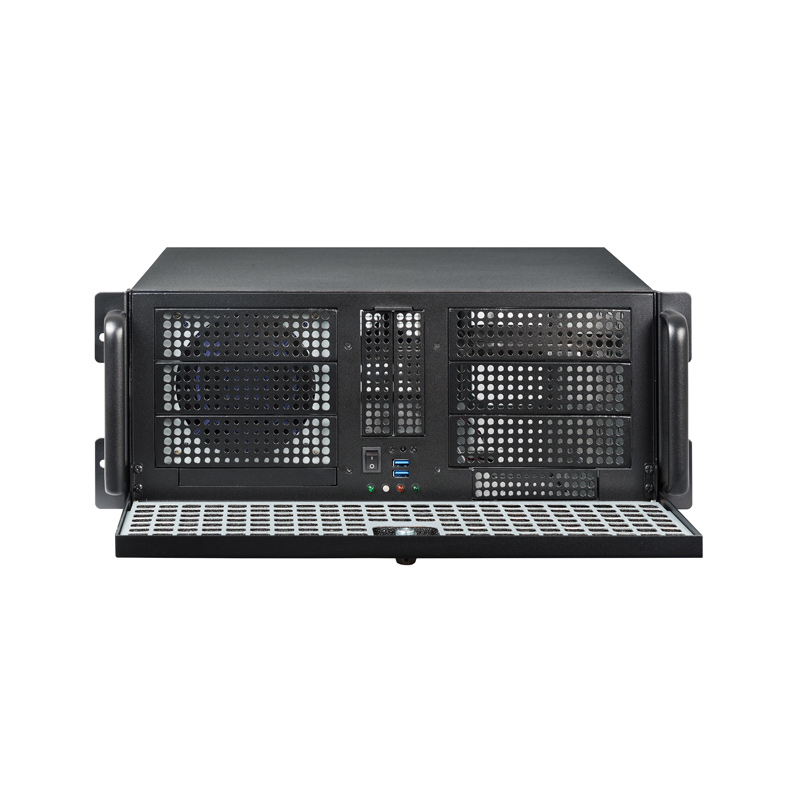

The UNC-411E-B is the flexible 4U E-ATX server rack chassis for even the most demanding systems. The robust build quality with 1.2mm thick SECC steel ensures good protection of the hardware and servers as a reliable and flexible long-term solution. Sufficient cooling options with 1x 120mm front and 2x 80mm rear installation of optionally available fans are provided. Two fast USB 3.1 ports in the front panel add to the features on offer with this chassis.
Specifications
| Design | |
|---|---|
| Material thickness | 1.2 mm |
| Material | SECC |
| Number of 5.25" bays | 6 |
| Number of 3.5" bays | 5 |
| Number of internal 3.5" bays | 2 |
| Rack mounting | Yes |
| Supported motherboard form factors | ATX, EATX, micro ATX |
| Side window | No |
| Product colour | Black, Silver |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 14 cm |
| Maximum graphics card length | 33 cm |
| Type | Server |
| Form factor | Rack |
| Rack capacity | 4U |
| Technical details | |
| Number of 5.25" bays | 6 |
| Number of 3.5" bays | 5 |
| Number of internal 3.5" bays | 2 |
| Rack mounting | Yes |
| Supported motherboard form factors | ATX, EATX, micro ATX |
| Supported HDD sizes | 3.5,5.25" |
| Side window | No |
| Product colour | Black, Silver |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 14 cm |
| Maximum graphics card length | 33 cm |
| Type | Server |
| Form factor | Rack |
| Material | |
| Material | SECC |
| Material thickness | 1.2 mm |
| Power supply | |
| Supported power supply form factors | ATX |
| Power supply included | Yes |
| Power supply | 400 W |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | No |
| Audio output | No |
| Cooling | |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 80 mm |
| Storage | |
| Supported HDD sizes | 3.5,5.25" |
| Weight & dimensions | |
| Width | 485 mm |
| Depth | 600 mm |
| Height | 177.5 mm |
| Weight | 14.5 kg |
| Material thickness | 1.2 mm |
| Packaging data | |
| Package weight | 19 kg |
