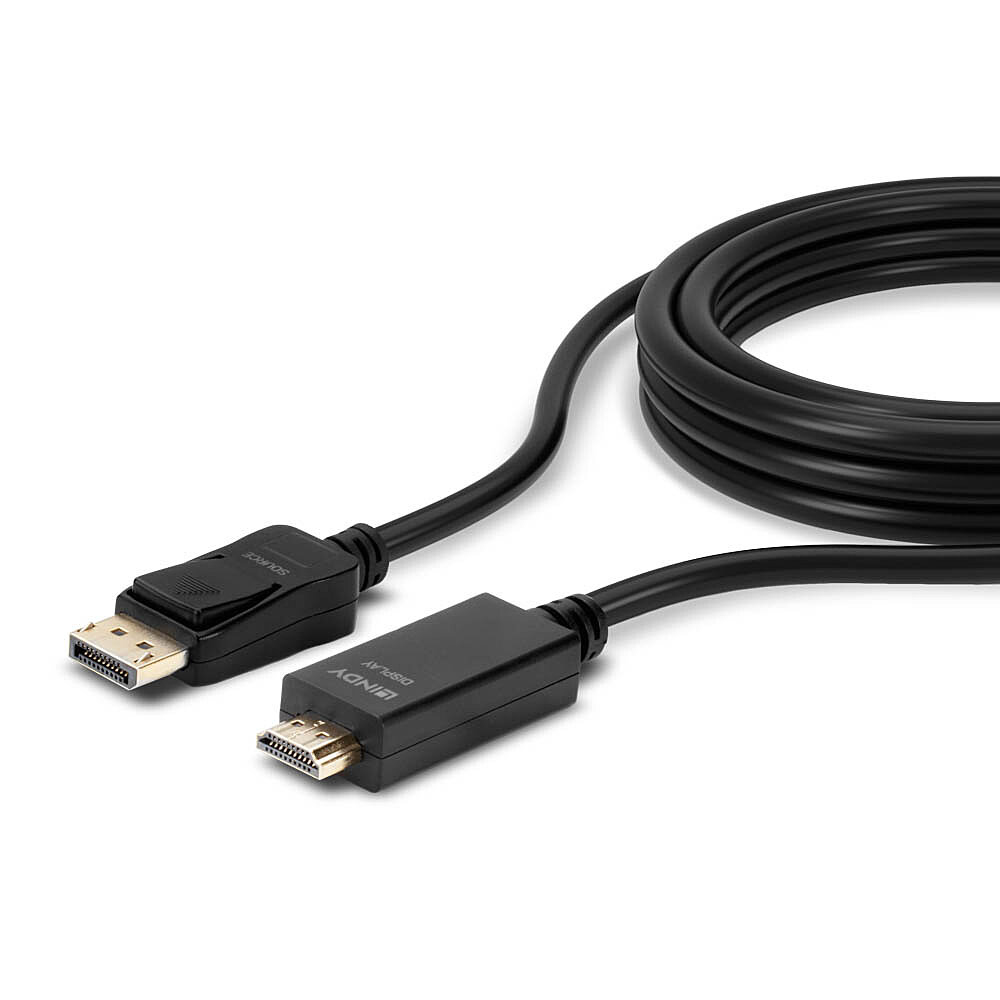

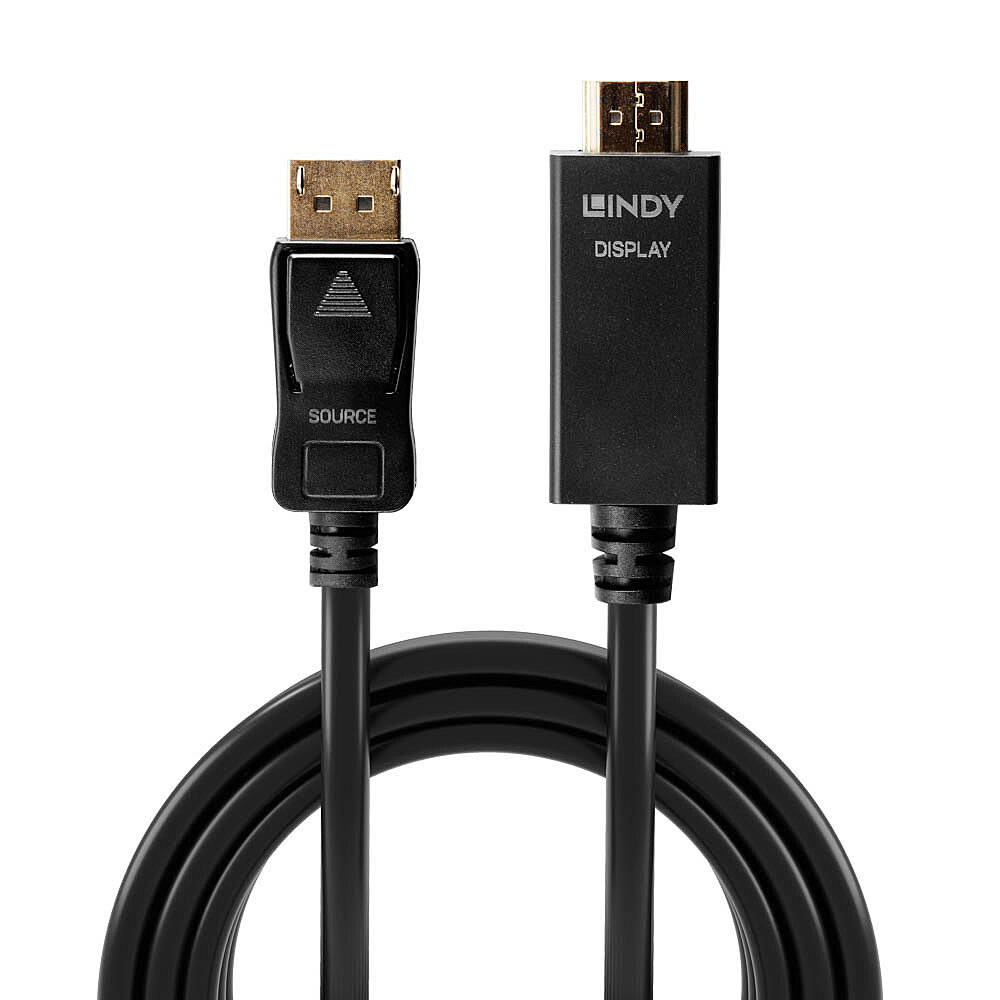

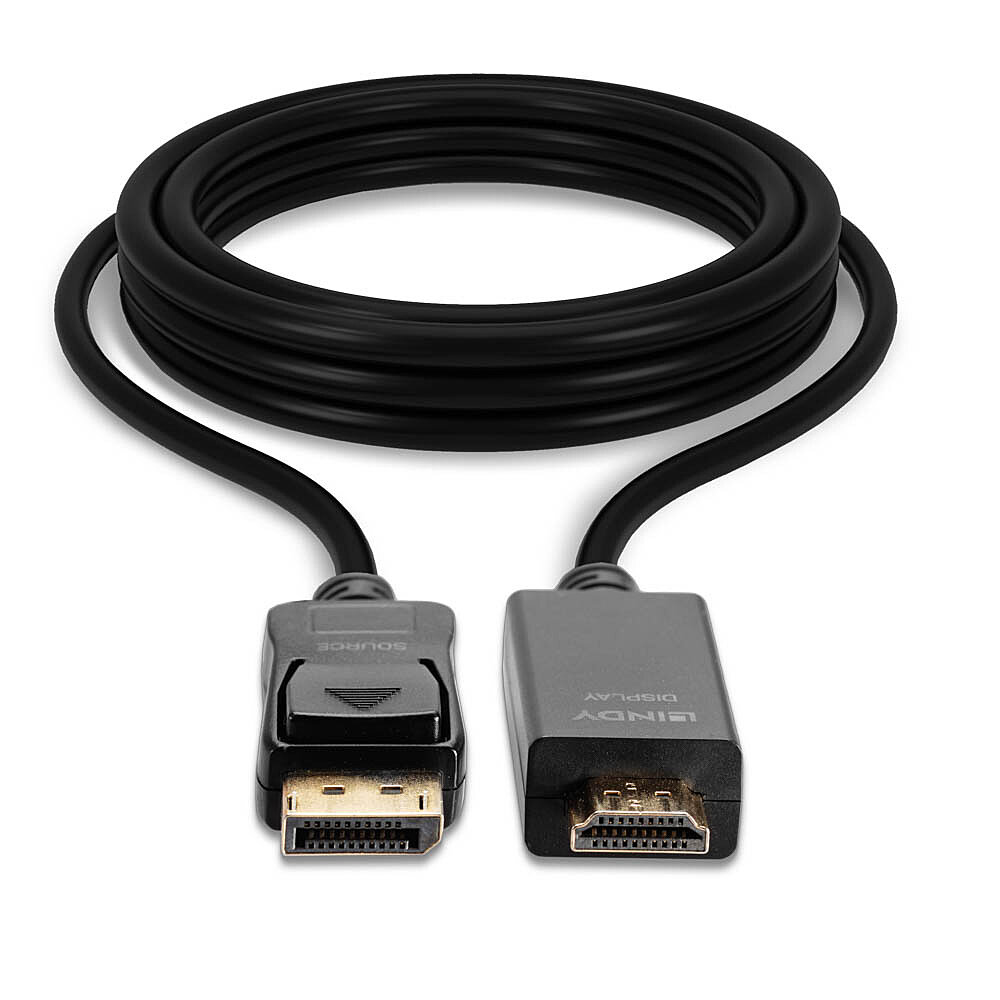

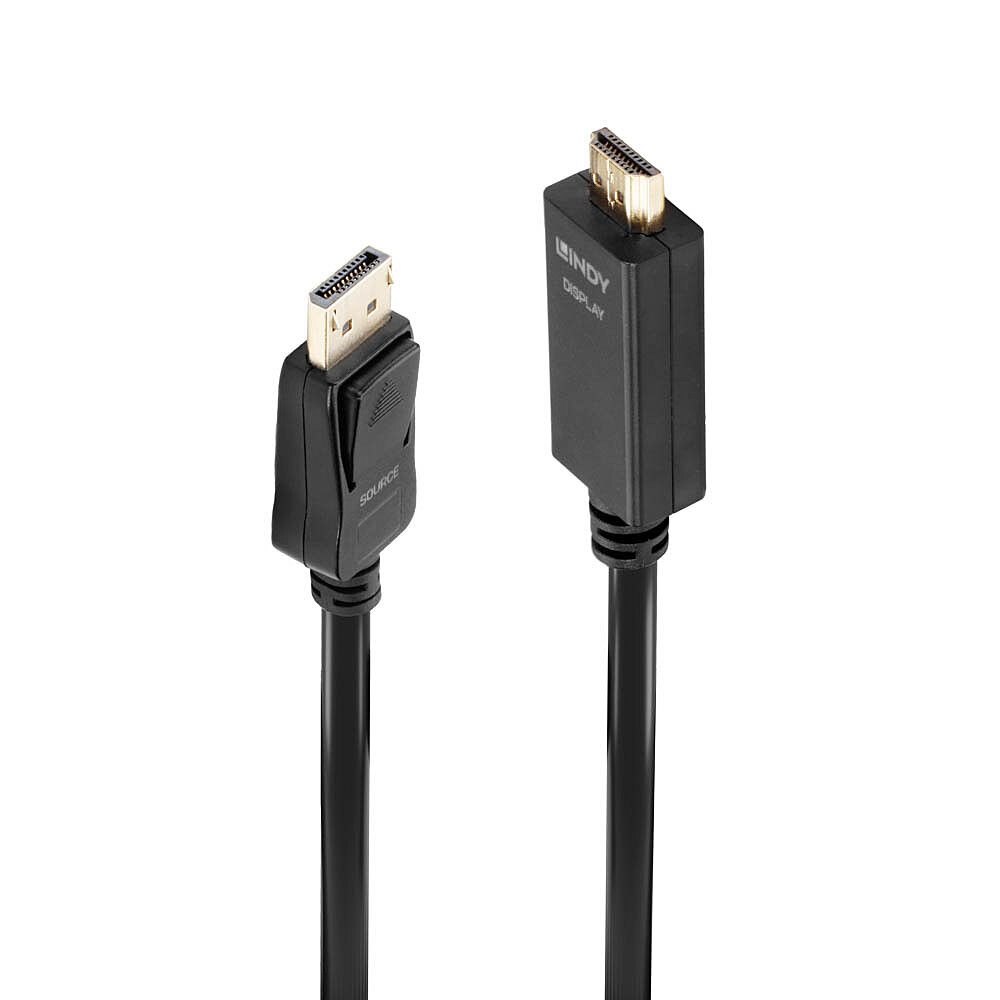

2M PASSIVE DP TO HDMI ADAPTER CABLE
Introduction
The Lindy DisplayPort to HDMI Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to an HDMI display. Supporting 4K UHD resolutions up to 3840x2160@30Hz, this cable is ideal for ensuring video is displayed in superior clarity. This cable can also be used to add another display to extend the available desktop workspace and increase productivity, great for use in residential or workplace office setups.
The DisplayPort to HDMI Cable supports uncompressed 7.1 Audio and compressed Audio such as DTS-HD Master Audio, Dolby TrueHD. Please note that audio output over HDMI is only supported when the graphics card of the laptop or desktop computer supports audio output over DisplayPort.
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminium braid |
| Colour depth | 8 bit |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Data transfer rate | 10.2 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 1080p |
| Certification | CE, UKCA, FCC, RoHS, REACH, UL, California |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 30 Hz |
| Colour sampling | 4:4:4 |
| Bend radius (min) | 7.3 cm |
| Conductor material | Tinned copper |
| Nominal attenuation | 100MHz~450MHz -2.44--5.099dB 450MHz~8100MHz -5.094~32.906dB |
| Cable type | Round cable |
| Connector material | Gold |
| Connector housing material | Polyvinyl chloride (PVC) / Acrylonitrile butadiene styrene (ABS) |
| Contact material | Copper |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH, UL, California |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Connector 1 dimensions (WxDxH) | 36.4 x 20.5 x 9.4 mm |
| Connector 2 dimensions (WxDxH) | 37.5 x 20.5 x 10.5 mm |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
