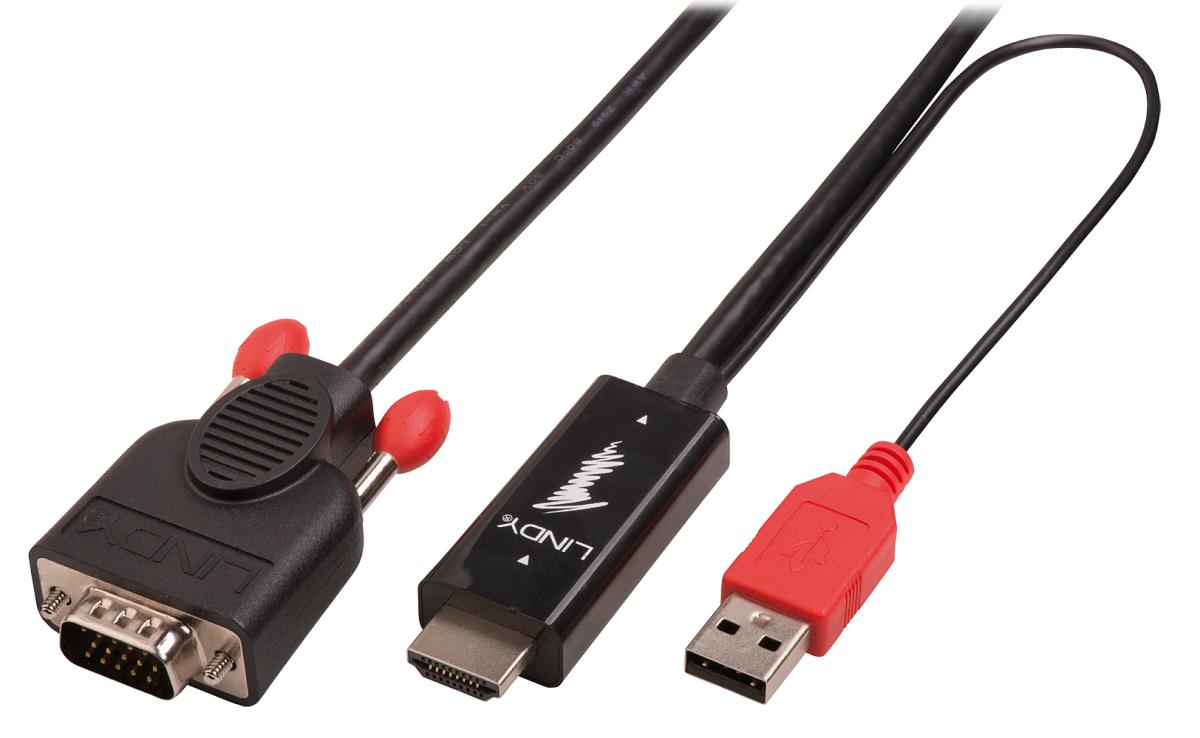

EU Product - HDMI an VGA Kabel mit USB Typ A für Strom 1080p 3m
Introduction
The Lindy HDMI to VGA Cable is ideal for connecting an HDMI equipped source such as a PC or laptop to a legacy VGA display or projector. It converts the digital signal from the HDMI connection into an analogue VGA signal and supports high definition video resolutions up to 1920x1200@60Hz.
This cable can also be used to add another display to extend available desktop workspace and increase productivity.
Please note that HDCP signals are not supported.
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminium braid |
| HDMI version | 1.3 |
| Product colour | Black, Red |
| Bandwidth | 8100 MHz |
| Cable length | 3 m |
| Connector 1 | HDMI + USB |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Data transfer rate | 4.95 Gbit/s |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Plug and Play | Yes |
| Certification | CE, FCC, RoHS, REACH, UL & California Proposition 65 |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Conductor material | Tinned copper |
| Nominal attenuation | 100MHz~450MHz -2.44--5.099dB 450MHz~8100MHz -5.094~32.906dB |
| Cable type | Round cable |
| Connector housing material | Polyvinyl chloride (PVC) / Acrylonitrile butadiene styrene (ABS) |
| Contact material | Copper |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 75 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Certificates | |
| Certification | CE, FCC, RoHS, REACH, UL & California Proposition 65 |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Sustainability | |
| Sustainability certificates | UL ECOLOGO |
| Technical details | |
| Sustainability certificates | UL ECOLOGO |
| Harmonized System (HS) code | 84733080 |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Weight & dimensions | |
| Cable diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 54.4 x 25 x 10.1 mm |
| Connector 2 dimensions (WxDxH) | 46 x 34 x 20 mm |
| Connector 3 dimensions (WxDxH) | 37 x 16 x 7 mm |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Warranty period | 2 year(s) |
