EU Product - Mini DP 1.4 to Display Port 1.4 8K60Hz - Cable - Digital/Display/Video
Introduction

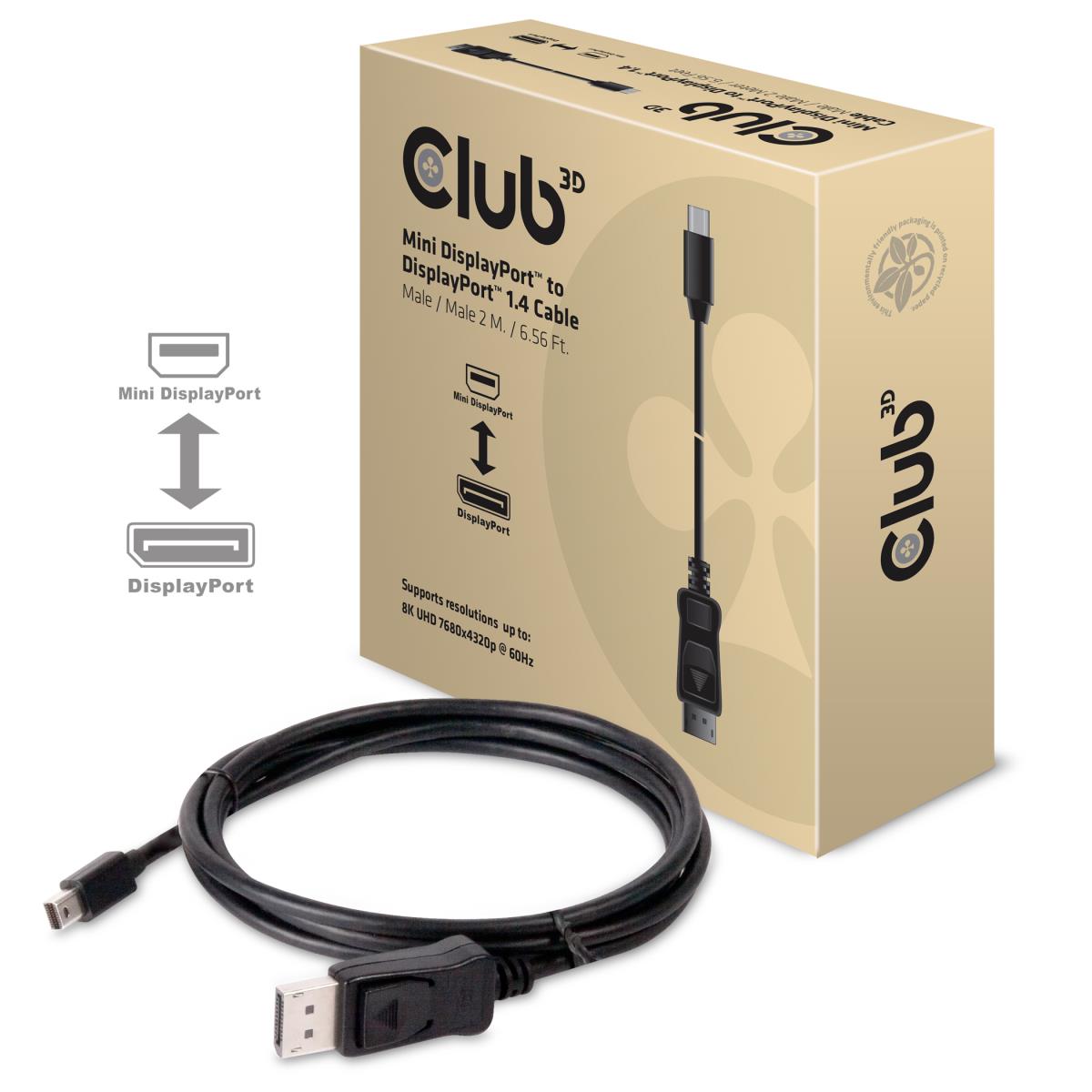

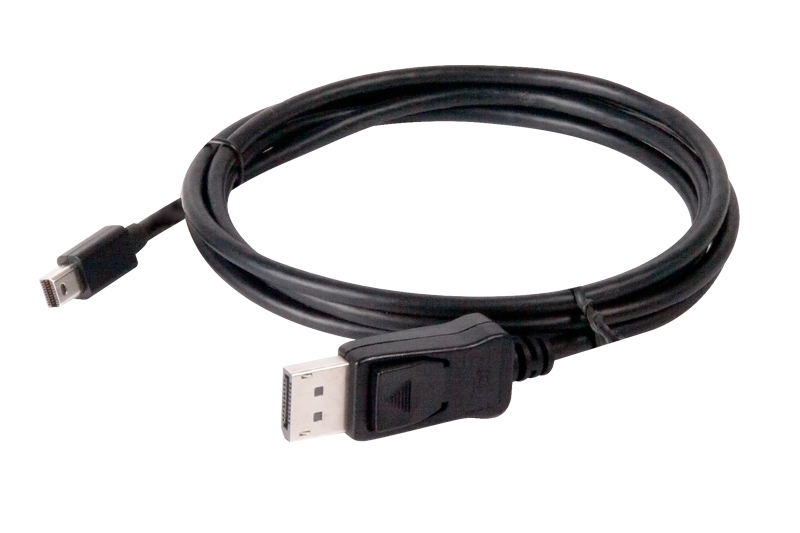

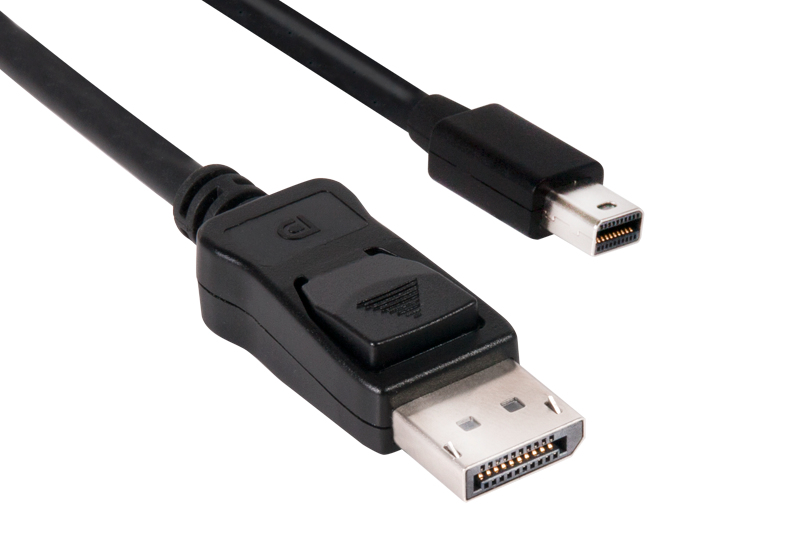

The Club 3D Mini DisplayPort™ to DisplayPort™ 1.4 cable enables the connection of your Mini DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other DisplayPort™ supported device. It features a locking DisplayPort™ connector providing a secure, dependable connection. Simply press the built-in one- touch latch button to unlock the connector. The soft UltraFlex jacket protects the cable from bends and deformation damage. The Cable is fully Bi-Directional.
Features:
* Fully DisplayPort™ Version 1.4 Compliant, HBR3, 32.4Gbps
* Support for Display Stream Compression (DSC) 1.2
* Support for Forward Error Correction
* Support for up to 32 Inline Audio Channels
* Downwards compatible to older Displayport standards
* Support resolutions up to 8K @ 60Hz or 2 x 4K @ 60Hz
* Fully Bi-Directional
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Number of shielding layers | 3 |
| Cable length | 2 m |
| Connector 1 | Mini Displayport |
| Connector 2 | Displayport |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Data transfer rate | 32.4 Gbit/s |
| 3D | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Supported video modes | 2160p, 4320p |
| Plug and Play | Yes |
| Certification | ROHS, CE, FCC |
| Maximum refresh rate | 120 Hz |
| Connector gender | Male/Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2 |
| Cable type | Round cable |
| Certificates | |
| Certification | ROHS, CE, FCC |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 93 g |
| Package width | 145 mm |
| Package depth | 45 mm |
| Package height | 145 mm |
| Packaging data | |
| Weight | 93 g |
| Package width | 145 mm |
| Package depth | 45 mm |
| Package height | 145 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Plastic packaging weight | 6 g |
| Paper/cardboard packaging weight | 239 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Technical details | |
| Harmonized System (HS) code | 8544 4290 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
| Other features | |
| Length | 2000 mm |
