EU Product - Kabel Mini DisplayPort 1.2 - Cable - Digital/Display/Video
Introduction

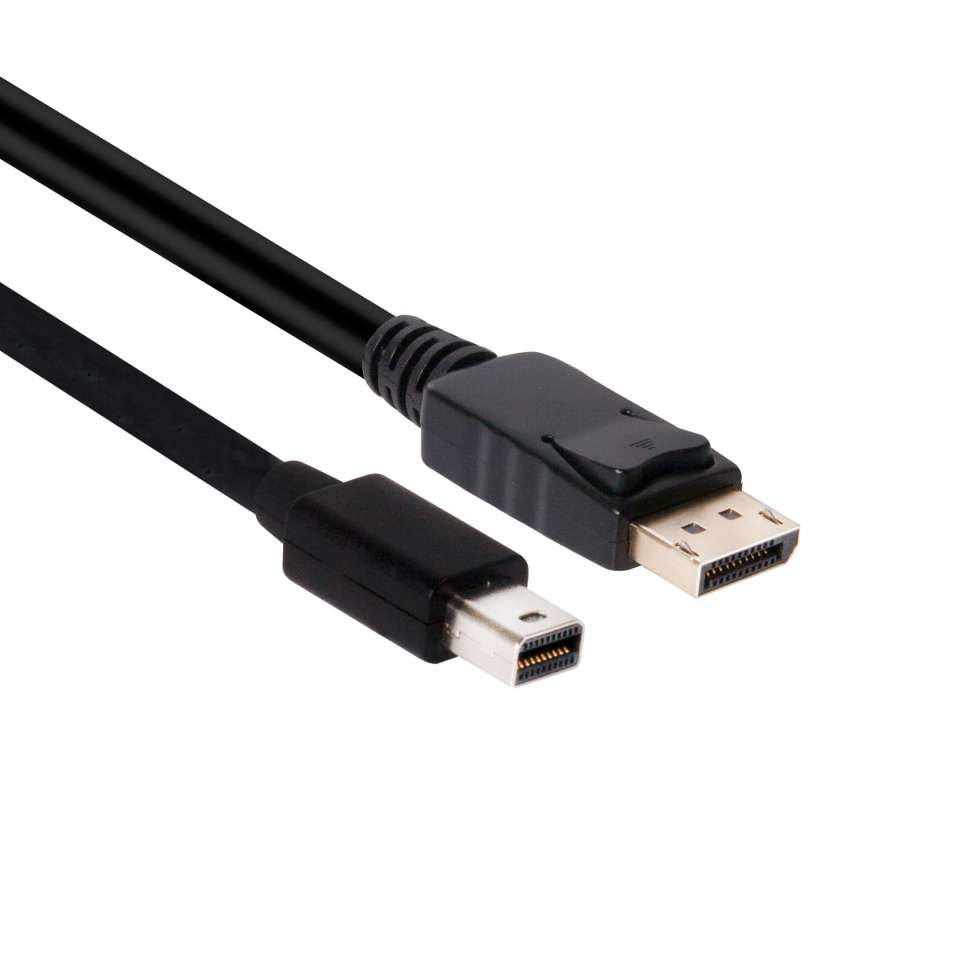

The Club 3D Mini DisplayPort™ to DisplayPort™ 1.2 cable enables the connection of your Mini DisplayPort™ supported source device to a monitor or other DisplayPort™ supported device. It features a locking DisplayPort connector providing a secure, dependable connection. Simply press the built-in one- touch latch button to unlock the connector. The Cable is Bi-Directional.
The soft UltraFlex jacket protects the cable from bends and deformation damage.
Specifications
| Features | |
|---|---|
| DisplayPort Content Protection (DPCP) | Yes |
| Product colour | Black |
| Number of shielding layers | 4 |

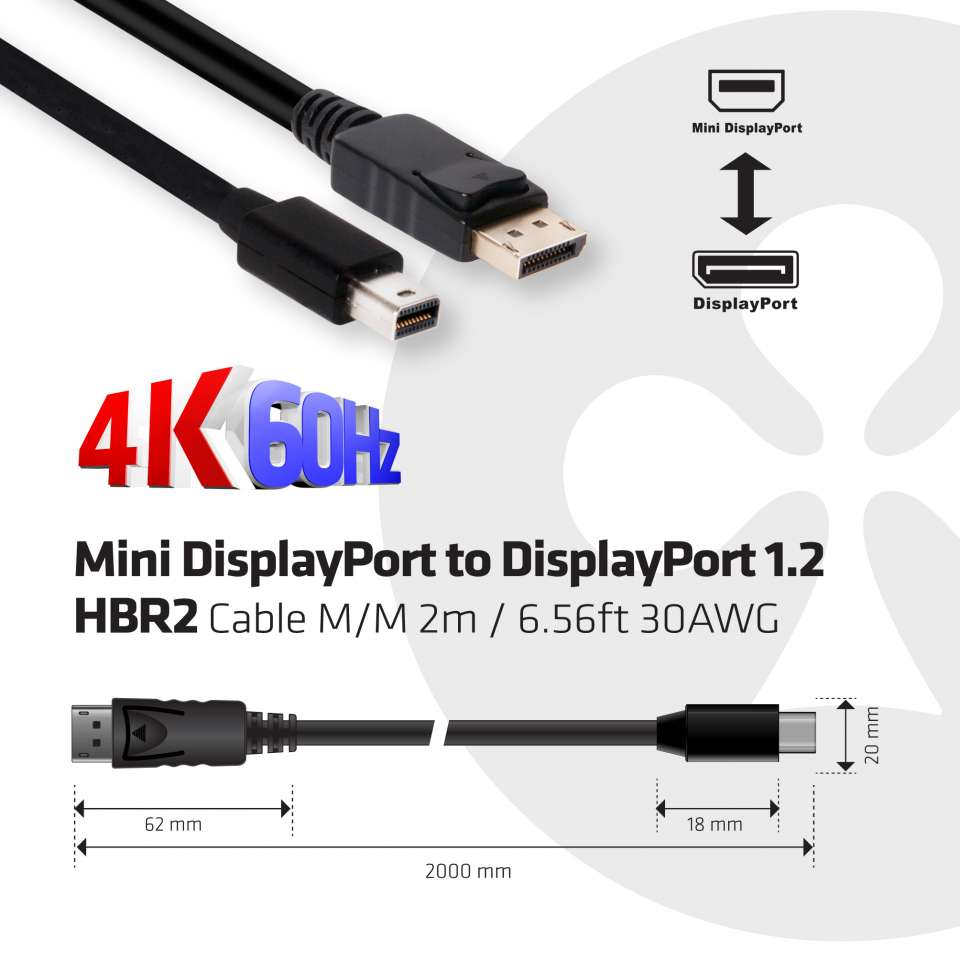

| Cable length | 2 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Copper |
| AWG wire size | 30 |
| DisplayPort version | 1.2a |
| Data transfer rate | 21.6 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Supported video modes | 1080p, 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| Certification | RoHS, WEEE, CE, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable type | Round cable |
| Certificates | |
| Certification | RoHS, WEEE, CE, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 65 g |
| Package width | 150 mm |
| Package depth | 215 mm |
| Package height | 18 mm |
| Packaging data | |
| Weight | 65 g |
| Package width | 150 mm |
| Package depth | 215 mm |
| Package height | 18 mm |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Plastic packaging weight | 10 g |
| Paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 8544 4290 |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 8544 4290 |
