EU Product - Usb Typ C 4-in-1 Hub auf Hdmi 4K60Hz Pd A Audio - Cable - Audio/Multimedia
Introduction

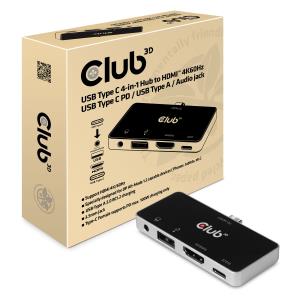

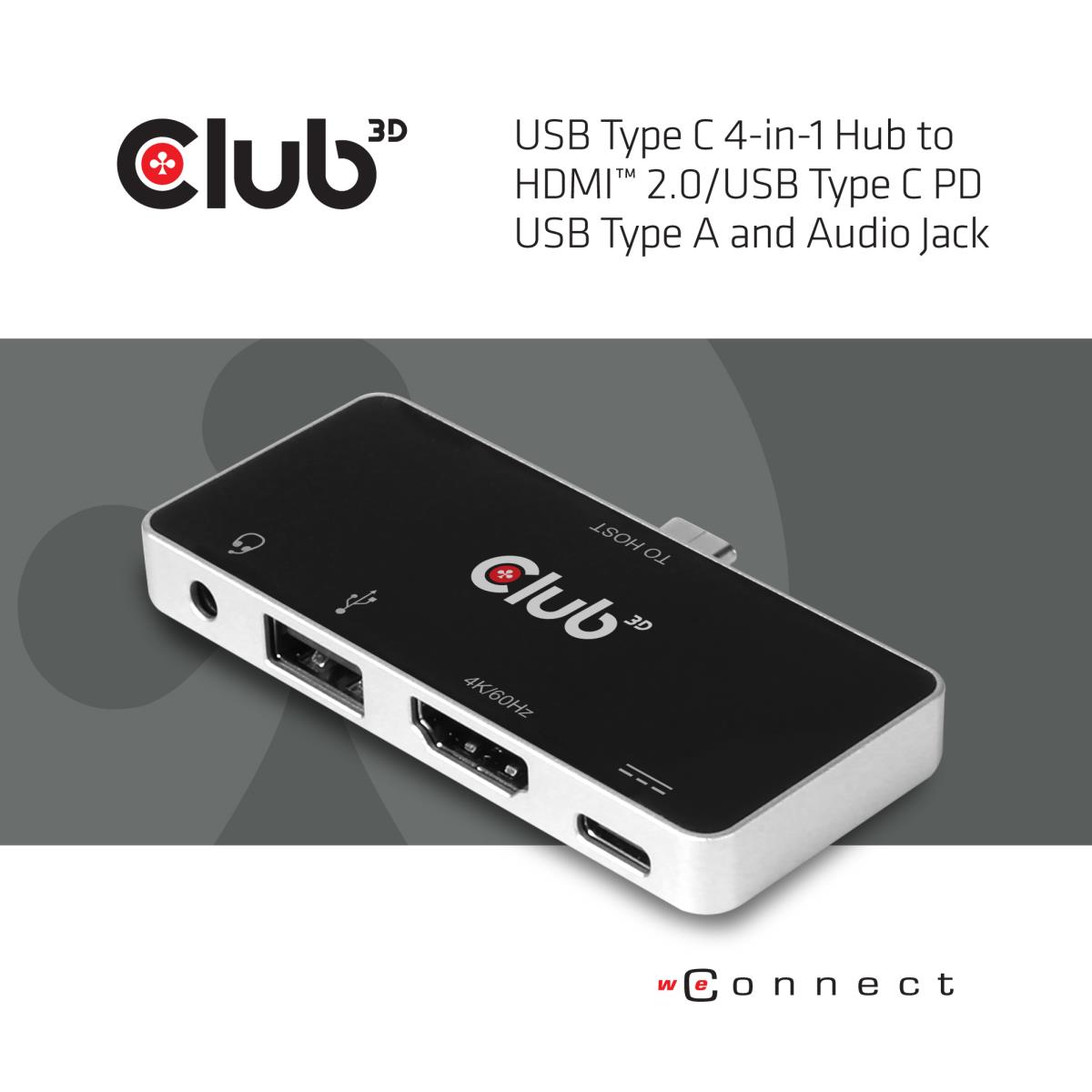

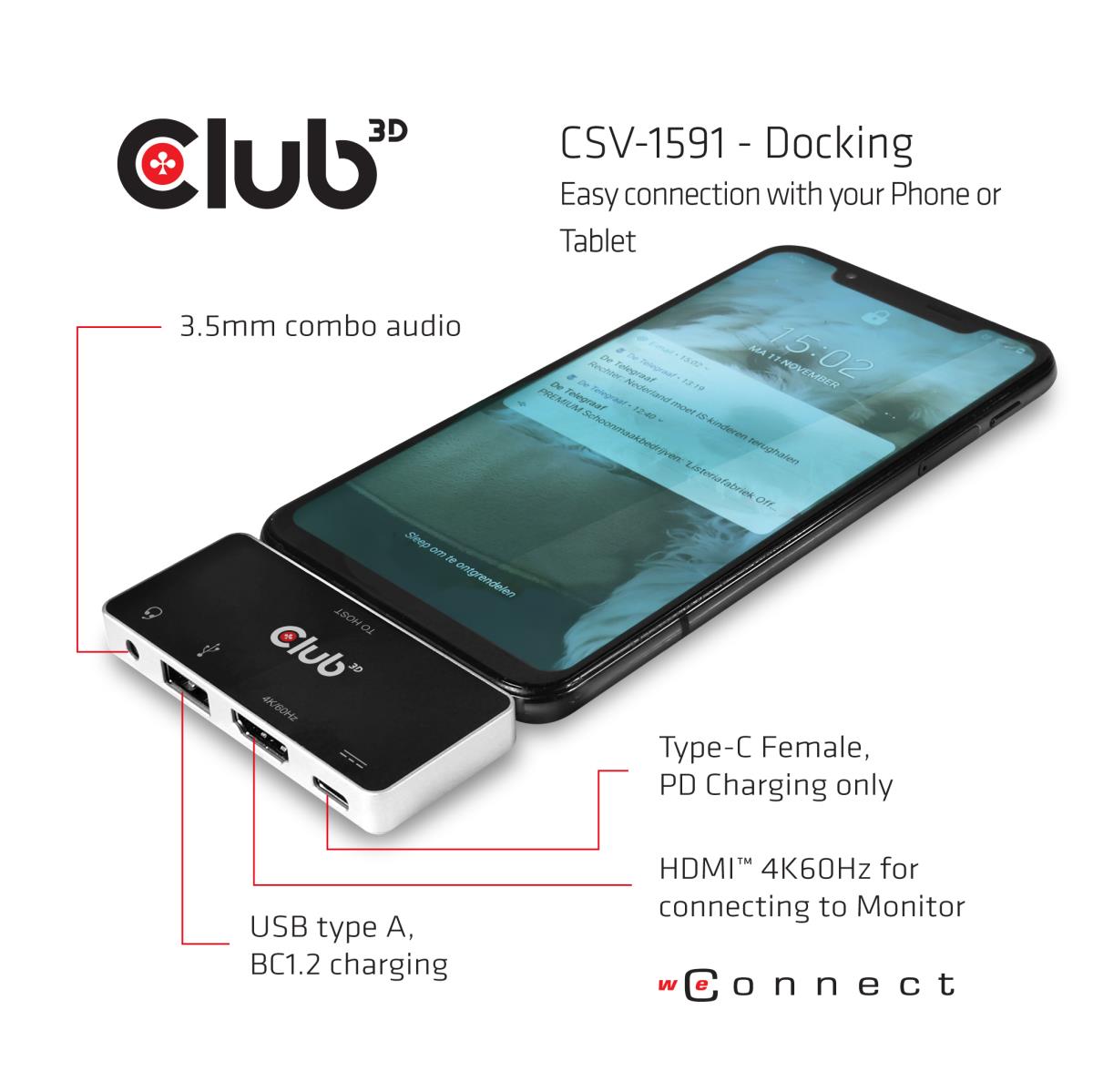

CSV-1591 - The Club 3D Hub is a 4-in-1 USB Type-C hub with HDMI™, USB Type-A 2.0, 3.5mm audio and USB Type-C PD charging, the design perfectly suits all DP Alt-mode capable devices. With this hub, you can enjoy ultra high definition video of your host on big screen, enjoy fantastic music, transmit USB 2.0 data and connect USB Type-C PD Adapter to charge the host.
This hub can work on all USB Type-C and Thunderbolt™ 3 hosts that supports DP Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 1 |
| Line-in | No |
| Line-out | No |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Microphone in | No |
| Headphone outputs | 1 |
| DC-in jack | No |
| Connectivity technology | Docking |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Country of origin | China |
| Product colour | Black, Chrome |
| Card reader integrated | No |
| Compatibility | ALL |
| Plug and Play | Yes |
| Charging function | Yes |
| Certification | FCC, CE EMI |
| HD type | 4K Ultra HD |
| Housing material | Aluminium |
| Technical details | |
| Product colour | Black, Chrome |
| Compatibility | ALL |
| Plug and Play | Yes |
| Charging function | Yes |
| Harmonized System (HS) code | 8473 3020 |
| Plastic packaging weight | 5 g |
| Compliance certificates | RoHS |
| Cooling | |
| Built-in fan | No |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| Power connector | USB Type-C |
| Power supply | 100 W |
| Wireless charging | No |

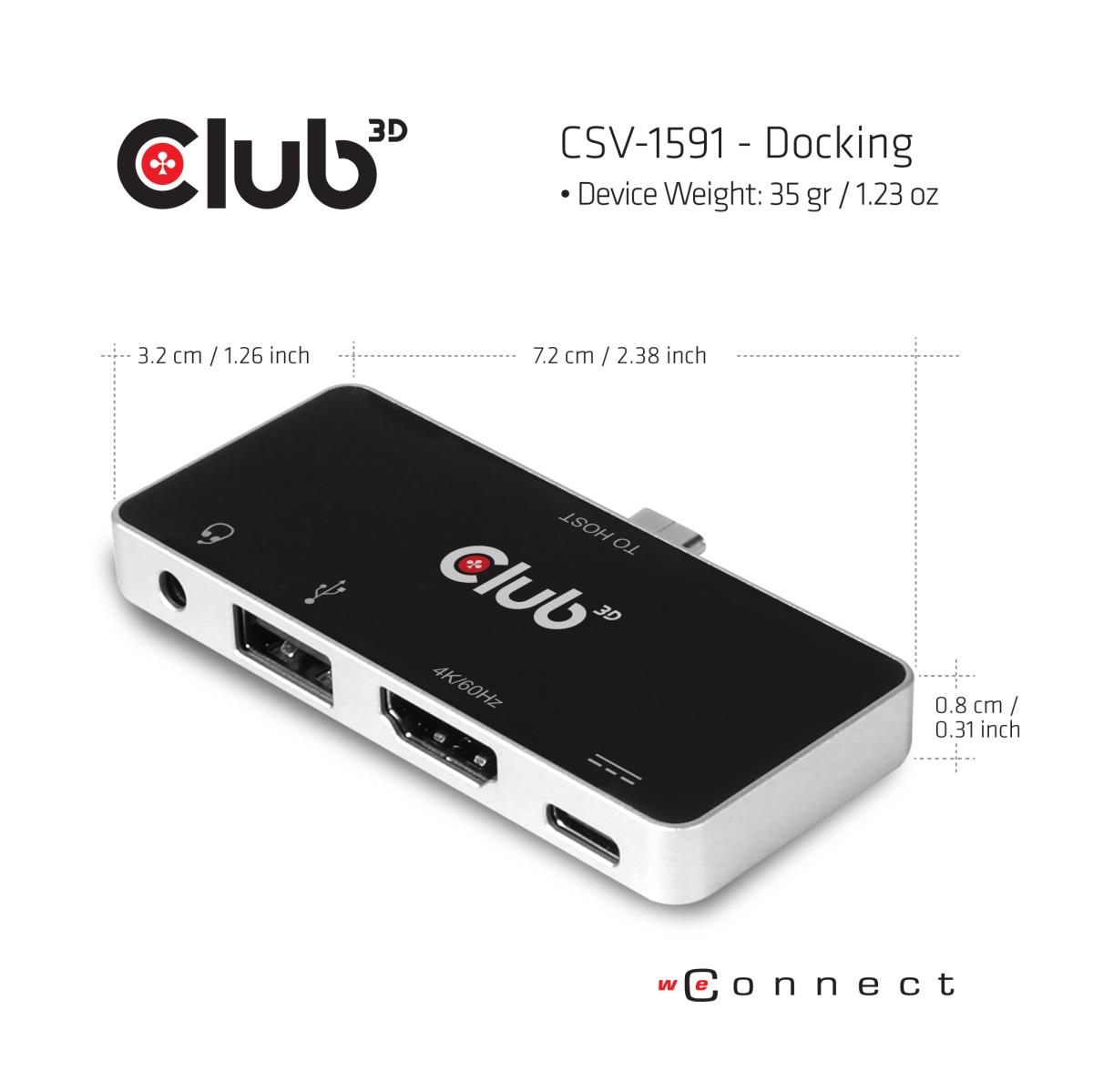

| Weight & dimensions | |
| Weight | 35 g |
| Width | 72 mm |
| Depth | 32 mm |
| Height | 9 mm |
| Package weight | 65 g |
| Package width | 100 mm |
| Package depth | 100 mm |
| Package height | 90 mm |
| Design | |
| Country of origin | China |
| Product colour | Black, Chrome |
| Certification | FCC, CE EMI |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 65 g |
| Package width | 100 mm |
| Package depth | 100 mm |
| Package height | 90 mm |
| Certificates | |
| Certification | FCC, CE EMI |
| Packaging composition | |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 65 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
