EU Product - Kabel DisplayPort auf HDMI 2.0| - Adapter - Digital/Display/Video
Introduction

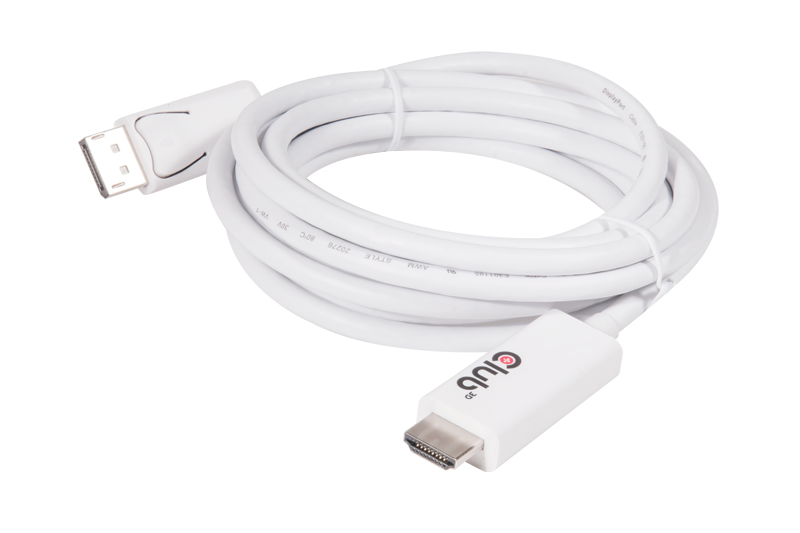

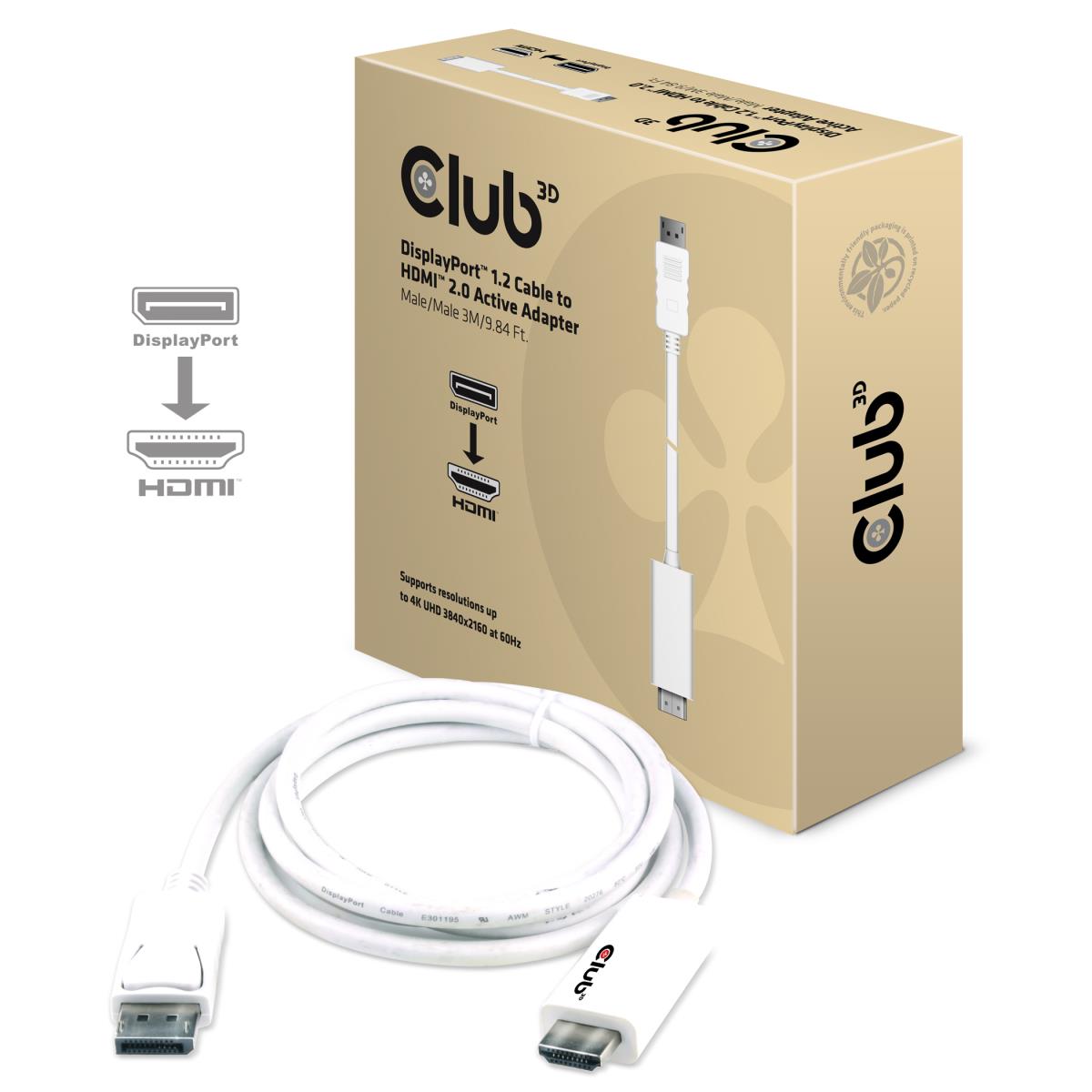

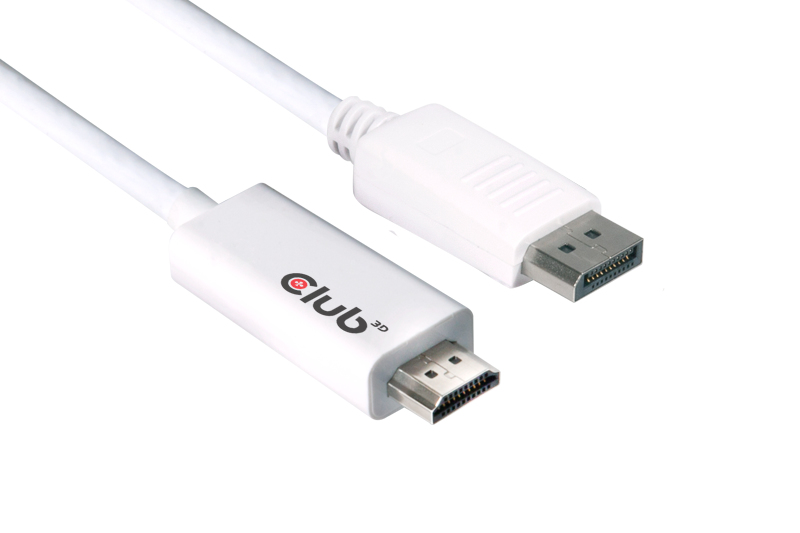

The Club 3D CAC-1073 is an active HDMI™ signal converter. The DisplayPort™ 1.2 Cable to HDMI™ 2.0 Active Adapter is the easiest solution for connecting your DisplayPort™ 1.2 enabled Game PC or Laptop to an HDMI™ 2.0 enabled 4K UHD Television, monitor or Projector. The adapter is fully compliant to HDMI™ 2.0 specification allowing for 6Gbps TMDS throughput per channel. The interface in the adapter has three lanes for HDMI data, clock, HPD signal and power, offering a total TMDS throughput of 18Gbps. Supports up to 4K UHD Resolution at 60Hz. The DisplayPort™ 1.2 Cable to HDMI2.0 Active Adapter supports (U)HD resolutions of up to 4K UHD 3840x 2160p @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video or gameplay. Use the adapter to play games, view video or browse the internet from your DisplayPort™ 1.2 enabled device in (Ultra) high- resolution. Supporting up to 8 channels of audio, the adapter provides Ultra High Definition digital audio and video. It is the ideal solution for anyone who wants to enjoy 4K UHD/ 60 game-play but lacks a native HDMI™ 2.0 output in their system configuration.
Specifications
| Features | |
|---|---|
| Product colour | White |
| Cable length | 3 m |
| Connector 1 | Displayport 1.2 |
| Connector 2 | HDMI 2.0 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Certification | ROHS, FCC and CE EMI. Supports AMD GCN cards, Nvidia® Maxwell cards and Intel® 4th Generation Integrated Graphics series and newer. Not intended for older graphics architectures. |
| Connector gender | Male/Male |
| Packaging data | |
| Weight | 165 g |
| Package width | 175 mm |
| Package depth | 45 mm |
| Package height | 178 mm |
| Weight & dimensions | |
| Weight | 165 g |
| Package width | 175 mm |
| Package depth | 45 mm |
| Package height | 178 mm |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |

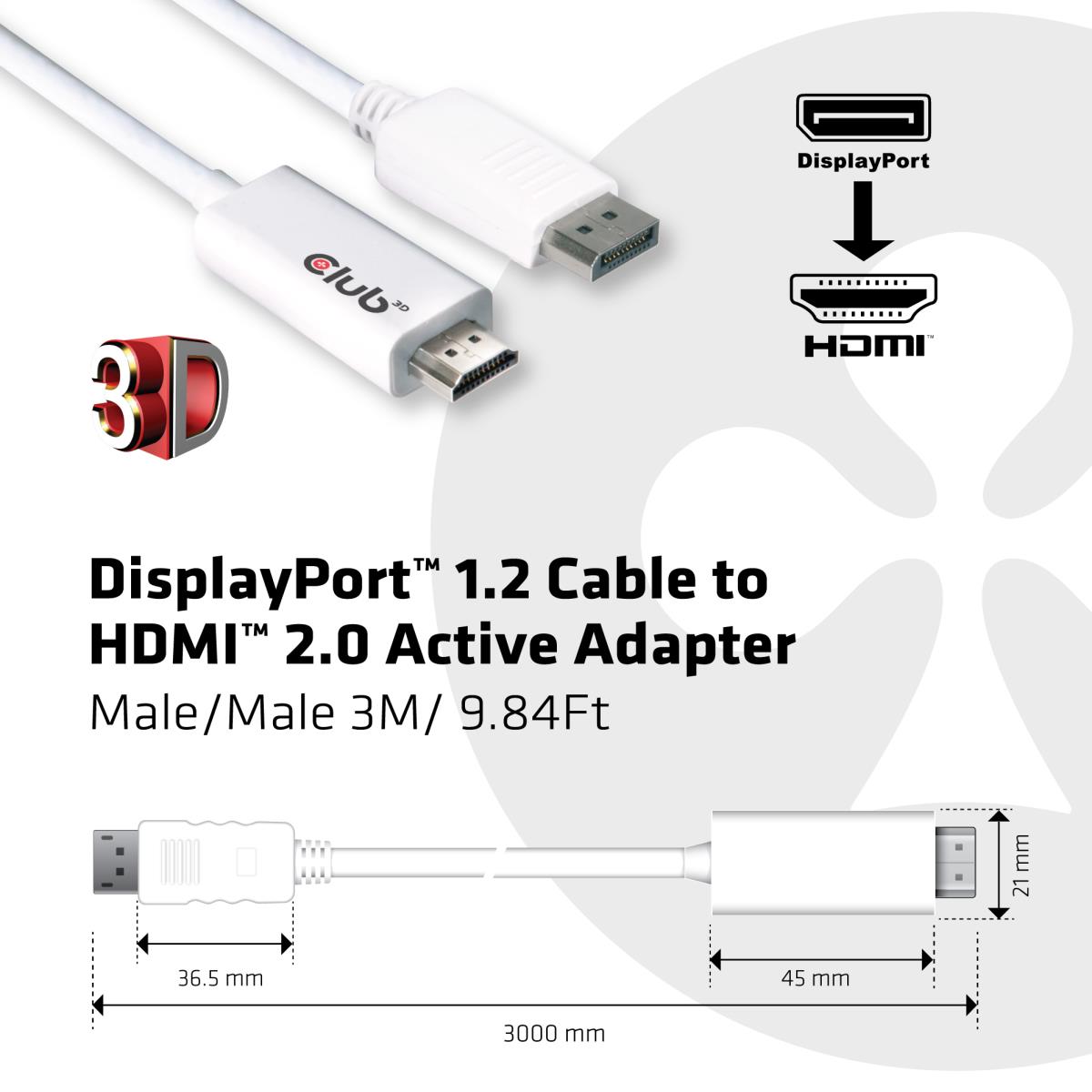

| Width | 20 mm |
| Length | 3000 mm |
