Introduction
HDMI 1.4 to VGA Adapter with Audio M/F

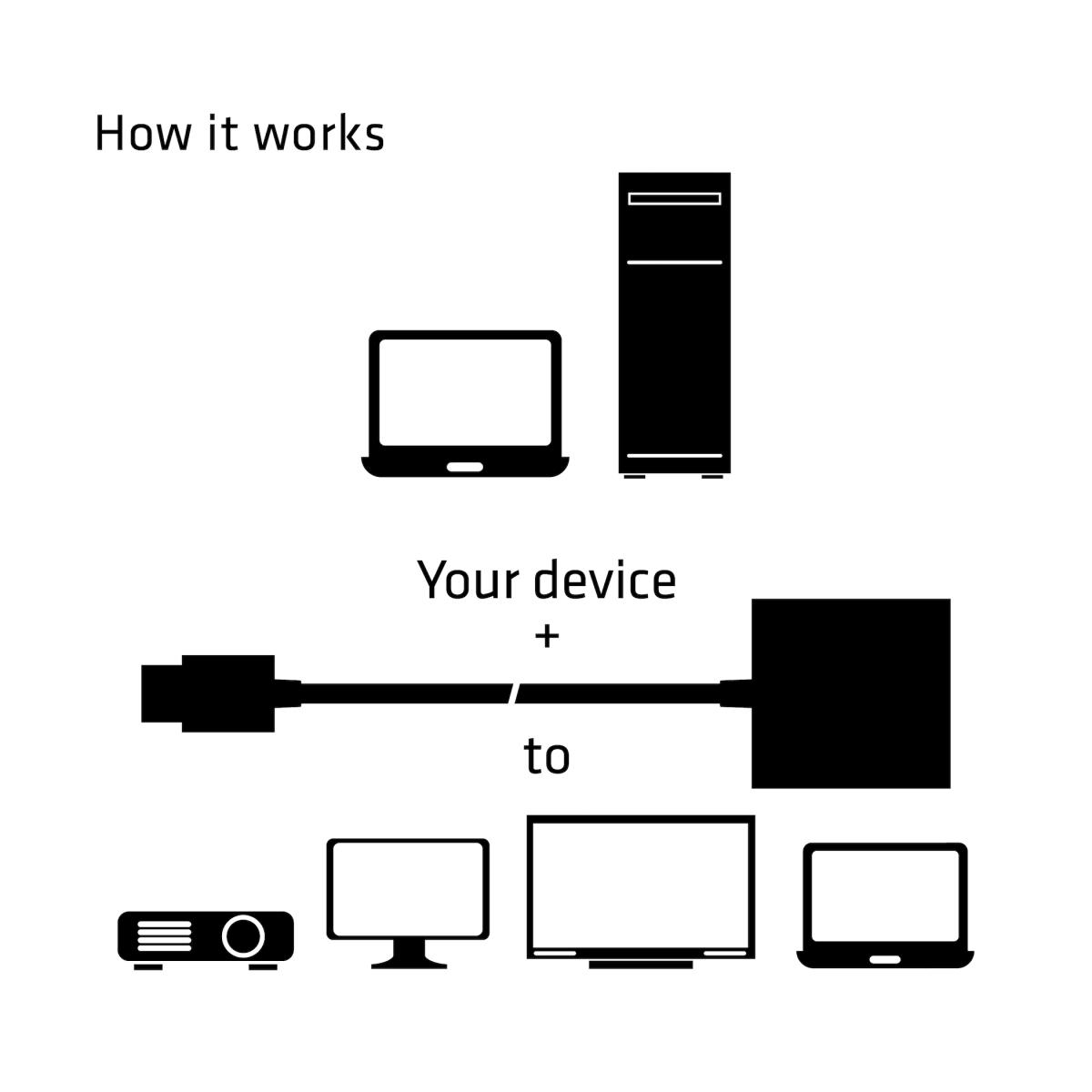

The Club 3D CAC-1302 is an active HDMI™ 1.4 to VGA signal converter. It allows you to convert digital HDMI™ signal into analog VGA signal and extracts audio signal from HDMI™ signal through the R/L audio port.

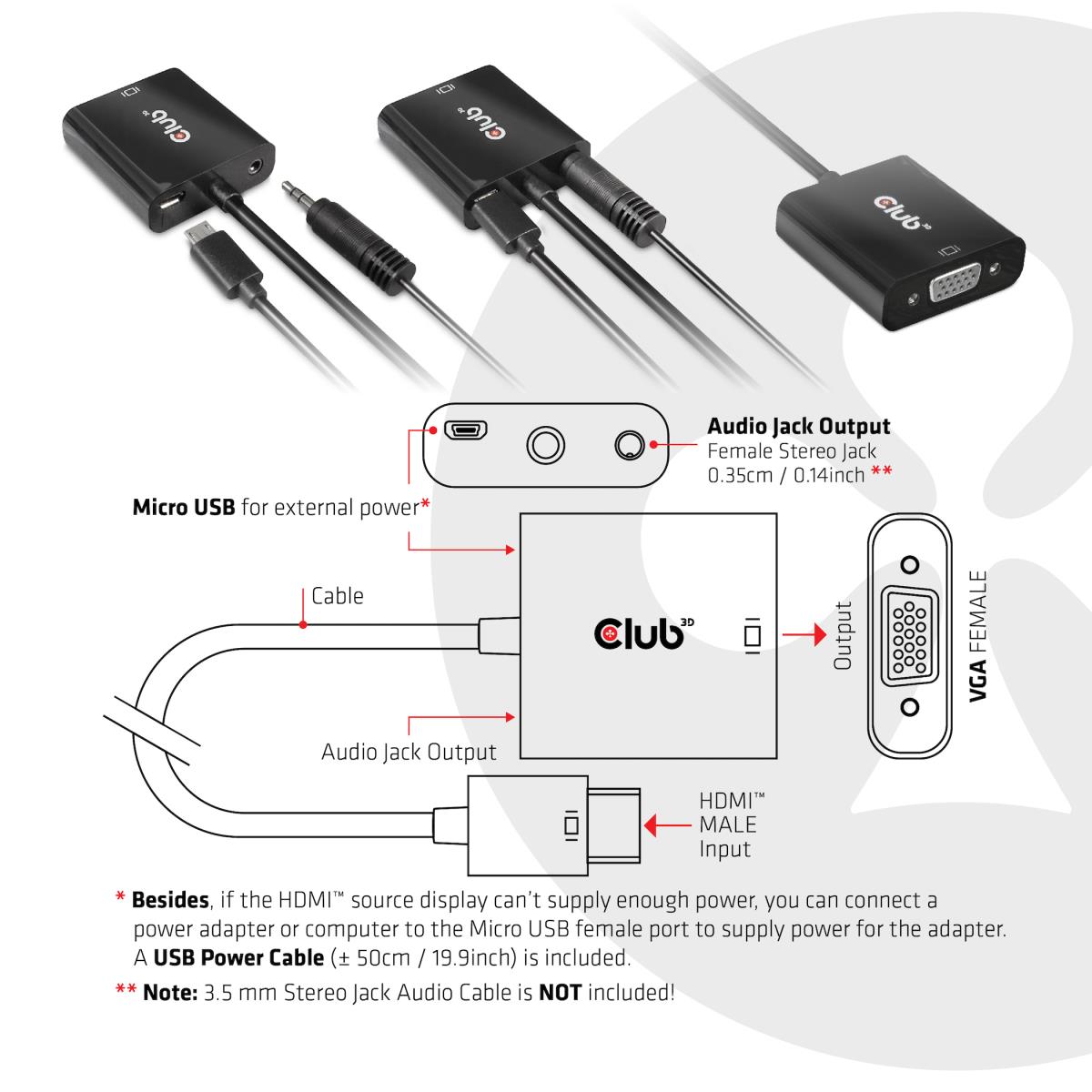

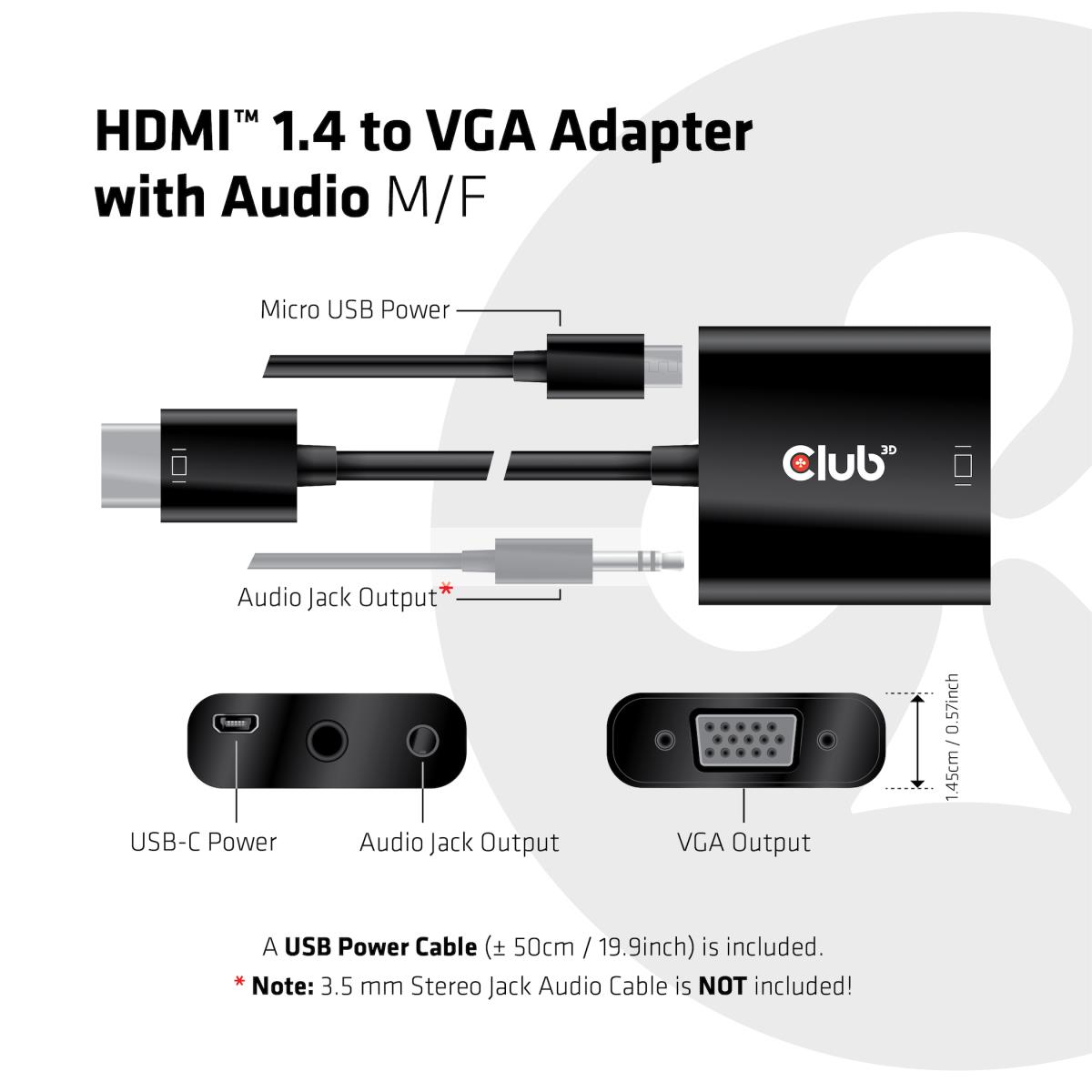

Besides, if the HDMI™ source display can’t supply enough power, you can connect a power adapter or computer to the Micro USB female port to supply power for the
Specifications
| Features | |
|---|---|
| Country of origin | China |
| HDMI version | 1.4 |
| Product colour | Black |
| Cable length | 0.5 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Data transfer rate | 4.95 Gbit/s |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| HDCP | Yes |
| Plug and Play | Yes |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Certificates | |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Compliance certificates | RoHS |
| Technical details | |
| Country of origin | China |
| Harmonized System (HS) code | 8544 4290 |
| Plastic packaging weight | 5 g |
| Compliance certificates | RoHS |
| Other features | |

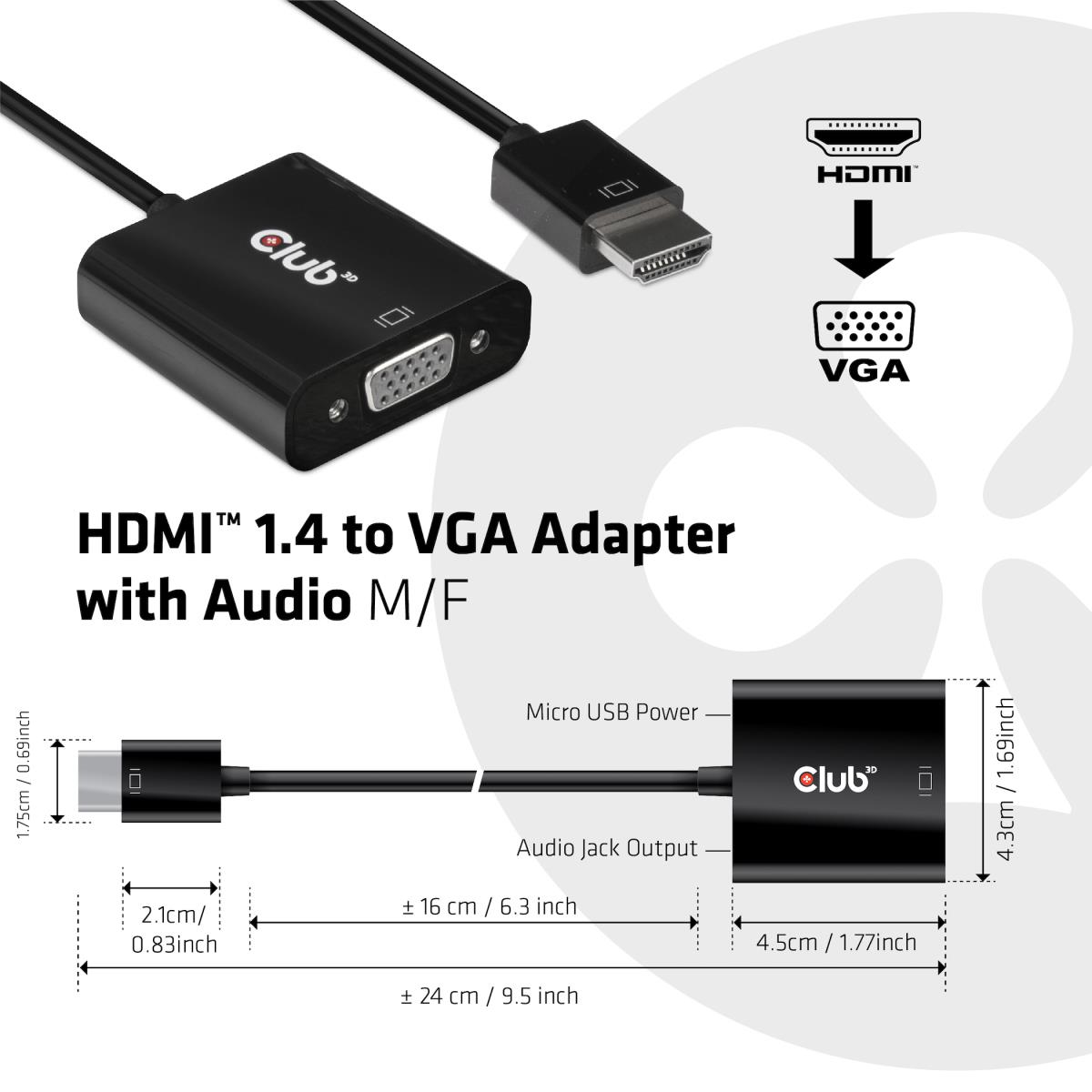

| Width | 240 mm |
| Height | 14.5 mm |
| Depth | 43 mm |
| Packaging composition | |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 28 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Weight & dimensions | |
| Width | 240 mm |
| Height | 14.5 mm |
| Depth | 43 mm |
| Weight | 28 g |
| Package width | 60 mm |
| Package depth | 240 mm |
| Package height | 35 mm |
| Package weight | 76 g |
| Packaging data | |
| Package width | 60 mm |
| Package depth | 240 mm |
| Package height | 35 mm |
| Package type | Hanging box |
| Package weight | 76 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Hanging box |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
