EU Product - Adapter USB Type C DisplayPort 1.4 - Adapter - Digital
Introduction

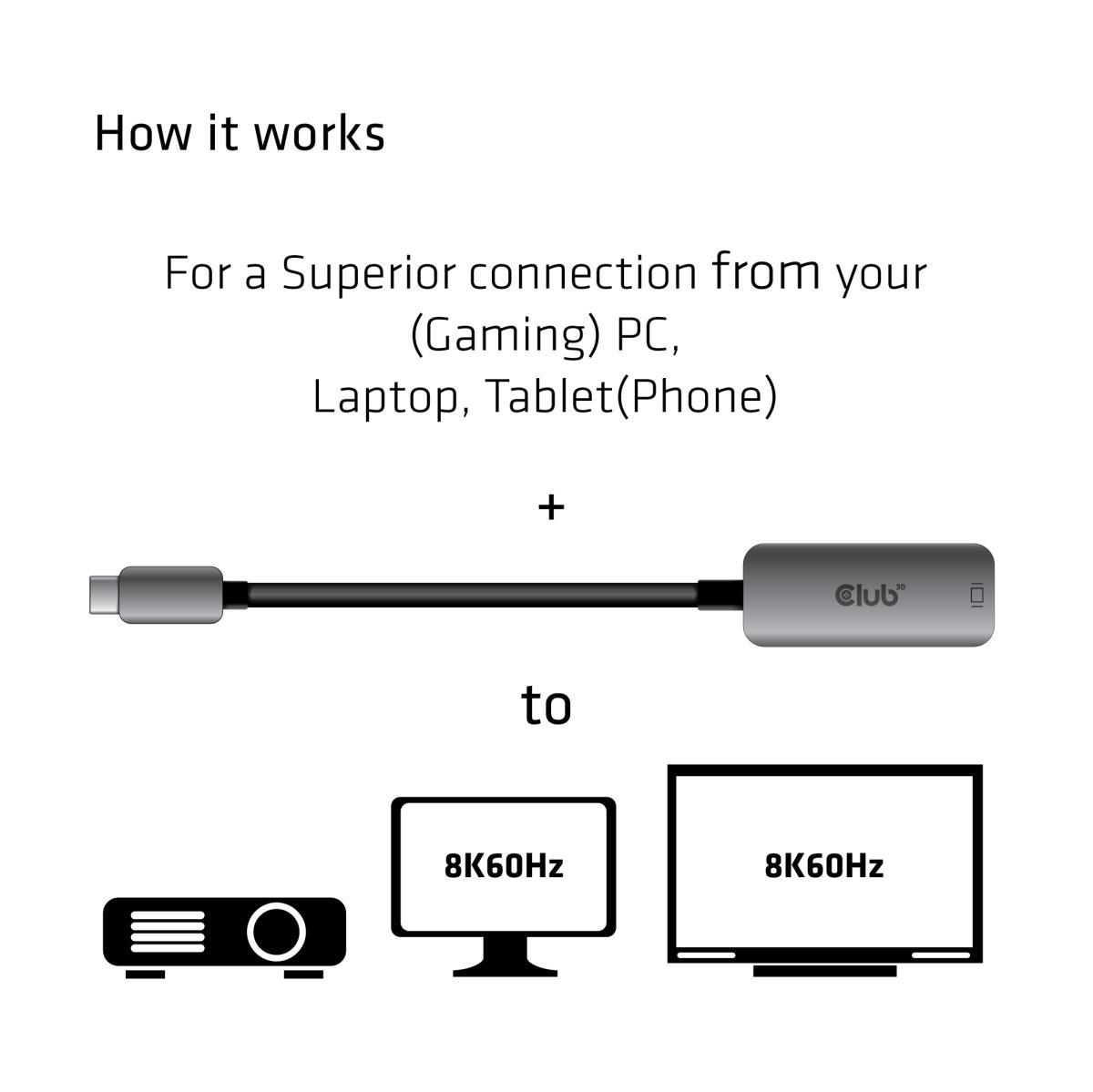

CAC-1567 - The Club 3D USB Type C to DisplayPort™ 1.4 Adapter 8K60Hz provided the source supports DSC1.2 HBR3 allows you to connect any USB Type C source to DisplayPort™ display at max 8K60Hz resolution and HDR support.
It works on any USB Type C host that supports DP 1.4/DP 1.2 Alt mode, resolutions are limited to the source device. When working on Thunderbolt™ 3 host, this product transmits DP signal.
The soft UltraFlex jacket protects the cable from bends and deformation damage. The Cable is 34AWG and Uni-Directional.
Specifications
| Performance | |
|---|---|
| USB connector type | USB Type-C |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Certification | FCC, CE EMI |
| Design | |
| Product colour | Black, Silver |
| Package type | Box |
| Weight & dimensions | |
| Weight | 42 g |
| Package width | 240 mm |
| Package depth | 60 mm |
| Package height | 35 mm |
| Packaging composition | |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 45 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 60 mm |
| Package height | 35 mm |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 8544 4290 |
| Plastic packaging weight | 5 g |
| Compliance certificates | RoHS |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 8544 4290 |
