EU Product - Usb Gen 1 Type-C 9-in-1 Hub
Introduction

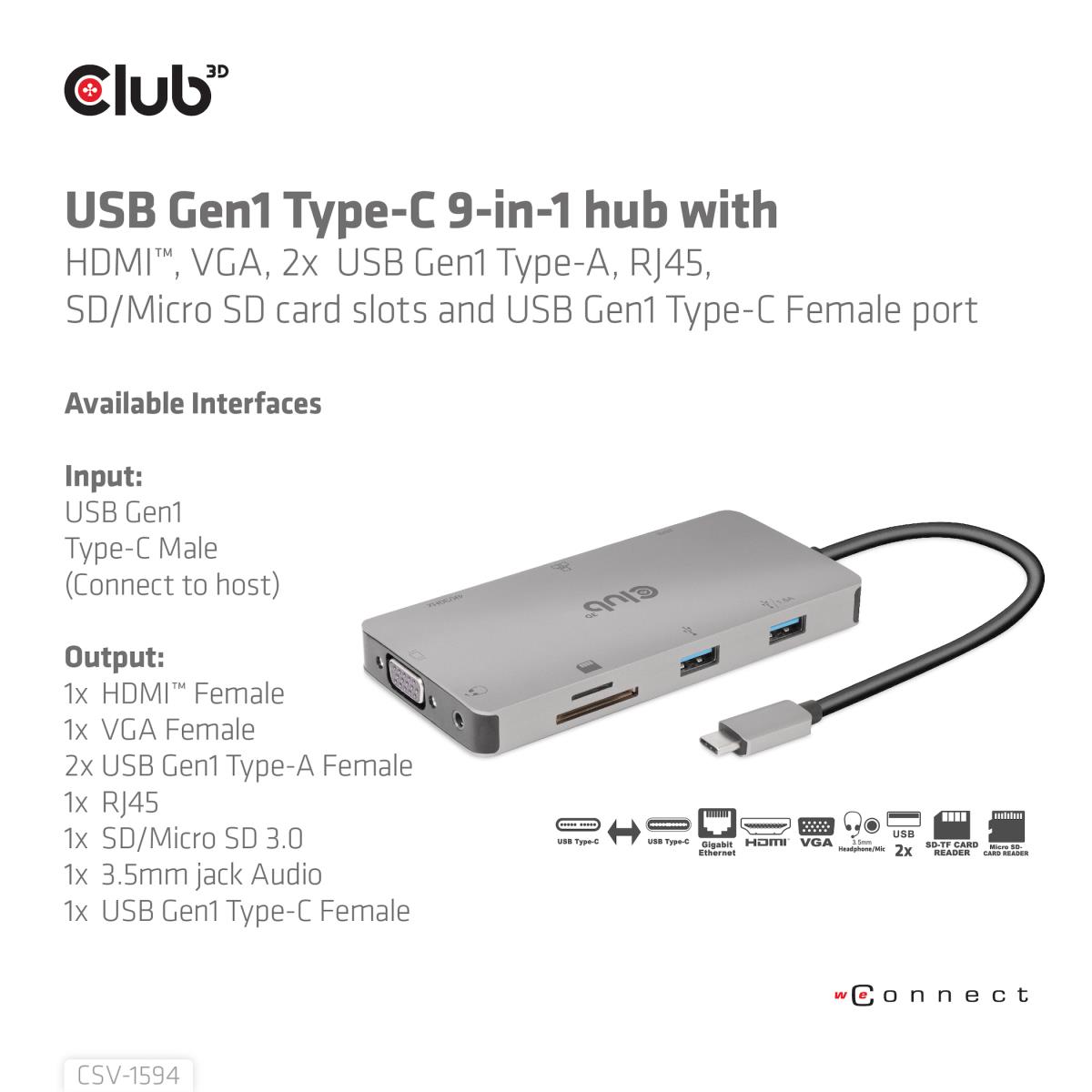

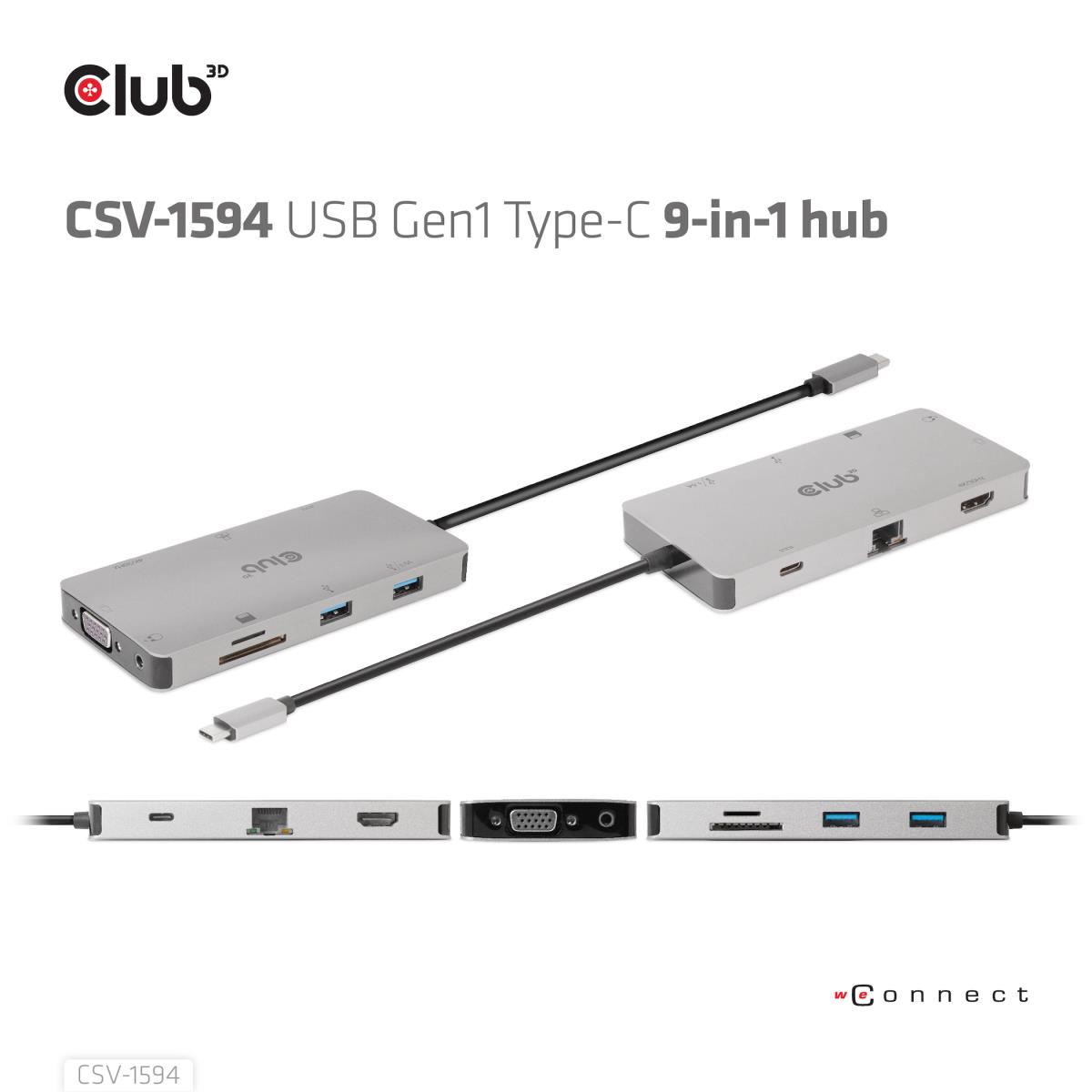

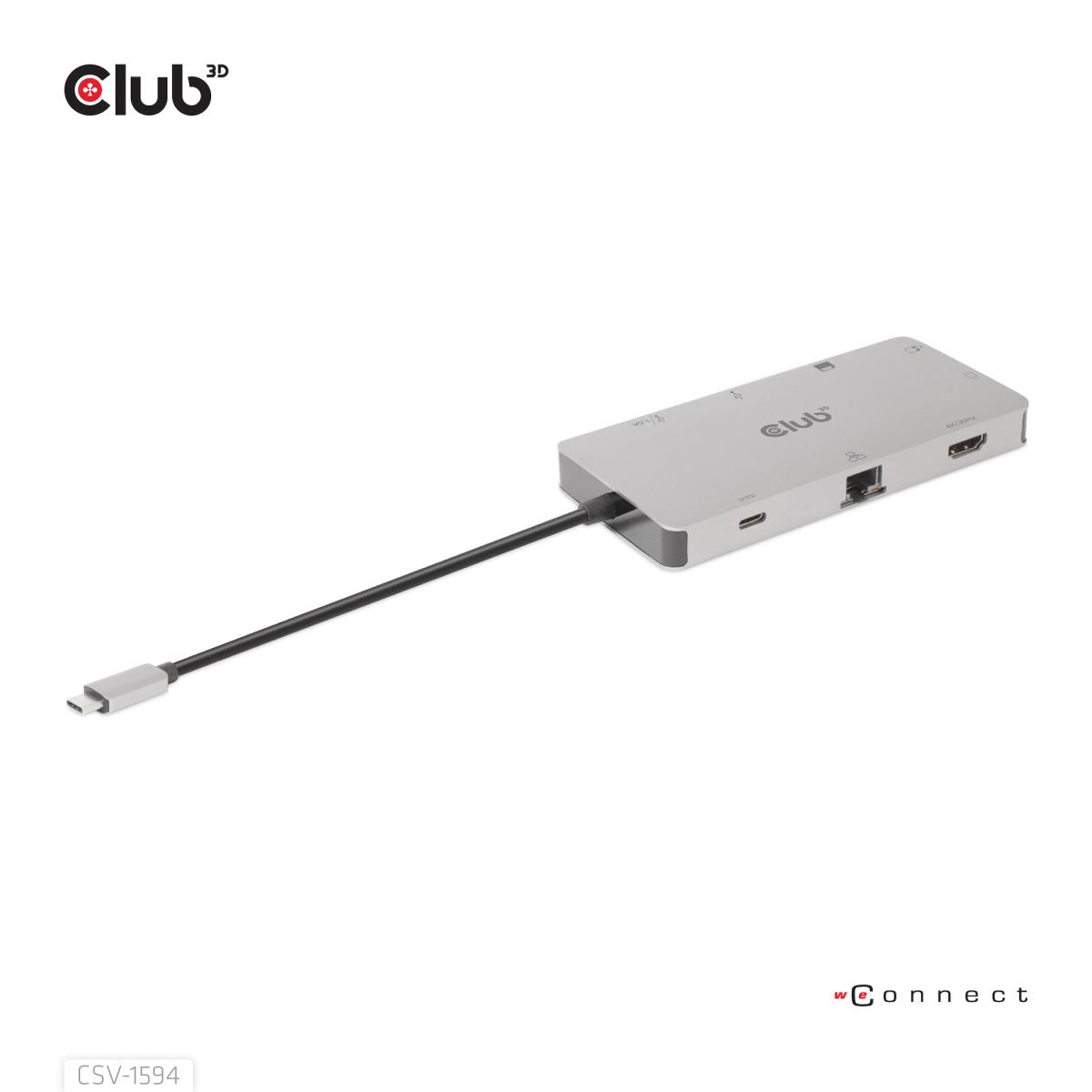

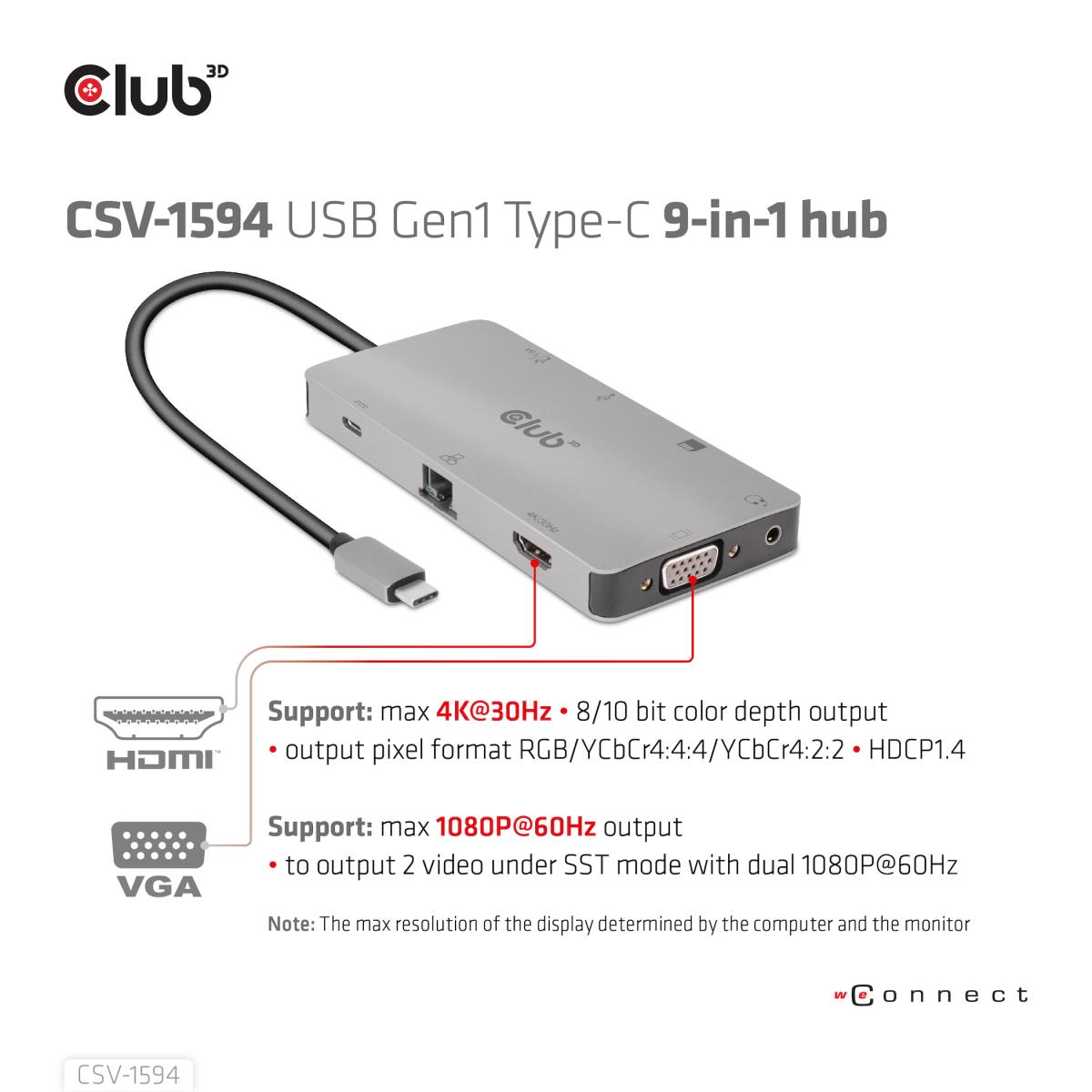

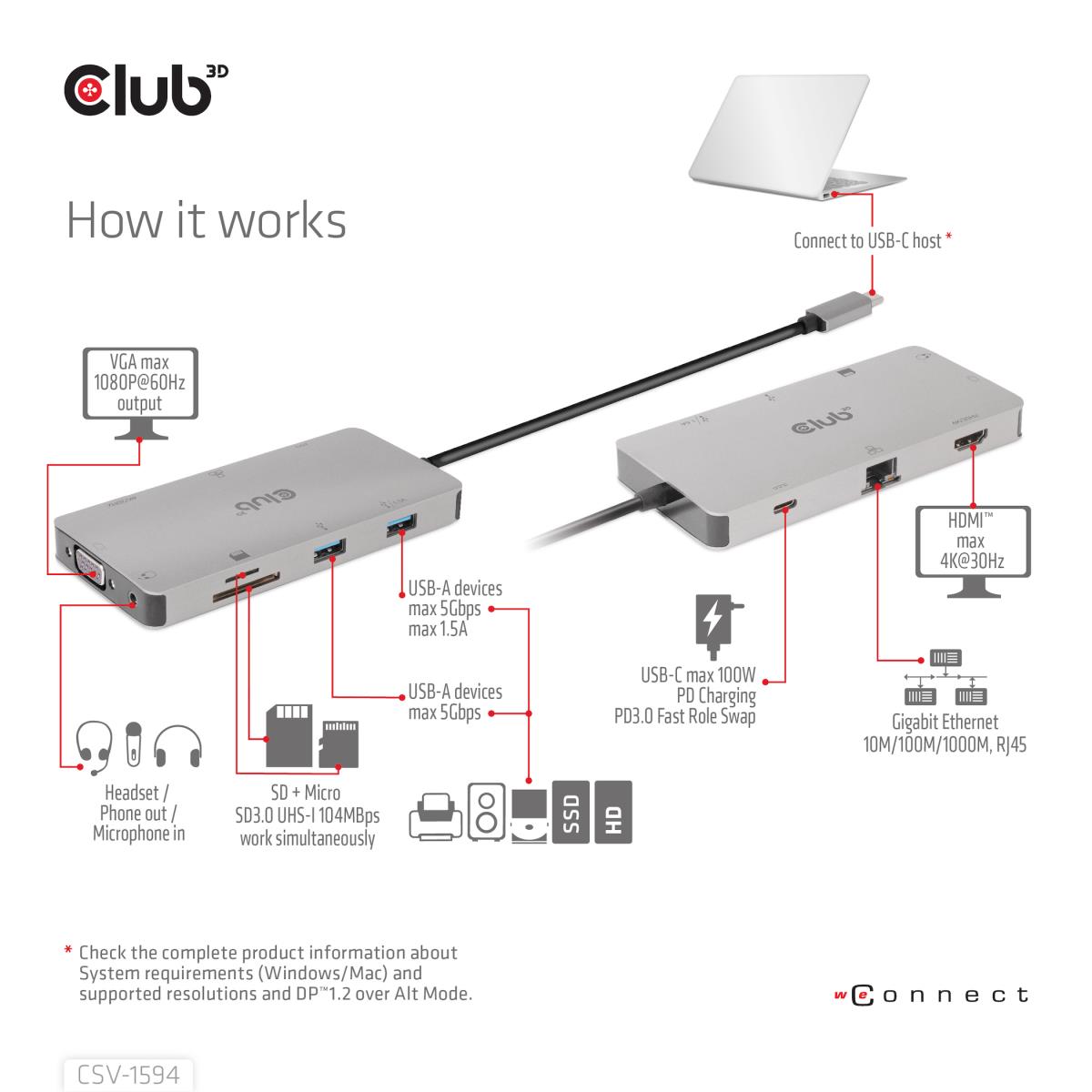

The Club 3D CSV-1594 USB Gen1 Type-C 9-in-1 hub with HDMI™, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.2 Alt mode supported USB Gen1 Type-C hosts.
Specifications

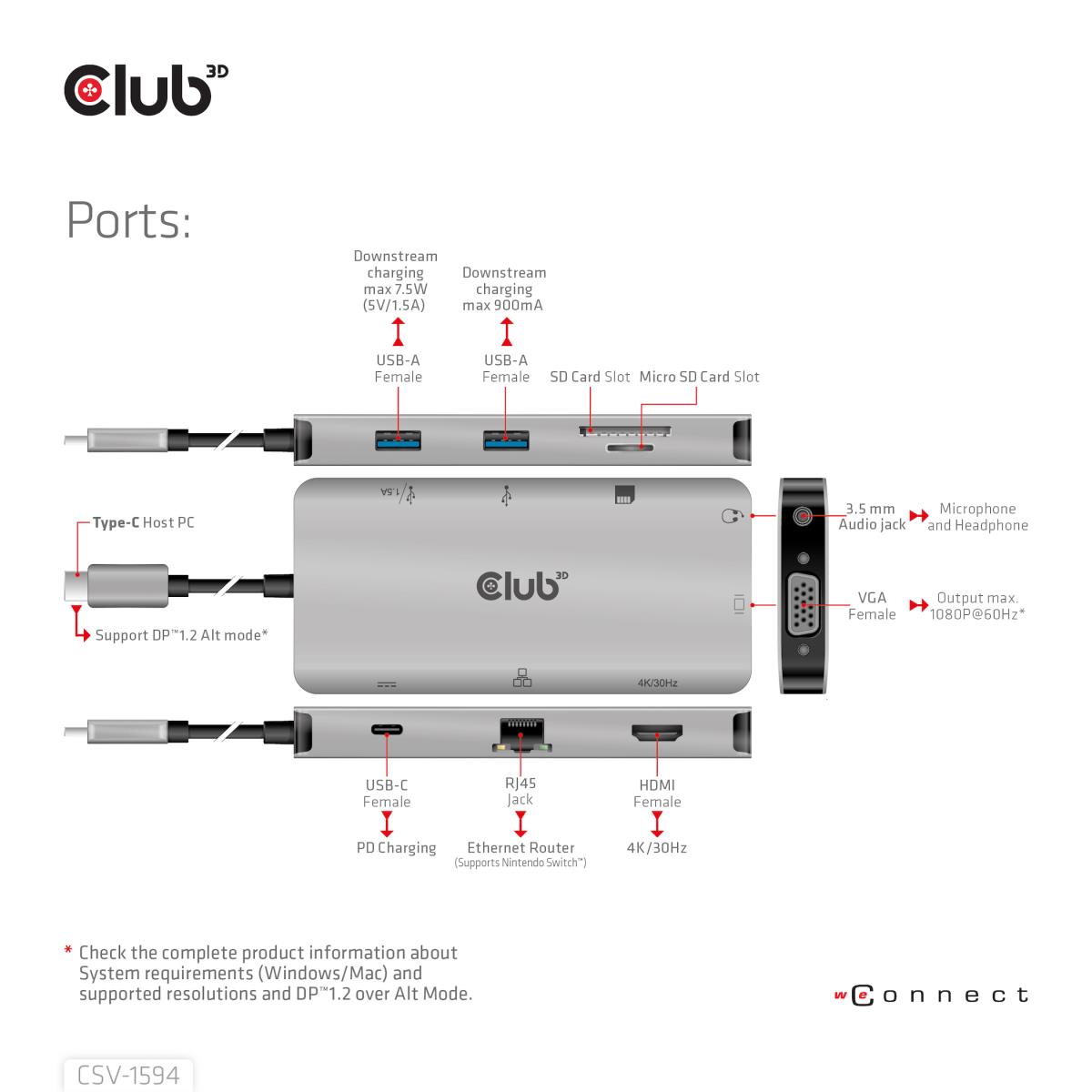

| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDCP version | 1.4 |
| HDCP | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Plug and Play | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Certification | ROHS, FCC, CE EMI |
| Maximum refresh rate | 60 Hz |
| Hub interfaces | 3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA |
| Technical details | |
| Product colour | Black, Grey |
| Plug and Play | Yes |
| Cable length | 0.15 m |
| Harmonized System (HS) code | 8473 3020 |
| Plastic packaging weight | 6 g |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Power | |
| Power consumption (max) | 7.5 W |
| Output voltage | 5 V |
| Output current | 1.8 A |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |

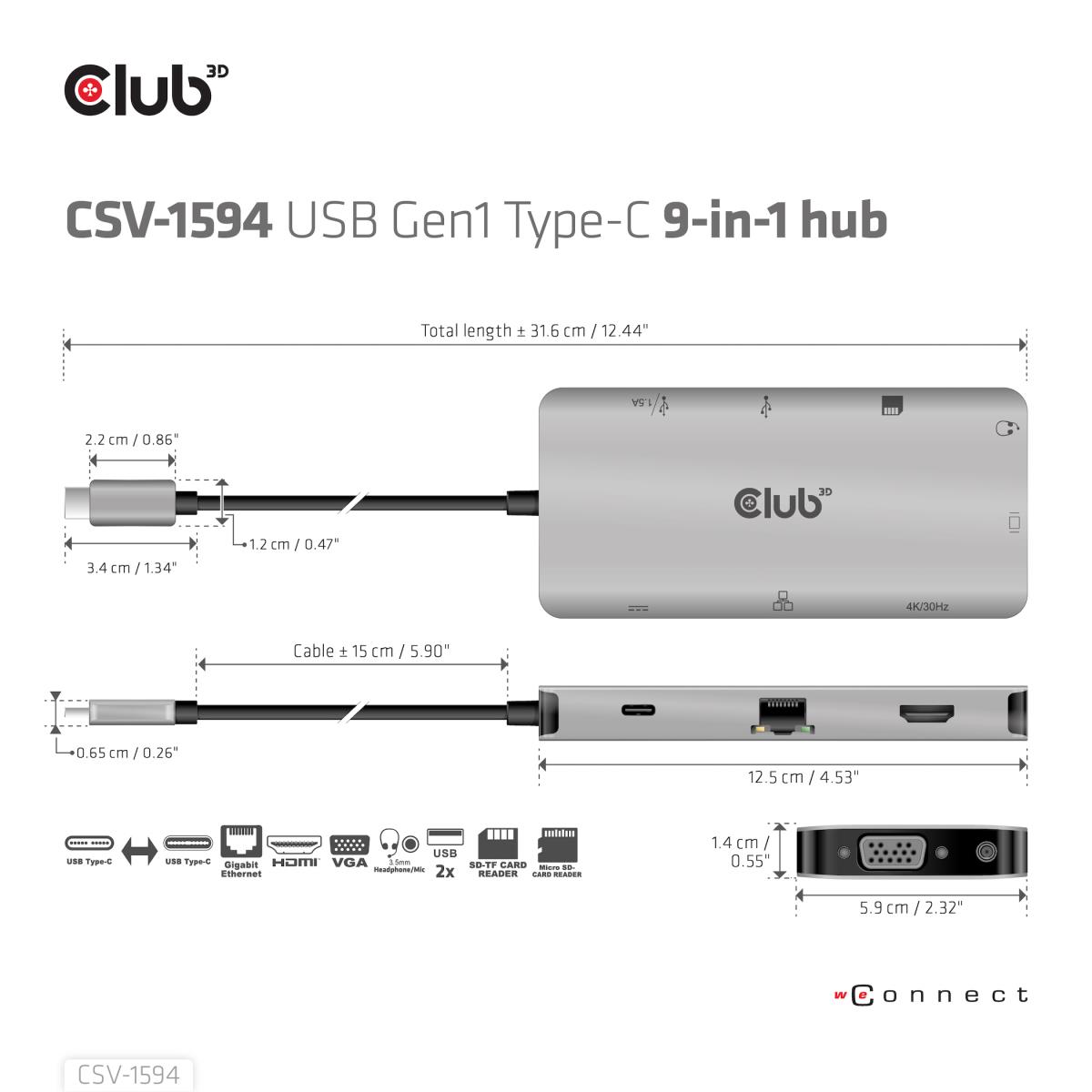

| Weight & dimensions | |
| Weight | 117 g |
| Width | 125 mm |
| Depth | 59 mm |
| Height | 14 mm |
| Package weight | 165 g |
| Package width | 70 mm |
| Package depth | 35 mm |
| Package height | 320 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black, Grey |
| Certification | ROHS, FCC, CE EMI |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 165 g |
| Package width | 70 mm |
| Package depth | 35 mm |
| Package height | 320 mm |

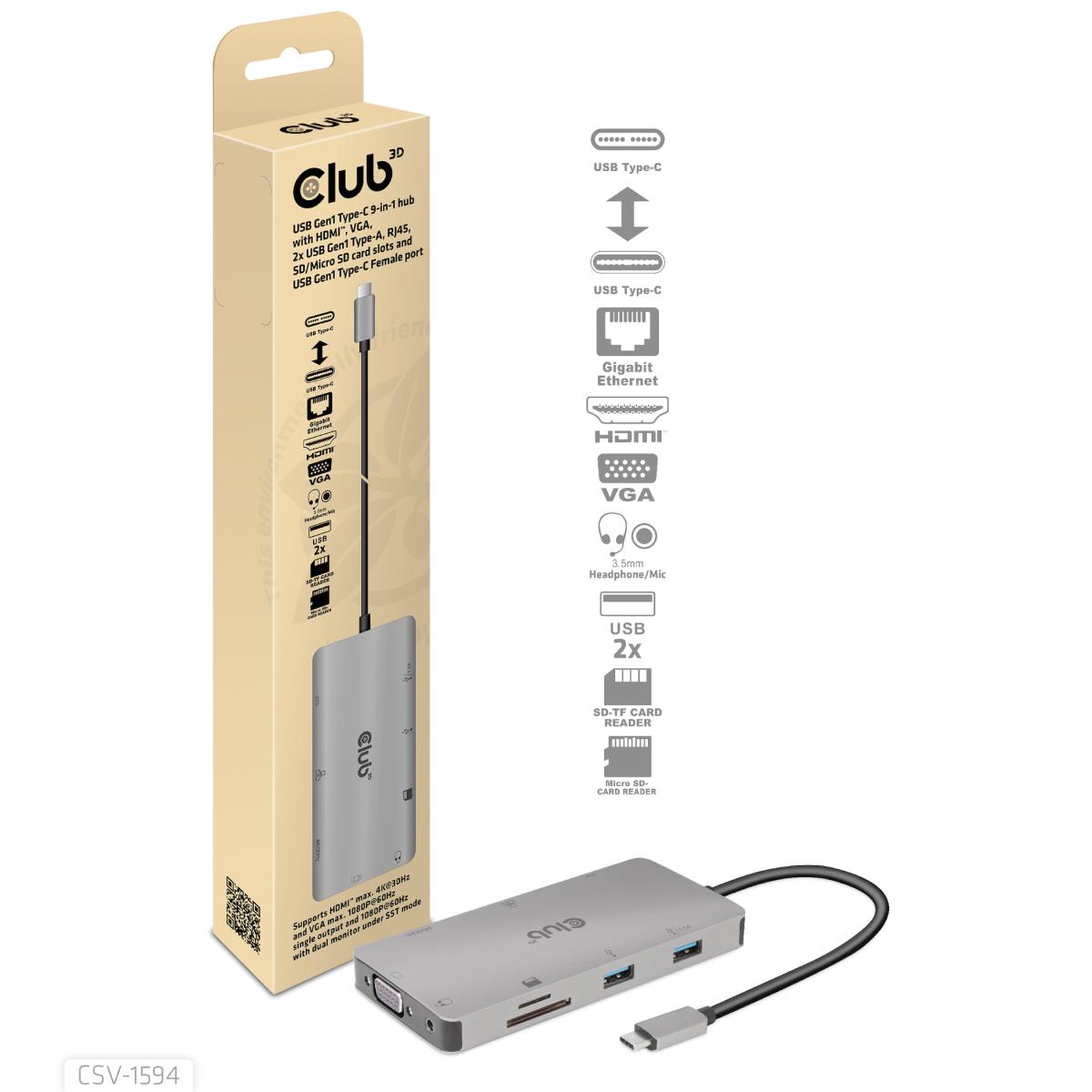

| Packaging content | |
| Quick start guide | Yes |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | ROHS, FCC, CE EMI |
| Packaging composition | |
| Plastic packaging weight | 6 g |
| Paper/cardboard packaging weight | 42 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
| Other features | |
| Cable length | 0.15 m |
