Brainboxes ES-346 serial server RS-422/485

Introduction

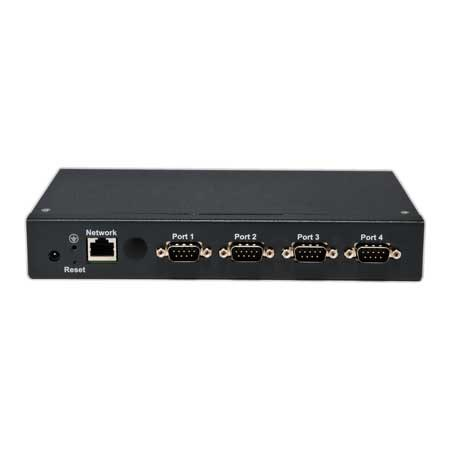

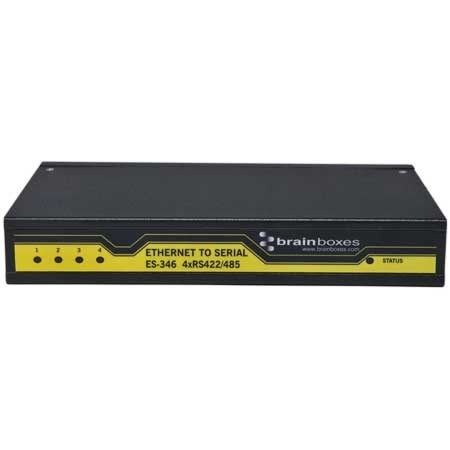

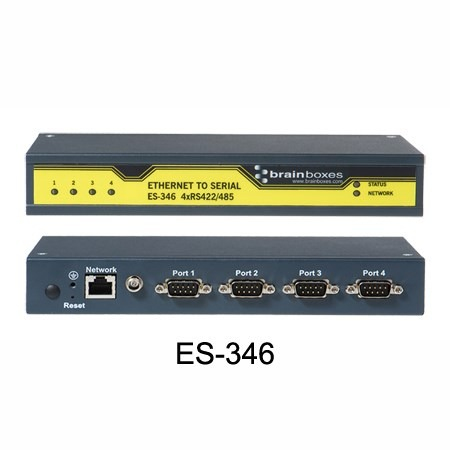

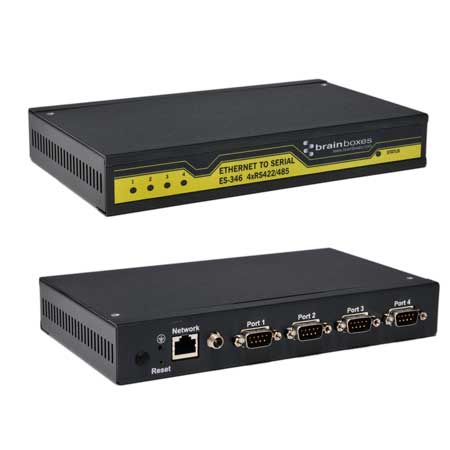

Ethernet to Serial device server providing access to four RS422/485 serial ports. Data transfer rates up to 1,000,000 baud rates, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. Serial Port Tunneling (individually configurable) allows serial cable replacement over any distance, no software required. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.

Specifications


Technical details
Serial ports quantity4
Serial interface typeRS-422/485
Networking standardsIEEE 802.3,IEEE 802.3u
Flow control supportYes
Ethernet LAN data rates10,100 Mbit/s
Baud rate1000 Kbit/s
Ports & interfaces
Wi-FiNo
Ethernet LAN (RJ-45) ports1
Cabling technology10/100Base-T(X)
Weight & dimensions
Weight772 g

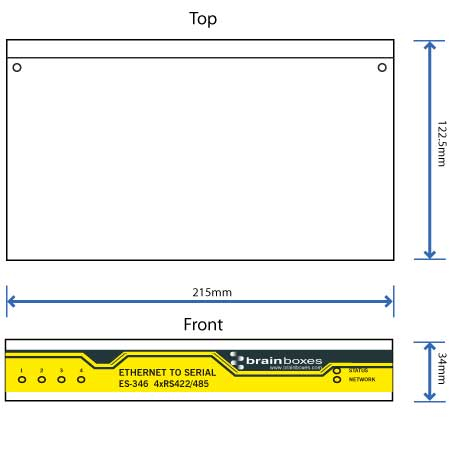

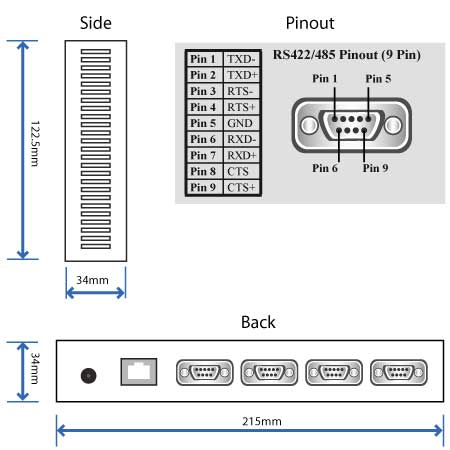

Dimensions (WxDxH)215 x 122.5 x 34 mm
Power
Input voltage5 - 30 V
Operational conditions
Storage temperature (T-T)-20 - 85 °C
Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)5 - 95%
Protocols
Supported network protocolsICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217
Certificates
SafetyIP-30
CertificationAEO WEEE RoHS EMC: CE TAA
Indication
LED indicatorsYes
Software
Windows operating systems supportedYes
Server operating systems supportedWindows Server 2008,Windows Server 2008 x64
Linux operating systems supportedYes
Other features
Compatible operating systemsWindows 7 / Server 2008 /Vista /XP 32 bit & 64 bit Windows 2000
OS's & Linux
Design
SafetyIP-30
CertificationAEO WEEE RoHS EMC: CE TAA
