EU Product - LevelOne Media Konverter RJ45->10GSFP+ GE
Introduction
The LevelOne GVT-0500 is a powerful 10 Gigabit media converter which, in combination with the optional available LevelOne SFP+ modules, converts optical into electrical signals, supports optical signal equilibrium amplification, clock extraction and optical regeneration. It uses WDM (DWDM/CWDM) technology, which can transmit data signals over a long distance in a single fiber in simple or multiple ways. On existing network infrastructure, the GVT-0500 can quickly improve transmission capacity and expand bandwidth. At the same time, it is a cost-efficent and highly cost-effective solution for managing and operating the system. It is also optimized for ease of operation and maintenance.
Specifications
| Network | |
|---|---|
| Fiber optic connector | SFP |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Cable types supported | Cat6a |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Fiber ethernet cabling technology | 10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 10GBASE-ZR |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Housing material | Metal |
| Maximum transfer distance | 100 m |
| Hot-swap | Yes |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Performance | |
| Jumbo frames support | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 100 m |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| Connectivity technology | Wired |

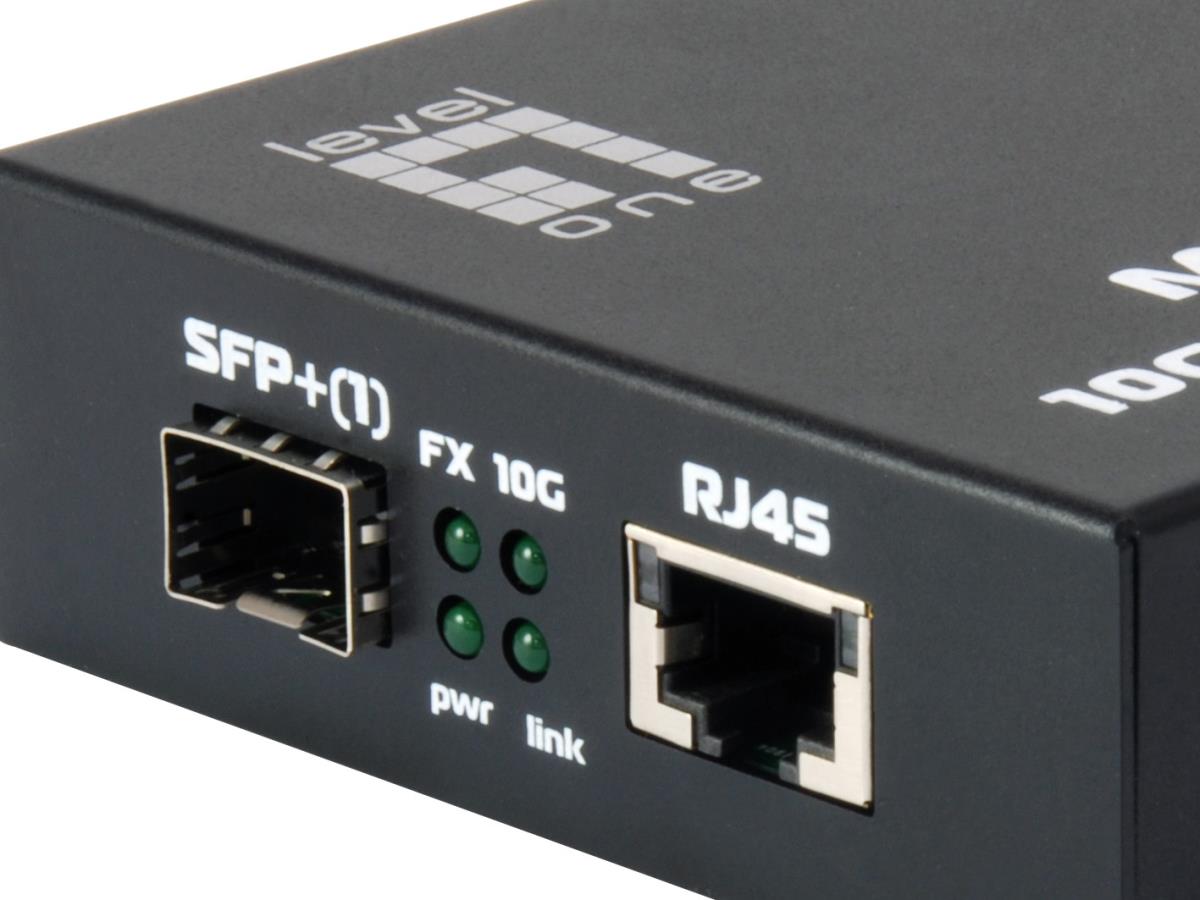

| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP |

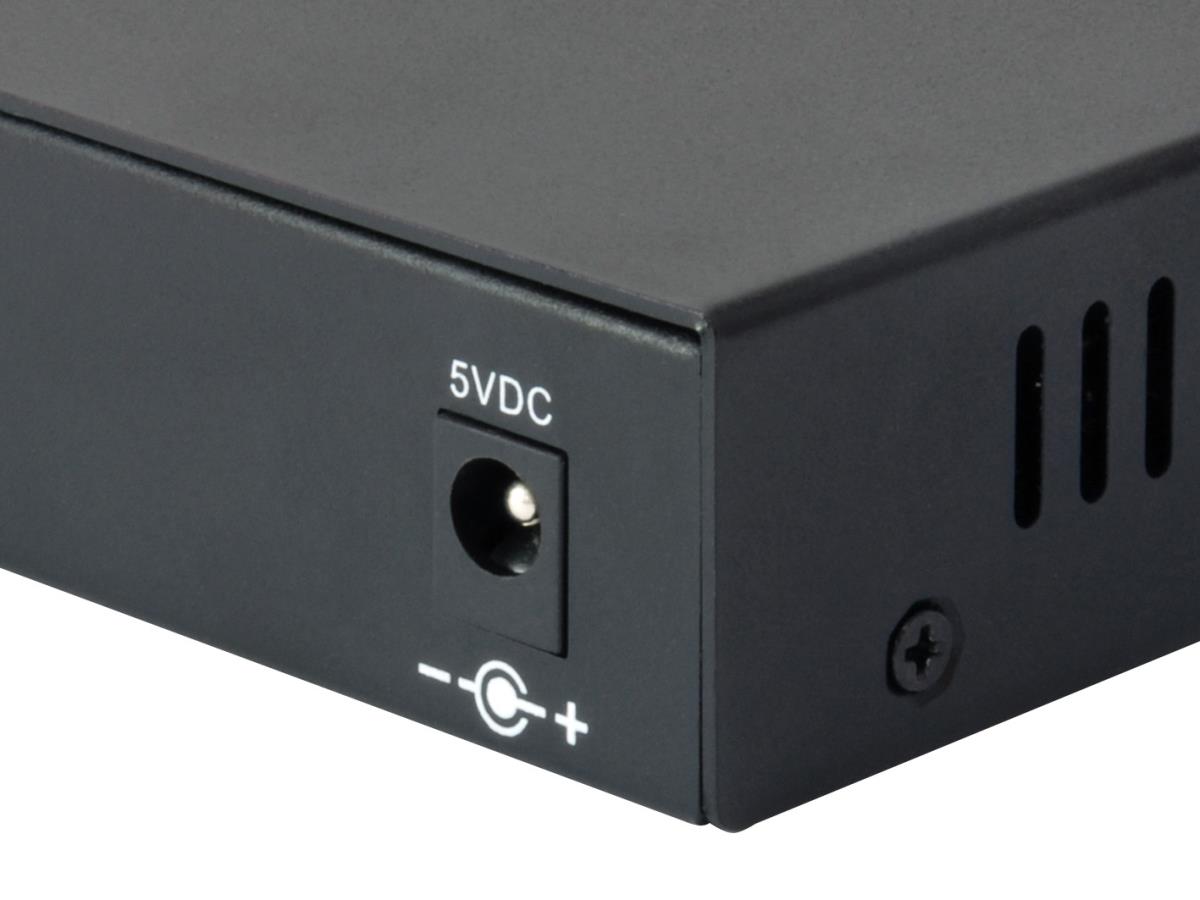

| DC-in jack | Yes |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| Country of origin | China |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | CE |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Input voltage | 5 V |
| Input current | 3 A |
| Power consumption (typical) | 1.2 W |
| Management features | |
| Hot-swap | Yes |
| Packaging content | |
| Package type | Box |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 115 mm |
| Depth | 85 mm |
| Weight | 300 g |
| Height | 25 mm |
| Package depth | 150 mm |
| Package width | 230 mm |
| Package height | 85 mm |
| Package weight | 700 g |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package type | Box |
| Package depth | 150 mm |
| Package width | 230 mm |
| Package height | 85 mm |
| Package weight | 700 g |
| Certificates | |
| Certification | CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
