Part No:JUA254-N
Stock:13 In Stock
EAN Code:4712795081077

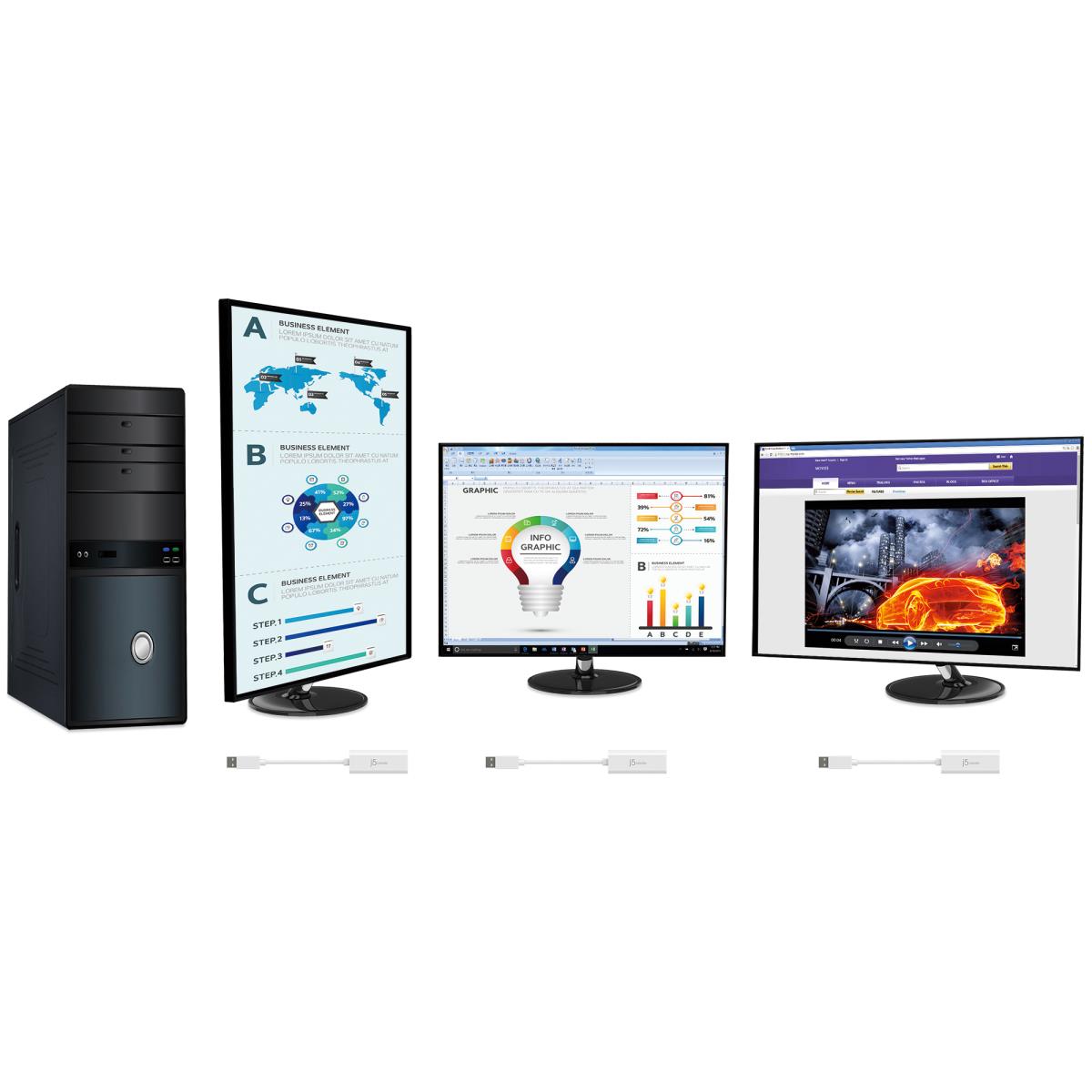

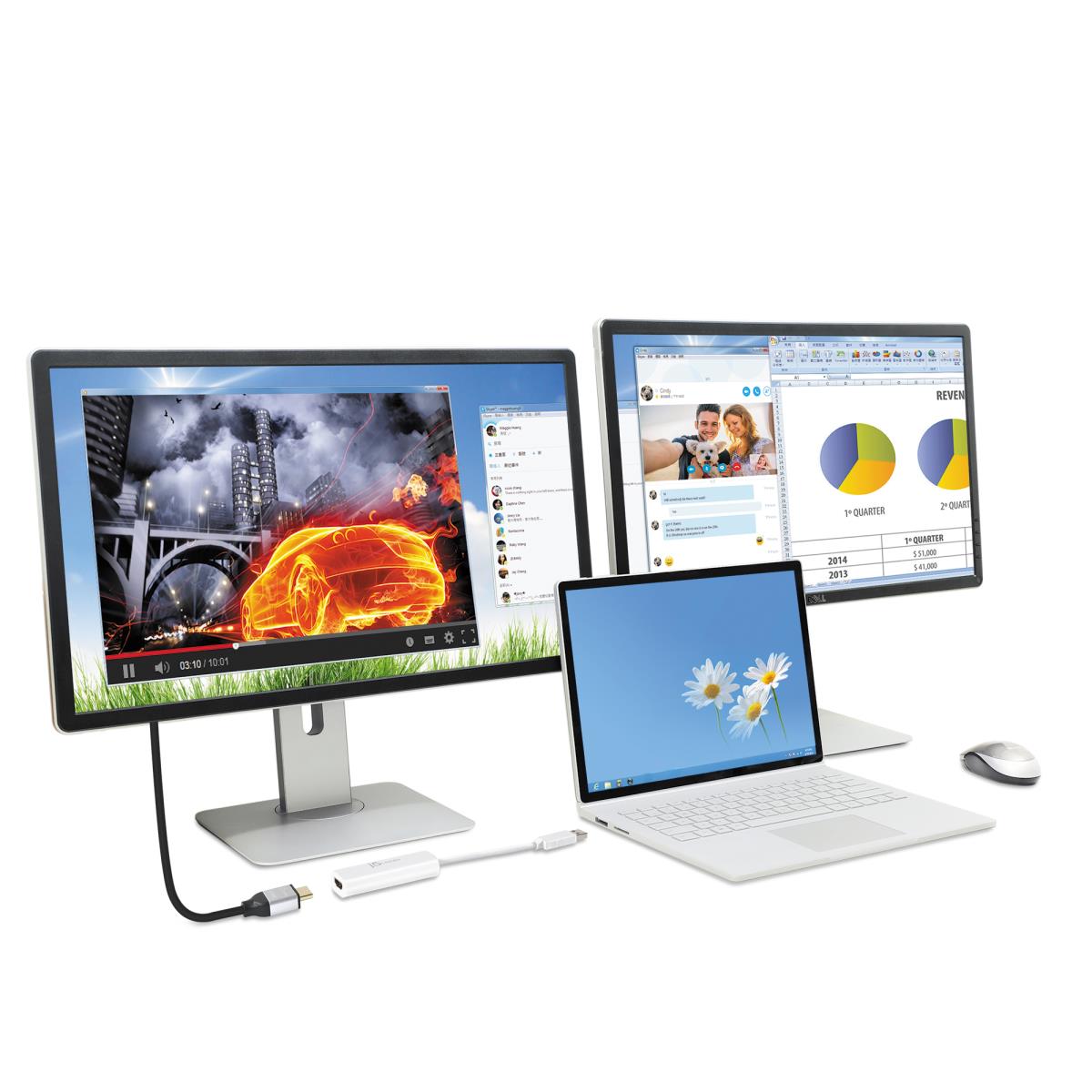

The JUA254 USB™ to HDMI™ Multi-Monitor Adapter works as an external video card, instantly allowing users to attach additional displays via HDMI™ connection without the hassle of a lengthy setup or having to install additional hardware. The USB™ 3.0 Display Adapter can support up to four displays running on the same computer, turning your workstation into a fully-functioning, multi-display powerhouse. This USB™ adapter works as an external video card, instantly allowing additional displays without the hassle of opening the computer casing and installing an external graphics card. You can have a second monitor with an extended display, a mirrored display, a rotational display (rotation mode not available for Mac®), or make it your primary monitor. Now enjoy true 1080p HD resolution through any Windows® or Mac® computer with a USB™ 3.0 port. These adapters are also backwards compatible with USB™ 2.0 resolutions and playback, which are ideal for office applications. The simple plug-and-play function allows you to connect your computer to a second monitor or projector within seconds to create a new visual environment on Windows® 10.
Performance | |
---|---|
Supported video modes | 1080p |
USB connector type | USB Type-A |
USB connector gender | Male |
USB version | 3.2 Gen 1 (3.1 Gen 1) |
DVI output | No |
HDMI output | Yes |
DisplayPort output | No |
Number of displays supported | 1 |
Maximum resolution | 2048 x 1152 pixels |
Maximum resolution (HDMI) | 2048 x 1152 pixels |
Output colour depth | 32 bit |
Mirror display mode | Yes |
Extended display mode | Yes |
Current | 0.18 A |
HDMI ports quantity | 1 |
Design | |
Product colour | White |
Housing material | Acrylonitrile butadiene styrene (ABS) |
Integrated USB cable | Yes |
USB cable length | 0.08 m |
Cable type | USB 3.0 |
Power | |
Power consumption (max) | 0.93 W |
Output voltage | 5 V |
System requirements | |
Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
Technical details | |
Products per master (outer) case | 20 pc(s) |
Master (outer) case width | 225 mm |
Master (outer) case gross weight | 2.16 kg |
Master (outer) case length | 321 mm |
Master (outer) case height | 180 mm |
Master (outer) case GTIN (EAN/UPC) | 24712795081071 |
Warranty period | 2 year(s) |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
Width | 68.3 mm |
Depth | 15 mm |
Height | 26 mm |
Weight | 25 g |
Package width | 120 mm |
Package depth | 97 mm |
Package height | 25 mm |
Package weight | 73.5 g |
Packaging content | |
Quick installation guide | Yes |
Batteries included | No |
Packaging content | 1 x JUA254 USB™ to HDMI™ Multi-Monitor Adapter, 1 x Quick Installation Guide |
Logistics data | |
Shipping (inner) case width | 10.5 cm |
Shipping (inner) case length | 15 cm |
Shipping (inner) case height | 16 cm |
Products per shipping (inner) case | 5 pc(s) |
Country of origin | Taiwan |
Products per master (outer) case | 20 pc(s) |
Master (outer) case width | 225 mm |
Master (outer) case gross weight | 2.16 kg |
Master (outer) case length | 321 mm |
Master (outer) case height | 180 mm |
Export Control Classification Number (ECCN) | EAR99 |
