USB-C VIDEO + ETHERNET ADAPTER
Introduction

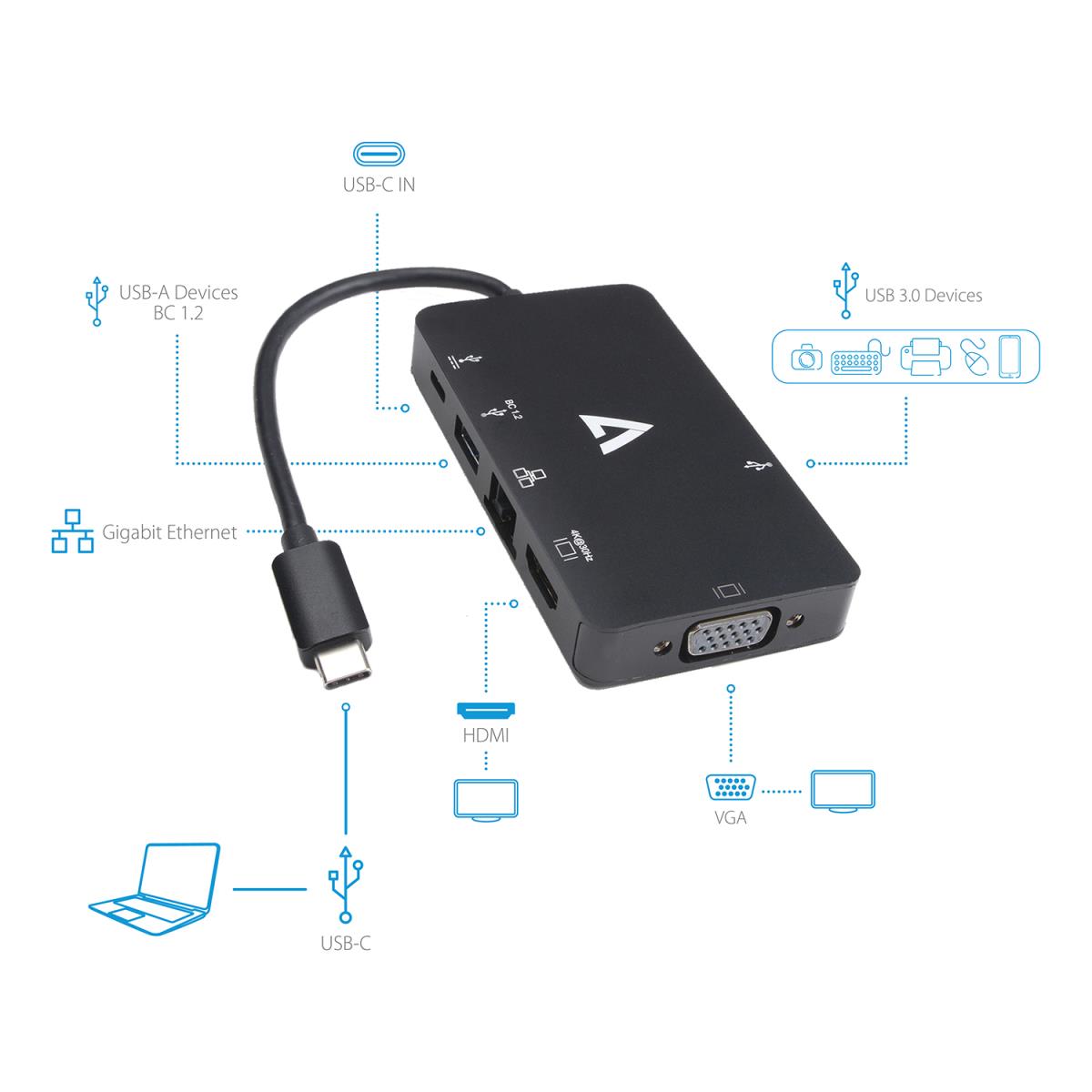

Connect any USB-C Alt mode equipped PC or Mac to a USB 3.2 Gen 1 port, Ethernet, VGA or HDMI display or other devices with ease with the USB-C Adapter from V7. Lightweight and portable – the adapter can support resolutions up to 3840x2160 using HDMI or 1920x1200 using VGA. Adapter supports SST (Single Stream Transport) for single display setup only. The two USB 3.0 ports enables 5Gbps of transmission and charging; also downward compatible with USB 2.0 Type-C female port supports both data (5Gbps) and PD Charging 100W (20V/5A). Ethernet port supports 10/100/1000Mbps bandwidth. Comes with a 2 year warranty. All V7 adapters go through a rigorous testing process to ensure quality.
Specifications
| Performance | |
|---|---|
| USB connector form factor | Straight |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| HDMI version | 1.4 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Certification | CE, FCC, RoHS, UKCA, WEEE |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
| Product colour | Black |
| Housing material | Polyvinyl chloride (PVC) |
| Weight & dimensions | |
| Weight | 150 g |
| Package width | 210 mm |
| Package depth | 160 mm |
| Package height | 0.1 mm |
| Package weight | 160 g |
| Technical details | |
| Harmonized System (HS) code | 84733020 |
| Logistics data | |
| Country of origin | Vietnam |
| Harmonized System (HS) code | 84733020 |
