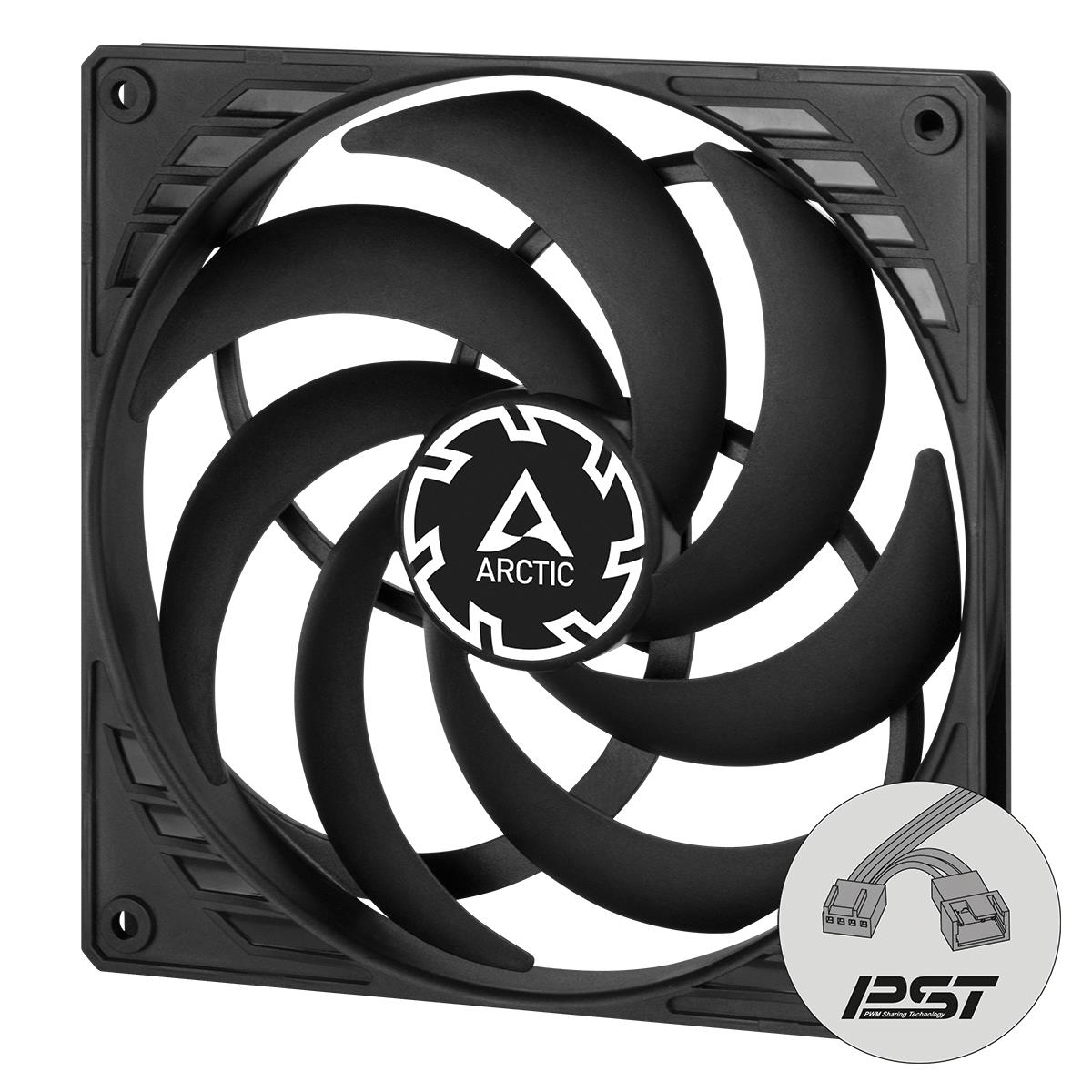

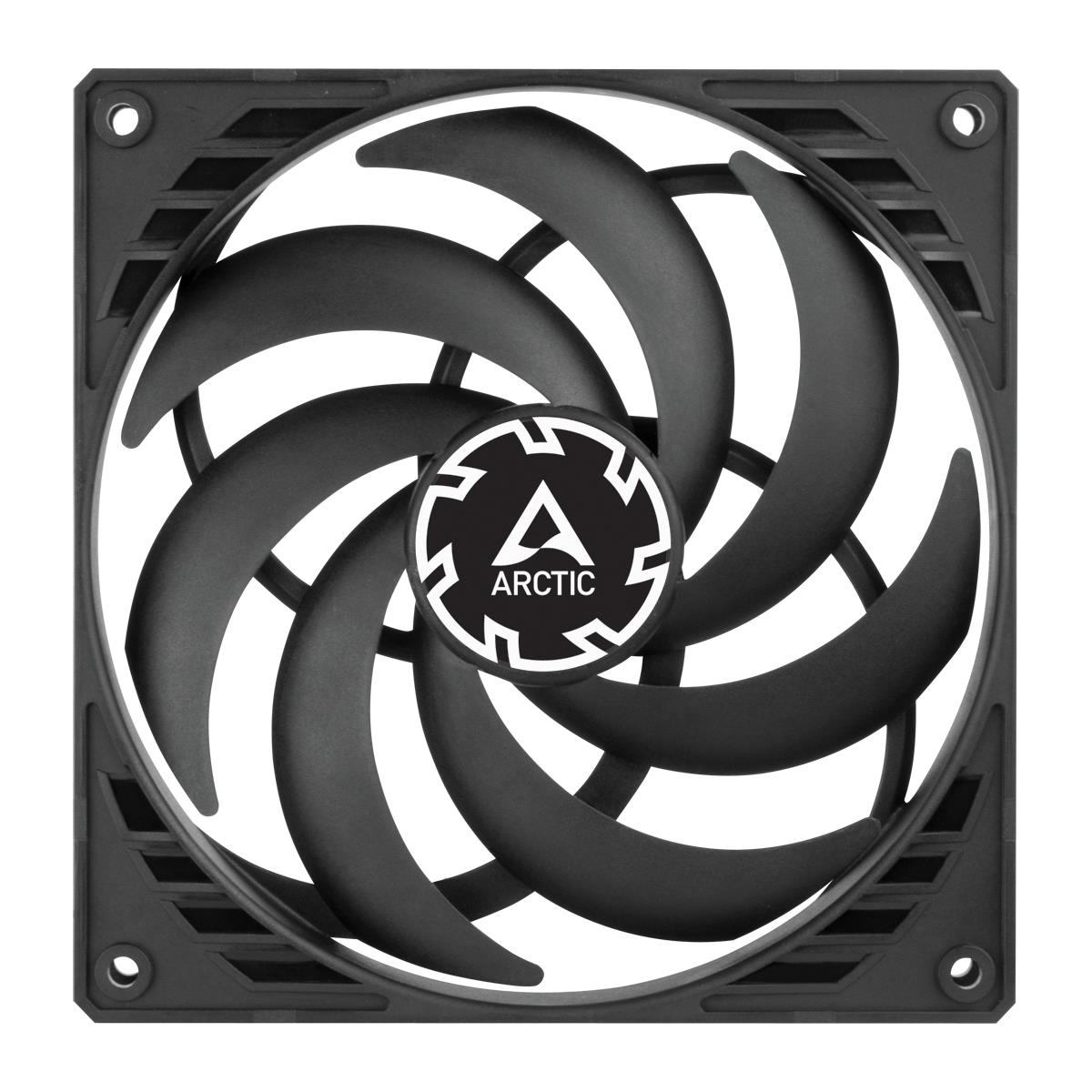

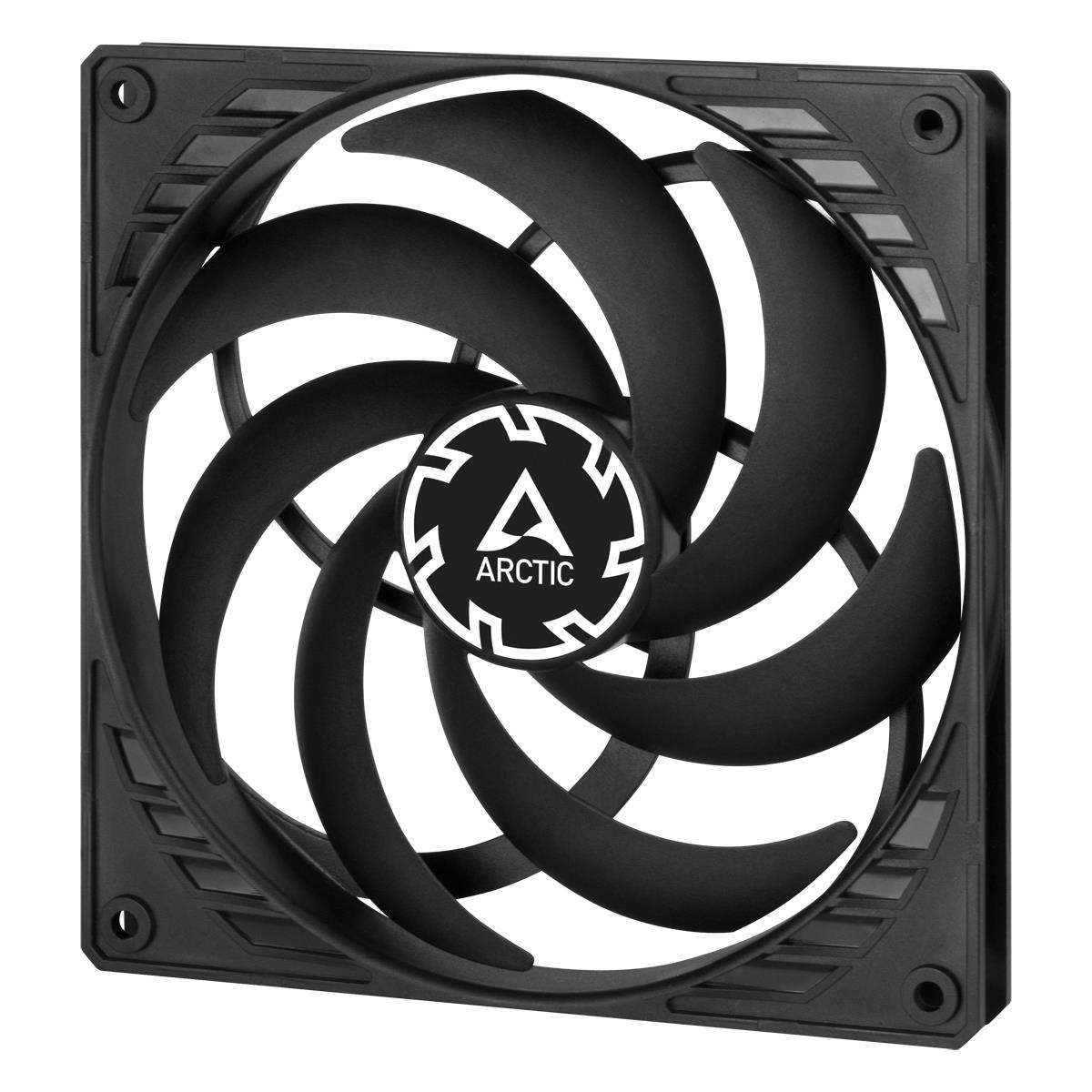

P14 140MM SLIM PST FAN
Introduction
ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin + 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 150 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level | 0.3 sone |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Operating temperature (T-T) | 0 - 40 °C |
| Fan diameter | 14 cm |
| Maximum airflow | 52 cfm |
| Maximum air pressure | 1.55 mmH2O |
| Airflow | 88.35 m³/h |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Design | |
| Fan connector | 4-pin + 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cable length | 0.48 m |
| Illumination LED | No |
| Display type | Not applicable |
| Technical details | |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 52 cfm |
| Maximum air pressure | 1.55 mmH2O |
| Airflow | 88.35 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.48 m |
| Fan connector | 4-pin + 4-pin |
| Illumination LED | No |
| Ports & interfaces | |
| Fan connector | 4-pin + 4-pin |
| Power | |
| Starting voltage | 4 V |
| Voltage | 12 V |
| Fan current | 0.19 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |

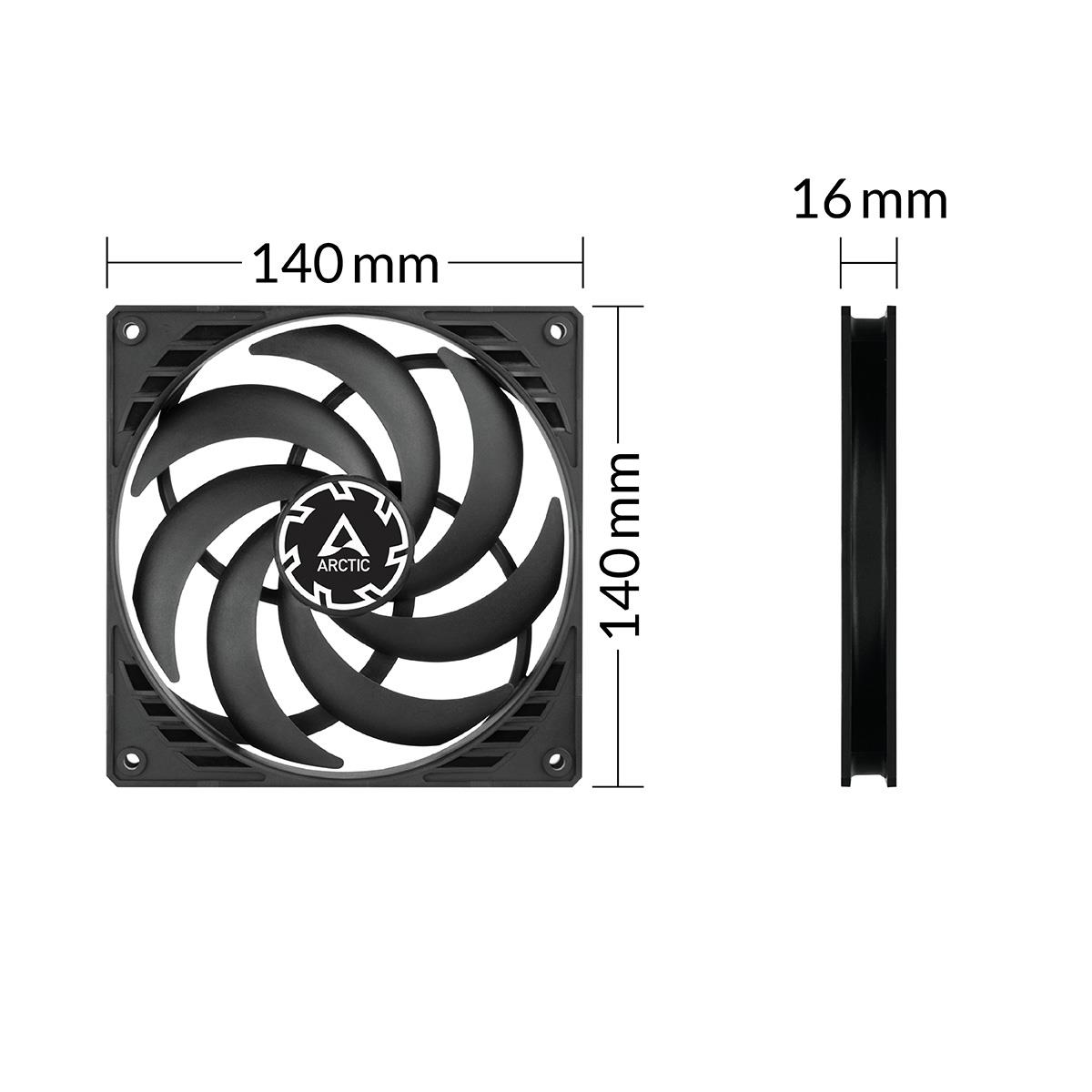

| Fan dimensions (W x D x H) | 140 x 140 x 16 mm |
| Package depth | 156 mm |
| Package width | 143 mm |
| Package height | 17 mm |
| Fan weight | 109 g |
| Height | 140 mm |
| Weight | 109 g |
| Cable length | 0.48 m |
| Packaging data | |
| Package depth | 156 mm |
| Package width | 143 mm |
| Package height | 17 mm |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Other features | |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
