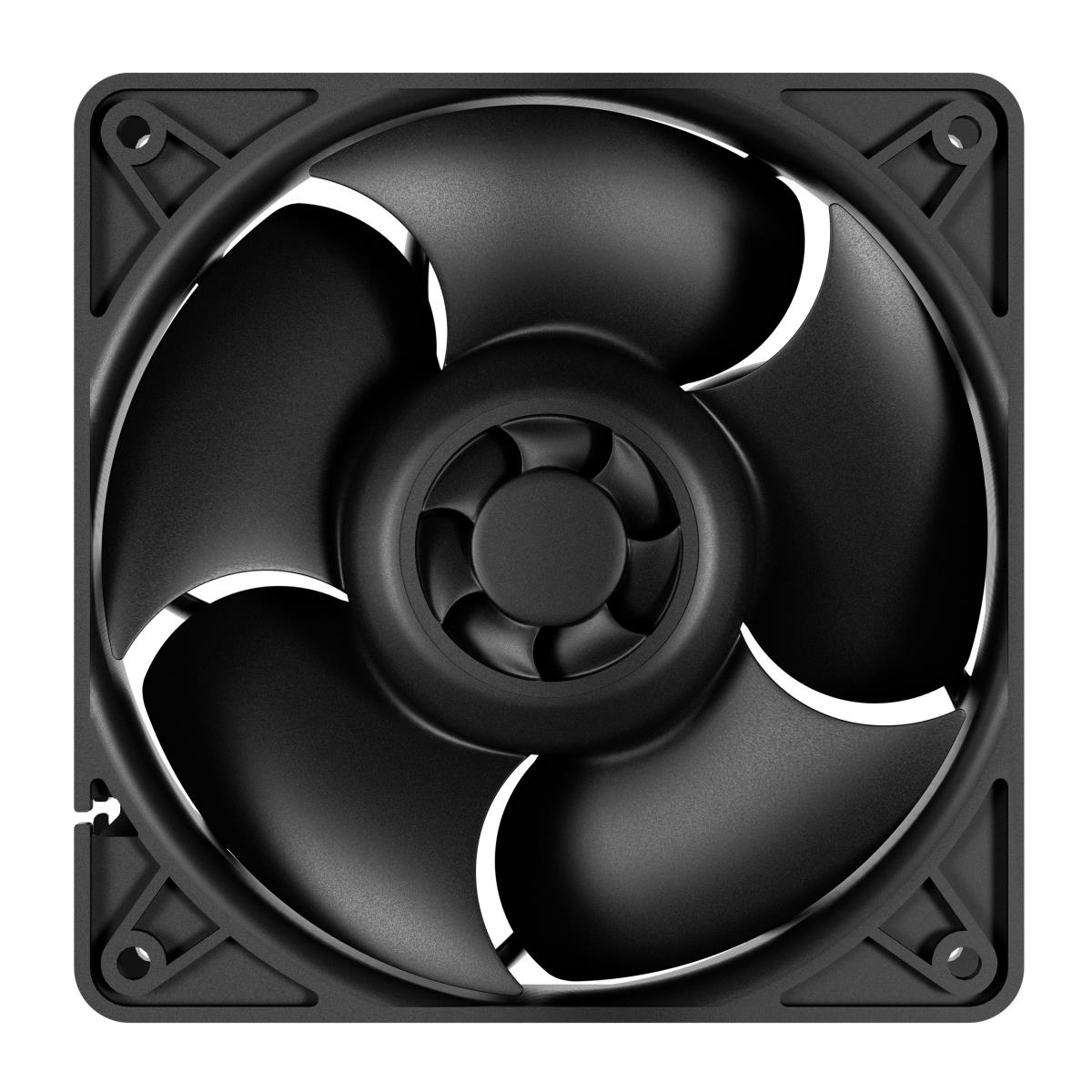

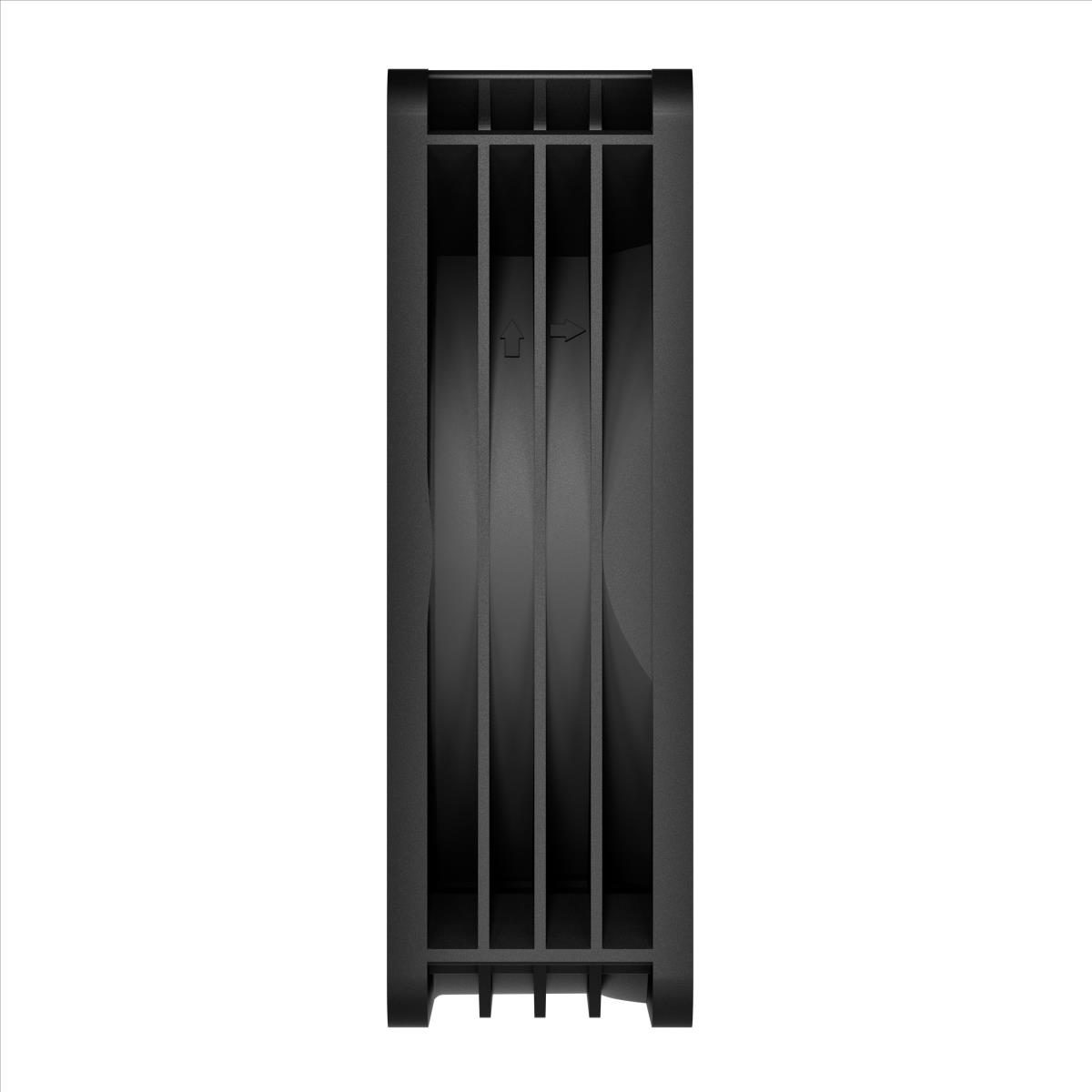

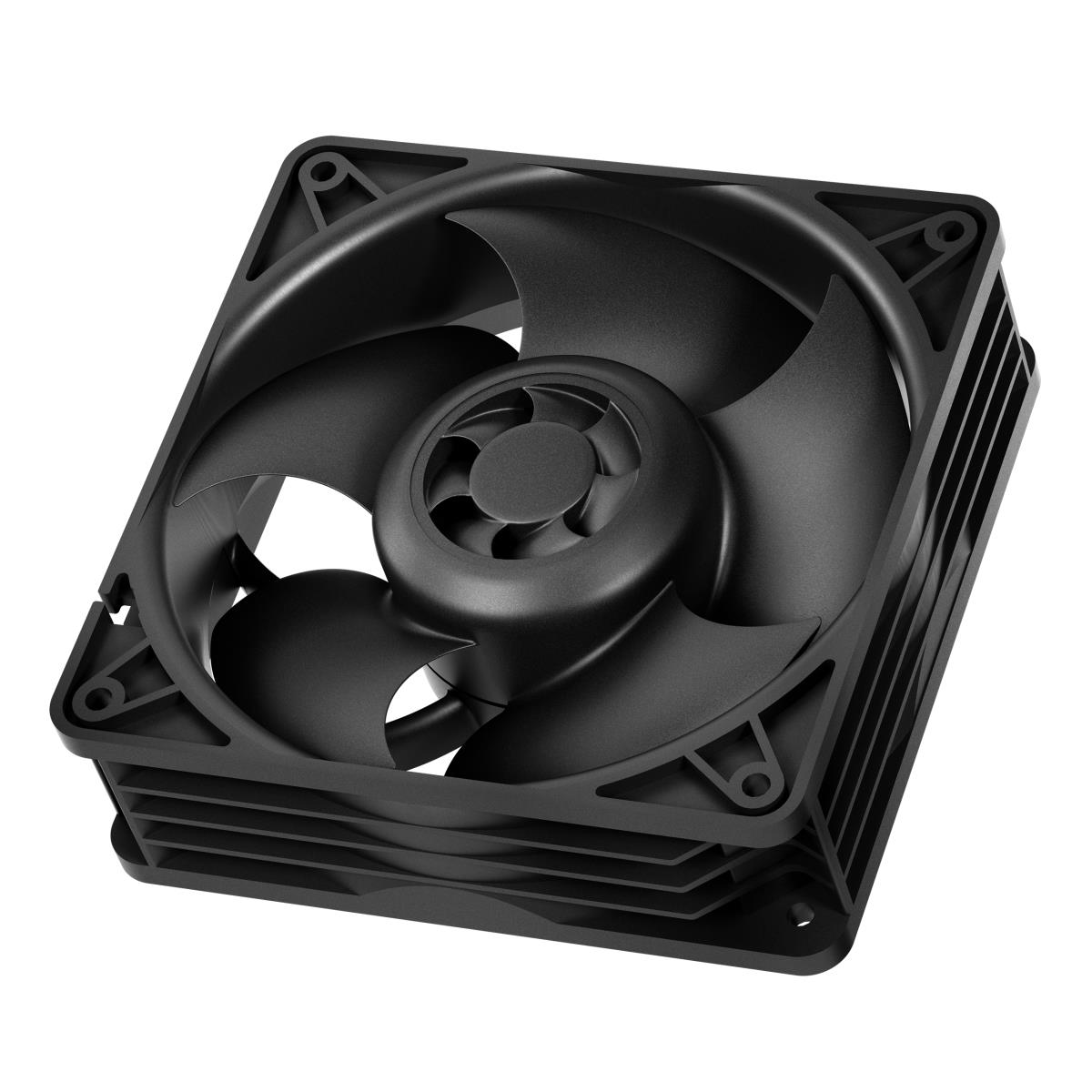

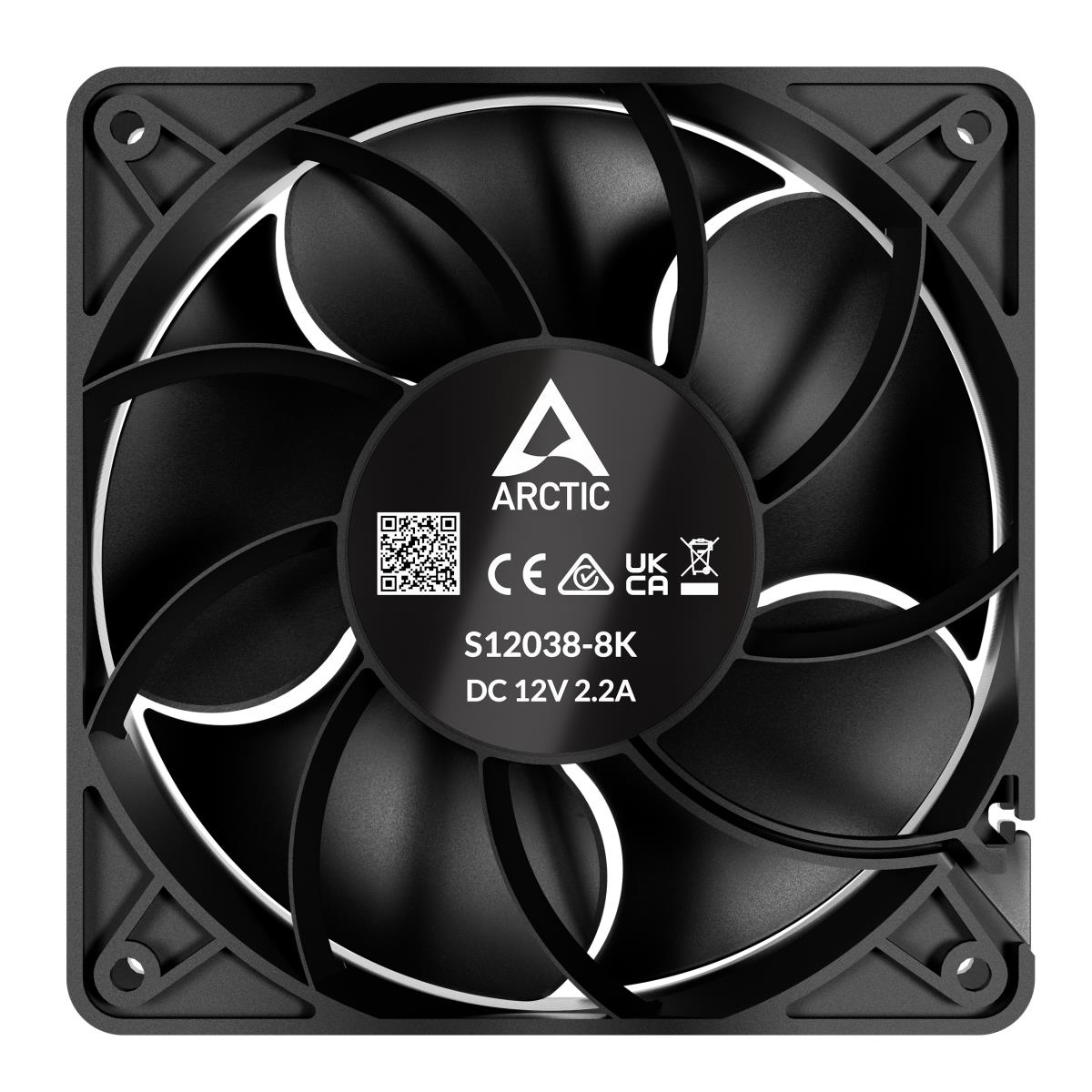

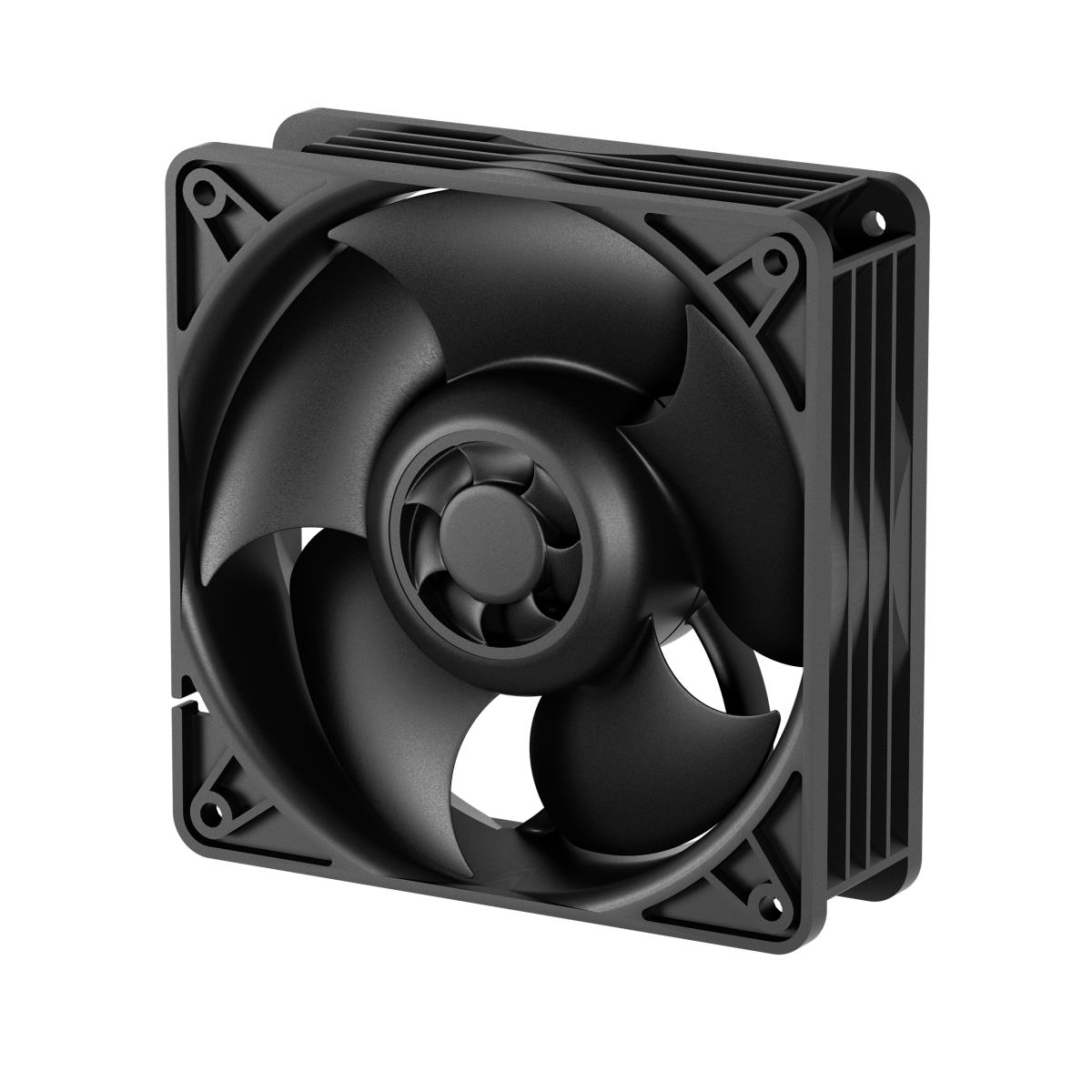

S12038-8K SERVER FAN
Introduction
Workstation & Server Cooling
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 8000 RPM |
| Bearing type | Dual ball bearing |
| Type | Fan |
| Operating temperature (T-T) | -10 - 70 °C |
| Fan diameter | 12 cm |
| Maximum airflow | 220 cfm |
| Maximum air pressure | 37 mmH2O |
| Airflow | 370 m³/h |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cable length | 0.3 m |
| Illumination LED | No |
| Display type | Not applicable |
| Technical details | |
| Type | Fan |
| Fan diameter | 12 cm |
| Maximum airflow | 220 cfm |
| Maximum air pressure | 37 mmH2O |
| Airflow | 370 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.3 m |
| Fan connector | 4-pin |
| Illumination LED | No |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Starting voltage | 6.5 V |
| Rated current | 2.2 A |
| Maximum current | 3.2 A |
| Power protection features | Over voltage, Reverse polarity, Under voltage |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 125 mm |
| Package width | 125 mm |
| Package height | 43 mm |
| Width | 120 mm |
| Package weight | 367 g |
| Depth | 38 mm |
| Height | 120 mm |
| Weight | 328 g |
| Cable length | 0.3 m |
| Packaging data | |
| Package depth | 125 mm |
| Package width | 125 mm |
| Package height | 43 mm |
| Package weight | 367 g |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
