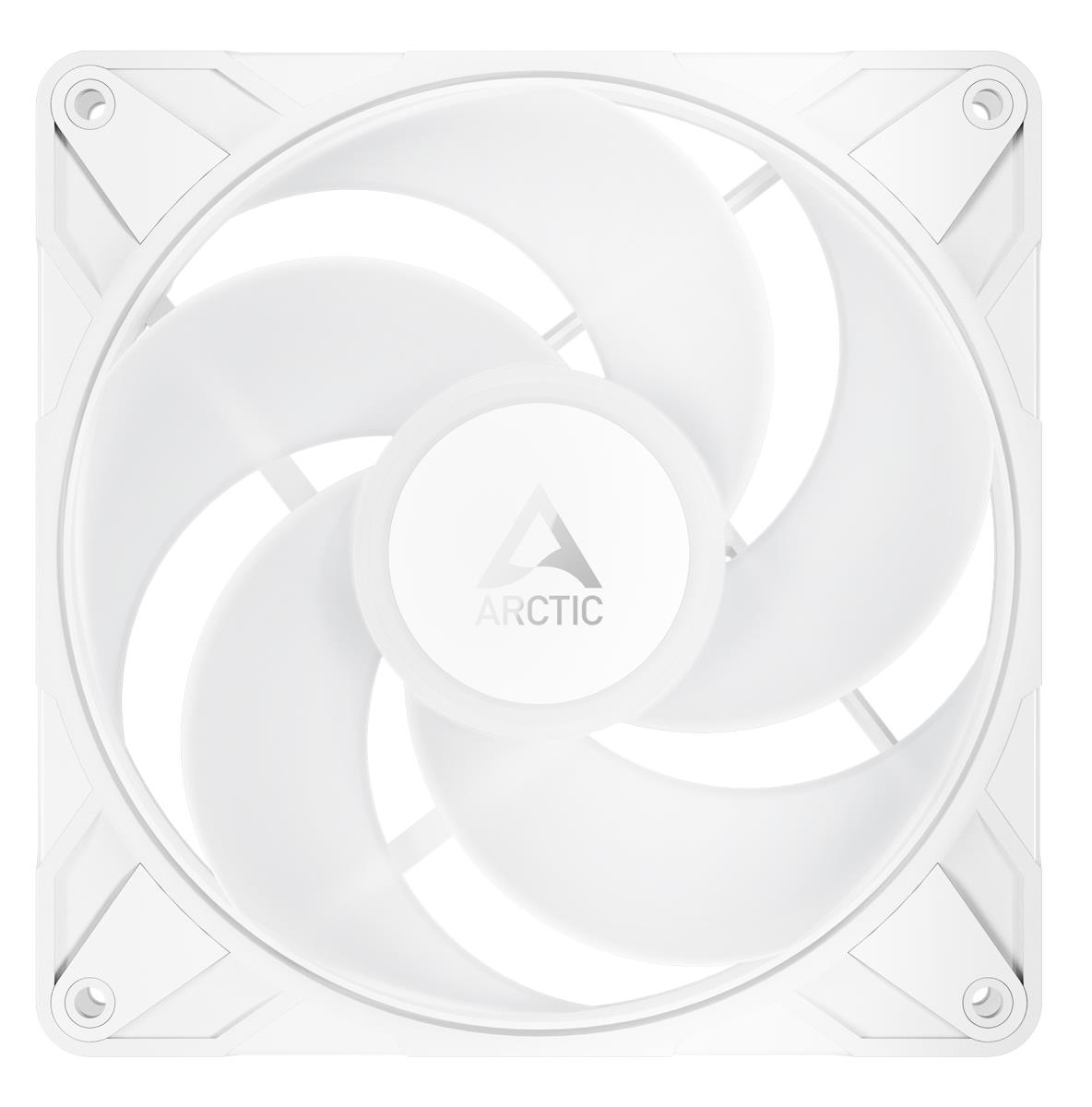

140MM FAN P14 PRO DYN PWM WT
Introduction
ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin + 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Operating temperature (T-T) | 0 - 40 °C |
| Fan diameter | 14 cm |
| Maximum airflow | 98 cfm |
| Maximum air pressure | 5.1 mmH2O |
| Airflow | 166.5 m³/h |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 5 |
| Fan speed (min) | 400 RPM |
| Fan speed (max) | 2650 RPM |
| Design | |
| Fan connector | 4-pin + 4-pin |
| Number of fans | 1 fan(s) |
| Illumination colour | Multi |
| Product colour | White |
| Cable length | 0.48 m |
| Illumination LED | Yes |
| Number of LEDs | 12 |
| Number of fan blades | 5 |
| Display type | Not applicable |
| LED connector type | 3-pin + 3-pin |
| Technical details | |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 98 cfm |
| Maximum air pressure | 5.1 mmH2O |
| Airflow | 166.5 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.48 m |
| Fan connector | 4-pin + 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin + 4-pin |
| Power | |
| Rated voltage | 12 V |
| Starting voltage | 4 V |
| Rated current | 0.4 A |
| LED voltage | 5 V |
| LED current | 0.4 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 140 x 140 x 30 mm |
| Package depth | 145 mm |
| Package width | 145 mm |
| Package height | 35 mm |
| Fan weight | 253 g |
| Package weight | 302 g |
| Height | 140 mm |
| Cable length | 0.48 m |
| Packaging data | |
| Package depth | 145 mm |
| Package width | 145 mm |
| Package height | 35 mm |
| Package weight | 302 g |
| Package type | Box |
| Indication | |
| Illumination colour | Multi |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
| Other features | |
| LED voltage | 5 V |
