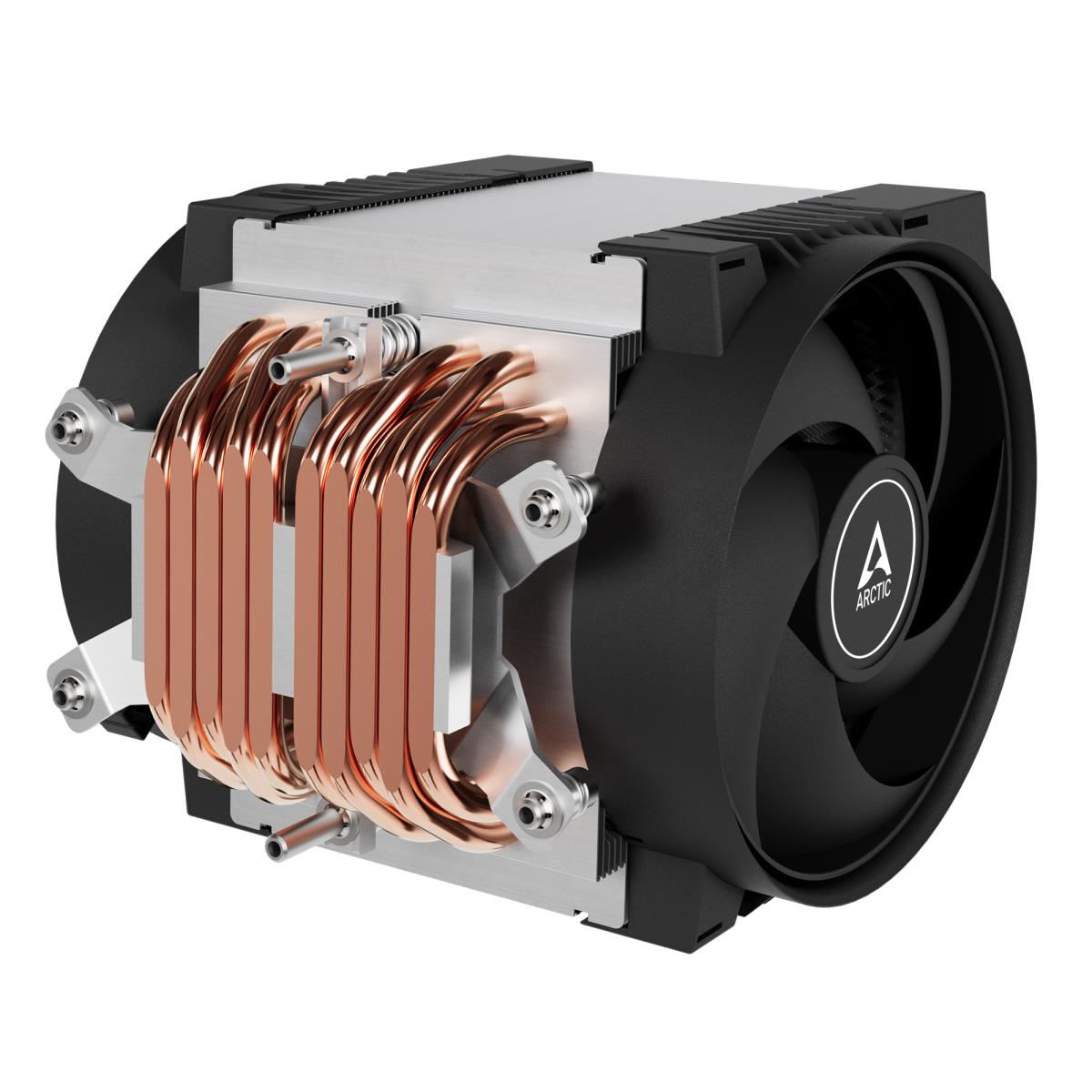

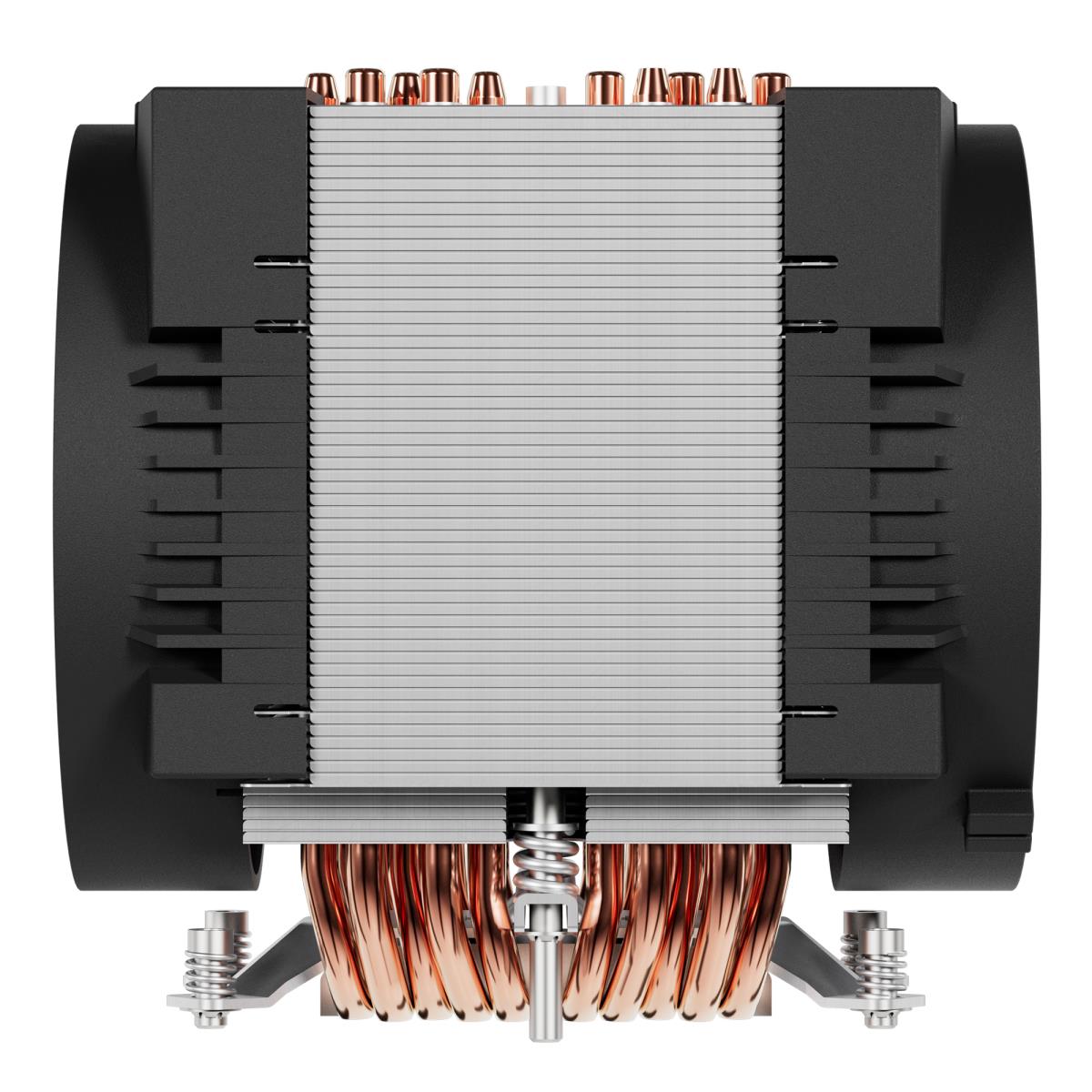

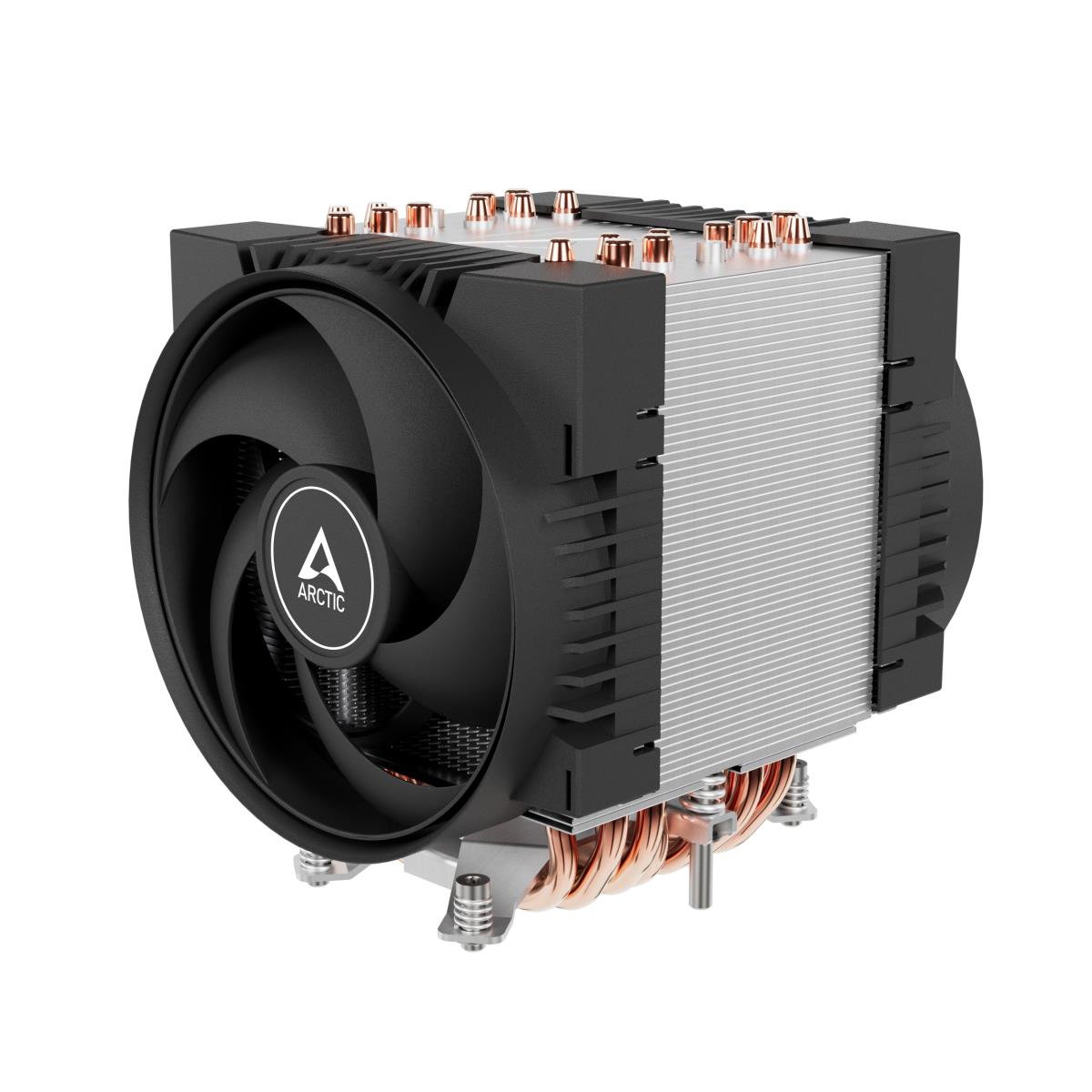

EU Product - Freezer 4U-Sp5 - 4U Server
Introduction
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Number of fins | 62 |
| Fins material | Aluminium |
| Bearing type | Dual ball bearing |
| Thermal Design Power (TDP) | 360 W |
| Number of heat pipes | 10 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Operating temperature (T-T) | 0 - 40 °C |
| Fan diameter | 12 cm |
| Supported processor sockets | Socket SP5 |
| Maximum airflow | 81.04 cfm |
| Airflow | 137.69 m³/h |
| Rack capacity | 4U |
| Number of fans | 2 fan(s) |
| Fan noise level (max) | 45.3 dB |
| Fan static pressure | 4.35 mmH2O |
| Fan speed (min) | 300 RPM |
| Fan speed (max) | 3300 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of fins | 62 |
| Fins material | Aluminium |
| Number of heat pipes | 10 |
| Rack capacity | 4U |
| Number of fans | 2 fan(s) |
| Product colour | Aluminium, Black |
| Cable length | 0.2 m |
| Technical details | |
| Thermal Design Power (TDP) | 360 W |
| Number of heat pipes | 10 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Socket SP5 |
| Maximum airflow | 81.04 cfm |
| Airflow | 137.69 m³/h |
| Rack capacity | 4U |
| Number of fans | 2 fan(s) |
| Cable length | 0.2 m |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Starting voltage | 3.1 V |
| Thermal Design Power (TDP) | 360 W |
| Fan voltage | 12 V |
| Fan current | 0.29 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Colour | |
| Product colour | Aluminium, Black |
| Weight & dimensions | |
| Package depth | 206 mm |
| Package width | 160 mm |
| Package height | 141 mm |
| Heat pipes diameter | 6 mm |
| Width | 147 mm |
| Package weight | 1.56 kg |
| Depth | 124 mm |
| Height | 145 mm |
| Weight | 1.51 kg |
| Cable length | 0.2 m |
| Packaging data | |
| Package depth | 206 mm |
| Package width | 160 mm |
| Package height | 141 mm |
| Package weight | 1.56 kg |
| Package type | Box |
| Packaging content | |
| Package type | Box |
