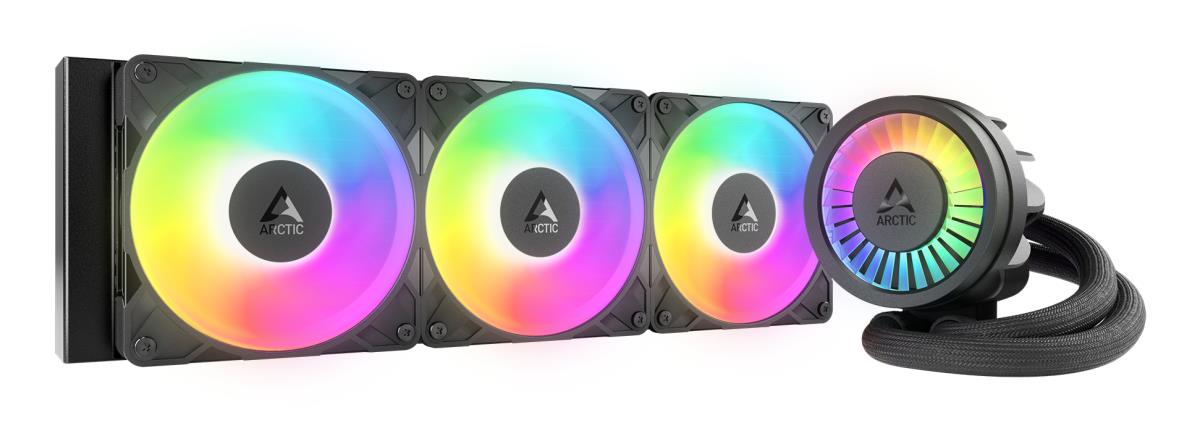

FREEZER III PRO 360MM COOLER
Introduction
CPU Water Cooler
Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | All-in-one liquid cooler |
| Operating temperature (T-T) | 0 - 40 °C |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1851, LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 77 cfm |
| Airflow | 131 m³/h |
| Number of fans | 3 fan(s) |
| Quantity per pack | 1 pc(s) |
| VRM fan speed (min) | 400 RPM |
| VRM fan speed (max) | 2500 RPM |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan static pressure | 6.9 mmH2O |
| Fan speed (min) | 600 RPM |
| Fan speed (max) | 3000 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Product colour | Black |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Display type | Not applicable |
| LED connector type | 3-pin |
| Technical details | |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1851, LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 77 cfm |
| Airflow | 131 m³/h |
| Number of fans | 3 fan(s) |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| LED voltage | 5 V |
| Pump voltage | 12 V |
| Pump current | 350 mA |
| Fan voltage | 12 V |
| Fan current | 0.33 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package depth | 414 mm |
| Package width | 167 mm |
| Package height | 142 mm |
| Width | 120 mm |
| Package weight | 2.45 kg |
| Depth | 398 mm |
| Height | 66 mm |
| Weight | 2 kg |
| Radiator width | 12 cm |
| Radiator depth | 39.8 cm |
| Radiator height | 3.8 cm |
| VRM fan diameter | 9.1 cm |
| Tube length | 45 cm |
| Tube inner diameter | 6 mm |
| Tube diameter | 1.24 cm |
| Packaging data | |
| Package depth | 414 mm |
| Package width | 167 mm |
| Package height | 142 mm |
| Package weight | 2.45 kg |
| Package type | Box |
| Indication | |
| Illumination colour | Multi |
| Packaging content | |
| Package type | Box |
| Other features | |
| LED voltage | 5 V |
