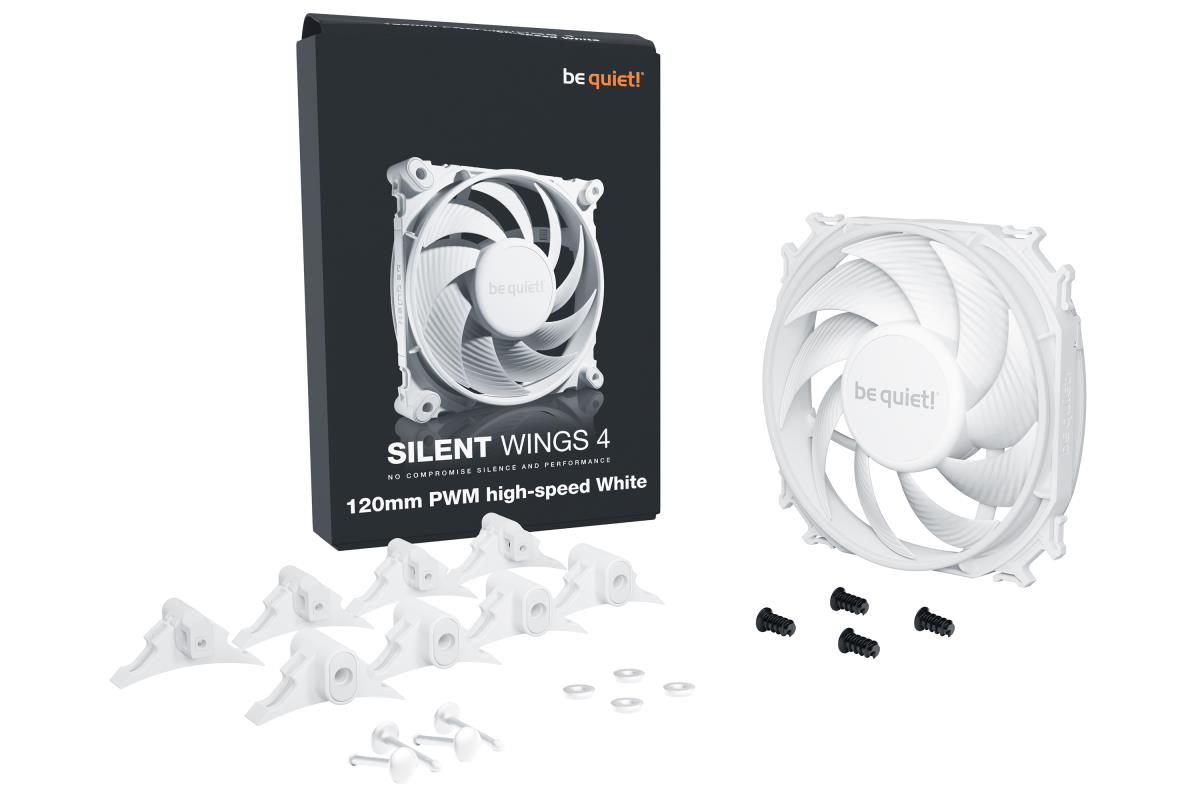

EU Product - Lüfter 120*120*25 SilentWings 4 White PWM Highsp.
Introduction
No compromise silence and performance
Silent Wings 4 120mm PWM high-speed White combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm PWM high-speed White the perfect choice for the most demanding applications in high-end systems.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 2500 RPM |
| Bearing type | Rifle bearing |
| Noise level (high speed) | 31.2 dB |
| Type | Fan |
| Fan diameter | 12 cm |
| Maximum airflow | 76.7 cfm |
| Maximum air pressure | 3.96 mmH2O |
| Airflow | 130.3 m³/h |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Fan's mean time to failure (MTTF) | 300000 h |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | White |
| Cable length | 0.5 m |
| Illumination LED | No |
| Display type | Not applicable |
| Technical details | |
| Noise level (high speed) | 31.2 dB |
| Type | Fan |
| Fan diameter | 12 cm |
| Maximum airflow | 76.7 cfm |
| Maximum air pressure | 3.96 mmH2O |
| Airflow | 130.3 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.5 m |
| Fan connector | 4-pin |
| Illumination LED | No |
| Sustainability compliance | Yes |
| Sustainability certificates | Triman |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, RoHS, UKCA, WEEE |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Voltage | 5 - 13.2 V |
| Rated current | 0.2 A |
| Fan power consumption | 2.4 W |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Package depth | 192 mm |
| Package width | 141 mm |
| Package height | 31 mm |
| Width | 120 mm |
| Package weight | 350 g |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 190 g |
| Cable length | 0.5 m |
| Packaging data | |
| Package depth | 192 mm |
| Package width | 141 mm |
| Package height | 31 mm |
| Package weight | 350 g |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Logistics data | |
| Shipping (inner) case width | 38.7 cm |
| Shipping (inner) case length | 43.2 cm |
| Shipping (inner) case height | 37.5 cm |
| Shipping (inner) case gross weight | 15 kg |
