EU Product - K Cooler Deepcool AK700 DIGITAL WH
Introduction
DeepCool AK700 Digital WH. Type: Air cooler, Fan diameter: 12 cm, Maximum air pressure: 5.13 mmH2O. Width: 98 mm, Depth: 126 mm, Height: 157 mm. Product colour: White
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |

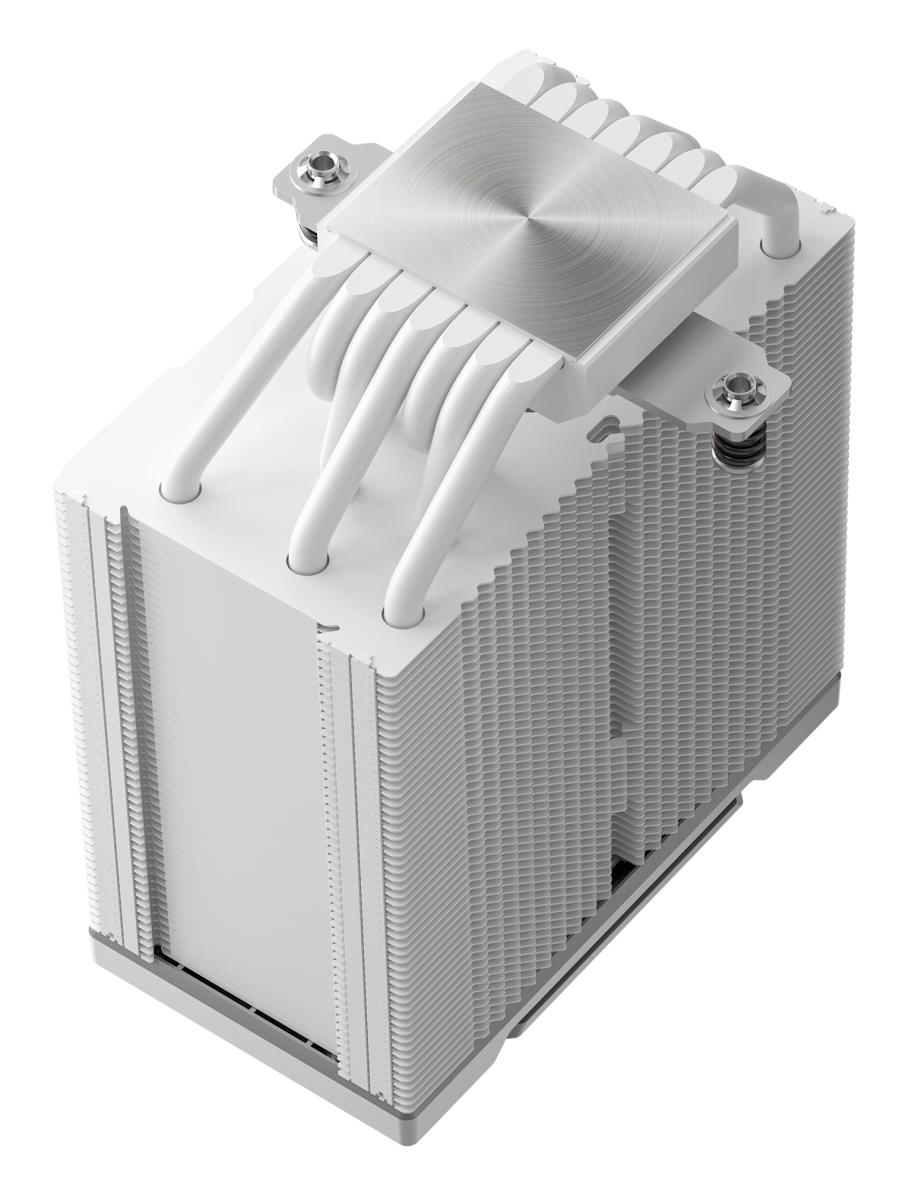

| Number of heat pipes | 7 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum airflow | 77.23 cfm |
| Maximum air pressure | 5.13 mmH2O |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 7 |
| Fan noise level (min) | 21 dB |
| Fan noise level (max) | 31.45 dB |
| Fan bearing technology | Hydro Dynamic Bearing (HDB) |
| Fan speed (max) | 2700 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of heat pipes | 7 |
| Number of fans | 1 fan(s) |
| Product colour | White |
| Number of fan blades | 7 |
| Radiator material | Aluminum |
| Display size (HxV) | 29 x 39 mm |
| Technical details | |
| Number of heat pipes | 7 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum airflow | 77.23 cfm |
| Maximum air pressure | 5.13 mmH2O |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Fan power consumption | 4.2 W |
| Fan voltage | 12 V |
| Fan current | 0.35 A |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
| Width | 98 mm |
| Depth | 126 mm |
| Height | 157 mm |
| Weight | 1.25 kg |
| Radiator width | 7.6 cm |
| Radiator depth | 12.4 cm |
| Radiator height | 15.1 cm |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
| Other features | |
| Built-in display | Yes |
