*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order
Part No:R-LS520-BKAMNT-G-1
Stock:77 In Stock
EAN Code:6933412727484

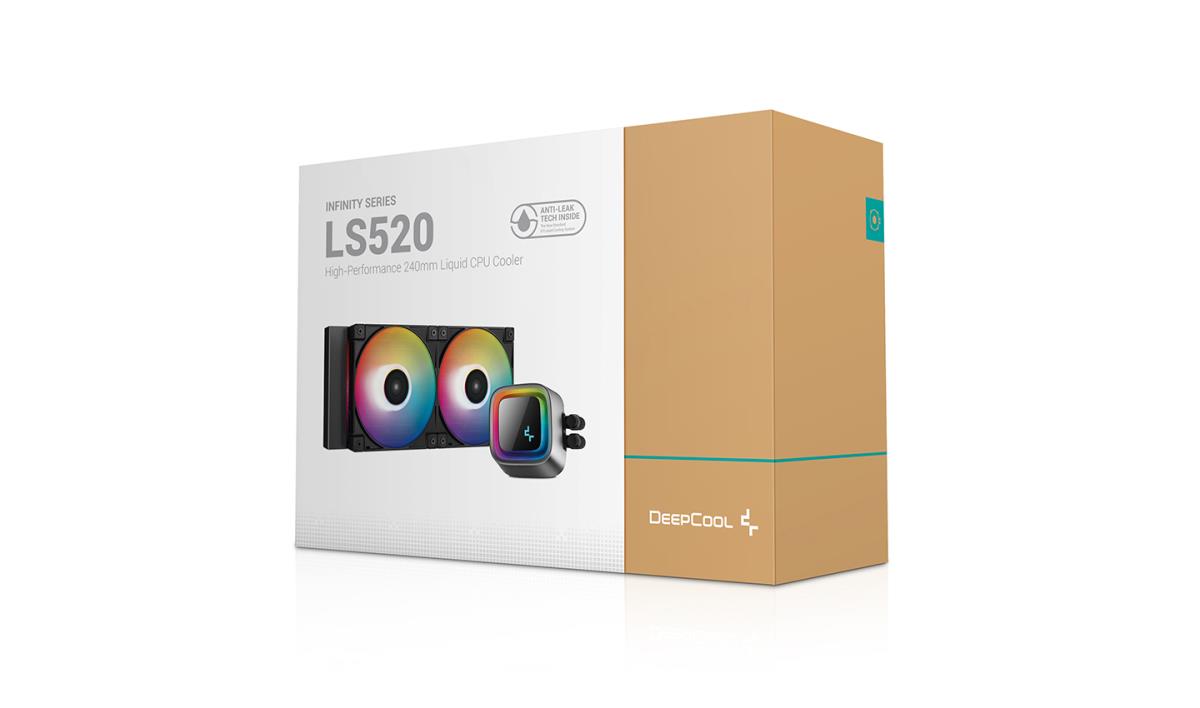

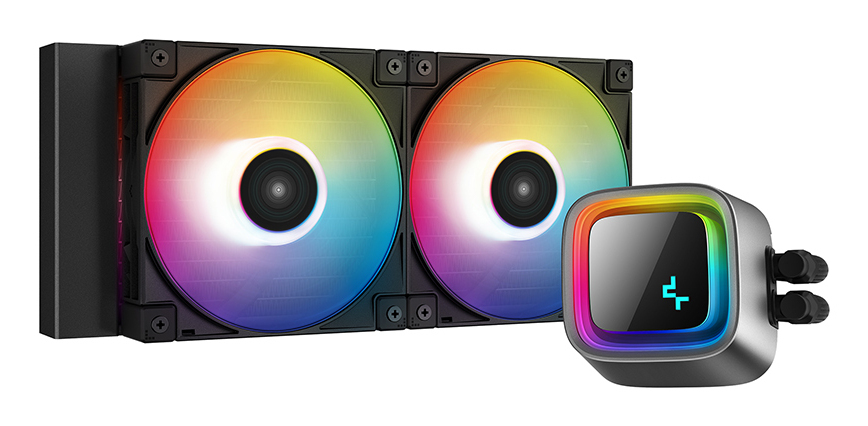

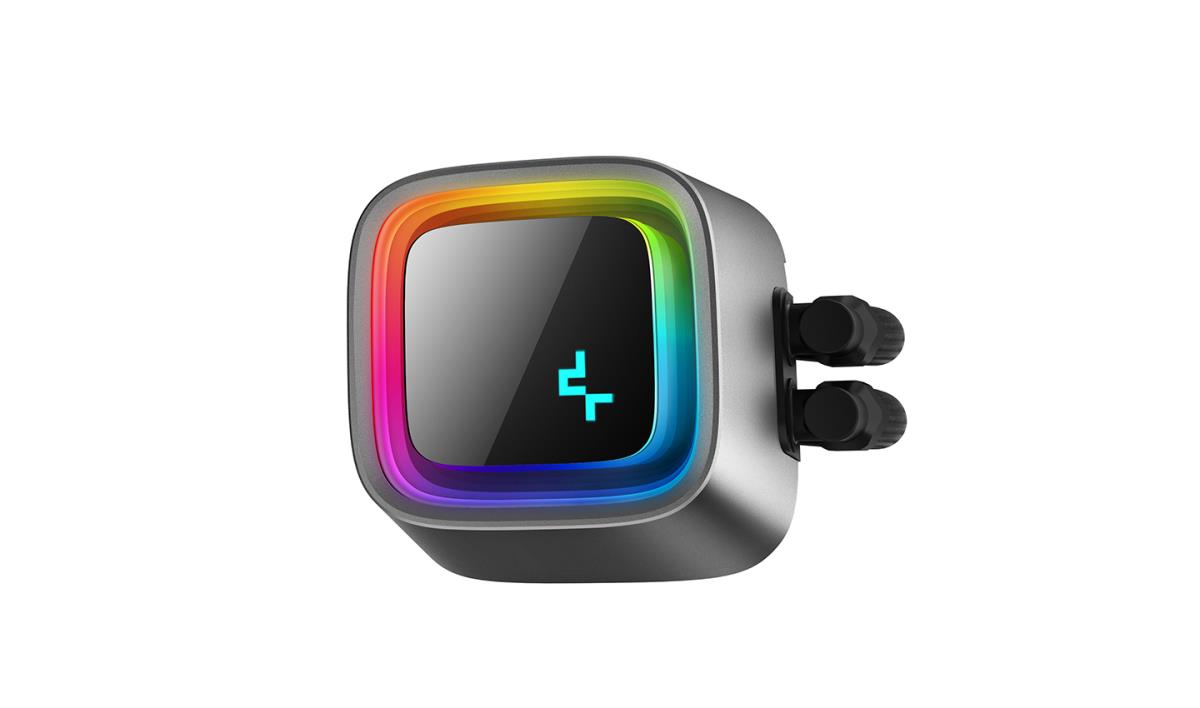

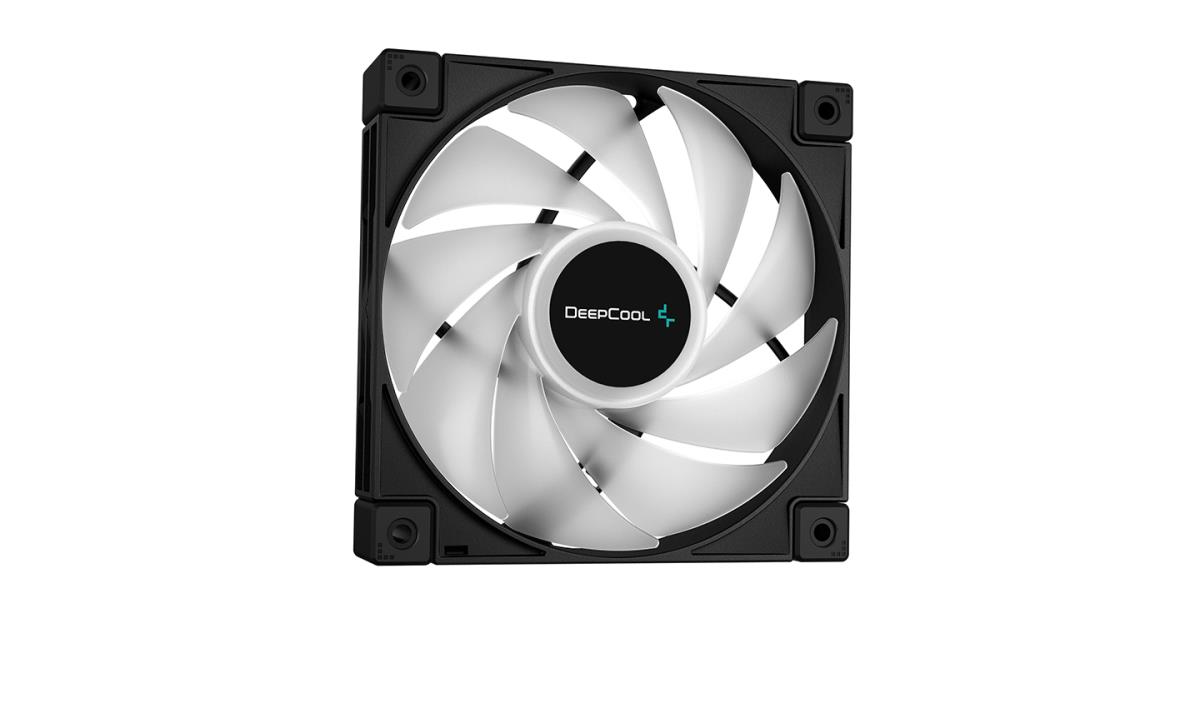

The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design. Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings. Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms. The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
Performance | |
---|---|
Suitable location | Processor |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (min) | 500 RPM |
Rotational speed (max) | 2250 RPM |
Noise level (high speed) | 32.9 dB |
Type | All-in-one liquid cooler |
Fan diameter | 12 cm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
Maximum airflow | 85.85 cfm |
Maximum air pressure | 3.27 mmH2O |
Number of fans | 2 fan(s) |
Quantity per pack | 1 pc(s) |
Fan diameter 2 | 12 cm |
Fan 2 rotational speed (min) | 500 RPM |
Fan 2 rotational speed (max) | 2250 RPM |
Fan 2 noise level (high speed) | 32.9 dB |
Fan 2 maximum airflow | 85.85 cfm |
Fan 2 maximum air pressure | 3.27 mmH2O |
Pump noise level | 19 dB |
Fan bearing technology | Fluid Dynamic Bearing (FDB) |
Design | |
Fan connector | 4-pin |
Number of fans | 2 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Illumination LED | Yes |
Radiator material | Aluminum |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 32.9 dB |
Type | All-in-one liquid cooler |
Fan diameter | 12 cm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
Maximum airflow | 85.85 cfm |
Maximum air pressure | 3.27 mmH2O |
Number of fans | 2 fan(s) |
Fan connector | 4-pin |
Illumination LED | Yes |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
LED voltage | 5 V |
Fan power consumption | 3.48 W |
Pump power consumption | 5.64 W |
Pump voltage | 12 V |
Pump current | 470 mA |
Fan voltage | 12 V |
Fan current | 0.29 A |
LED power consumption (pump) | 2.2 W |
LED power consumption (fan) | 3.6 W |
Colour | |
Product colour | Black |
Weight & dimensions | |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 1.3 kg |
Radiator width | 12 cm |
Radiator depth | 28.2 cm |
Radiator height | 2.7 cm |
Tube length | 41 cm |
Pump width | 8.6 cm |
Pump depth | 7.4 cm |
Pump height | 5.7 cm |
Indication | |
Illumination colour | Multi |
Other features | |
Country of origin | China |
LED voltage | 5 V |
