EU Product - Usb Gen 1 Typ-C 7in1 Hub 2x Hdmi Gen1 Typ-A 1x RJ45 100
Introduction

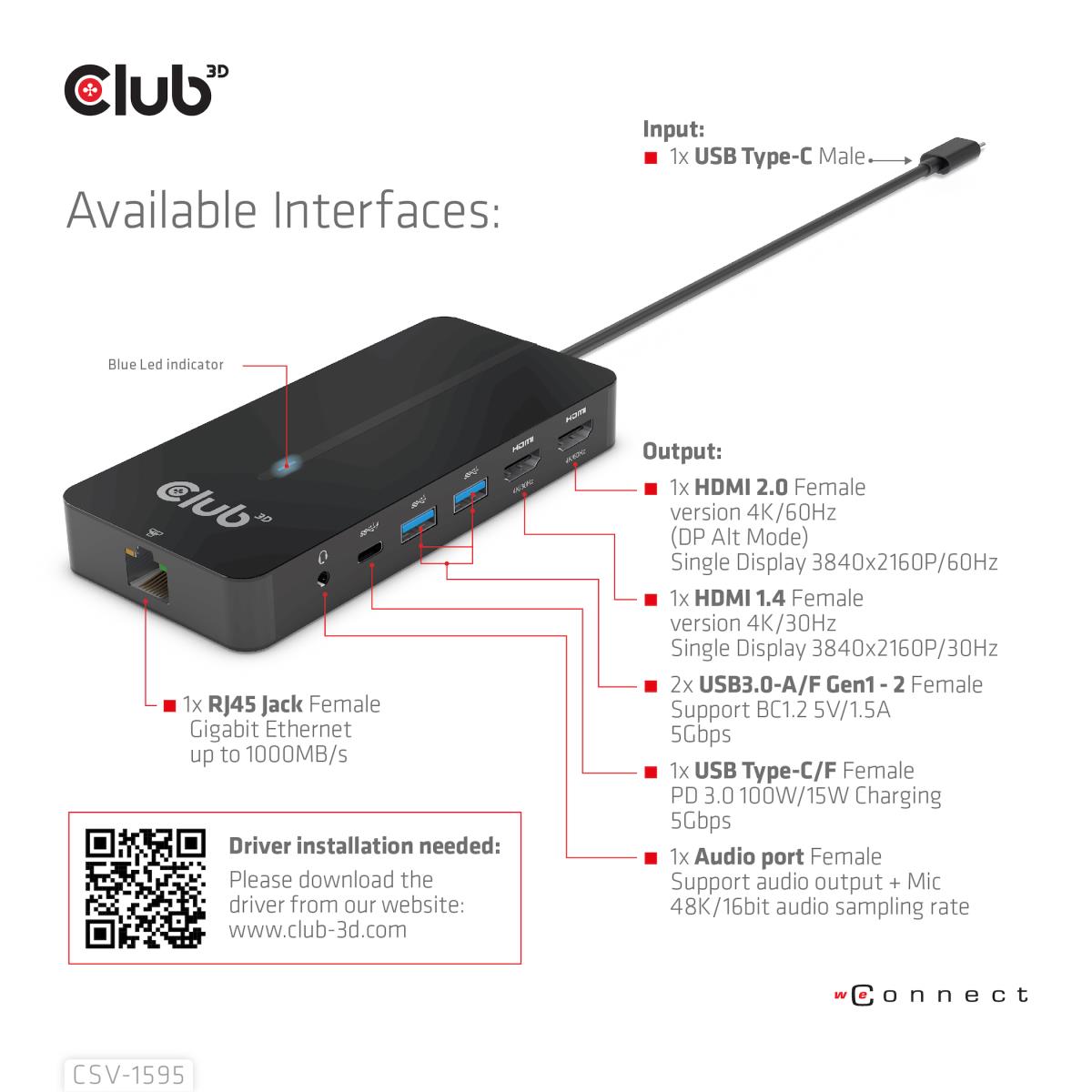

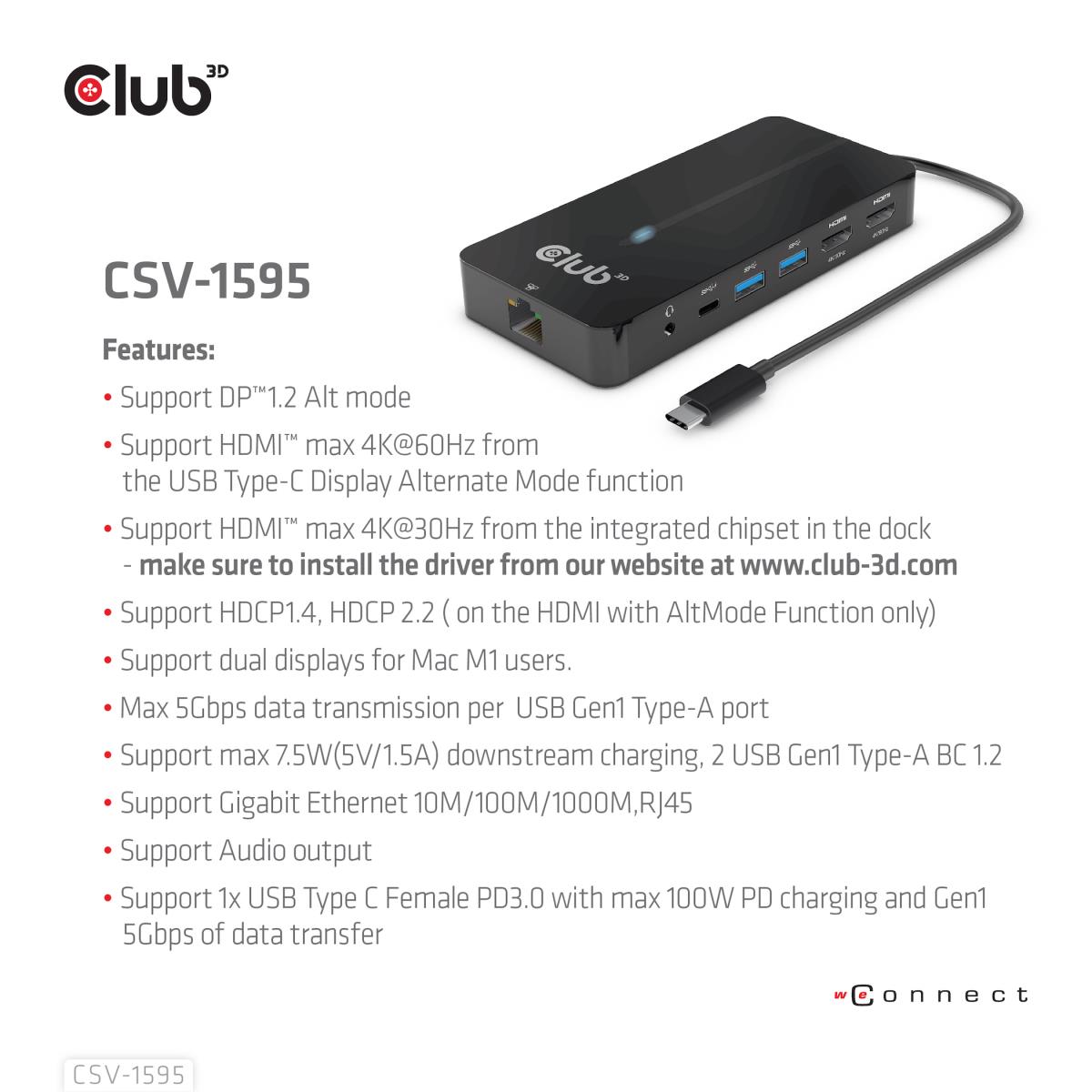

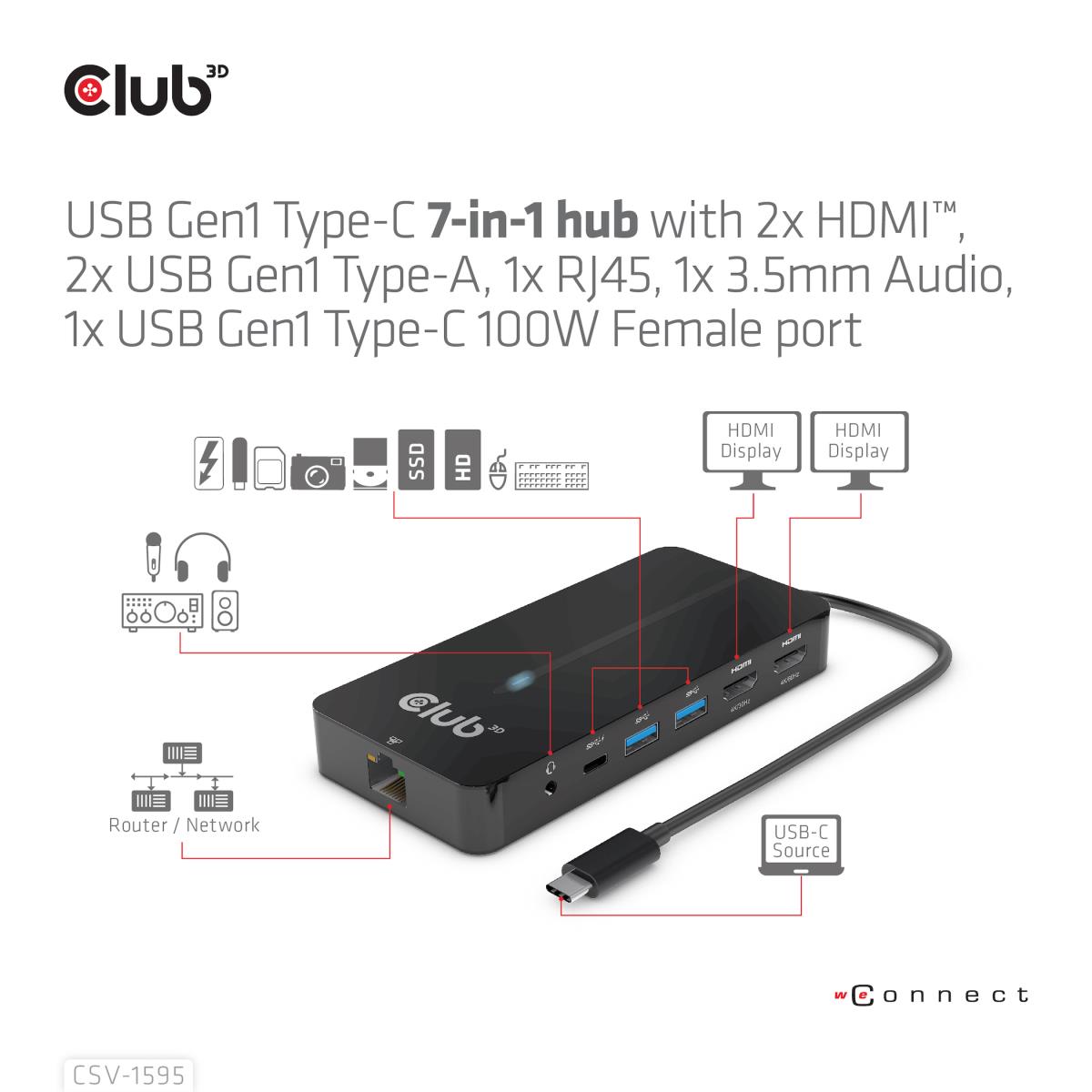

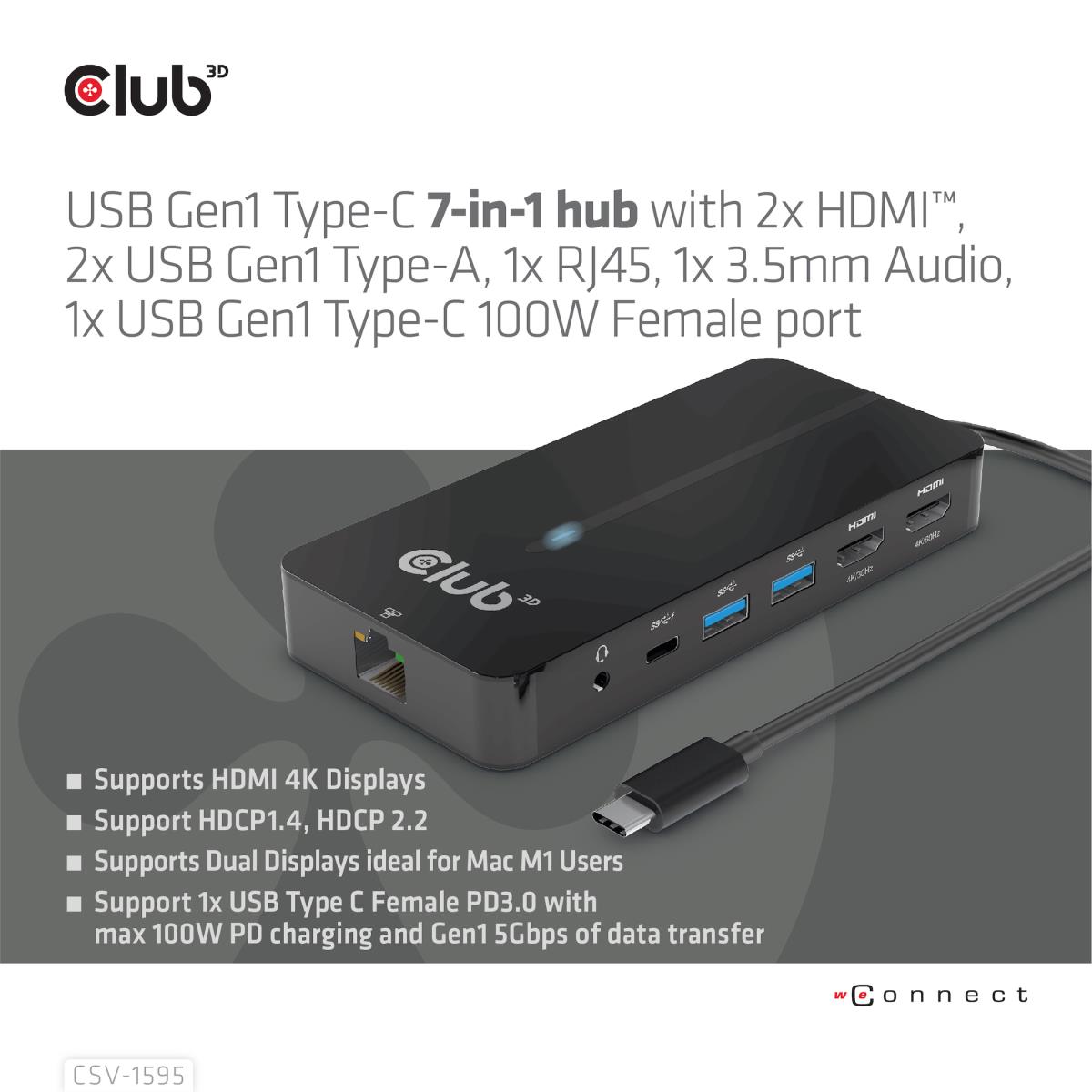

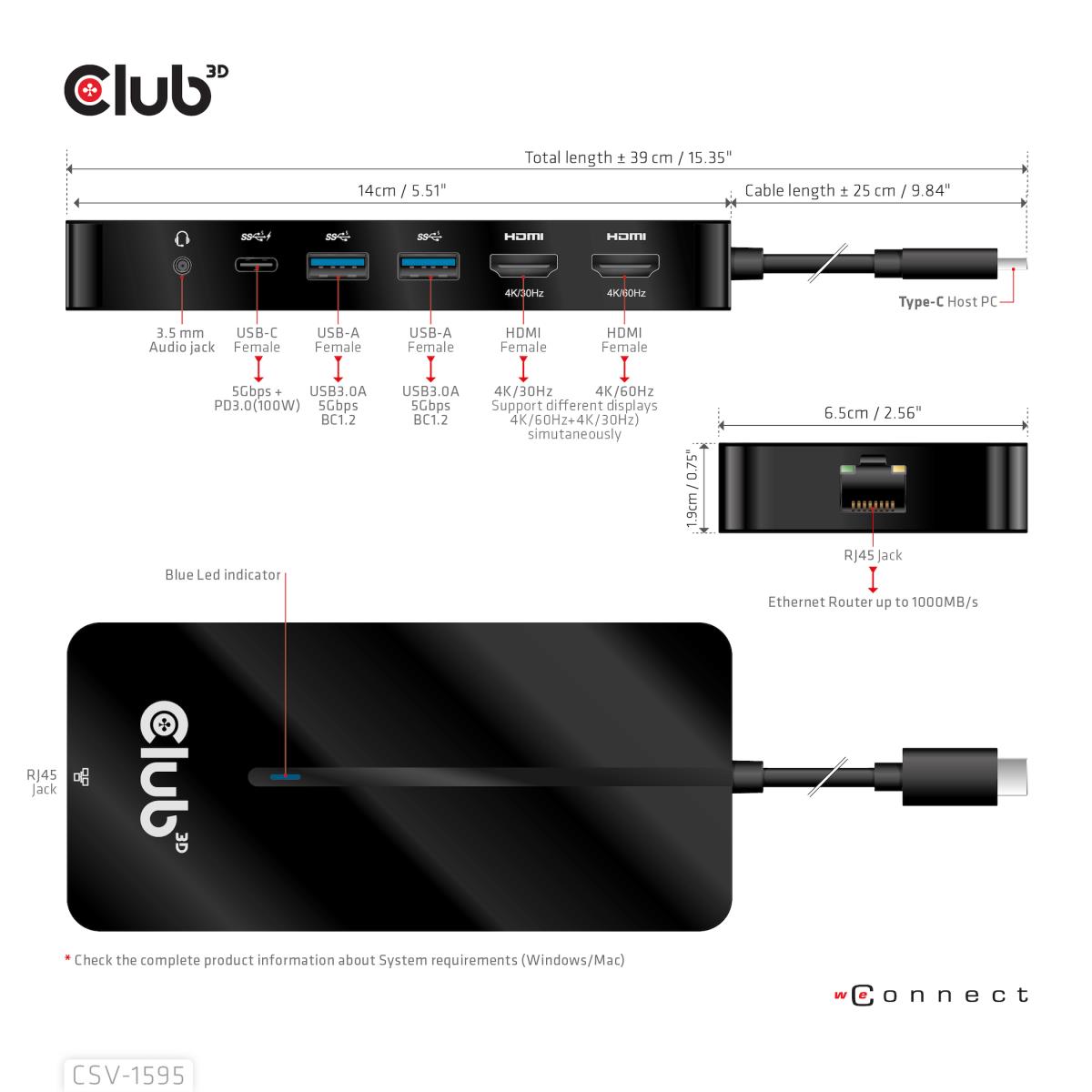

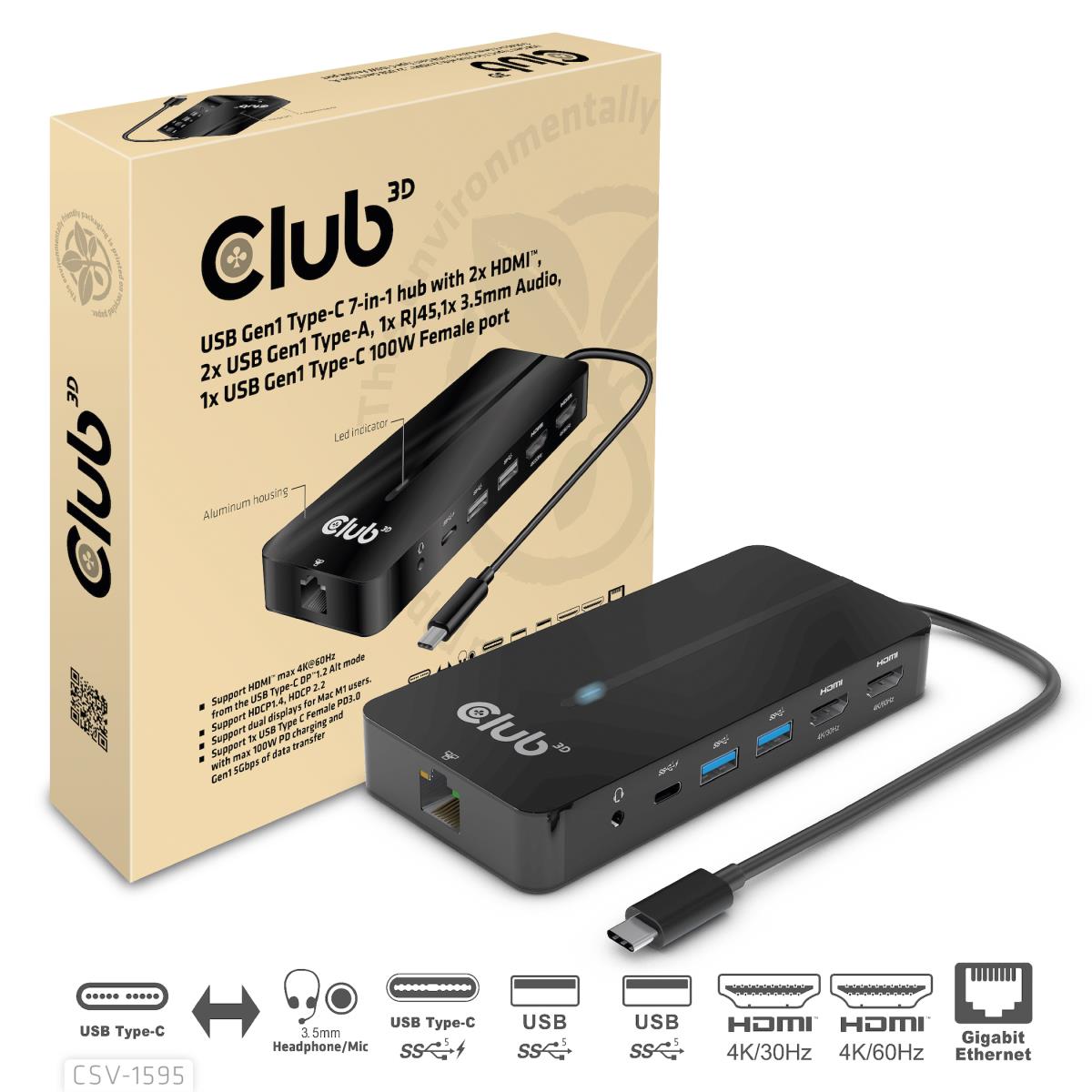

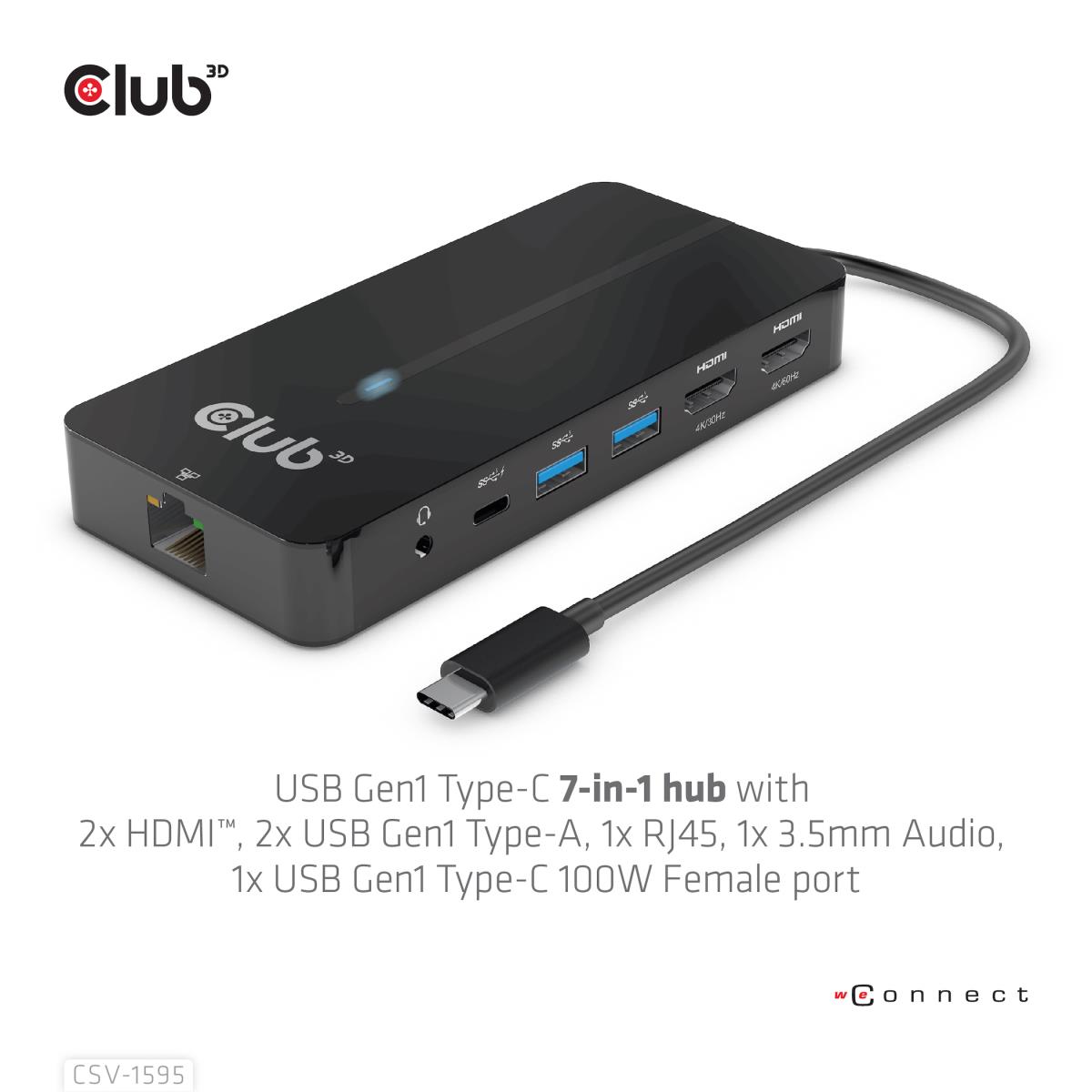

The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| DC-in jack | No |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDCP version | 2.2 |
| HDCP | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Number of displays supported | 2 |
| Product colour | Black |
| Card reader integrated | No |
| Plug and Play | Yes |
| Certification | ROHS, FCC, CE EMI |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Hub interfaces | 3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Technical details | |
| Product colour | Black |
| Plug and Play | Yes |

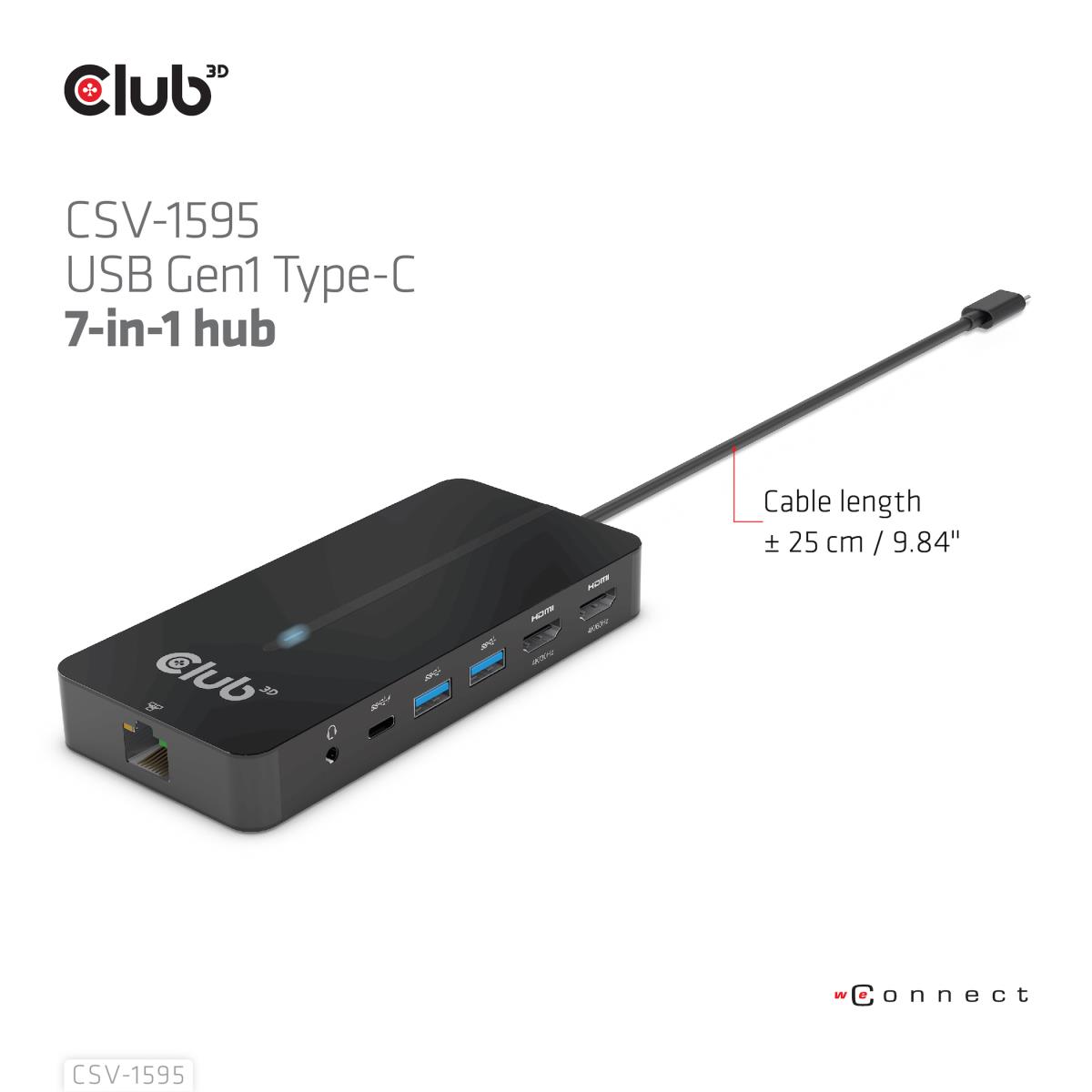

| Cable length | 0.25 m |
| Harmonized System (HS) code | 8473 3020 |
| Plastic packaging weight | 6 g |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power consumption (max) | 7.5 W |
| Output voltage | 5 V |
| Output current | 1.5 A |
| Wireless charging | No |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Weight | 210 g |
| Width | 140 mm |
| Depth | 65 mm |
| Height | 19 mm |
| Package weight | 286 g |
| Package width | 210 mm |
| Package depth | 35 mm |
| Package height | 210 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Certification | ROHS, FCC, CE EMI |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 286 g |
| Package width | 210 mm |
| Package depth | 35 mm |
| Package height | 210 mm |
| Certificates | |
| Certification | ROHS, FCC, CE EMI |
| Packaging composition | |
| Plastic packaging weight | 6 g |
| Paper/cardboard packaging weight | 70 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
| Other features | |
| Cable type | Round cable |
| Cable length | 0.25 m |
