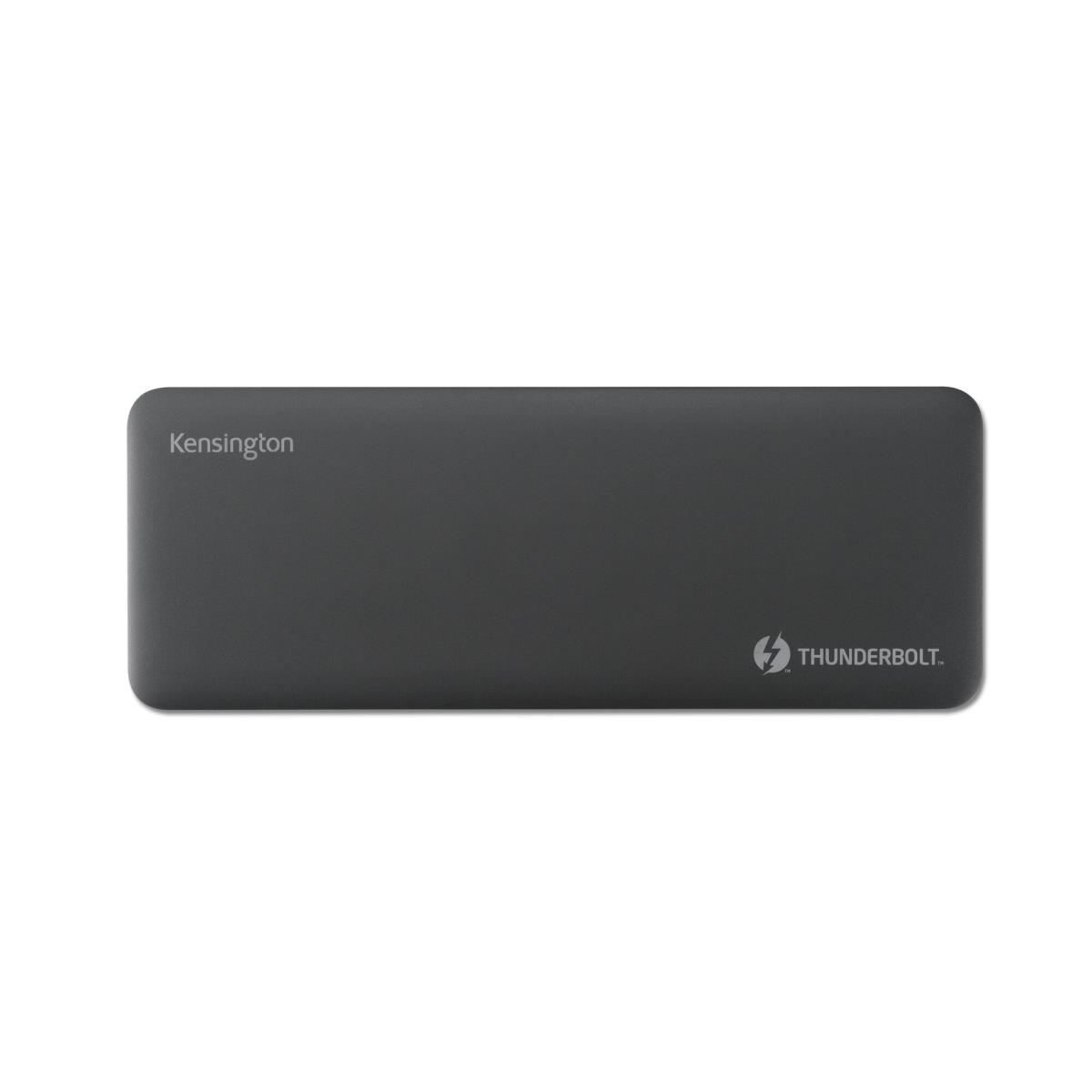

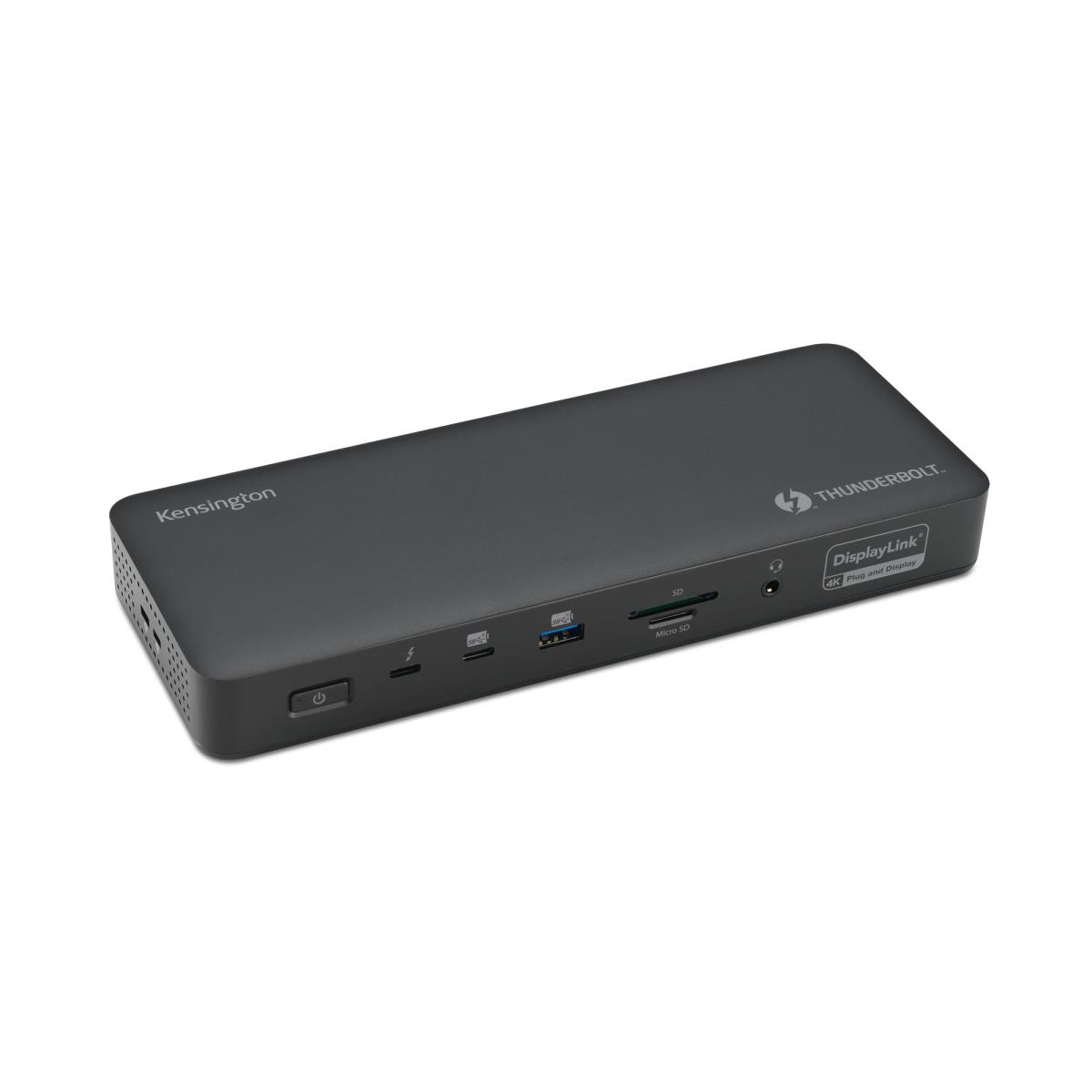

EU Product - Dockingstation SD5920T EQ TB4 & DisplayLink Quad
Introduction

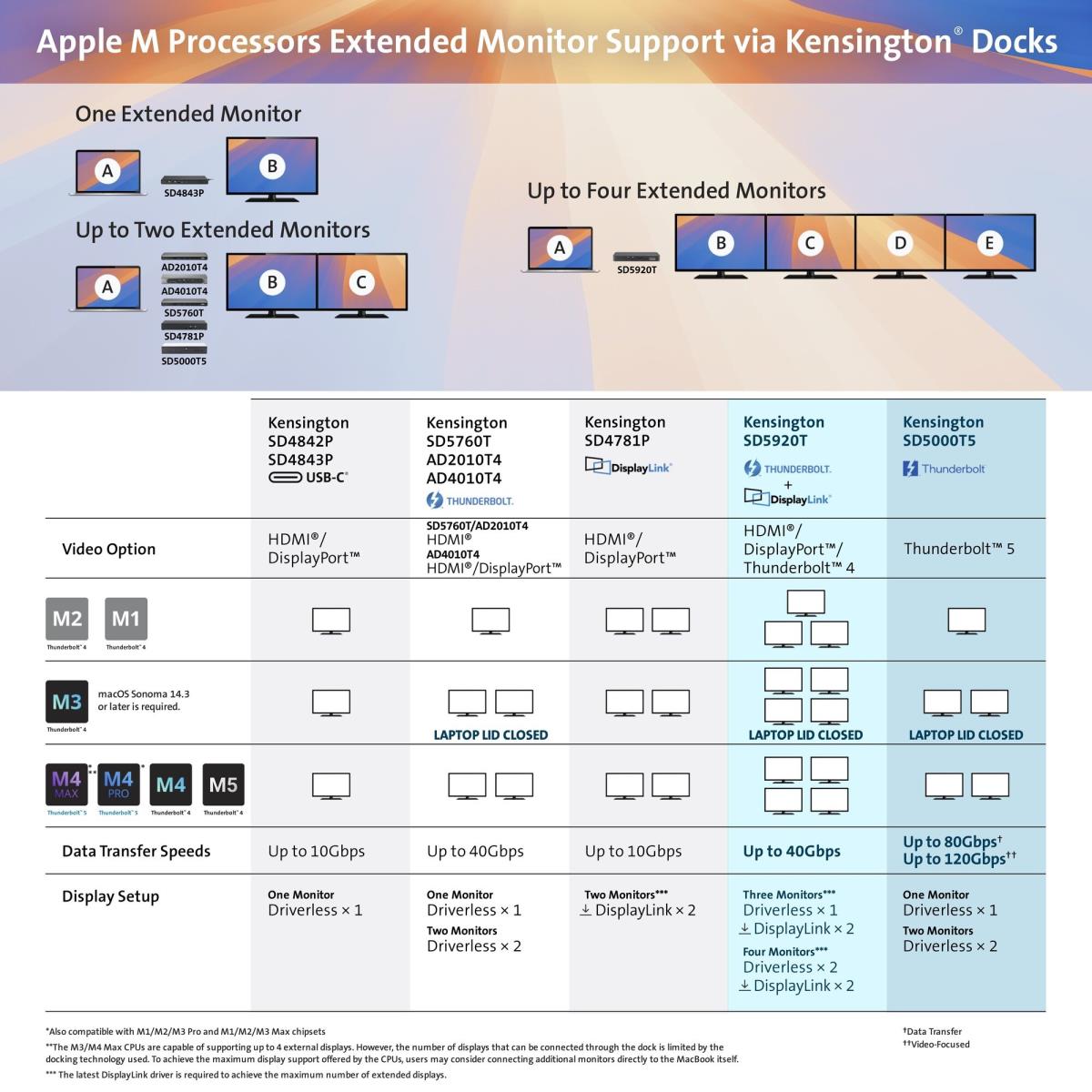

Supporting up to four external displays on laptops running Windows, macOS and ChromeOS, the SD5920T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology is a versatile docking station for unlocking the full potential of Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices. Flexible video connections include 2 x HDMI®/DP ports, 1 x DP port and 1 x Thunderbolt™ 4 port, supporting up to Quad 4K @ 60Hz. Focused on productivity, the SD5920T supports up to 100W Charging (96W certified) to the laptop, 40Gbps data transfer speeds and includes 16 connectivity ports. Partially made with recycled materials. Includes a 3-Year Limited Warranty. This warranty does not affect your statutory rights. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Host interface | Thunderbolt 4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 96 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Performance | |
| Number of displays supported | 4 |
| Card reader integrated | Yes |

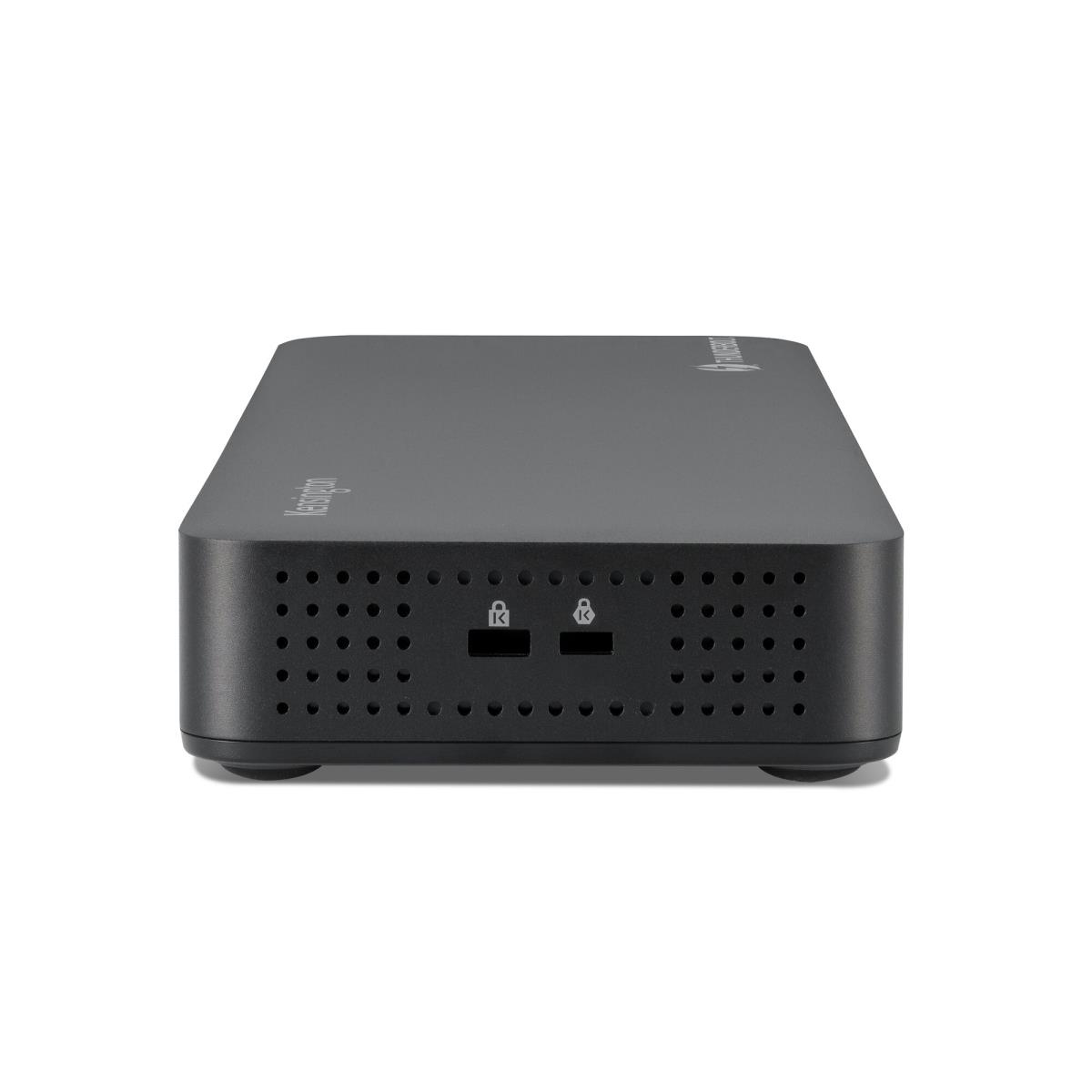

| Cable lock slot | Yes |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Cable lock slot type | Nano, Kensington |
| HD type | 8K Ultra HD |
| Technical details | |
| Cable lock slot | Yes |
| Data transfer rate | 40 Gbit/s |
| Special features | EQ |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case gross weight | 9.63 kg |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 135 mm |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Nano, Kensington |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 1.5 kg |
| Package width | 245 mm |
| Package depth | 107 mm |
| Package height | 94 mm |
| Weight & dimensions | |
| Package weight | 1.5 kg |
| Package width | 245 mm |
| Package depth | 107 mm |
| Package height | 94 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case gross weight | 9.63 kg |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case net weight | 9.63 kg |
| Other features | |
| USB ports quantity | 4 |
| Compatible operating systems | Chrome OS 116 or above; macOS 11 or above; Windows 10 or above |
| Special features | EQ |
