STARTECH.COM USB3SDOCKHDV STARTECH.COM USB 3.0 DOCKING STATION HDMI

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

USB3SDOCKHDV STARTECH.COM USB 3.0 DOCKING STATION HDMI

Part No:USB3SDOCKHDV

Stock:199 In Stock

EAN Code:0065030851299

£72.90 Excl. VAT

£87.48 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

USB 3.0 DOCKING STATION HDMI

Introduction

Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

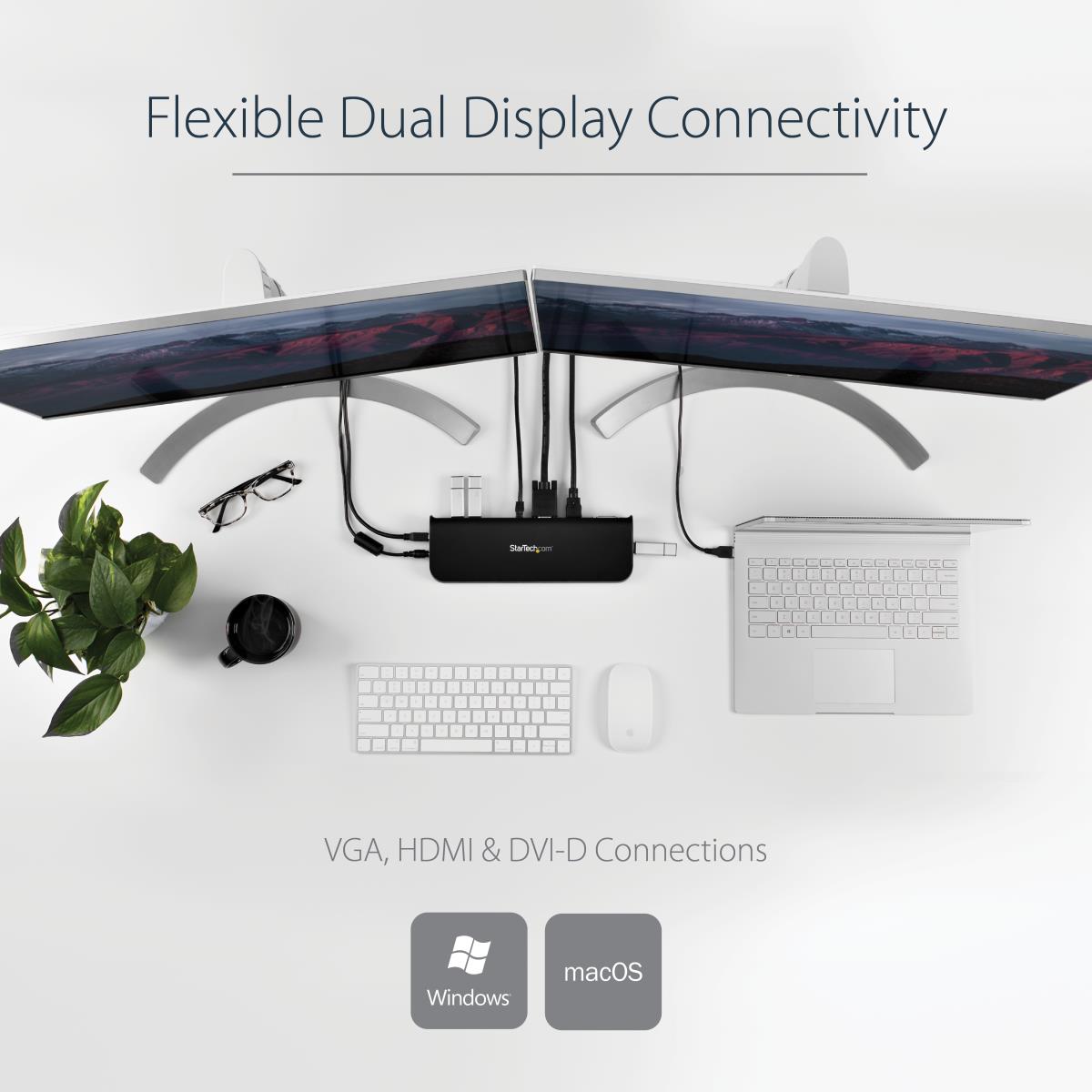

Display Adaptability

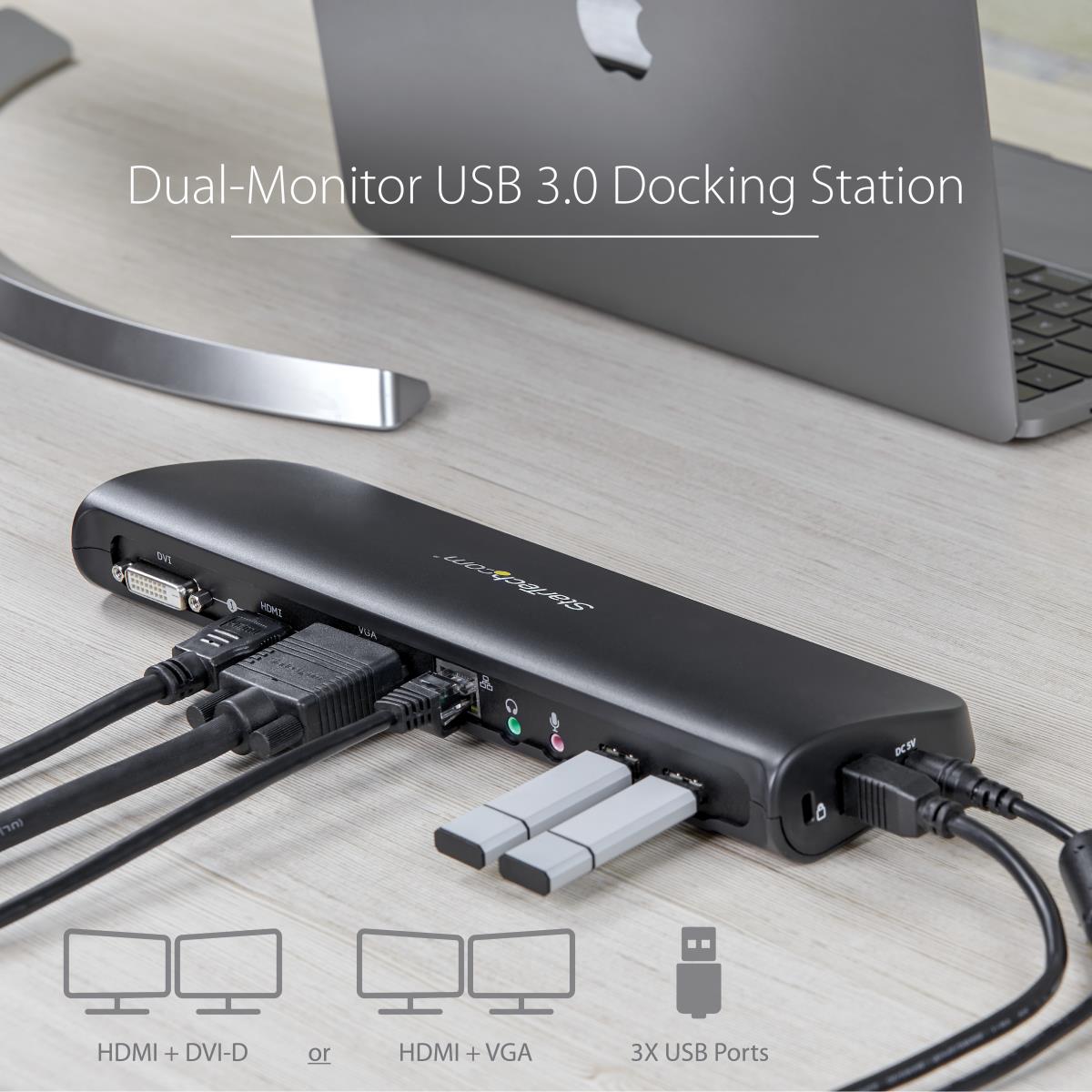

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

Available display combinations:

• HDMI + VGA
• HDMI + DVI

Integrated USB Hub

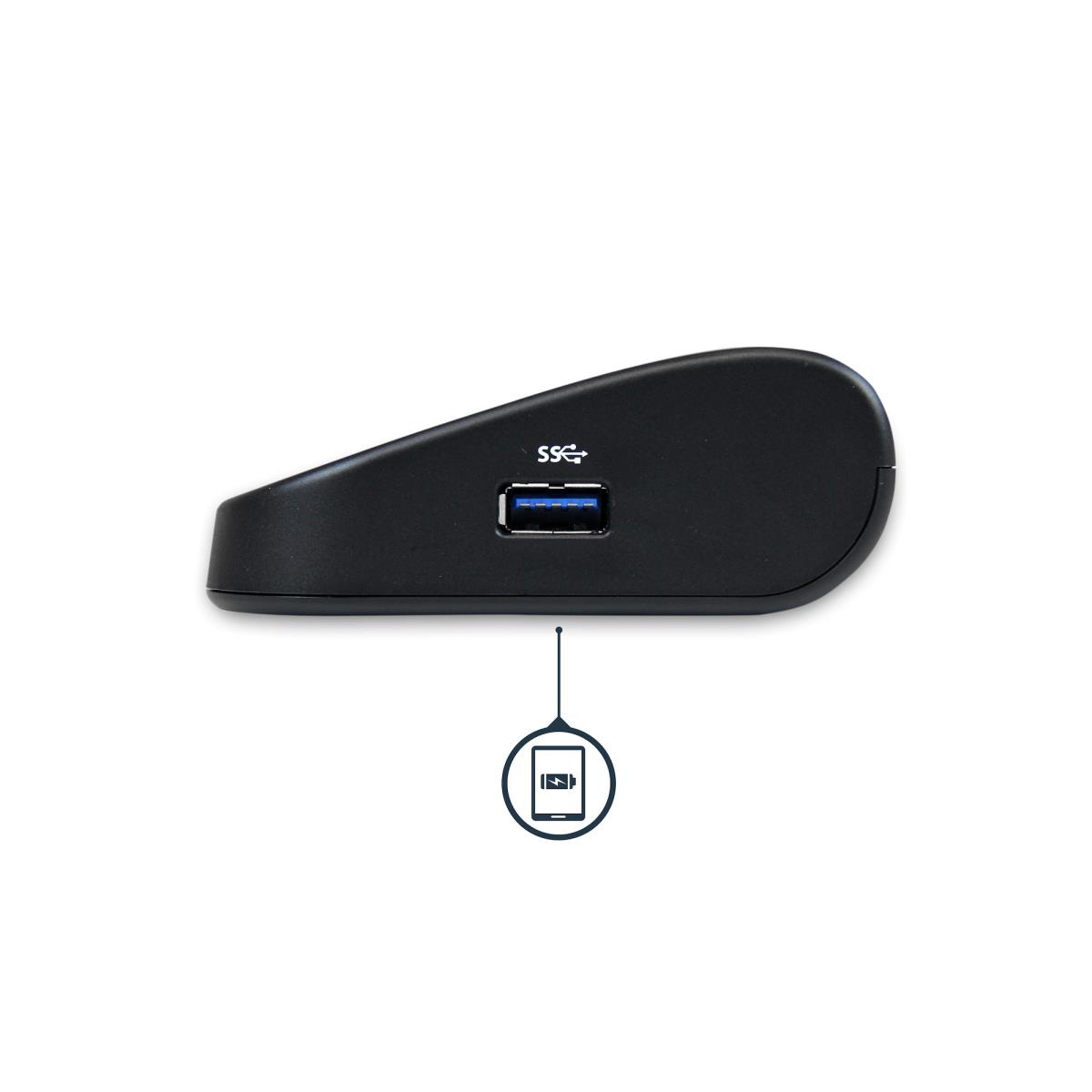

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.

The StarTech.com Advantage

Specifications

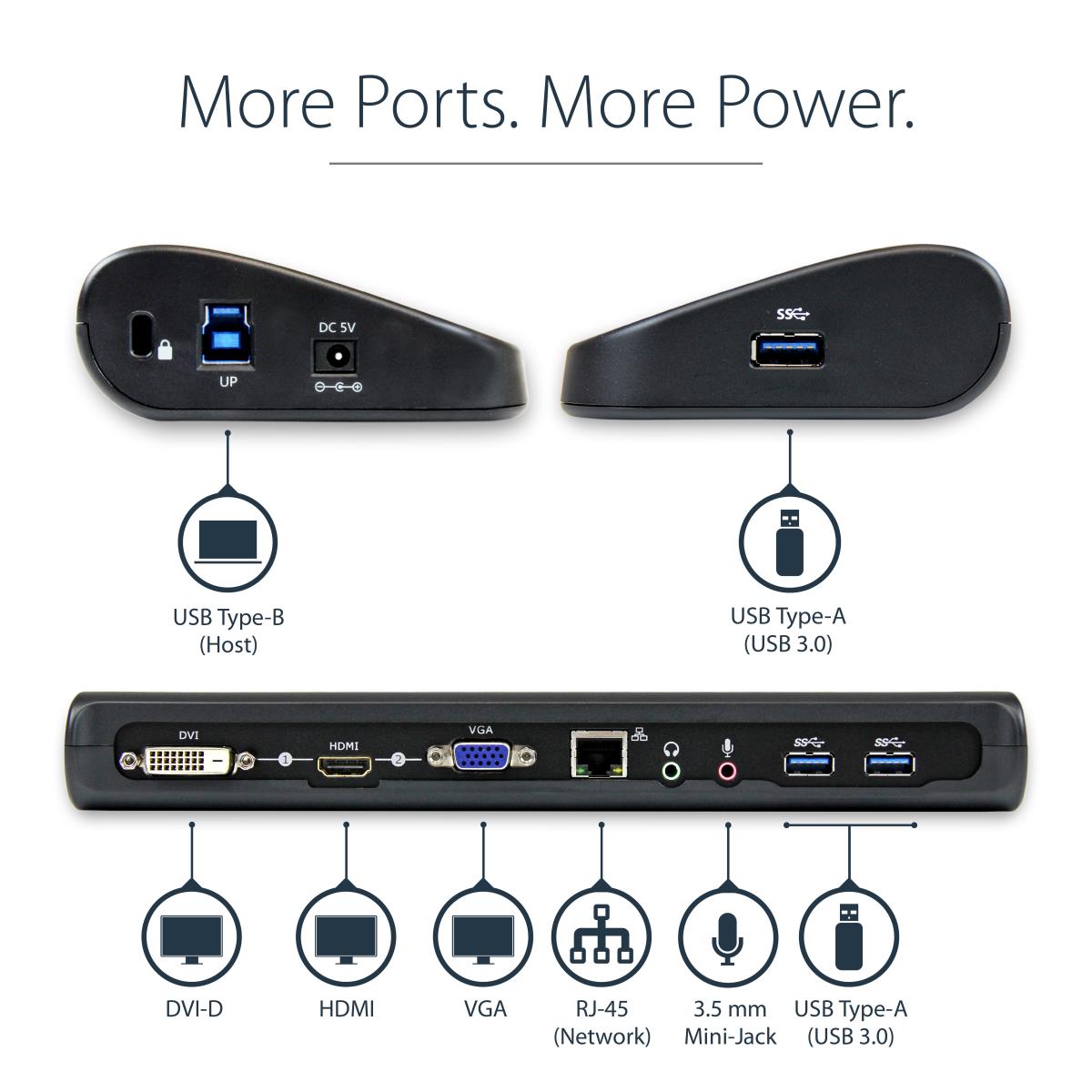

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
Microphone inYes
Headphone outputs1
DC-in jackYes
Connectivity technologyWired
Network
Full duplexYes
Auto MDI/MDI-XYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports1
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Performance
Maximum digital resolution1920 x 1200 pixels
Maximum analog resolution2048 x 1152 pixels
Full duplexYes
Auto MDI/MDI-XYes
Product colourBlack
Card reader integratedNo
Cable lock slotYes
Data transfer rate5 Gbit/s
CertificationFCC, CE, TAA, REACH
Cable lock slot typeKensington
Housing materialPlastic
USB data transfer rates12,480,5000 Mbit/s
Technical details
Product colourBlack
Cable lock slotYes
Data transfer rate5 Gbit/s
Harmonized System (HS) code84733020
Compliance certificatesRoHS
Products per master (outer) case6 pc(s)
Master (outer) case width215 mm
Master (outer) case length435 mm
Master (outer) case height345 mm
Storage
Card reader integratedNo
Power
Input current0.9 A
Power plug typeType B
Compatible power plug typesAU, EU, UK, US
AC input voltage100-240 V
Power consumption (typical)20 W
Output voltage5 V
Output current4 A
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mac compatibilityYes
Other operating systems supportedChromeOS
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 90%

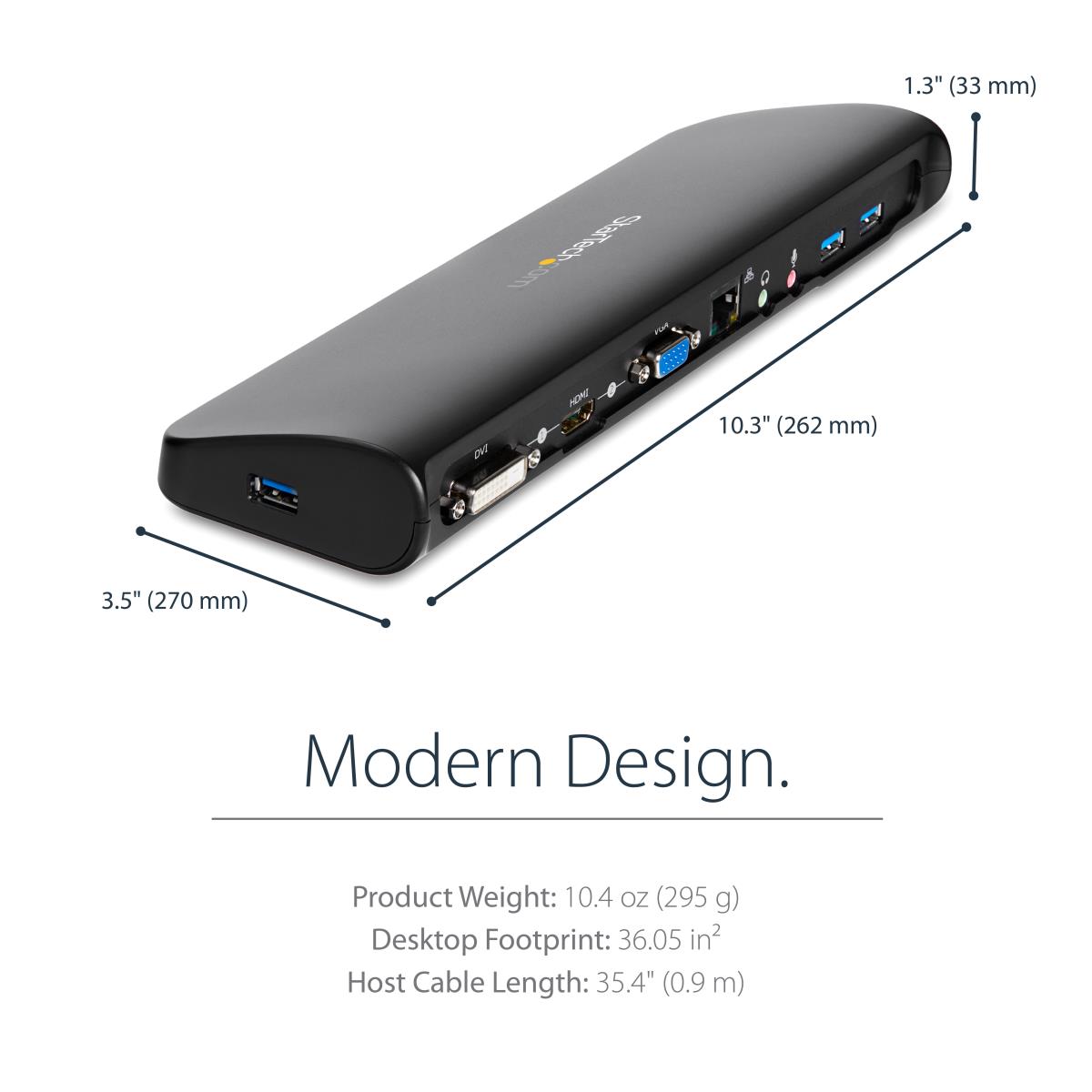

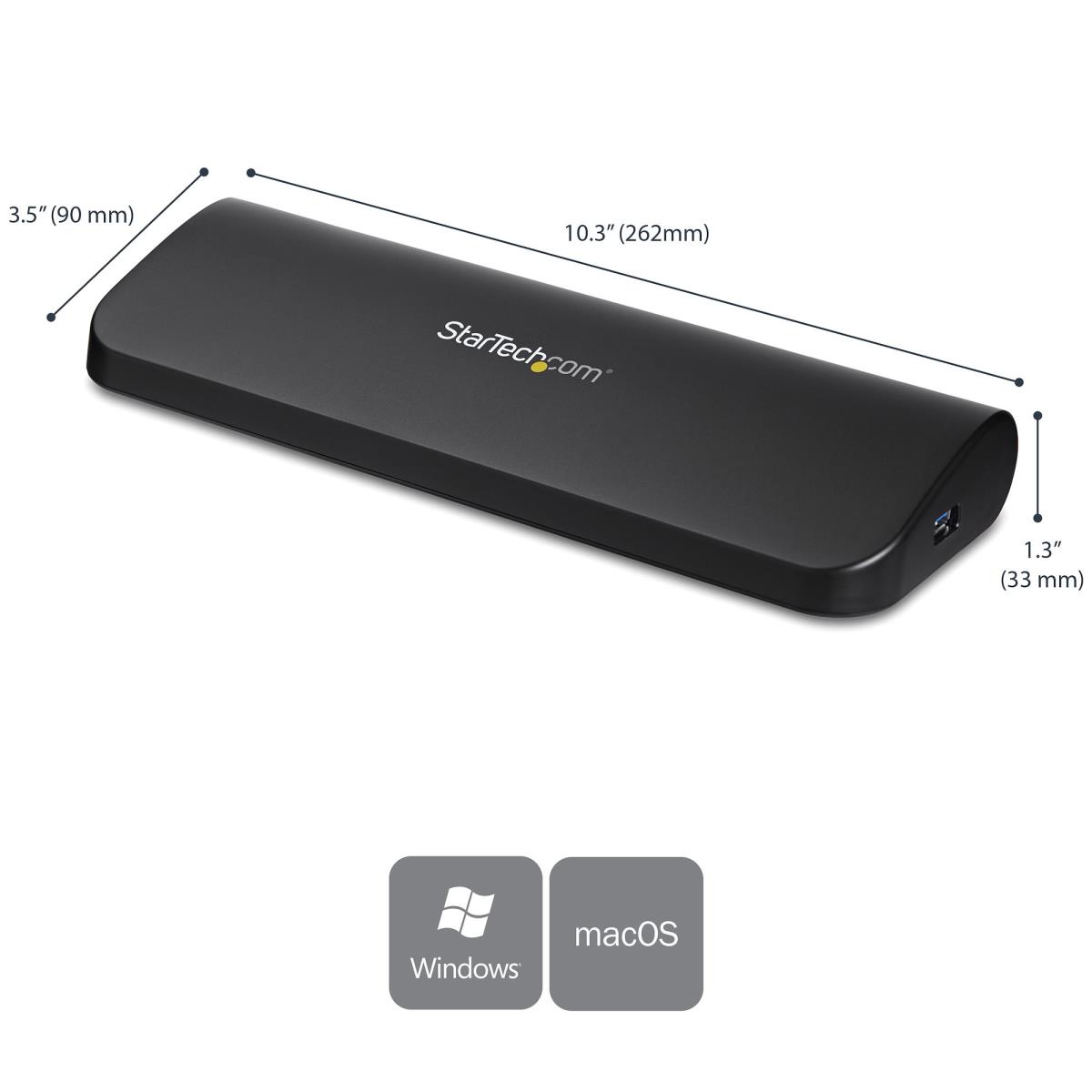

Weight & dimensions
Weight295 g
Width178 mm
Depth304 mm
Height44 mm
Package weight878 g
Package width195 mm
Package depth296 mm
Package height66 mm
Design
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colourBlack
Cable lock slotYes
CertificationFCC, CE, TAA, REACH
Cable lock slot typeKensington
Packaging data
Package weight878 g
Package width195 mm
Package depth296 mm
Package height66 mm

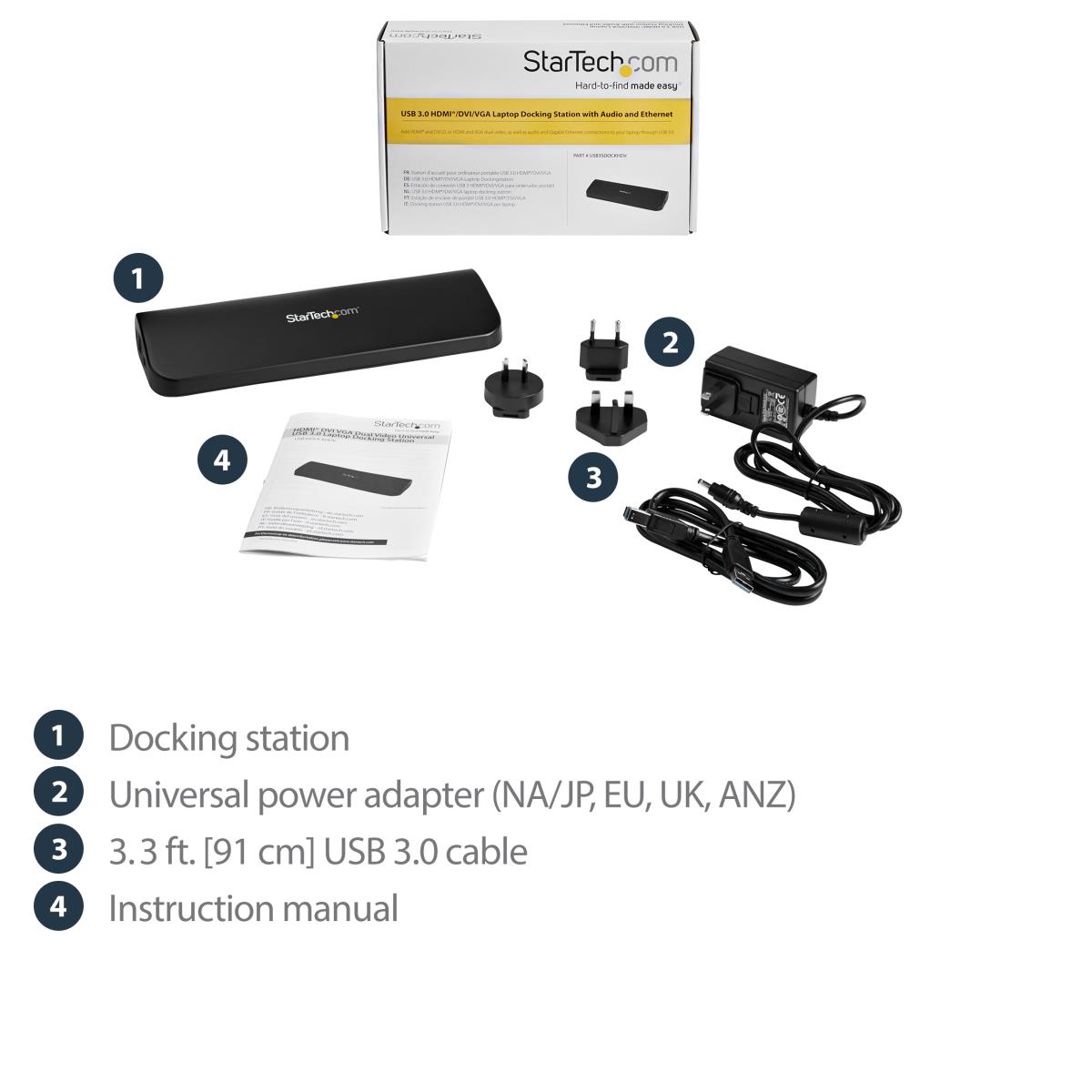

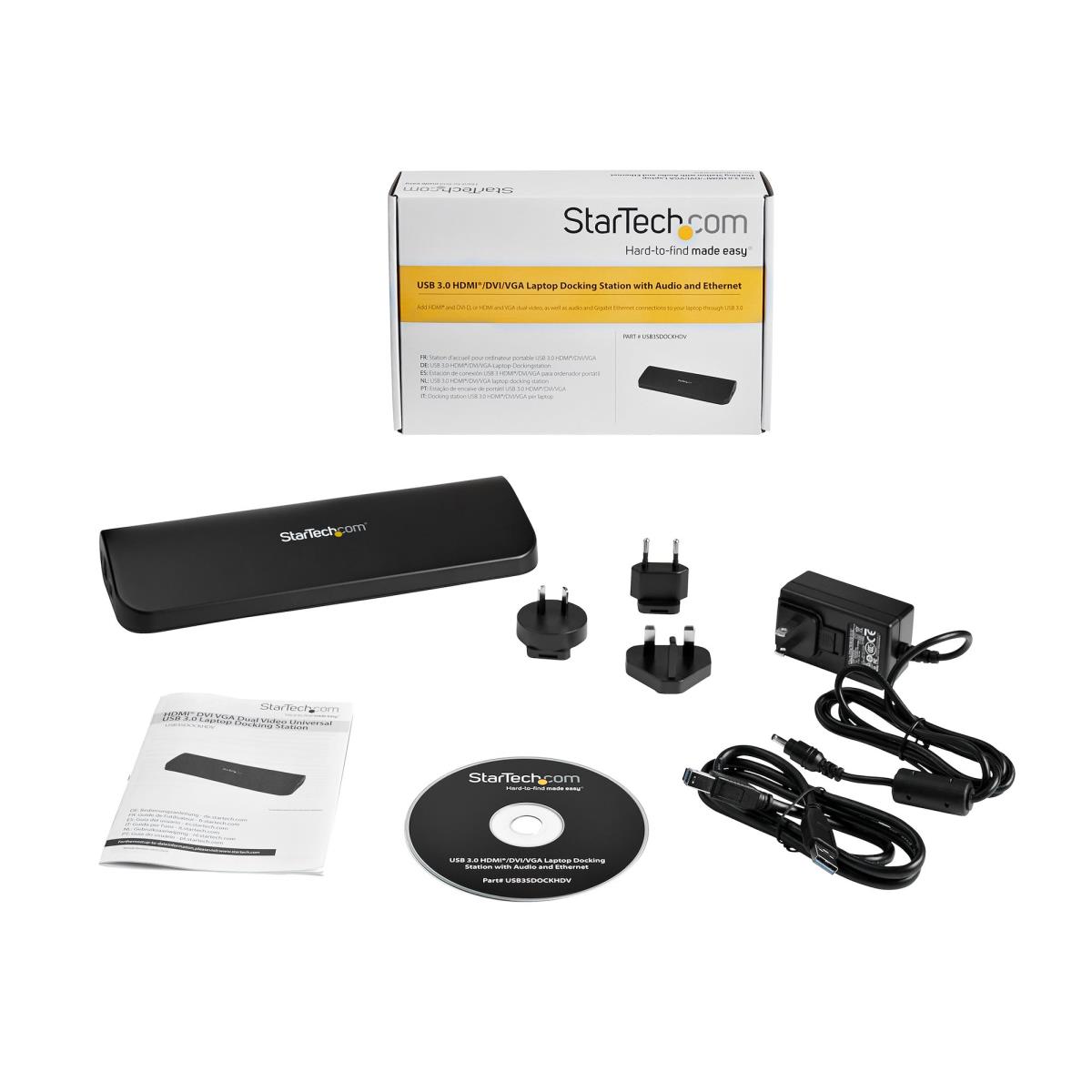

Packaging content
Drivers includedYes
ManualYes
Cables includedUSB
AC adapter includedYes
Certificates
CertificationFCC, CE, TAA, REACH
Logistics data
Products per master (outer) case6 pc(s)
Master (outer) case width215 mm
Master (outer) case length435 mm
Master (outer) case height345 mm
Harmonized System (HS) code84733020
Other features
USB data transfer rates12,480,5000 Mbit/s
ChipsetDisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E
