DVI USB HDBASET2.0 EXTENDER
Introduction

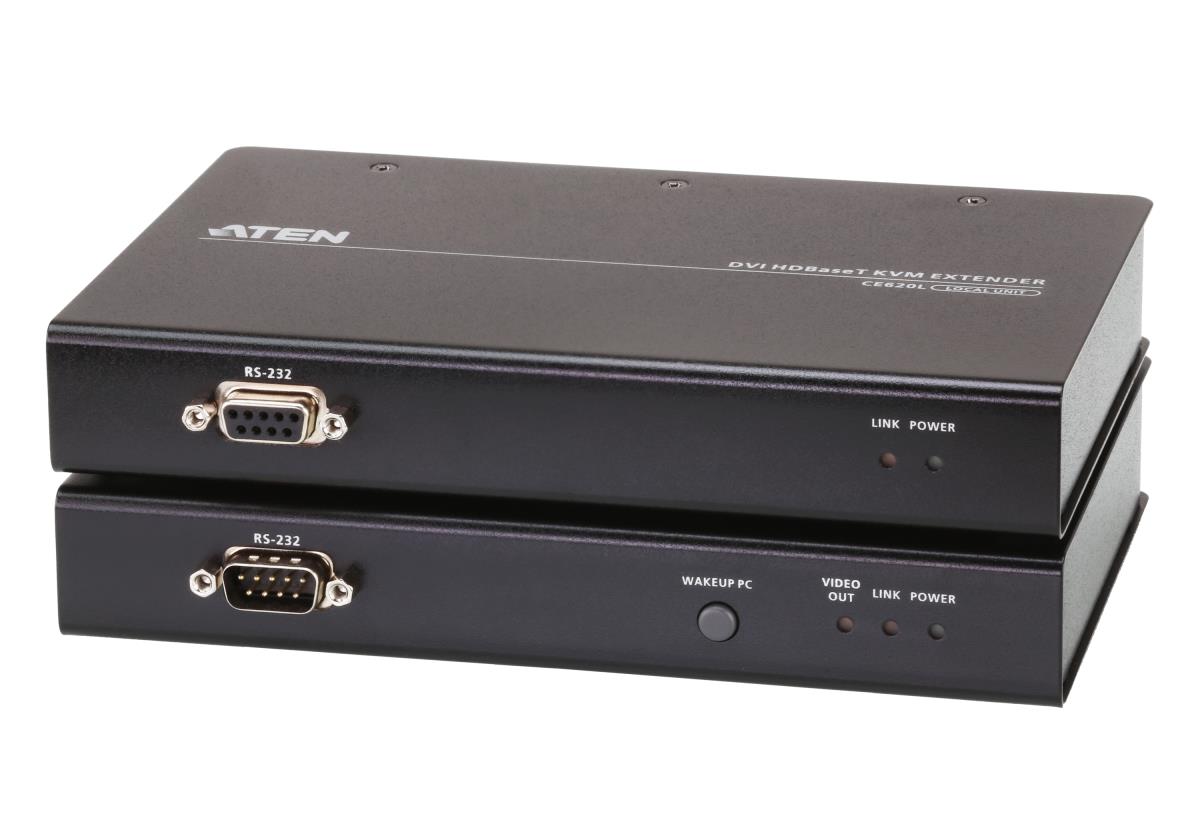

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. Featured with a Long Reach mode, the CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals up to 150 meters using a single Cat6/6a/ATEN 2L-2910 Cat 6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Firmware upgradeable | Yes |
| Product colour | Black |
| Material | Metal |
| Transmitter | |
| Transmitter local video port | Yes |
| Transmitter local video port type | DVI-D |
| Receiver | |
| Receiver local video port type | DVI-D |
| Power | |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 5.6 W |
| Weight & dimensions | |
| Transmitter width | 18.2 cm |
| Transmitter depth | 12.3 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 630 g |
| Receiver width | 18.2 cm |
| Receiver depth | 12.3 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 640 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | DVI |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| AC adapter included | Yes |
| Cables included | DVI |
| Manual | Yes |
| Other features | |
| Firmware upgradeable | Yes |
