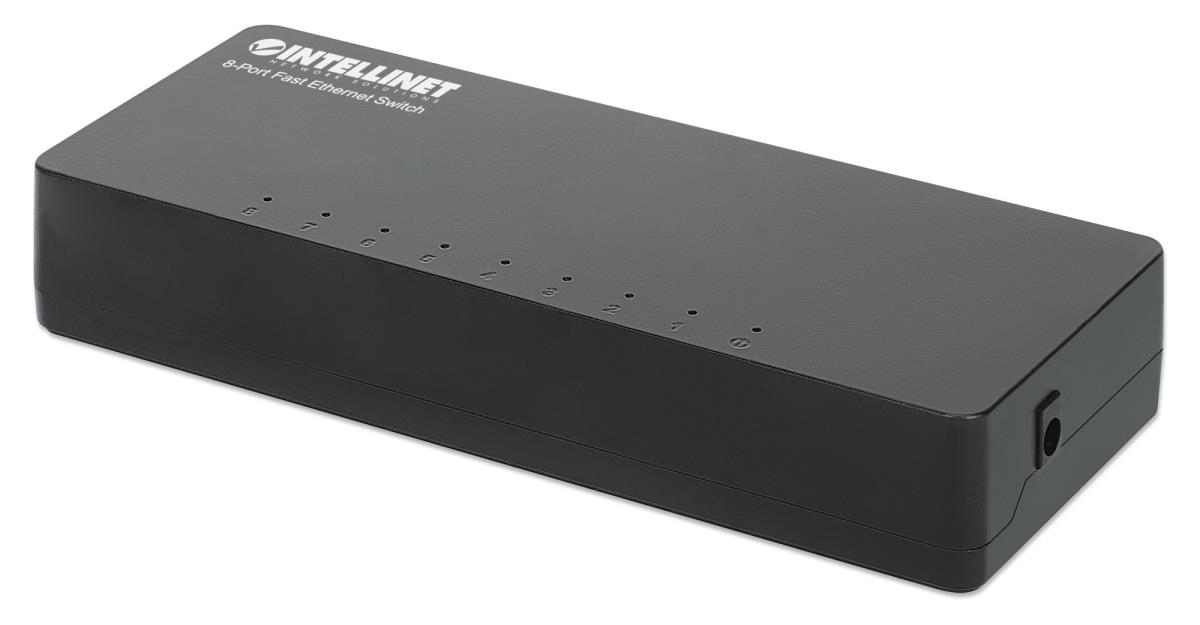

EU Product - Desktop 8-Port Fast Ethernet Switch schwarz
Introduction
Fast Ethernet Switch with 8 ports - Easily add Ethernet-ready devices to your home or office network at speeds up to 100 Mbps

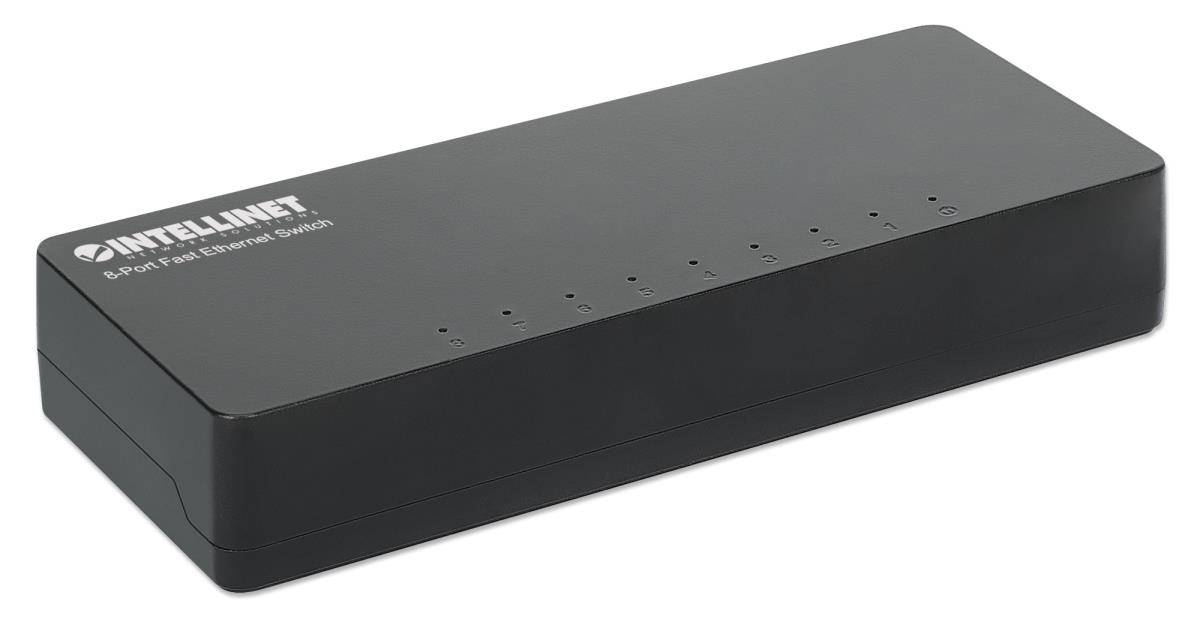

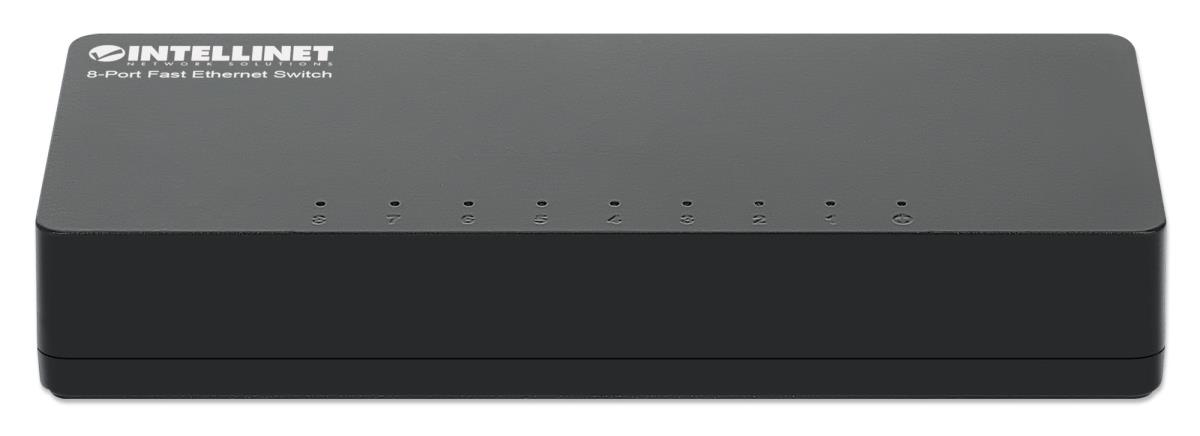

The 8-Port Fast Ethernet Switch from Intellinet Network Solutions is perfect for home offices and small-size businesses looking for a durable switch that is reliable and easy to install. Small and powerful, this Fast Ethernet Switch is easy to install and connects up to eight computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables, and it works with any operating system. The auto features of this switch make installation plug-and-play and hassle-free. Plus, it has Green Ethernet technology, allowing it to monitor power usage and turn off unused ports to save electricity.
Specifications
| Ports & interfaces | |
|---|---|

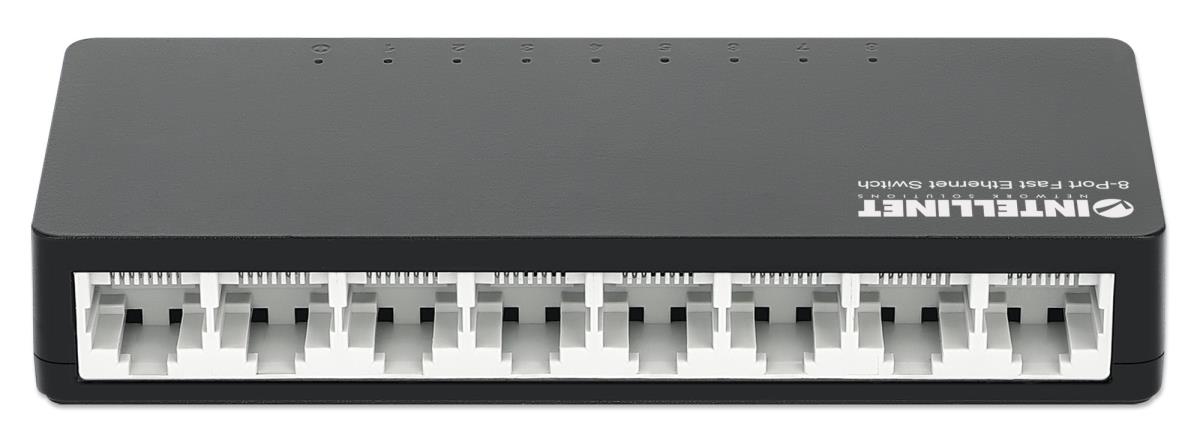

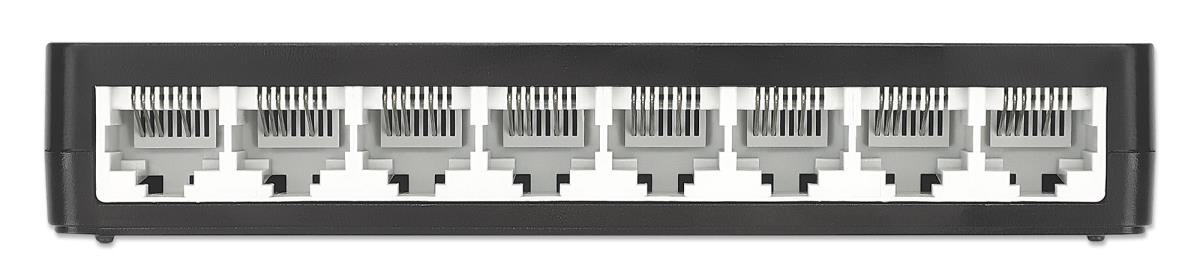

| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat6 |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 16000 |
| Packet buffer memory | 0.5 MB |
| MAC address table | 1000 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 1.19 Mpps |
| Design | |
| Product colour | Black |

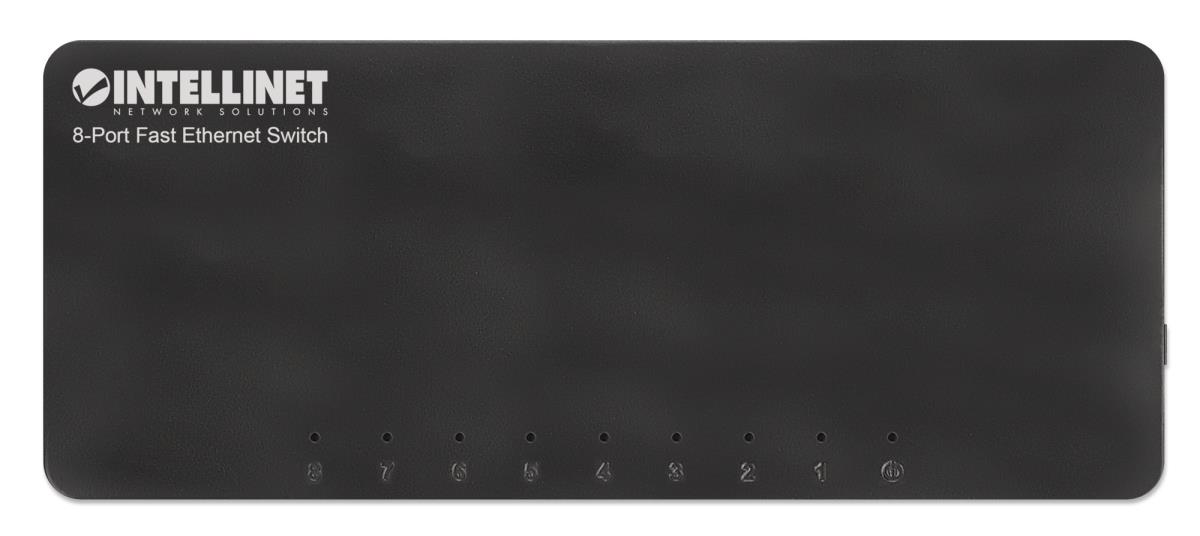

| LED indicators | Activity, Link, Power, Speed |
| Rack mounting | No |
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 0.5 MB |
| Power | |
| Power consumption (max) | 1.26 W |
| Power supply included | Yes |
| Input voltage | 5 V |
| Input current | 0.55 A |
| Power source | AC |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 51 mm |
| Depth | 124 mm |
| Height | 21 mm |
| Weight | 150 g |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Certificates | |
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
| Indication | |
| LED indicators | Activity, Link, Power, Speed |
| Packaging data | |
| Quick start guide | Yes |
| Manual | Yes |
| Other features | |
| Input voltage | 5 V |
