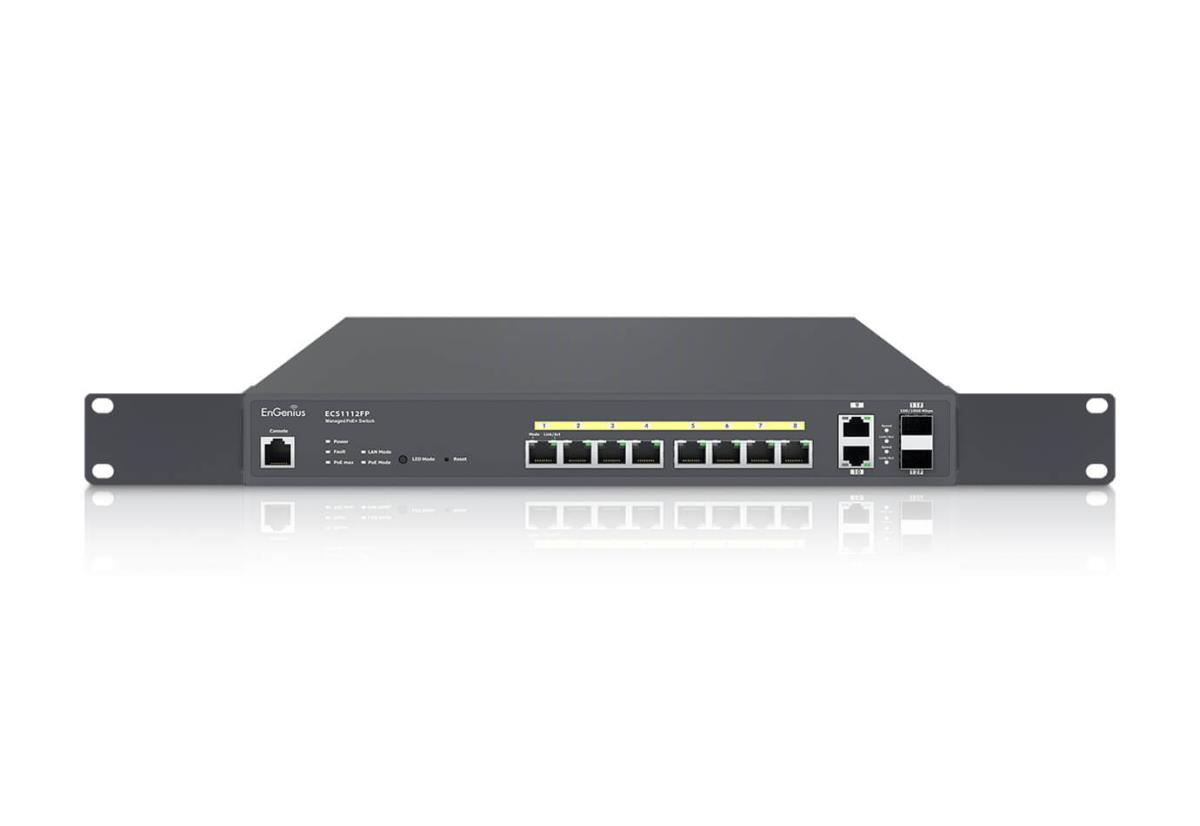

EU Product - Cloud Managed Switch 8-port GbE PoE.af/at(+) 130W
Introduction
EnGenius Cloud Managed Layer 2+ Switch ECS1112FP offers 8 Gigabit PoE+ ports, 2 Dual-Speed SFP uplink ports, and a 130W budget, ideal for SMBs. It supports zero-touch provisioning and centralized cloud management. With advanced security features, Voice-VLAN, and PoE Extended Mode, it optimizes network efficiency for quality voice and video traffic, enabling peak performance for SMBs.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2+ |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 192 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Number of multicast groups filtered | 256 |
| Security | |
| SSH/SSL support | Yes |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 130 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 229 mm |
| Height | 44 mm |
| Weight | 1.9 kg |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Packaging data | |
| Package width | 377 mm |
| Package depth | 297 mm |
| Package height | 100 mm |
| Package weight | 2.85 kg |
| Quick start guide | Yes |
| Manual | Yes |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Logistics data | |
| Master (outer) case width | 322 mm |
| Master (outer) case length | 404 mm |
| Master (outer) case height | 314 mm |
| Master (outer) case gross weight | 9.4 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 8.55 kg |
