EU Product - Unmanaged Switch 5-port GbE
Introduction

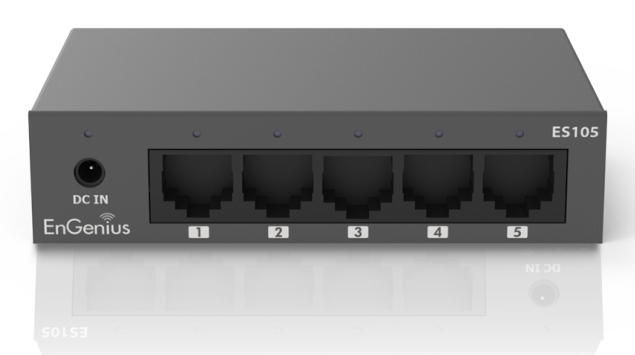

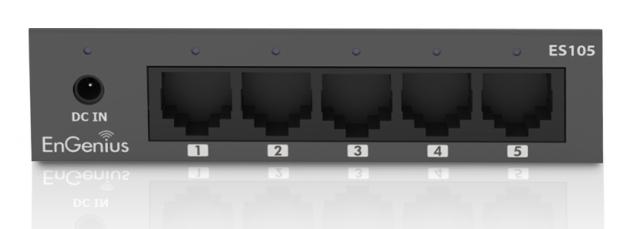

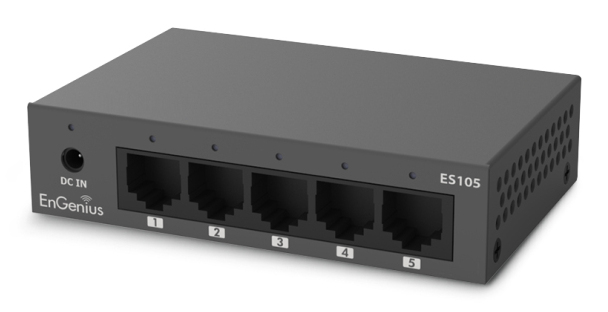

EnGenius ES105 is a 5-port Gigabit Switch, perfect for SMBs seeking to expand port density. It offers plug-and-play simplicity, requiring no configuration for easy installation. This switch features a rugged, fanless design for silent operation and Energy Efficient Ethernet (IEEE 802.3az) to dynamically adjust power based on network traffic, ensuring efficient and seamless performance.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| 10G support | No |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Activity, Link |
| Rack mounting | No |
| Performance | |
| Fanless | Yes |
| Power | |
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 64 mm |
| Depth | 100 mm |
| Height | 24 mm |
| Weight | 144 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 110 mm |
| Package depth | 85 mm |
| Package height | 60 mm |
| Package weight | 247.5 g |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Indication | |
| LED indicators | Activity, Link |
| Other features | |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Logistics data | |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 13.1 kg |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case net weight | 12.4 kg |
