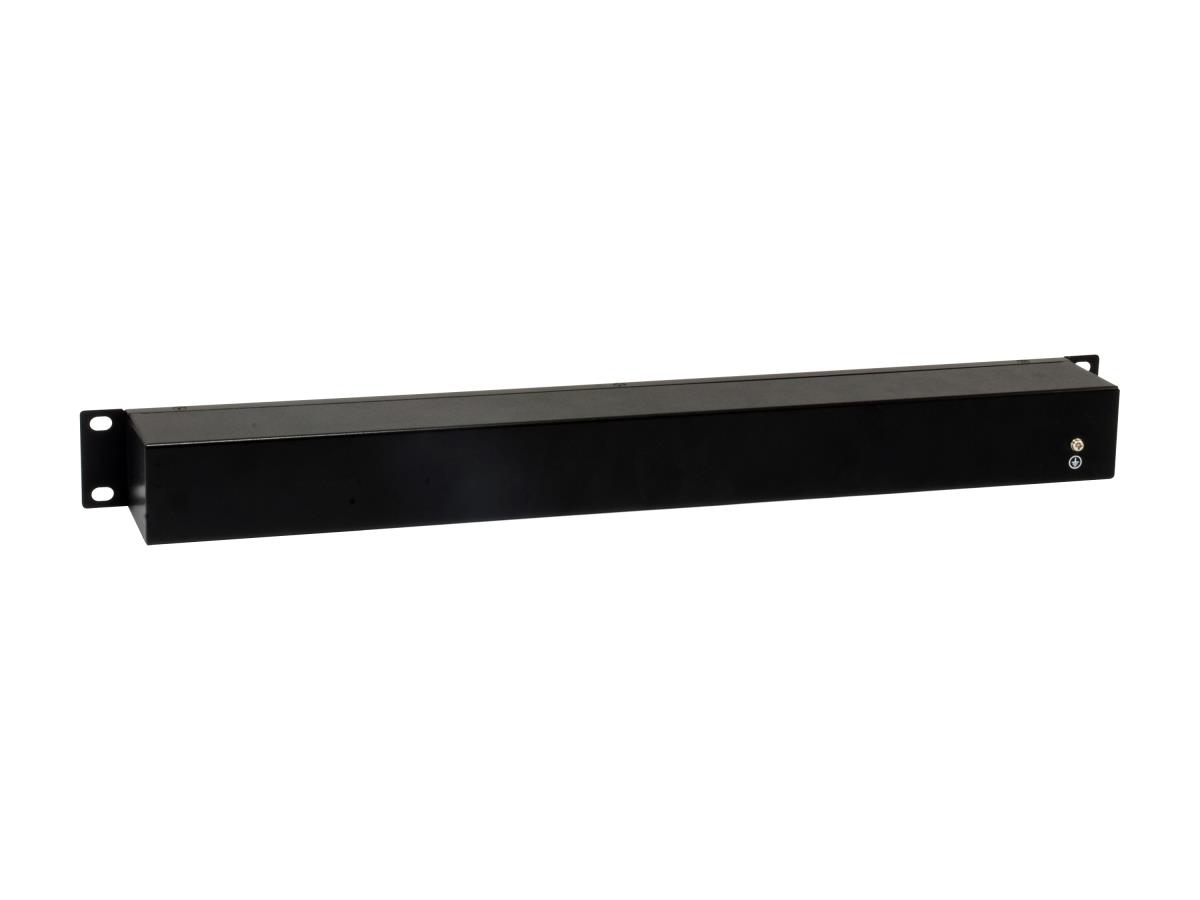

EU Product - LevelOne Überspannungsschutz 24xPoE 6KV 30W schwarz
Introduction

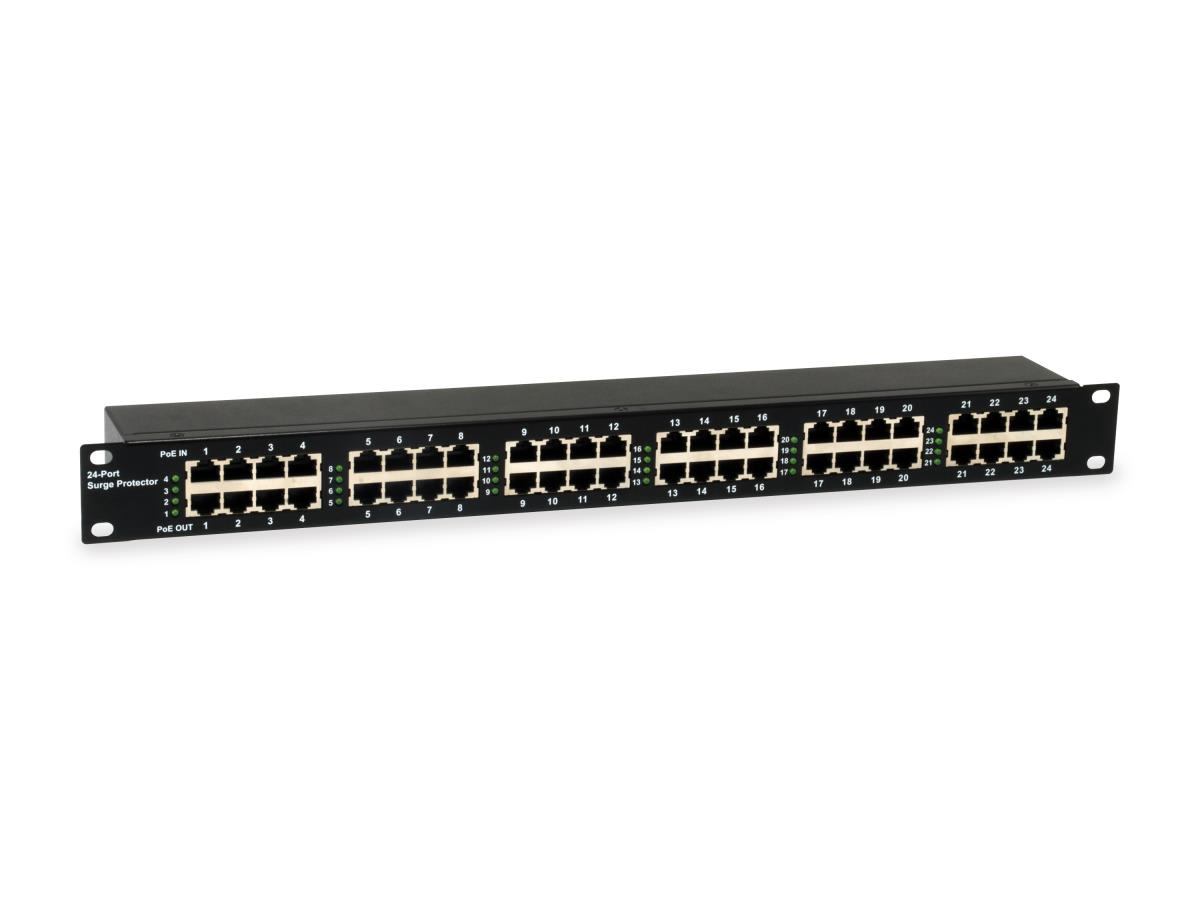

The LevelOne ESP-2400 is an in-line 24 ports RJ45 surge protector rack to support PoE standard IEEE802.3at/af devices connected. It has a total of 48 RJ45 connectors and simply installs in-line on each RJ45Cat5e/6 cable. The in-line installation is a very easy and straight forward. Unit protects up to 24 differentEthernet devices like switches, routers, laptops/PCs, etc from damaging surges caused by lightning orstatic electricity upto 6KV. Moreover, each port is isolated from others and will not fail the entire rack ifsome of ports are damaged which its LED is off.
Specifications
| Power | |
|---|---|
| Surge energy rating | 0 J |
| AC outlets quantity | 0 AC outlet(s) |
| Nominal input voltage | 58 V |
| Clamping voltage | 77 V |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 48 |
| Features | |
| Country of origin | Taiwan |
| Rack mounting | Yes |
| Material | Metal |
| Product colour | Black |
| Technical details | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Harmonized System (HS) code | 85364900 |
| Weight & dimensions | |
| Weight | 1.2 kg |
| Width | 482 mm |
| Depth | 59 mm |
| Height | 44 mm |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 125 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Package weight | 1.5 kg |
| Package width | 540 mm |
| Package depth | 130 mm |
| Package height | 95 mm |
| Package type | Box |
| Other features | |
| Country of origin | Taiwan |
| Logistics data | |
| Master (outer) case width | 550 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 520 mm |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 16.3 kg |
| Harmonized System (HS) code | 85364900 |
